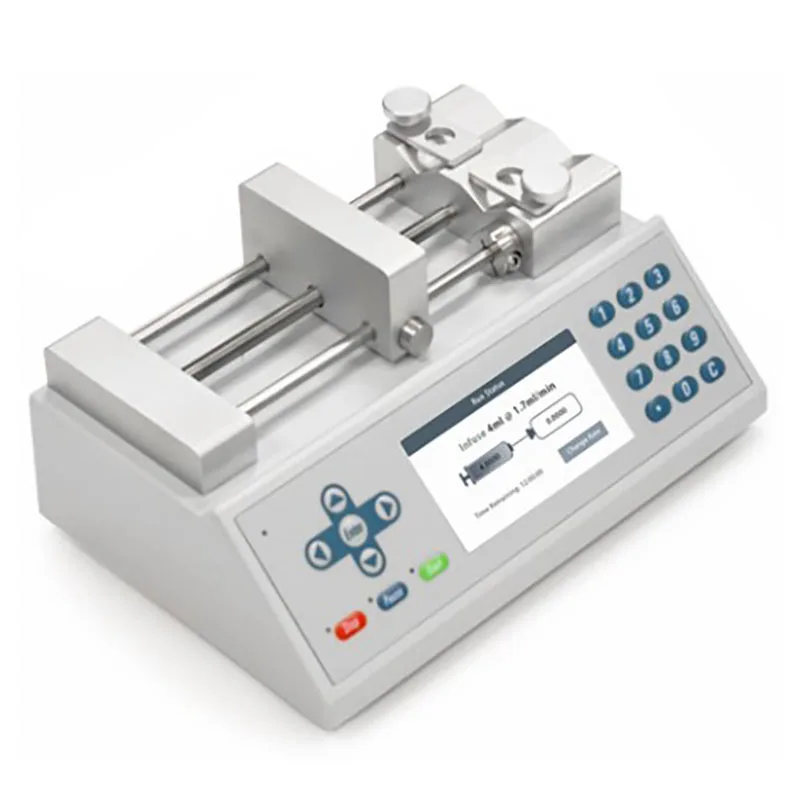

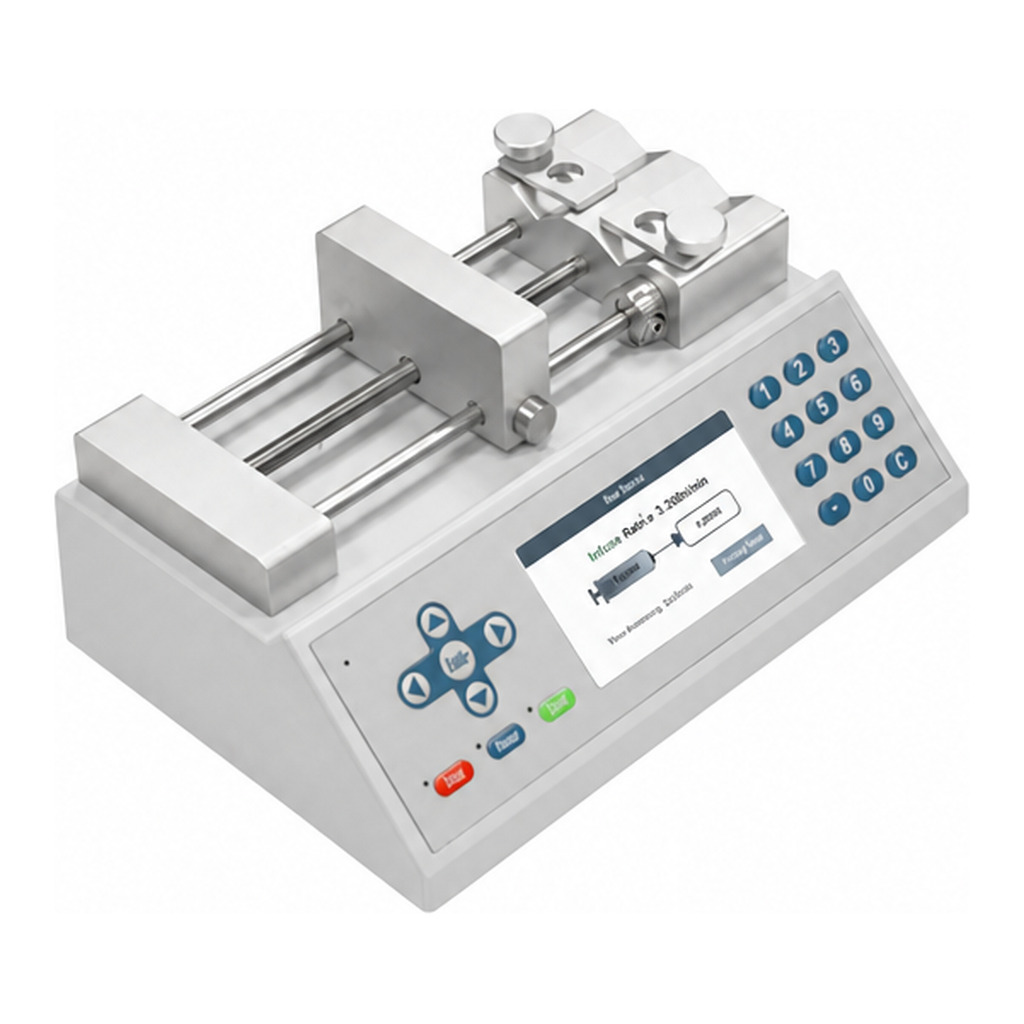

Fusion 101A Syringe Pump
System Overview
Chemyx Fusion 101A is a programmable infusion-only syringe pump that performs the most basic precision dispensing activities. This syringe pump comes with standard infuse mode and multi-step programmable mode. It also has an RS232 and USB port that allows the pump to be controlled by a computer. The programmable infusion pump can be used for mass spectrometry calibration, synthetic chemistry, electro-spinning, drug infusion, and ESI microliter injections. The upgrade of this model is Fusion100-X.
Standard Features:
- Graphic LCD interface
- RS232 port for computer control
- Integrated syringe dimensions library
- Selectable rate units: μl/hr, μl/min, ml/hr, ml/min
- Stall detection with audible alarm
- Silent operation
- Accommodates any syringe: glass, plastic, and microsyringes
- 1-Year Limited* Warranty
Technical Specifications:
|
|
| Mode |
Infuse Only |
| Accuracy |
± < 0.35% |
| Reproducibility |
± < 0.05% |
| Syringe Size (Min/Max) |
10mL to 20mL |
| Syringe Type |
Plastic and Glass |
| Syringe Flow Rates |
See Syringe Library for Min & Max Flow Rates |
| Minimum Flow Rate |
0.0001 µL/min (with 0.5µL syringe) |
| Maximum Flow Rate |
38 mL/min (with 30mL syringe) |
| Linear Force |
26lb (11.8kg) |
| Display |
4.3 inch LCD Screen |
| Connectivity |
RS232 and USB-B Ports |
| System Dimensions |
9.5 x 6.8 x 4.4 inches (24 x 17 x 11 cm) |
| Power |
110/220 VAC |
| Weight |
7lbs (3kg) |
| Motor Drive |
0.9˚ Stepper Motor with Micro-stepping |
| Step Resolution |
0.198 µm/step |
| Operating Temperature |
4°C to 40°C (40°F to 104°F) |
| Regulatory Compliance |
CE, RoHS, REACH, FCC, IC |
