| 상품 옵션 정보 | |||||||
|---|---|---|---|---|---|---|---|
| 카탈로그 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
| 76000X | CHEMYX 76000X Fusion 6000-X High Pressure Pump set | 재고문의 | set | 9,300,000원 | - | 10,230,000원 | |

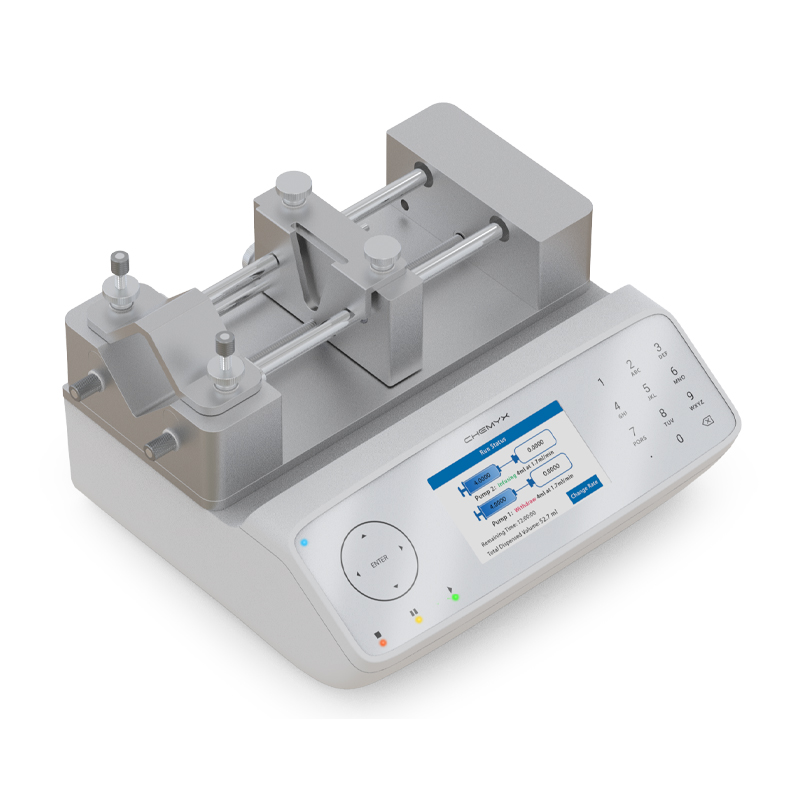

Fusion 6000X Syringe Pump
개요:
Chemyx Fusion 6000X는 점성 용액과 압력에 반하는 반고체 물질 주입을 위해 설계된 고압 주사기 펌프입니다. 이 주사기 펌프 시스템은 가열된 주사기 온도 제어와 압력 조절을 모두 허용하면서 실험적 성공에 중요한 정밀한 흐름과 성능을 제공합니다. Fusion 6000X는 거의 모든 연구 응용 프로그램을 수용하며, 미세유체 정밀도로 압력 추가 또는 고점도 슬러리에 대한 압력과 온도를 제어할 수 있습니다. 2년 제한 보증이 제공되므로 수년간의 서비스에 대한 신뢰성과 정밀성을 확신할 수 있습니다.
Specifications
| Mode | Infuse/Withdraw |
|---|---|
| Accuracy | ± < 0.35% |
| Reproducibility | ± < 0.05% |
| Syringe Size (Min/Max) | 0.5µL to 300mL Stainless Steel Syringe |
| Syringe Type | Plastic, Glass and Stainless Steel Syringe Type Chart |
| Syringe Heating Sleeve Temperature | up to 80°C |
| Syringe Flow Rates | See Syringe Library for Min & Max Flow Rates |
| Minimum Flow Rate | .0001 µL/min (with 0.5µL syringe) |
| Maximum Flow Rate | 408 mL/min (with 300mL syringe) |
| Linear Force | up to 700lbs (318kg) |
| Maximum Pressure | See Max Pressure for Chemyx Syringes |
| Maximum Viscosity | 250,000 cP |
| Display | 4.3 inch LCD Touch Screen |
| Connectivity | USB-B, RS232 and TTL Ports |
| System Dimensions | 11 x 10 x 6.9 inches (28 x 26 x 18 cm) |
| Power | 110/220 VAC |
| Weight | 19lbs (8.61kg) |
| Motor Drive | 1.8˚ MicroStepper Motor |
| Step Resolution | 0.0938 µm/step |
| Operating Temperature | 4°C to 40°C (40°F to 104°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity | 20% to 80% RH, non-condensing |
| Installation Category | II |
| Regulatory Compliance | CE, RoHS, REACH, ETL |
Features
High Pressure, High Viscosity Infusion, High Precision
The Fusion 6000-X high-pressure syringe pumps are designed to deliver highly viscous fluids with very high precision, providing up to 700lb of linear force at reproducible flow rates via a state-of-the-art micro stepper motor. Easily and effortlessly deliver accurate and precise amounts of fluids for a multitude of applications like syringe pump pressure dosing, fracking R&D, and hydrogenation with this Chemyx syringe pump.
Heating & Pressure Control
The Fusion 6000-X high-pressure syringe pumps allow both heating syringe sleeves and a vacuum transducer pressure sensor to be attached to the system. The versatile Chemyx heated syringe system produces consistent results to reduce temperature and viscosity variations. The pressure monitoring technology and software are able to maintain a user-defined pressure throughout the infusion process.
Heavy Duty Construction
High-tensile-strength, hardened-steel guide mechanisms with machined metal holders are incorporated into the Fusion 6000 -X high-pressure syringe pump to allow for high load operation while still ensuring finely tuned microflow dosing. Chemyx high-viscosity syringe pumps last for years with an equipment value that is hard to match.
- Machined metal design
- Chemical resistant polypropylene coated screen
- 2-year warranty
Programmable & Intuitive Controls
Intuitive, user-friendly software lets users program and customize flow profiles and offers a robust database of brand-name syringes. Remote computer control capabilities are available on this high-pressure syringe pump through USB, TTL, and RS232 communication connections.
- Programmable variable rate profiles via keypad
- Computer control via USB, RS232, TTL
- LabVIEW and MATLAB drivers available
Specifications Sheet
Product Manual
