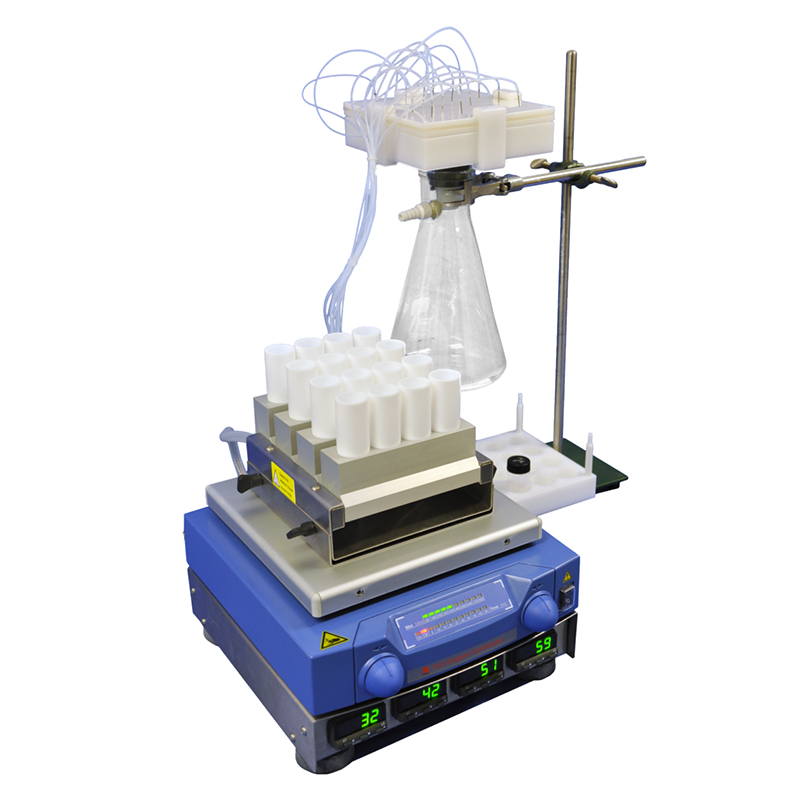

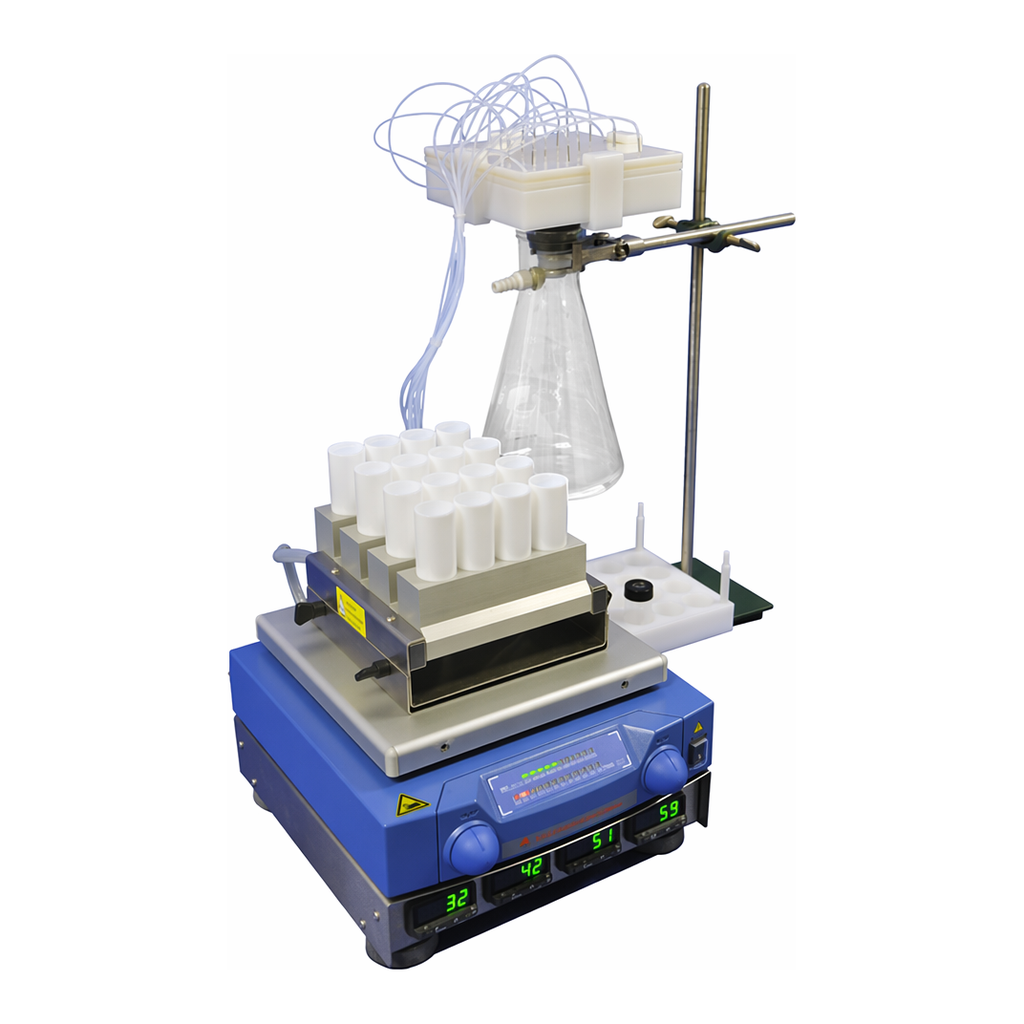

Activotec Activo-PLS Parallel Peptide Synthesizer

Activo-PLS Parallel Peptide Synthesizer provides an economic and easy to use parallel synthesis tool to accelerate your chemistry research.

Description

The Activo-PLS Parallel Peptide Synthesizer provides an economic and easy to use parallel synthesis tool to accelerate your chemistry research. Enabling fast lead generation, optimization, process development, combinatorial catalysis etc utilizing a range of PTFE solid phase and glass solution phase reactors.

Can be used for low cost multiple peptide synthesis too!

• Solution phase chemistry and/or solid phase chemistry
• Multiple peptide synthesis
• Scales from 0.5 mL to 50 mL
• Vortex mixing – variable speed
• Heating to +150°C, cooling to -80°C
• Suzuki reactions, amide bond formation, reductive aminations etc etc
• Parallel washing, product retrieval and cleavage

Activo-PLS Brochure
Activo-PLS RapiCool™ now available on PLS24 & PLS6!

Reactor configuration

Activo-PLS Type	Max. Heating	Min. Cooling	No. of temp. zones	No. of reactors places	Reaction volume range	Max Vial/Reactor diameter	Solid or solution phase capable
PLS4x6	Y+150°C	N	4	24	0.5mL – 6.0mL	17.1 mm	Both
PLS4x4	Y+150°C	N	4	16	2.0mL – 14.0mL	27.8 mm	Both
PLSHybrid	Y+150°C	N	4	20 – 2 rows of 6 2 rows of 4	0.5mL – 14.0mL	17.1mm and 27.8mm	Both
PLS50	Y+70°C	N	4	4	30mL in a 50mL reactor	n/a	Solution
PLS24	Y+150°C	Y -80°C	1	24	0.5mL – 6.0mL	17.1 mm	Both
PLS6	Y+150°C	Y -80°C	1	6	10.0mL – 50mL	40.5mm	Both

_PLS4x6, PLS4x4 and PLS50 reactor blocks can be interchanged on the same base. _
PLS24 and PLS6 reactor blocks can be interchanged on the same base. _

PLS4x6

• 4 rows with individual temperature control from room temperature to +150°C
• Synthesis scale from 0.5 mL to 5 mL

PLS4x4

• 4 rows with individual temperature control from room temperature to +150°C
• Synthesis scale up to 20 mL

PLS50

4 rows with individual temperature control from room temperature to +150°C
4 x 50mL round bottom flasks

PLS24 – cool to -80°C in just 20 mins!!

• Heating and cooling from -80°C to +150°C
• Dry box prevents any ice formation on cooling
• Synthesis scale from 0.5 mL to 5 mL

PLS6

• Heating and cooling from -80°C to +150°C
• Synthesis scale up to 50 mL
