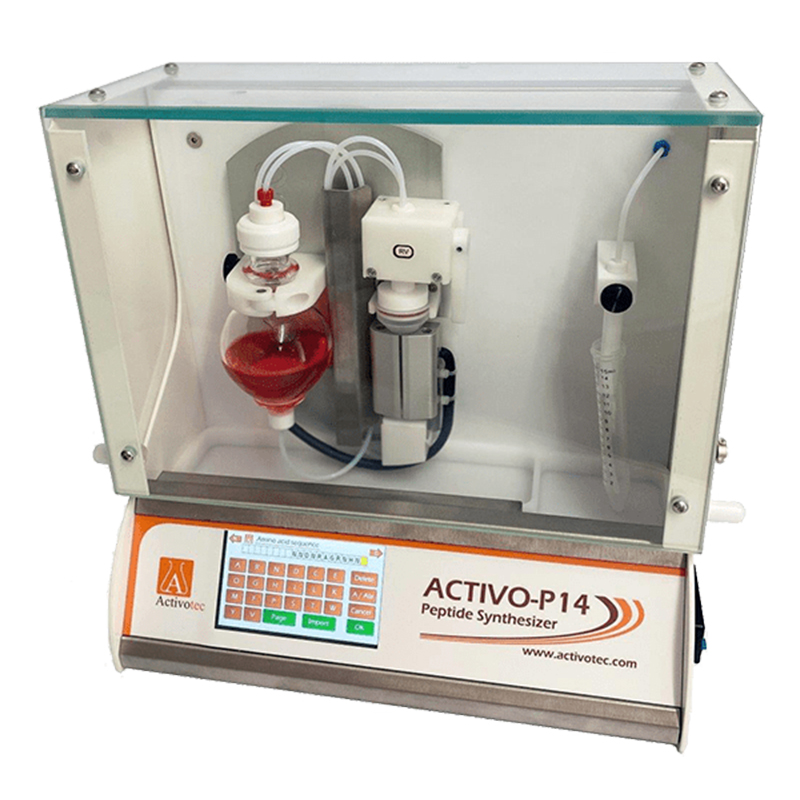

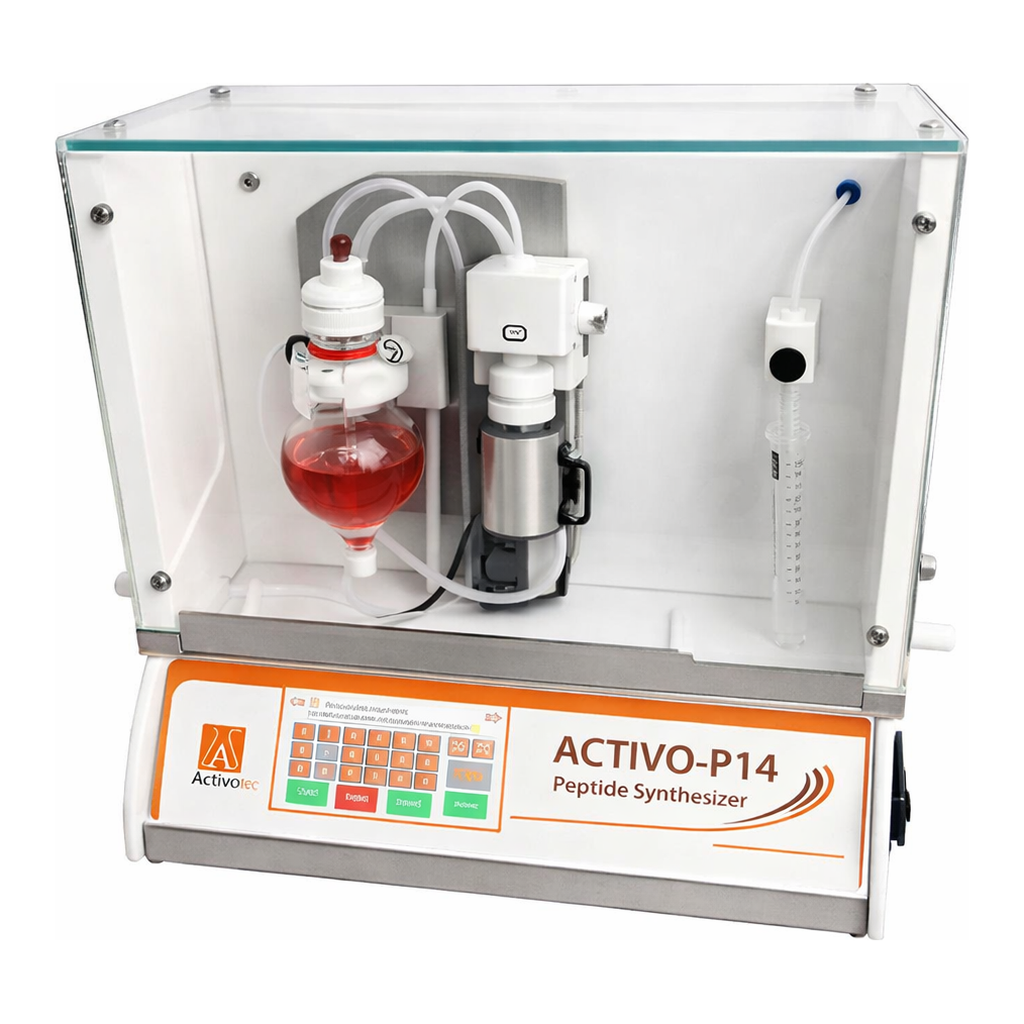

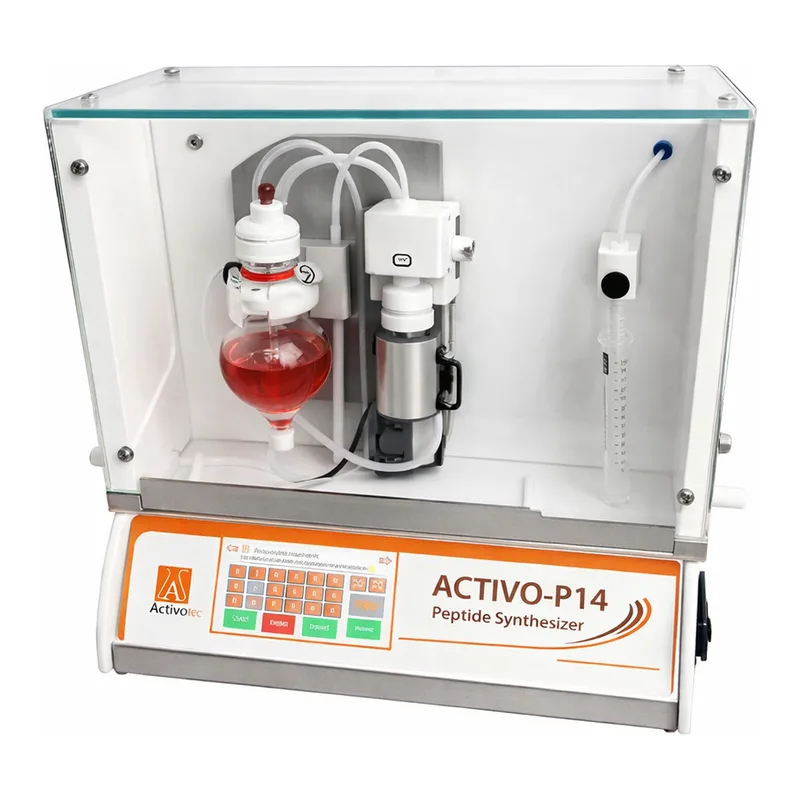

Activotec Activo-P14 Peptide Synthesizer
AI 생성AI가 생성·보정한 이미지예요. AI는 실수할 수 있으니 실제 제품과 다를 수 있어요.
1 / 2
Activotec

Activotec Activo-P14 Peptide Synthesizer

상품 한눈에 보기

경제적인 반자동 펩타이드 합성기로 고품질 펩타이드 합성 가능. 0.05~5.0 mmol 범위 지원, Fmoc/t-Boc 화학 모두 호환. 가열 반응기 및 UV 모니터링 옵션 제공. 터치스크린으로 손쉬운 조작과 자동 세척·탈보호 수행.

브랜드
Activotec
카테고리
Synthesizers
판매단위
pk
#Activotec#Synthesizers

카탈로그

1개 옵션
회원가입 없이 바로 구매하세요
가입하지 않아도 비회원가로 구매하실 수 있습니다.
Activotec ACTIVO-P14 Semi-automated Peptide Synthesizer : synthesis scale from 0.05 - 5.0 millimoles pk판매 단위 pk · 대체품 문의
단종
견적요청
재고문의·견적요청 옵션은 실시간 상담으로 납기를 확인해 드립니다 · 연구비 카드 결제 가능

Activotec · Activotec Activo-P14 Peptide Synthesizer

Activotec Activo-P14 Peptide Synthesizer

The Activo-P14 Peptide Synthesizer is an economical semi-automated instrument for the synthesis of very high-quality peptides.
This is the smallest and lowest-cost peptide synthesizer available.

Description

Now available with reactor heating & UV monitoring!
Activo-P14 Brochure

Key Features

  • High quality peptides
  • Any scale from 0.05 to 5.0 mmoles
  • Easy to use; use existing or define your own protocols
  • Automates resin washing and deprotection steps
  • Performs any Fmoc or t-Boc chemistries
  • Compatible with green chemistry solvents
  • Heated reactors up to +80°C
  • PNA synthesis capability
  • Safe and fully enclosed instrument design
  • Disposable reactors
  • Uses commercially available resins and reagents

High Quality Peptides

  • Inert atmosphere throughout
  • Precise and fast reagent delivery and washing
  • Efficient inversion mixing and nitrogen bubbling
  • Bottom filtration from disposable reactors

Ease of Use

  • Easy-to-use touch screen display
  • Enter sequence, quantity, and resin, then press run
  • Software-generated worksheet guides preparation
  • Flexible chemistry options for present and future use
  • Disposable reactors
  • Logfile generated for each synthesis
  • Easy cleave system directly from disposable reactor

Chemistry

  • Fmoc or t-Boc compatible
  • In situ or pre-activation
  • Supports coupling reagents: HBTU, HCTU, HATU, TBTU, PyBOP, DIC, etc.
  • Green chemistry support
  • PNA synthesis
  • Works with any resins (polystyrene or PEG)
  • Use any protocols
  • Synthesize peptides of any length

Diagram Text (OCR):
“Activo-P14 Peptide Synthesizer process flow diagram showing automated washing, deprotection, and coupling stages under inert atmosphere.”

Instrument Specification

Specification Details
Scale 0.05 – 5.0 mmoles
Chemistry Fmoc or t-Boc
Activation method Pre-activation or in-situ; user selectable (HBTU, HCTU, DIC, PyBOP, etc.)
Reaction vessel sizes 10 mL, 40 mL, 125 mL
Reagent/solvent bottles 3 bottles, 250 mL to 19 L range
Reactor heating Ambient to +80°C
Mixing system Over-centre mixing with variable speed and amplitude
Inert atmosphere 100% throughout the system
Fluid measurement Timed delivery
Power 240V/50Hz or 100V/60Hz
Logfile Printable logfile for each synthesis run
Dimensions Width 33 cm (13”), Depth 27 cm (11”), Height 33 cm (13”) + solvent storage unit

Technical Support

Activotec has extensive experience in peptide synthesis and automation processes and is committed to global customer support.

  • Fast, reliable service engineers and application chemists
  • Service contract options available
  • Peptide chemists provide application and chemistry assistance
  • On-site or facility-based training available

제품 이미지

Activo-P14 Peptide Synthesizer Diagram

Activotec 상품 둘러보기

전체보기

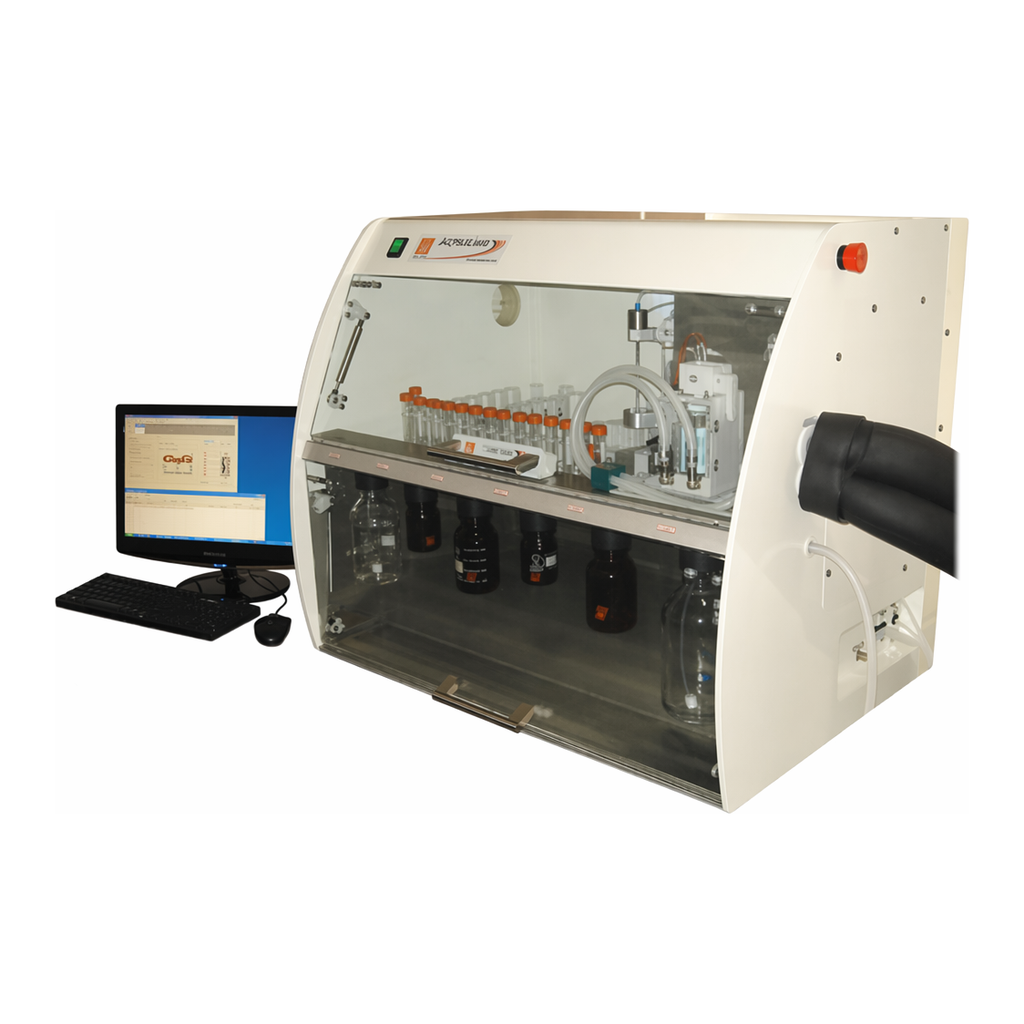

ActivotecActivotec Activo-S44 Automated Organic Synthesizer가격 문의VAT별도
