Isoclean® Platform Isolator (HPI G3)

견적요청
제품상담 버튼을 클릭하시면 해당 제품에 대해 문의하실 수 있습니다.
판매자: 비티알
브랜드: Esco

HPI G3

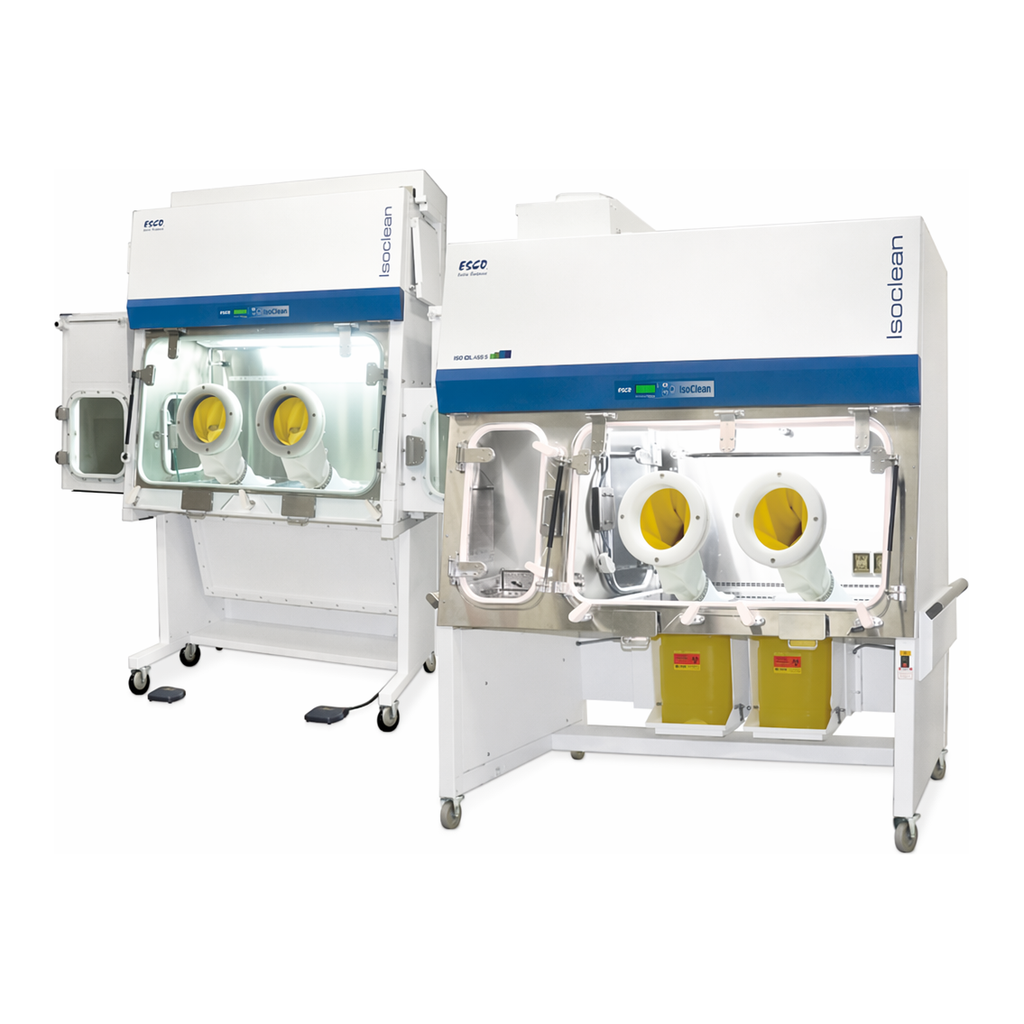

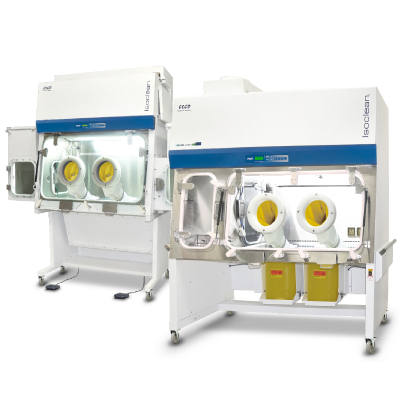

The Isoclean® Platform Isolator facilitates the isolation of a product or process while providing the required for sterile/aseptic environment. It is configured to operate at positive or negative pressure. This equipment provides a comprehensive range of personnel and product protection in addition to the surrounding work areas and the environment. It can be used different applications including Cell processing, handling of BSL-4 samples, Research and Development, Pharmacy Compounding (Chemotherapy/TPN), Small-scale Potent Material Handling, and Aseptic Processing.

  • ULPA filters with a typical efficiency of 99.999% at 0.1 to 0.3 microns provide superior ISO Class 5 air cleanliness.
  • Sentinel Gold™ Microprocessor Control System supervises all functions and monitors airflow and pressures in real-time.
  • Safe glove change permits zero risk of contaminating the work zone or environment
  • Robust construction and enhanced safety features qualify the Isoclean® Platform Isolator for the most demanding laboratory applications. The isolator is fully assembled and ready to install and operate when shipped.
  • Ergonomically angled front gloveports improve reach and comfort.
  • Esco ISOCIDE™ antimicrobial coating on all painted surfaces minimizes contamination.
  • Sharps disposal system and adjustable hydraulic stand are available as options.
Guide to Isoclean® Platform Isolator - WITHOUT Filter Below Workzone Models
HPI-4 P 1-G3-0
MODEL PROCESS CHAMBER
Internal Width
(mm)
NO. OF GLOVES SIZE PRESSURE PASS-THROUGH CHAMBER
(QTY and LOCATION)
AIRFLOW VOLTAGE SHARP CONTAINER
HPI 840 2G 4 P - Positive 1 - Left Recirculating 1- 220-240VAC, 50Hz 0 - No
1450 3G 6 *N *- Negative 2-110-120VAC, 60Hz S - Yes
3-220-240VAC, 60Hz
Guide to Isoclean® Platform Isolator - WITH Filter Below Workzone Models
HPI-2G 7-P S L-0
MODEL PROCESS CHAMBER
Internal Width
(mm)
NO. OF GLOVES VOLTAGE PRESSURE AIRFLOW PASS-THROUGH CHAMBER SHARP CONTAINER
HPI 1215 2G 7- 220-240VAC, 50/60Hz P - Positive S - Single Pass *0 *- NA 0 - No
1520 3G 8 - 110-120VAC, 50/60Hz *N *- Negative R - Recirculating Left or Right S - Yes
1825 4G *2 *- Left and Right
  • CCTV
  • Hydraulic Stand Control
  • IV Bars for Handing Bags
  • Glove Leak Tester
  • Rear View Screen
  • Single Piece
  • Multiple Trays
  • Sharps Disposal
  • Continuous Liners for Bag In or Bag Out (BIBO)
  • Bag Welder for Continuous Liner System
  • Carbon VOC Filter + Housing
  • Foot Switch
  • Hard Ducting with Anti Blowback Valve

Features

  • ULPA filters with a typical efficiency of 99.999% at 0.1 to 0.3 microns provide superior ISO Class 5 air cleanliness.
  • Sentinel Gold™ Microprocessor Control System supervises all functions and monitors airflow and pressures in real-time.
  • Safe glove change permits zero risk of contaminating the work zone or environment
  • Robust construction and enhanced safety features qualify the Isoclean® Platform Isolator for the most demanding laboratory applications. The isolator is fully assembled and ready to install and operate when shipped.
  • Ergonomically angled front gloveports improve reach and comfort.
  • Esco ISOCIDE™ antimicrobial coating on all painted surfaces minimizes contamination.
  • Sharps disposal system and adjustable hydraulic stand are available as options.

Models

Guide to Isoclean® Platform Isolator - WITHOUT Filter Below Workzone Models
HPI-4 P 1-G3-0
MODEL PROCESS CHAMBER
Internal Width
(mm)
NO. OF GLOVES SIZE PRESSURE PASS-THROUGH CHAMBER
(QTY and LOCATION)
AIRFLOW VOLTAGE SHARP CONTAINER
HPI 840 2G 4 P - Positive 1 - Left Recirculating 1- 220-240VAC, 50Hz 0 - No
1450 3G 6 *N *- Negative 2-110-120VAC, 60Hz S - Yes
3-220-240VAC, 60Hz
Guide to Isoclean® Platform Isolator - WITH Filter Below Workzone Models
HPI-2G 7-P S L-0
MODEL PROCESS CHAMBER
Internal Width
(mm)
NO. OF GLOVES VOLTAGE PRESSURE AIRFLOW PASS-THROUGH CHAMBER SHARP CONTAINER
HPI 1215 2G 7- 220-240VAC, 50/60Hz P - Positive S - Single Pass *0 *- NA 0 - No
1520 3G 8 - 110-120VAC, 50/60Hz *N *- Negative R - Recirculating Left or Right S - Yes
1825 4G *2 *- Left and Right

Accessories

  • CCTV
  • Hydraulic Stand Control
  • IV Bars for Handing Bags
  • Glove Leak Tester
  • Rear View Screen
  • Single Piece
  • Multiple Trays
  • Sharps Disposal
  • Continuous Liners for Bag In or Bag Out (BIBO)
  • Bag Welder for Continuous Liner System
  • Carbon VOC Filter + Housing
  • Foot Switch
  • Hard Ducting with Anti Blowback Valve
