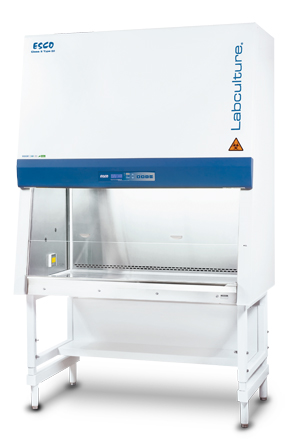

Labculture® Class II, Type A2 Biological Safety Cabinets (E-Series)

Esco Labculture Class II Type A2 Biological Safety Cabinet (E-Series) blends the latest generation of energy efficient DC ECM motor technology with Esco's experience of more than 25 years in biosafety cabinet design. The Labculture combines a multitude of design, construction and proprietary technological considerations to bestow optimum operator, product and environmental protection. Utilizing 2 minipleat ULPA (Ultra Low Penetration Air) filters which operate at a typical efficiency of 99.999%, these surpass the conventional HEPA (High Efficiency Particulate Air) filters in contamination protection. Esco Labculture features a 10-degree sloped front for maximum operator comfort. A 1-piece stainless steel work zone and the absence of screws or connectors in the work zone facilitate ease of cleaning after experiments. The Isocide™ powder coating finish prevents microbial/bacterial growth on the exterior and delivers a sleek, elegant appearance fitting for the leader in biosafety cabinet technology.

Key Benefits:

• Energy efficient, using the latest generation DC ECM motor
• Established safety, as the most certified BSC in world to: NSF/ANSI 49, EN 12469, SFDA YY0569, JIS K3800
• Ergonomic, featuring arm rest, angled front, and ADA-compliant

• Latest generation DC ECM Motor made in USA, as the heart of the cabinet
• Negative pressure plenum surrounds contaminated positive pressure plenum, no fabirc bags are used
• Long-life ULPA filters for supply and exhaust (per IEST-RP-CC001.3) with 99.999% efficiency for particle size between 0.1 to 0.3 microns
• Coved one-piece work surface contains spillage. The absence screws or connectors in the work zone facilitates ease of cleaning and decontamination
• One-piece back wall with radiused cove corners to ensure thorough cleaning and decontamination
• Angled supply filter matches cabinet profile to achieve best downflow uniformity
• Esco SentinelTM Gold Microprocessor with large blue LCD, which simultaneously shows all safety parameters on a single screen
• Quickstart mode, to turn the blower and lights on/off, by moving the sash window to correct position
• RS 232 data output port enables remote monitoring of cabinet opertaing parameters
• Frameless sash that is easier to clean
• Ergonomically angled front improves reach and comfort
• Angled down display and control pad that`s ADA-compliant
• Raised airflow grille maintains safety by preventing blockage
• Esco ISOCIDETM antimicrobial coating on all painted surfaces minimizes contamination
• Enhanced side-captured zones optimize containment
• Night setback mode / standby mode reduces power consumption while maintaining containment

Model No.	External Dimensions	Internal Dimensions	Airflow Velocity (Inflow)	Airflow Velocity (Downflow)	Electrical
LA2-3A1-E	1115 x 852 x 1540 mm (44.0" x 33.5" x 60.6")	970 x 623 x 670 mm (38.2" x 24.5" x 26.4")	0.53 m/s 105 (fpm)	0.35 m/s 70 (fpm)	230 VAC 50 Hz
LA2-3A2-E	115 VAC 50/60 Hz
LA2-3A3-E	230 VAC 60 Hz
LA2-4A1-E	1420 x 852 x 1540 mm (56.0" x 33.5" x 60.6")	1270 x 623 x 670 mm (50.0" x 24.5" x 26.4")	230 VAC 50 Hz
LA2-4A2-E	115 VAC 50/60 Hz
LA2-4A3-E	230 VAC 60 Hz
LA2-5A1-E	1725 x 852 x 1540 mm (68.0" x 33.5" x 60.6")	1570 x 623 x 670 mm (61.8" x 24.5" x 26.4")	230 VAC 50 Hz
LA2-5A2-E	115 VAC 50/60 Hz
LA2-5A3-E	230 VAC 60 Hz
LA2-6A1-E	2030 x 852 x 1540 mm (80.0" x 33.5" x 60.6")	1870 x 623 x 670 mm (73.6" x 24.5" x 26.4")	0.33 m/s 65 (fpm)	230 VAC 50 Hz
LA2-6A2-E	115 VAC 50/60 Hz
LA2-6A3-E	230 VAC 60 Hz
LA2-8A1-E	2600 x 852 x 1540 mm (102.4" x 33.5" x 60.6")	2440 x 623 x 670 mm (96.0" x 24.5" x 26.4")	230 VAC 50 Hz
LA2-8A2-E	115 VAC 50/60 Hz
LA2-8A3-E	230 VAC 60 Hz

Esco offers a variety of options and accessories to meet local applications. Contact Esco or your local Sales Representative for ordering information.

Support Stands

• Fixed height, available 711 mm (28") or 864 mm (34")
  • With casters
• Adjustable height, hydraulic range 711 mm to 762mm (28" to 30") or 864 mm (34")
  • With leveling feet
• Telescoping Feet Stand, Manually Adjustable 711mm to 914mm (28" to 36") by Pins.
• Hydraulic Stand, Electrically Adjustable 711mm to 914mm (28" to 36")

Electrical Outlets and Utility Fixtures

• Universal Service Fixture Kit (Air, Gas, Vacuum)
• Thimble exhaustion
• Air tight damper9.8" x 9.8" (D x H) Fits inside 10" duct

Cabinet Accessories

• Anti Blow Back Valve
  • Automatically shuts duct, preventing back flow in the duct, 10" diameter
• Plastic decontamination bag for formalin decontamination on all BSC
• Air tight cable port, installed on the right side wall
• PVC armrest
  • Improves operator comfort, easy-to-clean. 712mm (28") standard size.
• Ergonomic foot rest
  • Angled, helps maintain proper posture.
  • Adjustable from 3" to 11" in 1:increment.
  • Black rubber matte.
• IV bar, with hooks
  • Maximum load is 6Kg. (13lbs)
• Microscope viewing device
  • Factory installed` specify when ordering.

Features

• Latest generation DC ECM Motor made in USA, as the heart of the cabinet
• Negative pressure plenum surrounds contaminated positive pressure plenum, no fabirc bags are used
• Long-life ULPA filters for supply and exhaust (per IEST-RP-CC001.3) with 99.999% efficiency for particle size between 0.1 to 0.3 microns
• Coved one-piece work surface contains spillage. The absence screws or connectors in the work zone facilitates ease of cleaning and decontamination
• One-piece back wall with radiused cove corners to ensure thorough cleaning and decontamination
• Angled supply filter matches cabinet profile to achieve best downflow uniformity
• Esco SentinelTM Gold Microprocessor with large blue LCD, which simultaneously shows all safety parameters on a single screen
• Quickstart mode, to turn the blower and lights on/off, by moving the sash window to correct position
• RS 232 data output port enables remote monitoring of cabinet opertaing parameters
• Frameless sash that is easier to clean
• Ergonomically angled front improves reach and comfort
• Angled down display and control pad that`s ADA-compliant
• Raised airflow grille maintains safety by preventing blockage
• Esco ISOCIDETM antimicrobial coating on all painted surfaces minimizes contamination
• Enhanced side-captured zones optimize containment
• Night setback mode / standby mode reduces power consumption while maintaining containment

Models

Model No.	External Dimensions	Internal Dimensions	Airflow Velocity (Inflow)	Airflow Velocity (Downflow)	Electrical
LA2-3A1-E	1115 x 852 x 1540 mm (44.0" x 33.5" x 60.6")	970 x 623 x 670 mm (38.2" x 24.5" x 26.4")	0.53 m/s 105 (fpm)	0.35 m/s 70 (fpm)	230 VAC 50 Hz
LA2-3A2-E	115 VAC 50/60 Hz
LA2-3A3-E	230 VAC 60 Hz
LA2-4A1-E	1420 x 852 x 1540 mm (56.0" x 33.5" x 60.6")	1270 x 623 x 670 mm (50.0" x 24.5" x 26.4")	230 VAC 50 Hz
LA2-4A2-E	115 VAC 50/60 Hz
LA2-4A3-E	230 VAC 60 Hz
LA2-5A1-E	1725 x 852 x 1540 mm (68.0" x 33.5" x 60.6")	1570 x 623 x 670 mm (61.8" x 24.5" x 26.4")	230 VAC 50 Hz
LA2-5A2-E	115 VAC 50/60 Hz
LA2-5A3-E	230 VAC 60 Hz
LA2-6A1-E	2030 x 852 x 1540 mm (80.0" x 33.5" x 60.6")	1870 x 623 x 670 mm (73.6" x 24.5" x 26.4")	0.33 m/s 65 (fpm)	230 VAC 50 Hz
LA2-6A2-E	115 VAC 50/60 Hz
LA2-6A3-E	230 VAC 60 Hz
LA2-8A1-E	2600 x 852 x 1540 mm (102.4" x 33.5" x 60.6")	2440 x 623 x 670 mm (96.0" x 24.5" x 26.4")	230 VAC 50 Hz
LA2-8A2-E	115 VAC 50/60 Hz
LA2-8A3-E	230 VAC 60 Hz

Accessories

Esco offers a variety of options and accessories to meet local applications. Contact Esco or your local Sales Representative for ordering information.

Support Stands

• Fixed height, available 711 mm (28") or 864 mm (34")
  • With casters
• Adjustable height, hydraulic range 711 mm to 762mm (28" to 30") or 864 mm (34")
  • With leveling feet
• Telescoping Feet Stand, Manually Adjustable 711mm to 914mm (28" to 36") by Pins.
• Hydraulic Stand, Electrically Adjustable 711mm to 914mm (28" to 36")

Electrical Outlets and Utility Fixtures

• Universal Service Fixture Kit (Air, Gas, Vacuum)
• Thimble exhaustion
• Air tight damper9.8" x 9.8" (D x H) Fits inside 10" duct

Cabinet Accessories

• Anti Blow Back Valve
  • Automatically shuts duct, preventing back flow in the duct, 10" diameter
• Plastic decontamination bag for formalin decontamination on all BSC
• Air tight cable port, installed on the right side wall
• PVC armrest
  • Improves operator comfort, easy-to-clean. 712mm (28") standard size.
• Ergonomic foot rest
  • Angled, helps maintain proper posture.
  • Adjustable from 3" to 11" in 1:increment.
  • Black rubber matte.
• IV bar, with hooks
  • Maximum load is 6Kg. (13lbs)
• Microscope viewing device
  • Factory installed` specify when ordering.
