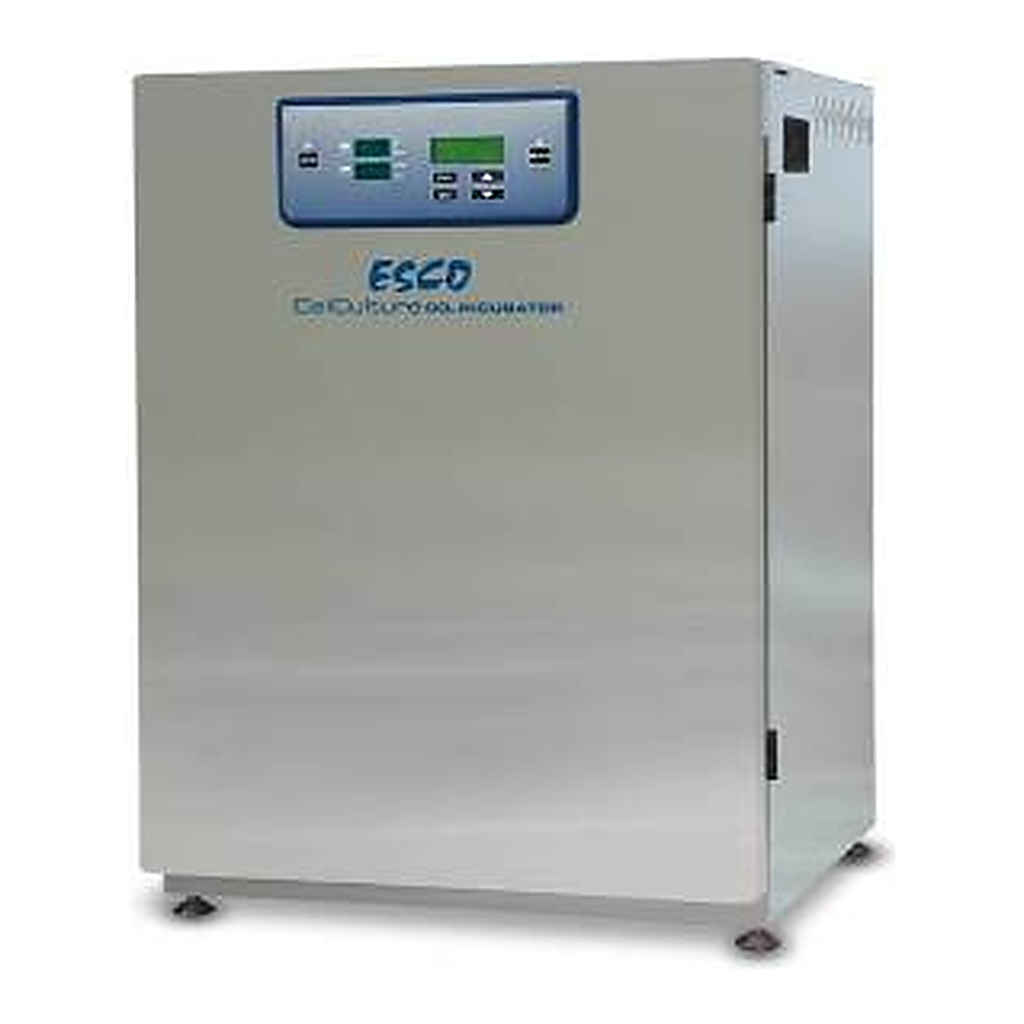

CelCulture® CO2 Incubators with Stainless Steel Exterior

This CO2 Incubator offers the same features as the CelCulture® CO2 Incubator with the addition of the stainless steel exterior. Other key benefits of the CelCulture® CO2 Incubators with Stainless Steel Exterior include corrosion resistant surface, complete contamination control methods (ULPA Filter, 0.2 micron in-line filter, and validated moist heat decontamination cycle 90oC , and meeting of pharmaceutical and clinical laboratory requirements.

VivoCell™ Precise Temperature, CO2 Control and High Humidity

• Best uniformity and control among competition
• Fast CO2, temperature and humidity recovery without overshoot
• Direct heat design for rapid recovery, with 8 heater grouped into 3 zones
• Air jacket provides isolation against ambient temperature fluctuations
• VentiFlow™ forced convection accelerates recovery of chamber air to ISO Class 5 Cleanliness after door closing to prevent contamination
• Filtered air circulates across water pan to accelerate humidifying process
• Air flows gently around culture plates, causing no disturbance to cell culture
• Blower automatically stops when door is opened, to minimize mixing of chamber and room air

CelSafe™ Contamination Control System Provides Seamless Protection

• SteriSafe™ ULPA filtration enables the chamber air to be maintained at ISO class 5 condition.
• SwiftCon™ moist heat 90oC decontamination cycle operates overnight to eradicate any contamination in the unlikely event it occurs. At the end of the cycle, the chamber is dry and ready to use.
• All input gases are filtered by in-line filters before they enter the chamber to remove impurities and contaminants.
• The interior of the chamber is made from stainless steel type 304.

User-friendly software interface

• Comprehensive user-configurable alarms for all the parameters.
• CelAlert™ alarm system reminds user to replace CO2 tank and ULPA filter.
• Intelligent data and event logger records all incubator parameters for on screen recall.
• 16 MB built-in flash memory guarantees long term storage of data.
• Diagnostic interface and on line quick help provide comprehensive solutions to frequently. encountered problems.
• RS485 data output.

Easy-to-Clean

• Chamber is made of shiny stainless steel chamber with all rounded corners.
• Ductwork, plenums and shelves are removable without tools.
• Glass door is removable without tools.
• Inner gasket removable without tools.

Easy-to-Service

• Diagnostic functions in the microprocessor include historical read-out of the parameters.
• Service can be carried out from the top/front
• Esco electronics and sensors have been expertly designed and paired to be inherently drift-free, to minimize need for calibration

IR Sensor Model with Stainless Steel Exterior Cabinet

MODELS		DESCRIPTION
230V/50-60 Hz	115V/50-60 Hz
CCL-050B-8-SS	CCL-050B-9-SS	CelCulture® Incubator, 50 L, IR Sensor, CO2 Control, SS Exterior
CCL-170B-8-SS	CCL-170B-9-SS	CelCulture® Incubator, 170 L, IR Sensor, CO2 Control, ULPA, SS Exterior
CCL-240B-8-SS	CCL-240B-9-SS	CelCulture® Incubator, 240 L, IR Sensor, CO2 Control, ULPA, SS Exterior

Suppressed O2 Model with Stainless Steel Exterior Cabinet

MODELS		DESCRIPTION
230 V / 50-60 Hz	115 V / 50-60 Hz
CCL-050T-8-SS	CCL-050T-9-SS	CelCulture® Incubator, 50 L, IR Sensor, CO2 Control, SS Exterior
CCL-170T-8-SS	CCL-170T-9-SS	CelCulture® Incubator, 170 L, IR Sensor, CO2 Control, ULPA, SS Exterior
CCL-240T-8-SS	CCL-240T-9-SS	CelCulture® Incubator, 240 L, IR Sensor, CO2 Control, ULPA, SS Exterior

Options:

TYPE	VALUE
COA-1001	Humidity Display, Factory Installed
COA-1001-F	Humidity Display, Field Install Kit
COA-1002	CO2 Backup (Tank Switcher), Factory Installed
COA-1002-F	CO2 Backup (Tank Switcher), Field Installed
COA-1004	Reversed Door Swing, Factory Installed
COA-1005	Analog Outputs, Factory Installed
COA-1005-F	Analog Outputs, Field Installed
COA-1006	Sealed Inner Door Kit for 170L (4 Glass Doors With Latches), Factory Installed
COA-1006-F	Sealed Inner Door Kit (4 Glass Doors With Latches), Field Installed
COA-1007	N2 Backup (Tank Switcher), Factory Installed
COA-1007-F	N2 Backup (Tank Switcher), Factory Installed

Accessories:

TYPE	VALUE
COA-2018-F	Roller Base (50L)
COA-2001-F	Roller Base (170L)
COA-2019-F	Roller Base (240L)
COA-2020-F	Floor Stand 200mm (8.0") With Adjustable Feet (50L)
COA-2002-F	Floor Stand 200mm (8.0") With Adjustable Feet (170L)
COA-2021-F	Floor Stand 200mm (8.0") With Adjustable Feet (240L)
COA-2022-F	Floor Stand 700mm (27.6") With Casters (50L)
COA-2003-F	Floor Stand 700mm (27.6") With Casters (170L)
COA-2023-F	Floor Stand 700mm (27.6") With Casters (240L)
COA-2005-F	2-Stage Gas Regulator for CO2/N2 Choose One of The Connectors Below: -1080588 - CGA 320 Connector (US Standard) -1080589 - BP-BS34-#8-NT4 Connector (British Standard) -1080590 - G5/8-RH Connector (China Standard)
COA-2024-F	Extra Shelf (50L, Stainless Steel)
COA-2007-F	Extra Shelf (170L, Stainless Steel)
COA-2025-F	Extra Shelf (240L, Stainless Steel)
COA-2008-F	Stacking Kit (One Set Included With Every Unit Purchased)
COA-2010-F	Electronic CO2 Analyzer, For CO2/O2 Temp Measurement (With Temp. Probe)
COA-2016-F	Electronic CO2 + O2 Analyzer, For CO2/O2 Temp Measurement (With Temp. Probe)
COA-2017-F	Electronic CO2 + O2 + RH Analyzer, For CO2/O2/RH/Temp Measurement (With Temp. Probe)
COA-2011-F	IQ/OQ Documentation
COA-2012-F	6" Chart Recorder, Temp, 115/230VAC 50/60HZ
COA-2013-F	8" Chart Recorder, Temp/Temp, 115/230VAC 50/60HZ
COA-2014-F	6" Chart Recorder, Temp/RH, 115/230VAC 50/60HZ
COA-2015-F	Inner Door Shelving Kit (4 Sets With Total 12 Mini Shelves For One Incubator)
COA-2026-F	Extra Shelf (50 L, Solid Copper)
COA-2027-F	Extra Shelf (170 L, Solid Copper)
COA-2028-F	Extra Shelf (240 L, Solid Copper)
5250001	Voyager Software Kit

Features

VivoCell™ Precise Temperature, CO2 Control and High Humidity

• Best uniformity and control among competition
• Fast CO2, temperature and humidity recovery without overshoot
• Direct heat design for rapid recovery, with 8 heater grouped into 3 zones
• Air jacket provides isolation against ambient temperature fluctuations
• VentiFlow™ forced convection accelerates recovery of chamber air to ISO Class 5 Cleanliness after door closing to prevent contamination
• Filtered air circulates across water pan to accelerate humidifying process
• Air flows gently around culture plates, causing no disturbance to cell culture
• Blower automatically stops when door is opened, to minimize mixing of chamber and room air

CelSafe™ Contamination Control System Provides Seamless Protection

• SteriSafe™ ULPA filtration enables the chamber air to be maintained at ISO class 5 condition.
• SwiftCon™ moist heat 90oC decontamination cycle operates overnight to eradicate any contamination in the unlikely event it occurs. At the end of the cycle, the chamber is dry and ready to use.
• All input gases are filtered by in-line filters before they enter the chamber to remove impurities and contaminants.
• The interior of the chamber is made from stainless steel type 304.

User-friendly software interface

• Comprehensive user-configurable alarms for all the parameters.
• CelAlert™ alarm system reminds user to replace CO2 tank and ULPA filter.
• Intelligent data and event logger records all incubator parameters for on screen recall.
• 16 MB built-in flash memory guarantees long term storage of data.
• Diagnostic interface and on line quick help provide comprehensive solutions to frequently. encountered problems.
• RS485 data output.

Easy-to-Clean

• Chamber is made of shiny stainless steel chamber with all rounded corners.
• Ductwork, plenums and shelves are removable without tools.
• Glass door is removable without tools.
• Inner gasket removable without tools.

Easy-to-Service

• Diagnostic functions in the microprocessor include historical read-out of the parameters.
• Service can be carried out from the top/front
• Esco electronics and sensors have been expertly designed and paired to be inherently drift-free, to minimize need for calibration

Models

IR Sensor Model with Stainless Steel Exterior Cabinet

MODELS		DESCRIPTION
230V/50-60 Hz	115V/50-60 Hz
CCL-050B-8-SS	CCL-050B-9-SS	CelCulture® Incubator, 50 L, IR Sensor, CO2 Control, SS Exterior
CCL-170B-8-SS	CCL-170B-9-SS	CelCulture® Incubator, 170 L, IR Sensor, CO2 Control, ULPA, SS Exterior
CCL-240B-8-SS	CCL-240B-9-SS	CelCulture® Incubator, 240 L, IR Sensor, CO2 Control, ULPA, SS Exterior

Suppressed O2 Model with Stainless Steel Exterior Cabinet

MODELS		DESCRIPTION
230 V / 50-60 Hz	115 V / 50-60 Hz
CCL-050T-8-SS	CCL-050T-9-SS	CelCulture® Incubator, 50 L, IR Sensor, CO2 Control, SS Exterior
CCL-170T-8-SS	CCL-170T-9-SS	CelCulture® Incubator, 170 L, IR Sensor, CO2 Control, ULPA, SS Exterior
CCL-240T-8-SS	CCL-240T-9-SS	CelCulture® Incubator, 240 L, IR Sensor, CO2 Control, ULPA, SS Exterior

Accessories

Options:

COA-1001	Humidity Display, Factory Installed
COA-1001-F	Humidity Display, Field Install Kit
COA-1002	CO2 Backup (Tank Switcher), Factory Installed
COA-1002-F	CO2 Backup (Tank Switcher), Field Installed
COA-1004	Reversed Door Swing, Factory Installed
COA-1005	Analog Outputs, Factory Installed
COA-1005-F	Analog Outputs, Field Installed
COA-1006	Sealed Inner Door Kit for 170L (4 Glass Doors With Latches), Factory Installed
COA-1006-F	Sealed Inner Door Kit (4 Glass Doors With Latches), Field Installed
COA-1007	N2 Backup (Tank Switcher), Factory Installed
COA-1007-F	N2 Backup (Tank Switcher), Factory Installed

Accessories:

COA-2018-F	Roller Base (50L)
COA-2001-F	Roller Base (170L)
COA-2019-F	Roller Base (240L)
COA-2020-F	Floor Stand 200mm (8.0") With Adjustable Feet (50L)
COA-2002-F	Floor Stand 200mm (8.0") With Adjustable Feet (170L)
COA-2021-F	Floor Stand 200mm (8.0") With Adjustable Feet (240L)
COA-2022-F	Floor Stand 700mm (27.6") With Casters (50L)
COA-2003-F	Floor Stand 700mm (27.6") With Casters (170L)
COA-2023-F	Floor Stand 700mm (27.6") With Casters (240L)
COA-2005-F	2-Stage Gas Regulator for CO2/N2 Choose One of The Connectors Below: -1080588 - CGA 320 Connector (US Standard) -1080589 - BP-BS34-#8-NT4 Connector (British Standard) -1080590 - G5/8-RH Connector (China Standard)
COA-2024-F	Extra Shelf (50L, Stainless Steel)
COA-2007-F	Extra Shelf (170L, Stainless Steel)
COA-2025-F	Extra Shelf (240L, Stainless Steel)
COA-2008-F	Stacking Kit (One Set Included With Every Unit Purchased)
COA-2010-F	Electronic CO2 Analyzer, For CO2/O2 Temp Measurement (With Temp. Probe)
COA-2016-F	Electronic CO2 + O2 Analyzer, For CO2/O2 Temp Measurement (With Temp. Probe)
COA-2017-F	Electronic CO2 + O2 + RH Analyzer, For CO2/O2/RH/Temp Measurement (With Temp. Probe)
COA-2011-F	IQ/OQ Documentation
COA-2012-F	6" Chart Recorder, Temp, 115/230VAC 50/60HZ
COA-2013-F	8" Chart Recorder, Temp/Temp, 115/230VAC 50/60HZ
COA-2014-F	6" Chart Recorder, Temp/RH, 115/230VAC 50/60HZ
COA-2015-F	Inner Door Shelving Kit (4 Sets With Total 12 Mini Shelves For One Incubator)
COA-2026-F	Extra Shelf (50 L, Solid Copper)
COA-2027-F	Extra Shelf (170 L, Solid Copper)
COA-2028-F	Extra Shelf (240 L, Solid Copper)
5250001	Voyager Software Kit
