Canisters

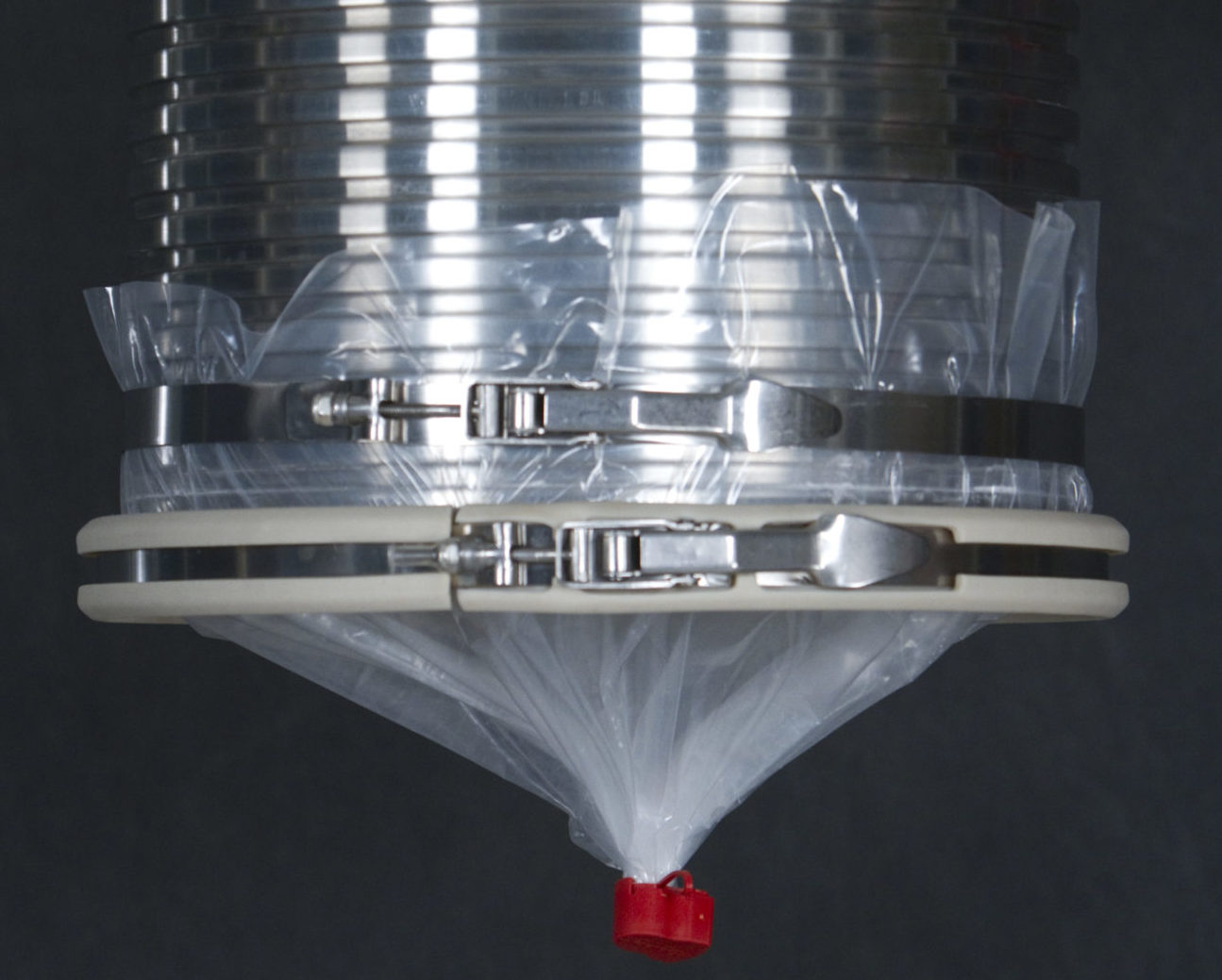

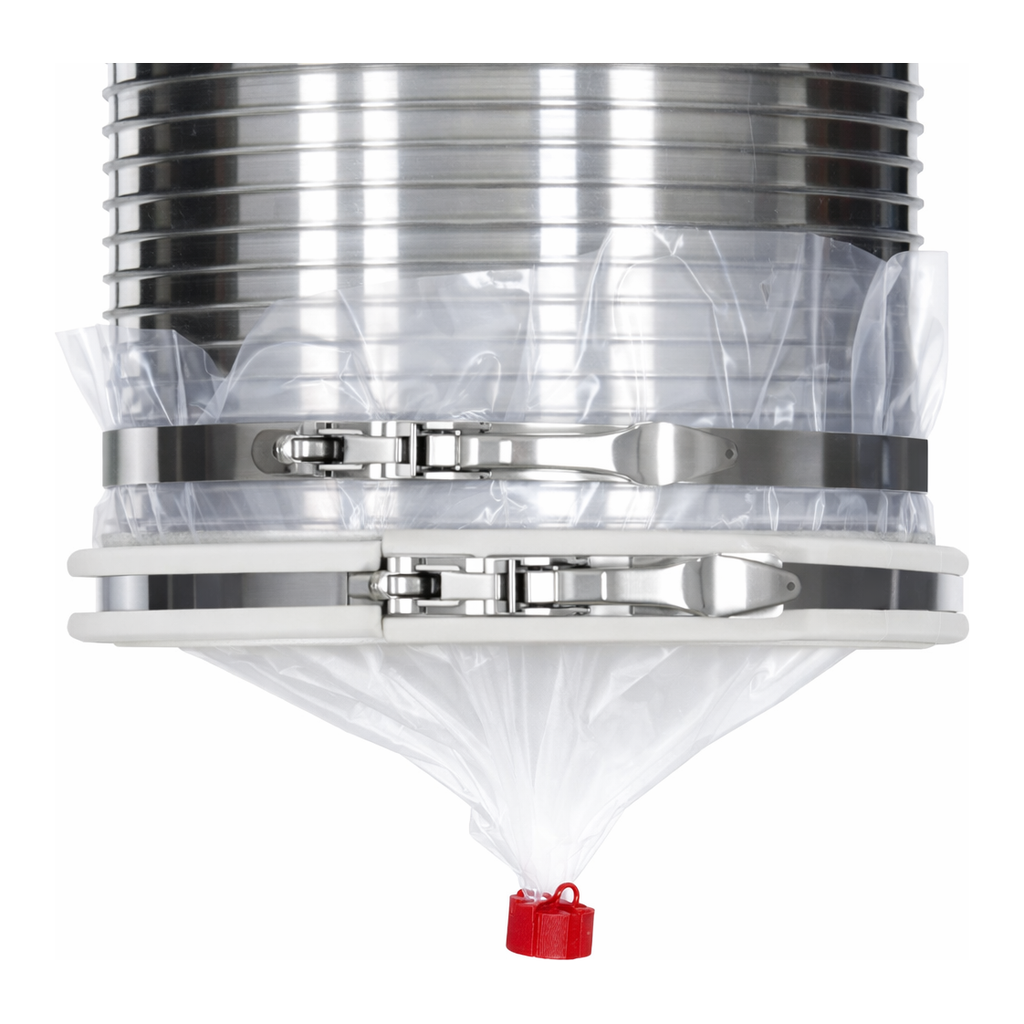

Multiple O-ring Canisters for contained transfer or powder

ILC Dover patented the use of Multiple O-ring Canisters to enable high containment connections for API powder handling systems. The system of progressively advancing to a new clean zone on a canister allows multiple powder transfers without breaking containment.

The Multiple O-ring Canister is a key component to the ILC Dover high containment family of products that includes the following compatible items:

• DoverPac® Containment Systems for charging, transporting, and discharging API powders

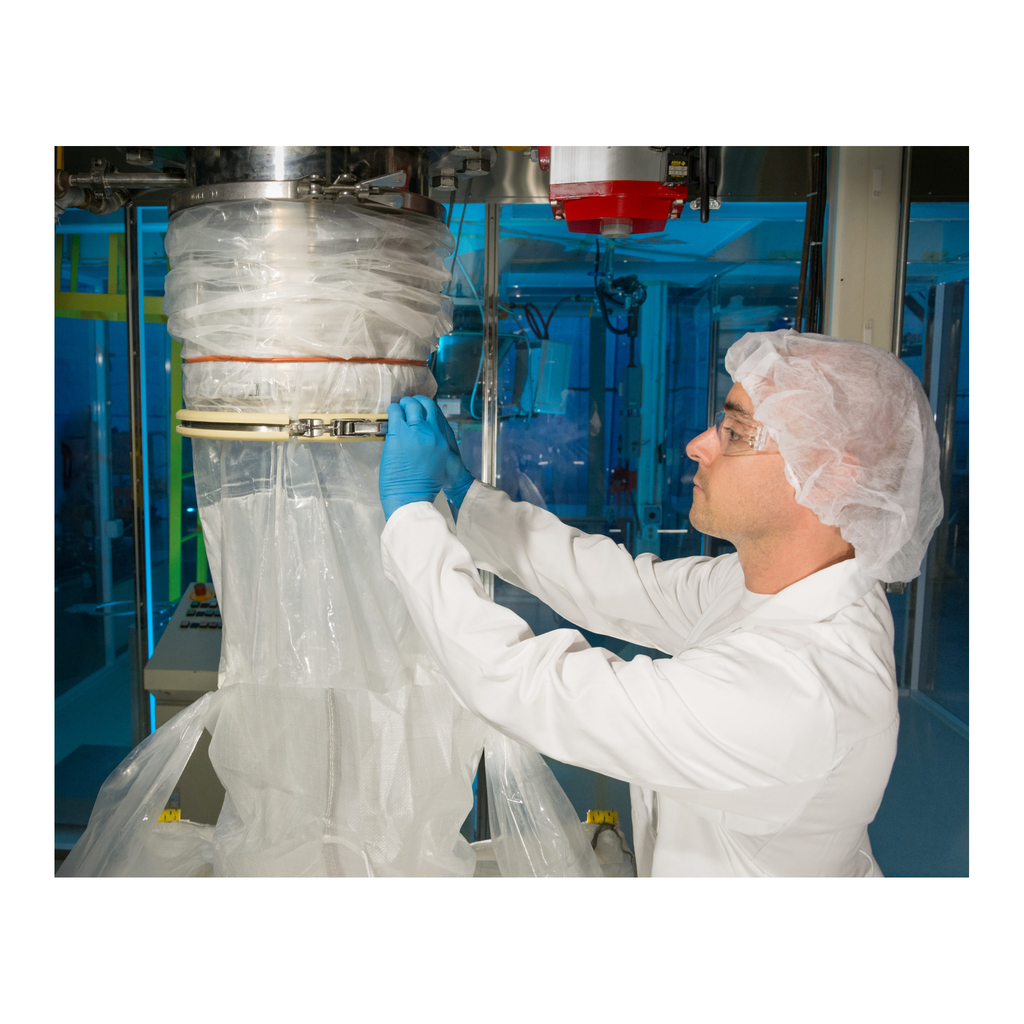

• Continuous Liner system made of ArmorFlex® film
• Bag In/ Bag out sleeves made of ArmorFlex® film
• Drum Sleeves made of ArmorFlex® film

Features and Benefits

• Demonstrated nanogram containment performance during powder transfer operations
• Canisters are fabricated from 316L stainless steel
• Saves time by allowing multiple powder transfer operations without breaking containment or having to wash the components.

Applications

• ILC Dover’s Multiple O-ring Canisters to enable high containment connections for discharging, transporting, and charging of potent compound powders throughout the pharmaceutical manufacturing process.
• Connections from vessels for charging or discharging powder under containment.
• Connection to Flexible Enclosures used to contain Weigh and Dispense operations, subdividing of powder, or transfer of powder from Drums.

Accessories

Other system components and accessories developed by ILC Dover to support contained pharmaceutical ingredient processing include:

• Wash in place enclosure, & clean in place system
• Band Clamps
• Flex-Loc Clamp
• Continuous Liner system
• Flexible Enclosures and Isolators

Ordering information

Part numbers and sizes

• HW10393 – 12” BIBO canister kit

• HW10397 – 8” canister kit

• Additional parts available.
