Process Equipment Containment

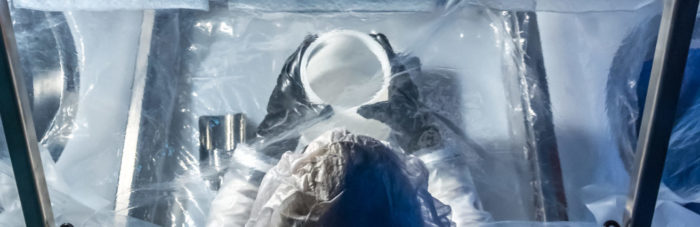

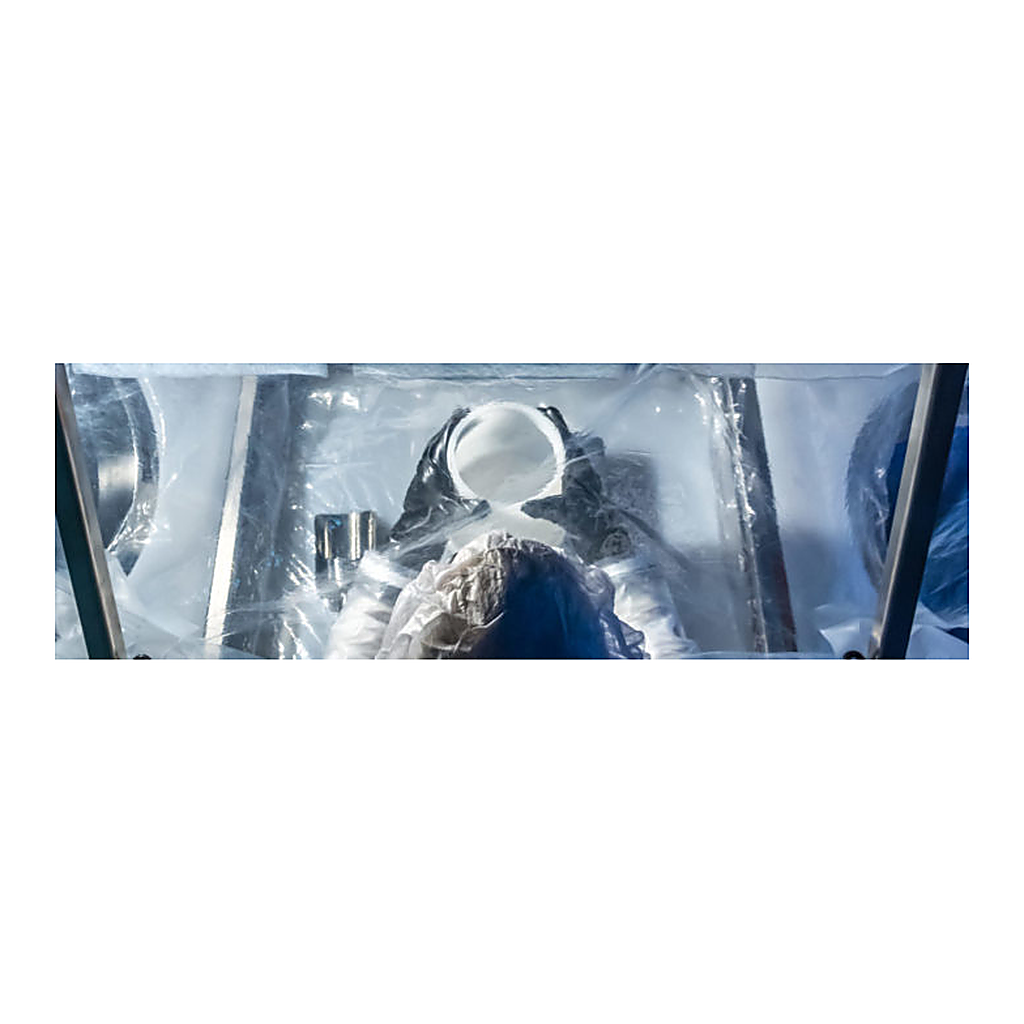

ILC Dover fabricates flexible enclosures for almost any pharmaceutical powder process equipment that requires high level containment. We leverage the same reliable fabrication techniques and proven containment design features found on our DoverPac® family of products.

These enclosures save time and money by allowing tailored containment of your existing processing equipment while achieving nanogram containment levels. All materials meet FDA standards and the design accommodates cGMP as well as operator ergonomics. The use of the ArmorFlex® film and integral gloves and sleeves will support operations from filter dryer discharge and heel removal to tray dryer loading and unloading, and many others.

• Features and Benefits

  • Excellent ergonomics and range of motion allows increased operator efficiency
  • Compatible with a wide range of existing equipment for retrofit
  • Fast turnaround & installation with reduced capital expenditures compared to rigid isolators
  • 3rd party validated nanogram containment levels using SMEPAC guidelines
  • Design makes use of existing ILC Dover containment accessories such as CrimpLoc® crimps, bag/out sleeves, and O-ring interface canisters
  • Compatible with DoverPac® powder transfer systems

• Applications

  • Blending
  • Milling
  • Granulating
  • Tray Drying
  • Fluid Bed drying
  • Freeze drying/ Lyophilization
  • Tableting
  • Weighing
  • Subdividing
  • Sieving
  • Tablet press
  • Tablet coating
  • Centrifuge
  • Reactors

• Technical Specifications

  Frames constructed of 304 stainless steel

  All surfaces have a 2B finish

  Product contact components constructed of 316 stainless steel

  Flexible isolator made from ArmorFlex® 113 and ArmorFlex® 114 films

  Drum rings and canisters use ILC Dover patented multiple O-ring connectors

• Accessories

  JetVent

  CrimpLoc® fasteners and tools

  DoverPac® Containment systems

  DoverPac® SF

  Drum Liners & Drum Sleeves

  Continuous Liners

  EZ BioPac® product
