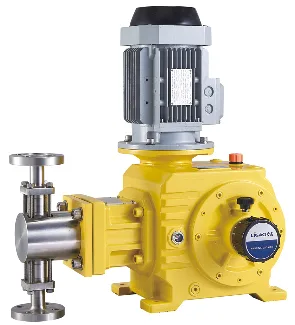

JSR SERIES-플런저 미터링펌프

JSR SERIES

[Plunger Metering Pump]

플런저 미터링펌프

---

제품 설명 [KEY FEATURES]

• Max : 1 채널
• 유량 범위 : 7.8 - 1188.0 L/h

---

FEATURES

• 스트로크 길이와 스트로크 속도 유량 제어
• Max : 1 채널
• 유량 범위 : 7.8 - 1188.0 L/h
• 지속적인 주입 가능(Continuous Infusion)

SPECIFICATIONS

• 전압 ` 110/220/380V, 50/60Hz, 단상/삼상 모터
• 압력 : 10.0 - 500 bar max
• 재질 :
• Pump Head : SUS304, SUS316
• Plunger : Ceramic pr Ceramic coated with ceramic
• Packing Seal : PTFE, SUS316 Ring
• Check Valve : SUS304, SUS316
• Check Valve Ball : Ceramic, SUS304, SUS316
• Check Valve seat : SUS304, SUS316, Ceramic

ODERING INFORMATIONS

Model	50Hz		60 Hz		Pressure(Bar)	Plunger Dia.(mm)	Stroke Length (mm)	Power
Flow(lph)	SPM	Flow(lph)	SPM
*JSR 6/50	6.5	96	7.8	115	500	8	30	1.5 Kw
JSR16/40	16	19	400	12
JSR30/22	30	36	220	16
JSR50/14	50	60	140	20
JSR80/9.0	80	96	90	25
JSR100/7.5	100	120	75	28
JSR130/5.6	130	156	56	32
JSR160/4.8	160	192	48	35
JSR190/4.0	190	228	40	38
JSR225/3.2	225	270	32	42
JSR260/2.8	260	312	28	45
JSR330/2.3	330	396	23	50
JSR400/1.8	400	480	18	55
JSR480/1.6	480	576	16	60
JSR550/1.3	550	660	13	65
JSR650/1.2	650	780	12	70
JSR800/1.0	800	144	960	173	10	65

APPLICATIONS

• Perfusion of animal tissue slice

• Flow Injection

• In-vitro system

• Re-circulating pump

• Filling of bottles

• Plastics production: Metering of additives

• Waste water treatment: Metering of flocculants

• Cooling circuits: Metering of corrosion inhibitors and biocides
