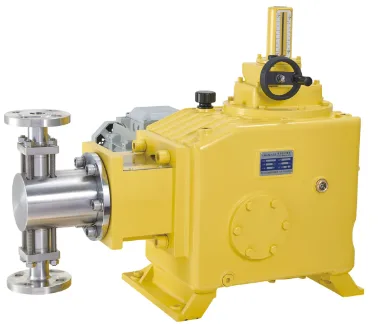

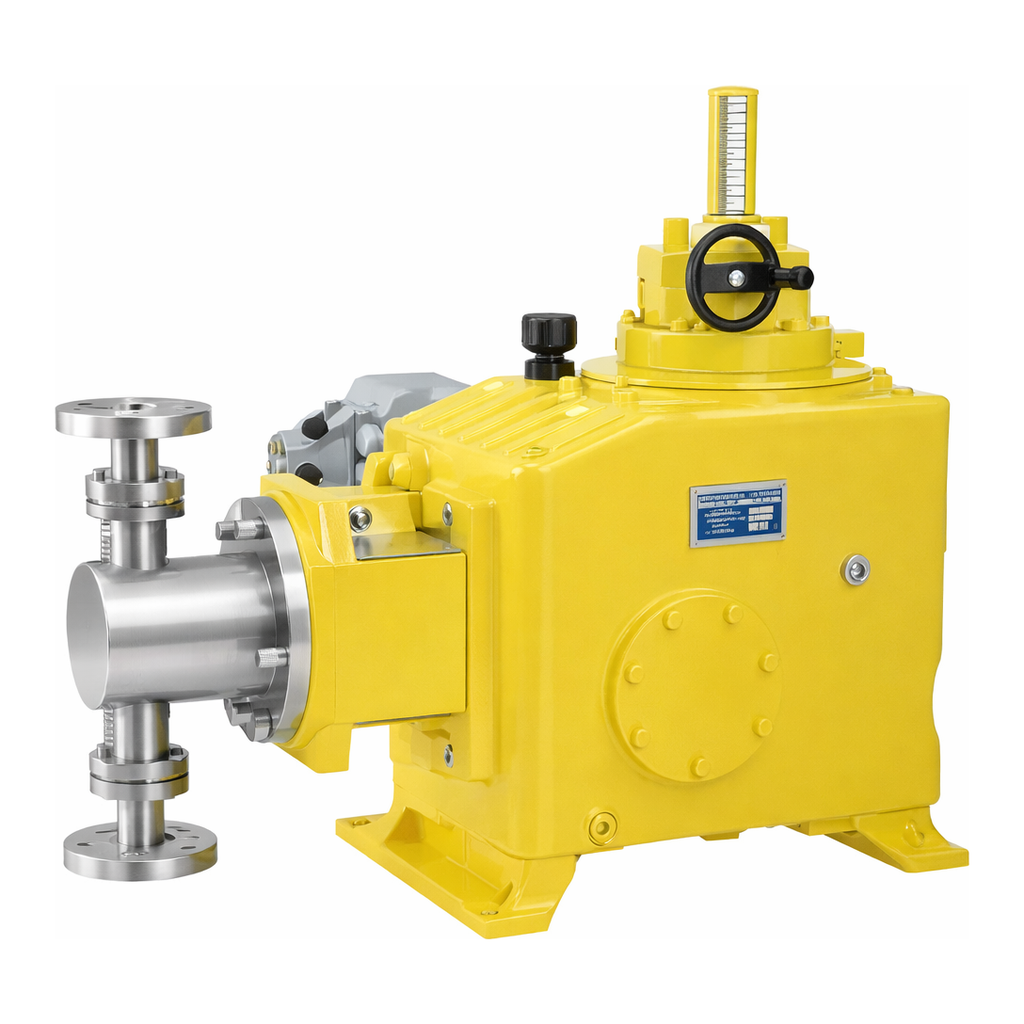

JDR SERIES-플런저 미터링펌프

JDR SERIES

Plunger Metering Pump

---

제품 설명 (KEY FEATURES)

• Max: 1 채널
• 유량 범위: 110.0 - 7,260.0 L/h

---

FEATURES

• 스트로크 길이와 스트로크 속도 유량 제어
• Max: 1 채널
• 유량 범위: 110.0 - 7,260.0 L/h
• 지속적인 주입 가능 (Continuous Infusion)

---

SPECIFICATIONS

항목	사양
전압	110/220/380V, 50/60Hz, 단상/삼상 모터
압력	8.0 - 500 bar max
Pump Head	SUS304, SUS316
Plunger	Ceramic 또는 Ceramic coated with ceramic
Packing Seal	PTFE, SUS316 Ring
Check Valve	SUS304, SUS316
Check Valve Ball	Ceramic, SUS304, SUS316
Check Valve Seat	SUS304, SUS316, Ceramic

---

ORDERING INFORMATION

Model	50Hz Flow (lph)	50Hz SPM	60Hz Flow (lph)	60Hz SPM	Pressure (Bar)	Plunger Dia. (mm)	Stroke Length (mm)	Power
JDR 92/50	92	96	110	115	500	20	60	5.5 Kw
JDR 145/32	145	174	320	25	-	-	-	-
JDR 190/18	190	228	250	28	-	-	-	-
JDR 240/20	240	288	200	32	-	-	-	-
JDR 430/11	430	516	110	42	-	-	-	-
JDR 520/9.0	520	624	90	45	-	-	-	-
JDR 650/8.0	650	780	80	50	-	-	-	-
JDR 780/6.5	780	936	65	55	-	-	-	-
JDR 930/5.5	930	1116	55	60	-	-	-	-
JDR 1100/4.6	1100	1320	46	65	-	-	-	-
JDR 1300/4.0	1300	1560	40	70	-	-	-	-
JDR 1480/3.5	1480	1776	35	75	-	-	-	-
JDR 1700/3.0	1700	2040	30	80	-	-	-	-
JDR 1920/2.8	1920	2304	28	85	-	-	-	-
JDR 2150/2.4	2150	2580	24	90	-	-	-	-
JDR 2400/2.2	2400	2880	2.2	95	-	-	-	-
JDR 2680/2.0	2680	3216	18	100	-	-	-	-
JDR 3250/1.6	3250	3900	15	110	-	-	-	-
JDR 3860/1.3	3860	4632	13	120	-	-	-	-
JDR 4550/1.1	4550	5460	11	130	-	-	-	-
JDR 5260/1.0	5260	6312	10	140	-	-	-	-
JDR 6050/0.8	6050	7260	8	150	-	-	-	-

---

APPLICATIONS

• Perfusion of animal tissue slice
• Flow Injection
• In-vitro system
• Re-circulating pump
• Filling of bottles
• Plastics production: Metering of additives
• Waste water treatment: Metering of flocculants
• Cooling circuits: Metering of corrosion inhibitors and biocides

---

이미지에서 추출된 텍스트

[이미지 1] 장비 본체 명판

LEWA ecoflow

[이미지 2] 도면 치수 정보

측면도

• Ø105
• 7.5
• 301
• 4-Ø19
• 293
• 453
• 501
• 823
• 487
• 223.5

정면도

• 593
• 920
• 240
• 340

(단위: mm 추정)

---
