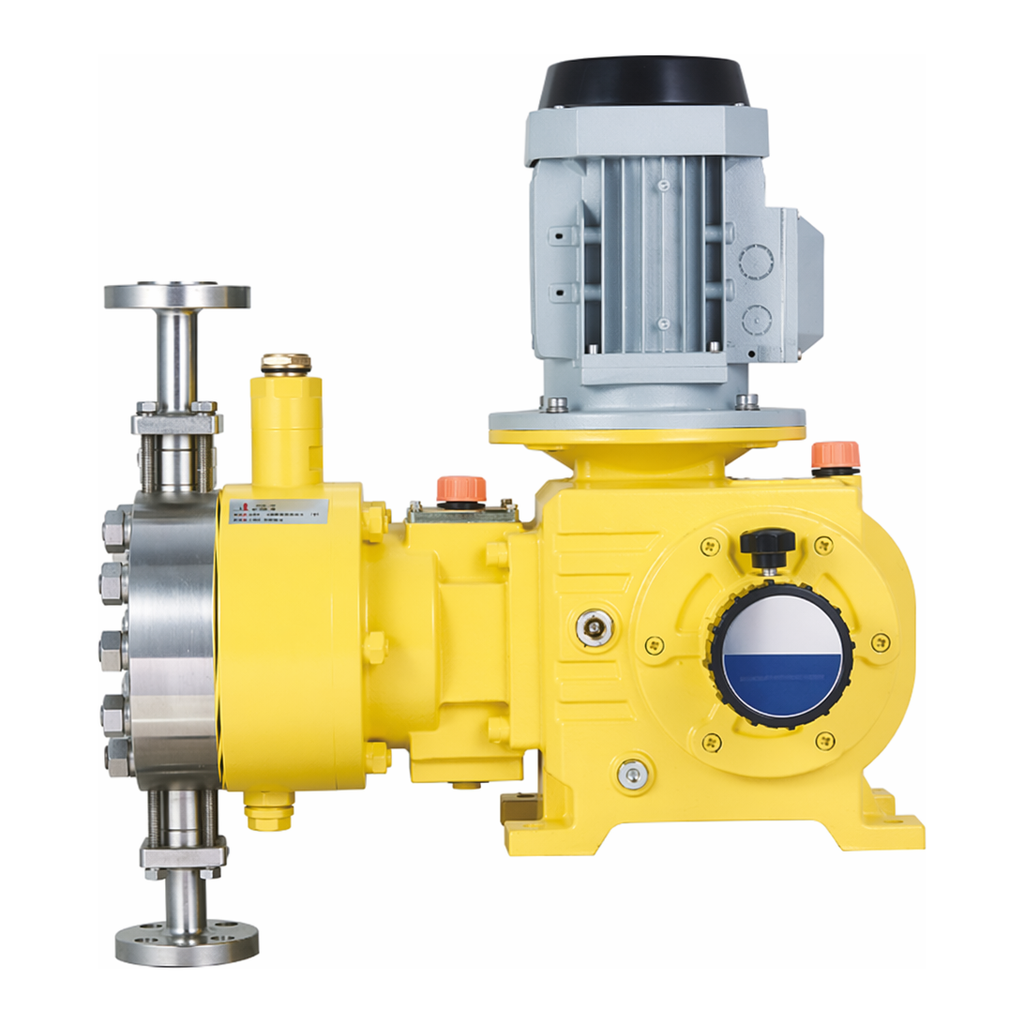

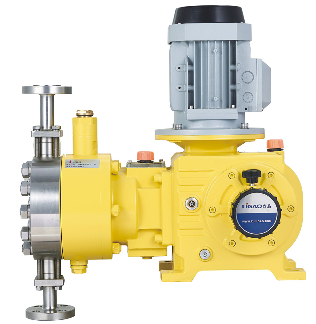

JYSR SERIES-유압식 다이아프램 미터링펌프

JYSR SERIES

[Hydraulic Diaphragm Metering Pump]

유압식 다이아프램 미터링펌프

---

제품 설명 [KEY FEATURES]

• Max : 1 채널
• 유량 범위 : 34.0 - 840.0 L/h

---

FEATURES

• 스트로크 길이와 스트로크 속도 유량 제어
• Max : 1 채널
• 유량 범위 : 34.0 - 840.0 L/h
• 지속적인 주입 가능(Continuous Infusion)

SPECIFICATIONS

• 전압 ` 110/220/380V, 50/60Hz, 단상/삼상 모터
• 압력 : 16.0 - 220 bar max
• 재질 :
• Pump Head : SUS304, SUS316
• Diaphragm : PTFE
• Check Valve : SUS304, SUS316
• Check Valve Ball : Ceramic, SUS304, SUS316

ODERING INFORMATIONS

Model	50Hz		60 Hz		Pressure(Bar)	Plunger Dia.(mm)	Diaphragm Dia.(mm)	Stroke Length (mm)	Power
Flow(lph)	SPM	Flow(lph)	SPM
JYSR28/22	7.4	96	34	115	220	16	92	30	1.5 Kw
JYSR42/22	11	144	50	173	220	16	92
JYSR50/18	15	67	180	18	92
JYSR70/14	18	84	140	20	110
JYSR85/12	22	102	120	22	110
JYSR110/9.0	29	132	90	25	110
JYSR165/6.5	44	198	65	30	130
JYSR190/5.6	50	228	56	32	130
JYSR250/4.5	66	300	45	36	130
JYSR300/3.6	79	360	36	40	150
JYSR380/2.8	100	456	28	45	150
JYSR480/2.3	127	576	23	50	150
JYSR580/1.8	153	696	18	55	150
JYSR700/1.6	185	840	16	60	150

APPLICATIONS

• Perfusion of animal tissue slice

• Flow Injection

• In-vitro system

• Re-circulating pump

• Filling of bottles

• Plastics production: Metering of additives

• Waste water treatment: Metering of flocculants

• Cooling circuits: Metering of corrosion inhibitors and biocides
