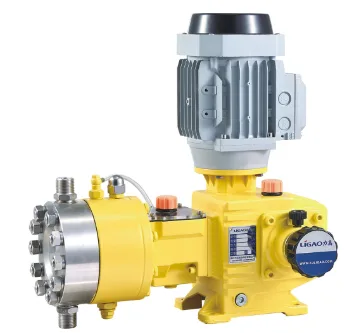

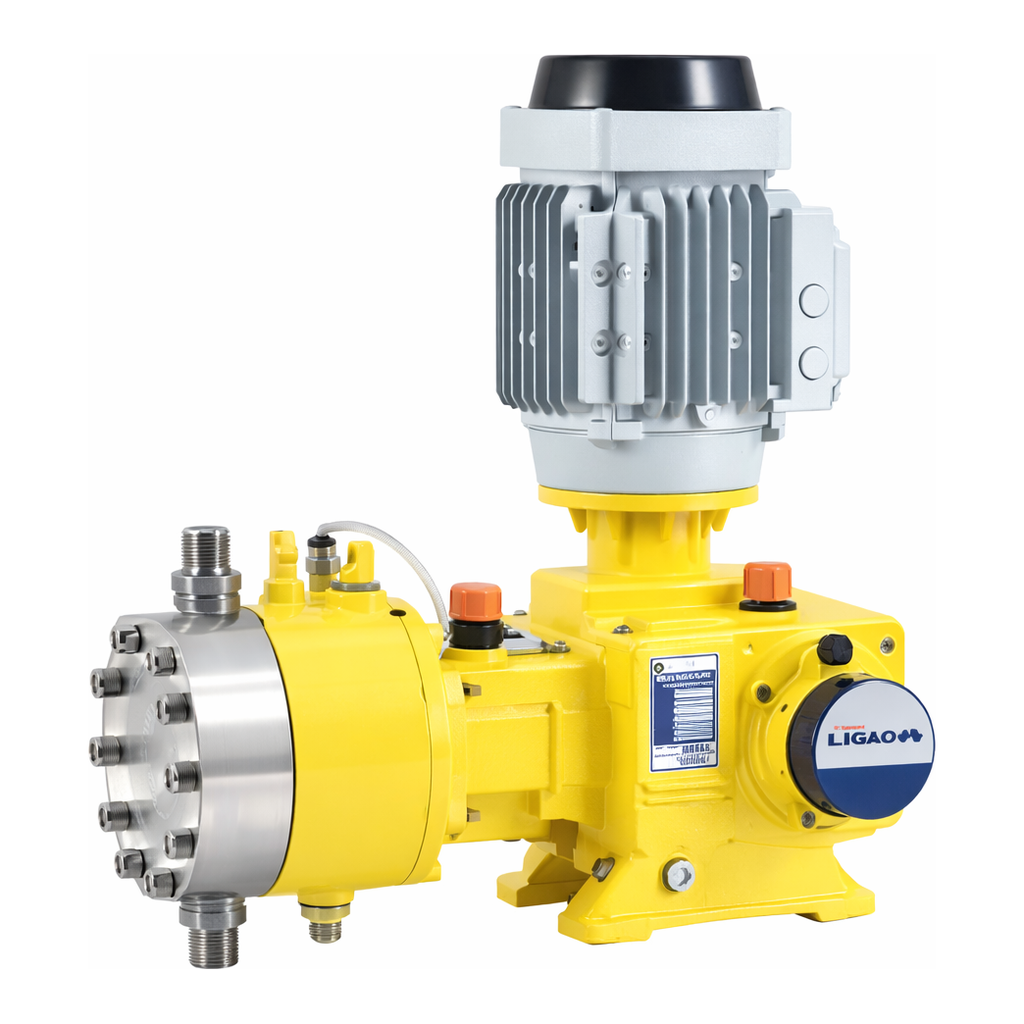

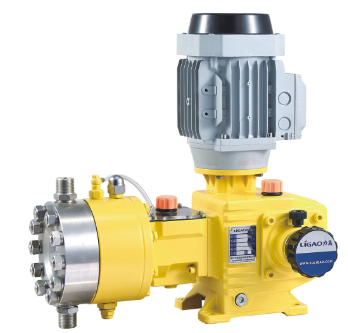

JYSZ SERIES-유압식 다이아프램 미터링펌프

JYSZ SERIES

[Hydraulic Diaphragm Metering Pump]

유압식 다이아프램 미터링펌프

---

제품 설명 [KEY FEATURES]

• Max : 1 채널
• 유량 범위 : 12.0 - 480.0 L/h

---

FEATURES

• 스트로크 길이와 스트로크 속도 유량 제어
• Max : 1 채널
• 유량 범위 : 12.0 - 480.0 L/h
• 지속적인 주입 가능(Continuous Infusion)

SPECIFICATIONS

• 전압 ` 110/220/380V, 50/60Hz, 단상/삼상 모터
• 압력 : 8.0 - 140 bar max
• 재질 :
• Pump Head : SUS304, SUS316
• Diaphragm : PTFE
• Check Valve : SUS304, SUS316
• Check Valve Ball : Ceramic, SUS304, SUS316

ODERING INFORMATIONS

Model	50Hz		60 Hz		Pressure(Bar)	Plunger Dia.(mm)	Diaphragm Dia.(mm)	Stroke Length (mm)	Power
Flow(lph)	SPM	Flow(lph)	SPM
JYSZ10/20	10	96	12	115.2	200	12	80	25	0.75 Kw
JYSZ35/10	35	42	100	16	92
JYSZ45/9.0	45	54	90	18	92
JYSZ60/7.2	58	69.6	72	20	92
JYSZ70/6.0	72	86.4	60	22	110
JYSZ100/4.0	100	120	40	25	110
JYSZ130/3.2	135	162	32	30	110
JYSZ150/2.8	150	180	28	32	130
JYSZ200/2.2	200	240	22	36	130
JYSZ240/1.8	240	288	18	40	130
JYSZ300/1.4	300	360	14	45	130
JYSZ400/1.1	400	480	10	50	130

APPLICATIONS

• Perfusion of animal tissue slice

• Flow Injection

• In-vitro system

• Re-circulating pump

• Filling of bottles

• Plastics production: Metering of additives

• Waste water treatment: Metering of flocculants

• Cooling circuits: Metering of corrosion inhibitors and biocides
