1420 VDP BLDC_Diaphragm Pump-소형 다이아프램 기체펌프(장비장착용)

1420 VDP BLDC Diaphragm Pump

소형 다이아프램 기체펌프 (장비 장착용)

---

제품 설명 (Key Features)

• Oil-less (무급유식)
• Low vibration (저진동)
• Low sound level (저소음)
• Compact design (컴팩트 설계)
• Lightweight (경량)

---

추가 정보

기기 본체에는 “NITRA” 로고가 표시되어 있습니다.
이미지 내 구조 설명 라벨: Cylinder head, Spark plug, Intake valve, Exhaust valve, Piston, Connecting rod, Crankshaft

---

SPECIFICATIONS

PNEUMATIC DATA

항목	내용
Description	1420VDP/1.5/E/BLDC
Part number	12 V → 14200504 24 V → 14200505
Max. flow	8.2 l/min
Max. intermittent pressure	1.9 bar
Max. continuous pressure	0.7 bar
Max. intermittent vacuum	73 %
Max. continuous vacuum	49 %
Max. restart vacuum	73 %

ELECTRICAL DATA

항목	내용
Motor type	Brushless DC
Nominal speed	0 to 4600 rpm
Nominal voltage	12/24 V DC
Drive electronics	Integrated with reverse supply voltage protection
Max. power consumption	11 W
Motor insulation class	B
Protection class	IP20
Connector	Housing: Molex KK 22-01-3047 Terminal: Molex KK 08-50-0031

GENERAL DATA

항목	내용
Ambient temperature	15 to 40 °C
Media temperature	15 to 40 °C
Weight	190 g
Configuration	Parallel

WETTED PARTS

구성품	재질
Pump head	PAA
Diaphragm	EPDM
Valves	EPDM
Tubing	PUR
Y-Connector	POM

OPTIONS

옵션	재질
PPS

WIRING DIAGRAM

Pin	Function	Color	Description
Pin 1	V Supply	Red	12 V DC (10–18 V DC) 24 V DC (10–28 V DC)
Pin 2	Ground	Black	Ground for V Supply (PIN 1) and Speed Control (PIN 3)
Pin 3	Speed Control	White	Analog: 0–5 V DC (max. 28V) PWM: 6.0 kHz ±14.9% Speed regulation threshold: 0.2 V
Pin 4	Tacho out	Green	18 pulses/rev Pulse time “LOW”: 195 μs Output level “LOW”: 0 / max. 0.5 V Output level “HIGH”: min. 4 / max. 5 V

Optional: Adapter for 2-wire duty incl. potentiometer for speed adjustment

Model Key

1420   VDP   /   1.5   /   E   /   BLDC
Type  Pressure  Vacuum  Diaphragm, Valves  Motor type

Legend

• P = Parallel
• R = Series
• E = Eccentric

---

FLOW CURVES

축	단위
Flow	[l/min]
Power	[W]
Vacuum rel.	[%]
Pressure	[mbar]

범례 (Legend):

• ■ Flow Rate [l/min] - 5V
• □ Power [W] - 5V
• ▲ Flow Rate [l/min] - 1V
• ◊ Power [W] - 1V

그래프 축 레이블:

• 가로축 (X-axis): Vacuum rel. [%] / Pressure [mbar]
  (눈금: 80, 60, 40, 20, 0, 200, 400, 600, 800, 1000, 1200, 1400, 1600, 1800, 2000)
• 왼쪽 세로축 (Y-axis): Flow [l/min] (0 ~ 12)
• 오른쪽 세로축 (Y-axis): Power [W] (0 ~ 12)

---

APPLICATIONS

• Continuous Inkjet (CIJ)
• Drop-on-Demand Inkjet (DOD)
• In-Vitro Diagnostics (IVD)
• Chemical Industry
• Medical Devices
• Laboratory and Analysis
• Industrial Applications
• Hygiene

---

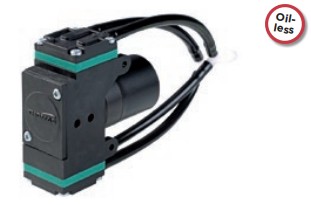

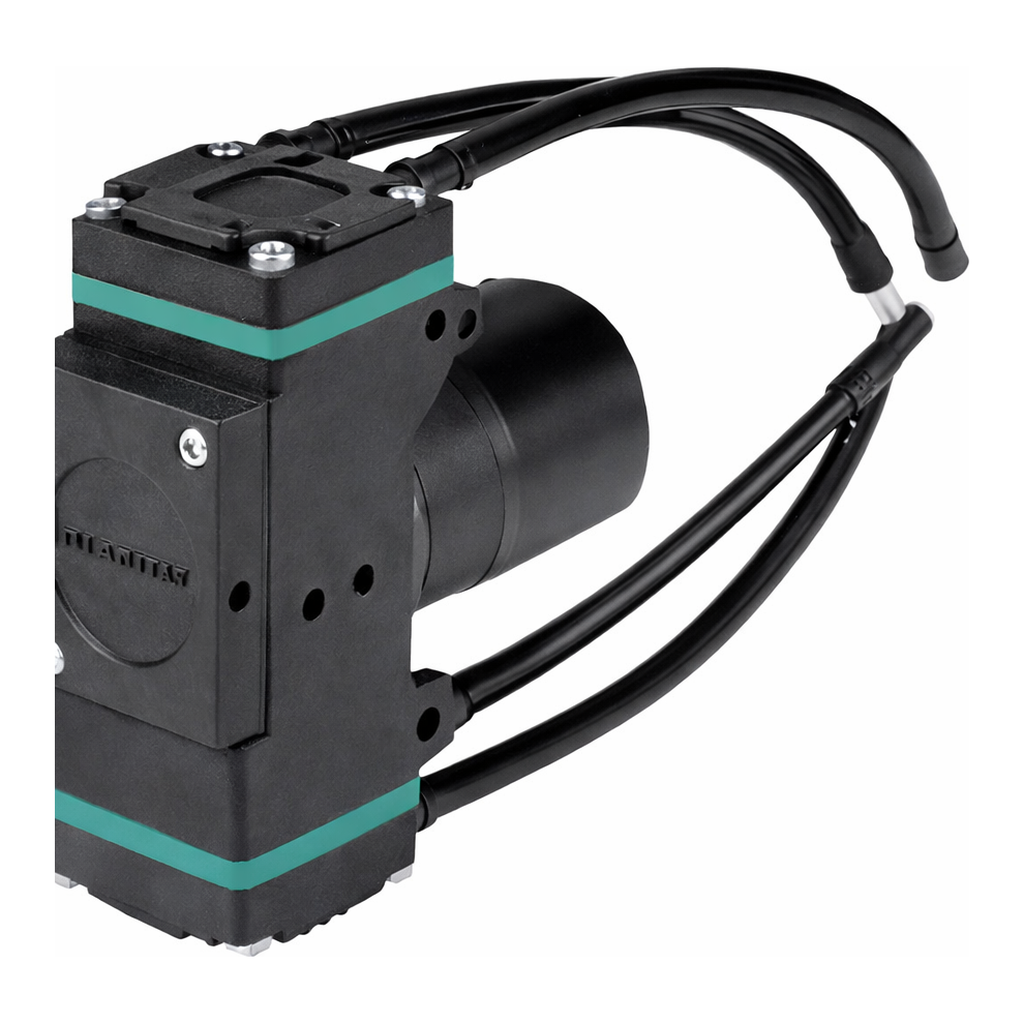

제품 이미지
