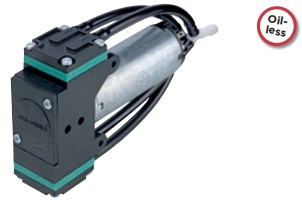

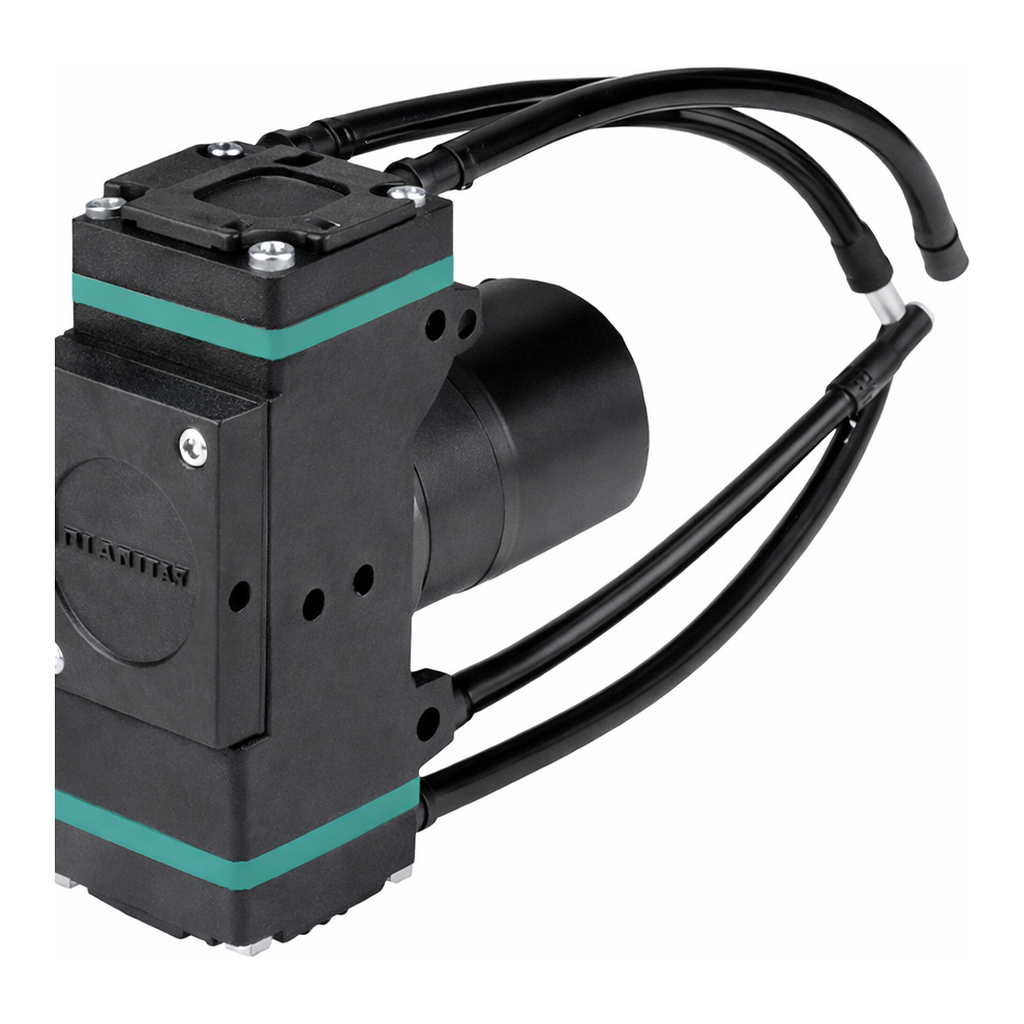

1420 VDP DC_Diaphragm Pump-소형 다이아프램 기체펌프(장비장착용)

1420 VDP DC Diaphragm Pump

소형 다이아프램 기체펌프 (장비 장착용)

---

제품 특징 (Key Features)

• Oil-less (무윤활 구조)
• Low vibration (저진동)
• Low sound level (저소음)
• Compact design (컴팩트 설계)
• Lightweight (경량)

---

작동 원리

흡입(Intake) → 압축(Compression) → 구동(Power) → 배기(Exhaust)

---

사양 (Specifications)

PNEUMATIC DATA

Description	1420VDP/1.5/E/DC
Part number	12 V → 14202002 / 24 V → 14202003
Max. flow	6.0 L/min
Max. intermittent pressure	1.9 bar
Max. continuous pressure	0.7 bar
Max. restart pressure	1.9 bar
Max. intermittent vacuum	73%
Max. continuous vacuum	73%
Max. restart vacuum	73%

ELECTRICAL DATA

항목	사양
Motor type	DC brush¹)
Nominal speed	3200 rpm
Nominal voltage	12/24 V DC
Max. power consumption	7.9 W
Motor insulation class	E
Protection class	IP00

¹) Radio interference suppression according to EN 55011-B

GENERAL DATA

항목	사양
Ambient temperature	5 ~ 50 °C
Media temperature	5 ~ 50 °C
Weight	310 g
Configuration	Parallel

WETTED PARTS

Component	Material
Pump head	PAA
Diaphragm	EPDM
Valves	EPDM
Tubing	PUR
Y-Connector	POM

OPTIONS

옵션	재질
PPS	-

---

모델 키 (Model Key)

P = Parallel
R = Series

1420  VDP  /  1.5  /  E  /  DC
Type  Pressure Vacuum   Eccentric   Diaphragm, Valves   Motor type

---

유량 특성 (Flow Curves)

Power [W]	Flow Rate [L/min]
-	-

그래프 축 정보:

• X축 (왼쪽): Vacuum rel. [%] — 75, 50, 25, 0
• X축 (오른쪽): Pressure [mbar] — 0 ~ 2250
• Y축 (왼쪽): Power [W] — 0.0 ~ 9.0
• Y축 (오른쪽): Flow Rate [L/min] — 0.0 ~ 9.0
• 범례: □ Flow Rate / ■ Power

---

적용 분야 (Applications)

• Continuous Inkjet (CIJ)
• Drop-on-Demand Inkjet (DOD)
• In-Vitro Diagnostics (IVD)
• Chemical Industry
• Medical Devices
• Laboratory and Analysis
• Industrial Applications
• Hygiene

---

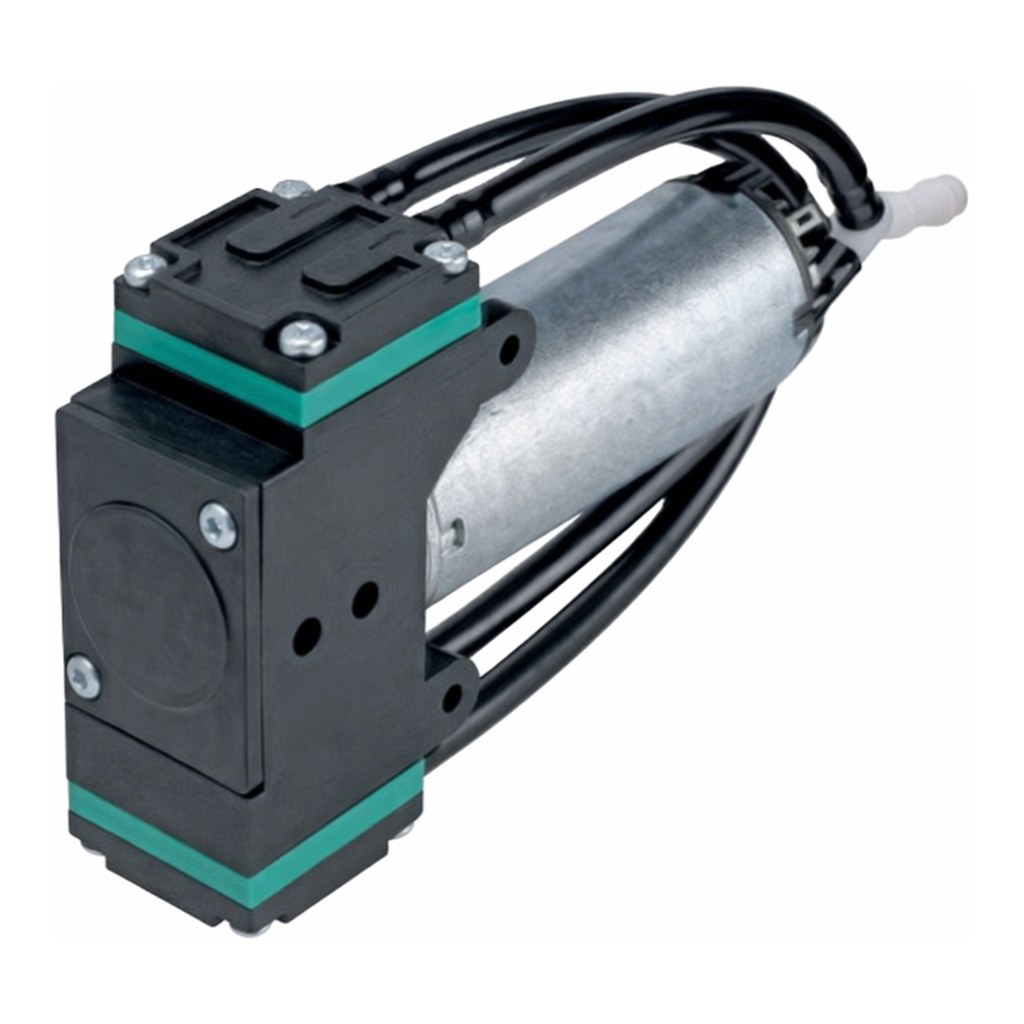

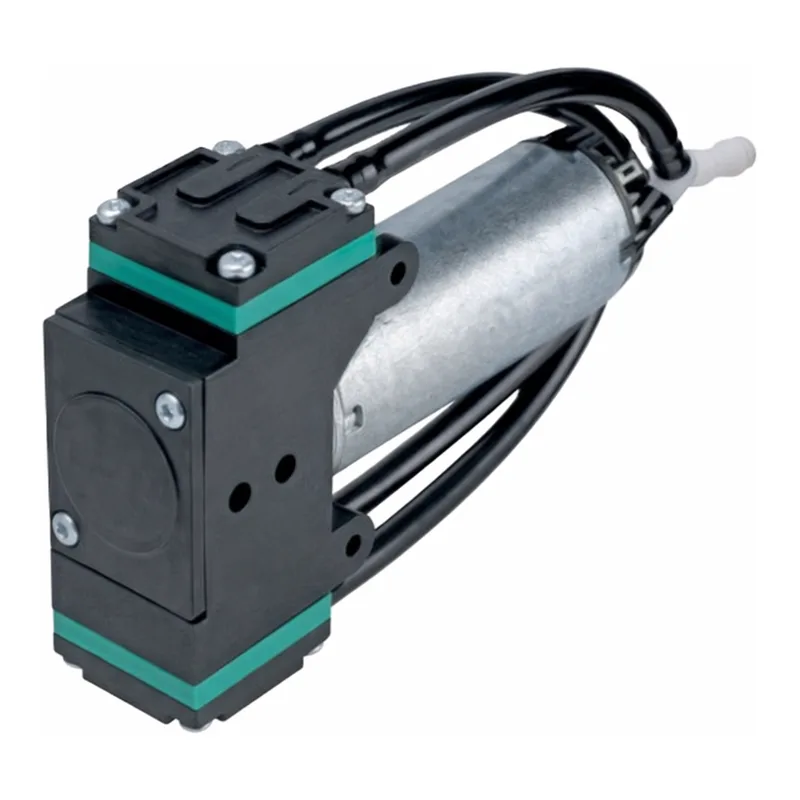

제품 이미지
