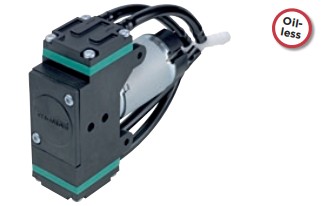

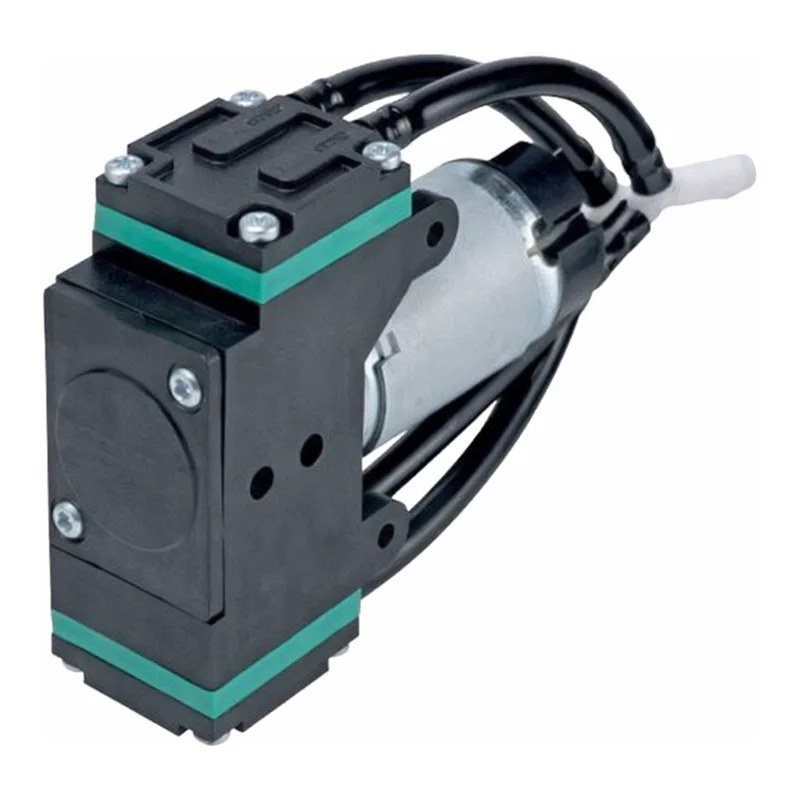

1420 VDP LC_Diaphragm Pump-소형 다이아프램 기체펌프(장비장착용)

1420 VDP LC Diaphragm Pump

소형 다이아프램 기체펌프 (장비장착용)

---

제품 설명 (Key Features)

• Oil-less
• Low vibration
• Low sound level
• Compact design
• Lightweight

---

작동 원리 관련 텍스트 (이미지에서 추출)

• spark plug
• intake
• exhaust
• fuel
• air
• piston

---

Specifications

PNEUMATIC DATA

Description	1420VDP/1.5/E/LC
Part number	12 V → 14200200 24 V → 14200201
Max. flow	6.3 l/min
Max. intermittent pressure	1.9 bar
Max. continuous pressure	0.7 bar
Max. restart pressure	1.9 bar
Max. intermittent vacuum	73%
Max. continuous vacuum	73%
Max. restart vacuum	73%

---

ELECTRICAL DATA

Motor type	DC brush¹
Nominal speed	3400 rpm
Nominal voltage	12/24 V DC
Max. power consumption	8.3 W
Motor insulation class	F
Protection class	IP00

¹) radio interference suppression according to EN 55011-B (12 V only)

---

GENERAL DATA

Ambient temperature	5 to 50 °C
Media temperature	5 to 50 °C
Weight	220 g
Configuration	Parallel

---

WETTED PARTS

Component	Material
Pump head	PAA
Diaphragm	EPDM
Valves	EPDM
Tubing	PUR
Y-Connector	POM

---

OPTIONS

Option	Material
PPS

---

Additional Information

1420... Stock programme

Model key:

P = Parallel
R = Series

1420   VDP   /   1.5   /   E   /   LC
Type  Pressure  Eccentric  Motor type
       Vacuum   Diaphragm, Valves

---

FLOW CURVES (텍스트 기반 정보)

Power [W]	Flow Rate [l/min]

• X축: Vacuum rel. [%] → Pressure [mbar]
  (75, 50, 25, 0, 250, 500, 750, 1000, 1250, 1500, 1750, 2000, 2250)
• Y축 (왼쪽): Power [W] (0.0~9.0)
• Y축 (오른쪽): Flow Rate [l/min] (0.0~9.0)
• 범례: ■ Flow Rate / □ Power

---

Applications

• Continuous Inkjet (CIJ)
• Drop-on-Demand Inkjet (DOD)
• In-Vitro Diagnostics (IVD)
• Chemical Industry
• Medical Devices
• Laboratory and Analysis
• Industrial Applications
• Hygiene

---

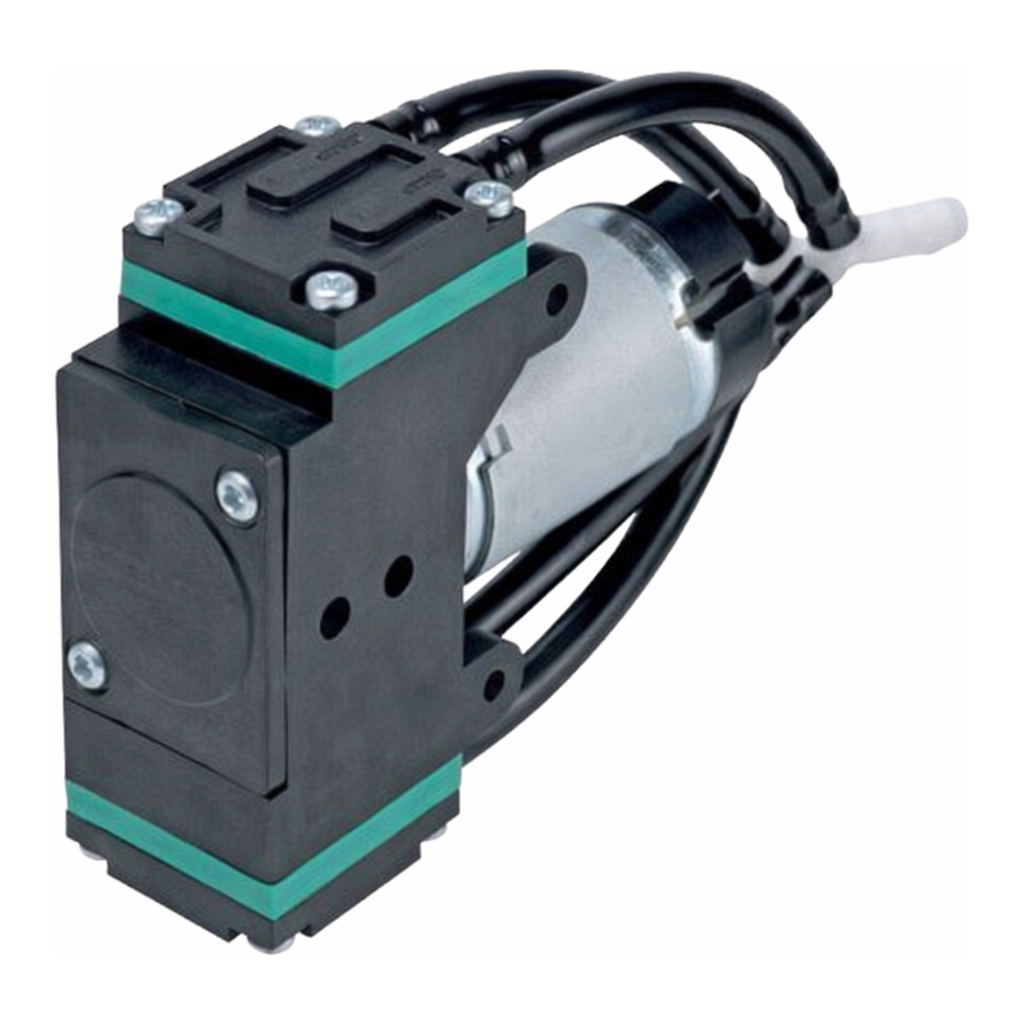

제품 이미지
