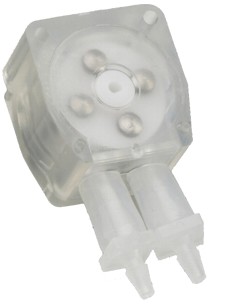

100 series_Tubing Pump-소형 튜브연동 액체펌프(장비장착용)

상품 한눈에 보기

소형 장비 장착용 튜브연동 펌프로 액체 및 기체 이송 가능 자가 흡입(Self-priming) 기능과 건식 운전(Dry running)에 우수 슬러리 및 입자 함유 유체 이송에 적합 컴팩트한 디자인으로 장비 내장 및 OEM 적용 용이 다양한 전압 및 유량 사양 제공, 실리콘 튜브 옵션 선택 가능

브랜드
Leadfluid
카테고리
Peristaltic Pumps
#Leadfluid#OEM Pumps#Pumps

Leadfluid · 100 series_Tubing Pump-소형 튜브연동 액체펌프(장비장착용)

100 series Tubing Pump

소형 튜브연동 액체펌프 (장비장착용)

제품 설명 (Key Features)

  • Excellent dry running characteristics
  • Can pump fluid and gas/air
  • Fluid only contacts the inside of the tubing
  • Can pump slurries and fluids with high particulate content
  • Self priming
  • Compact design

특징 (Features)

  • Excellent dry running characteristics
  • Can pump fluid and gas/air
  • Fluid only contacts the inside of the tubing
  • Can pump slurries and fluids with high particulate content
  • Self priming
  • Compact design
  • Easily replaceable pumphead
  • Compatible with chemicals and aggressive fluids (tube material options)

사양 (Specifications)

DC Motor Models

Model No Series ml/min Rollers RPM Voltage Tube ID / Material mA
100.035.006.008/2 100 series pump 1 2 35rpm 6vDC 0.8mm silicone 300
100.035.006.008/4 100 series pump 1 4 35rpm 6vDC 0.8mm silicone 300
100.035.006.016/2 100 series pump 4 2 35rpm 6vDC 1.6mm silicone 300
100.035.006.016/4 100 series pump 3 4 35rpm 6vDC 1.6mm silicone 300
100.035.006.030/4 100 series pump 8 4 35rpm 6vDC 3mm silicone 300
100.070.006.008/2 100 series pump 2 2 70rpm 6vDC 0.8mm silicone 300
100.070.006.008/4 100 series pump 2 4 70rpm 6vDC 0.8mm silicone 300
100.070.006.016/2 100 series pump 7 2 70rpm 6vDC 1.6mm silicone 300
100.070.006.016/4 100 series pump 6 4 70rpm 6vDC 1.6mm silicone 300
100.070.006.030/4 100 series pump 18 4 70rpm 6vDC 3mm silicone 300
100.005.012.008/2 100 series pump <1 2 5rpm 12vDC 0.8mm silicone 60
100.035.012.030/4 100 series pump 8 4 35rpm 12vDC 3mm silicone 170
100.150.012.016/4 100 series pump 12 4 150rpm 12vDC 1.6mm silicone 400
100.330.012.030/4 100 series pump 30 4 330rpm 12vDC 3mm silicone 400

18V DC Models

Model No Series ml/min Rollers RPM Voltage Tube ID / Material mA
100.330.012.016/4 100 series pump 26 4 330rpm 12vDC 1.6mm silicone 400
100.035.018.016/4 100 series pump 3 4 35rpm 18vDC 1.6mm silicone 100
100.070.018.030/4 100 series pump 16 4 70rpm 18vDC 3mm silicone 115

24V DC Models

Model No Series ml/min Rollers RPM Voltage Tube ID / Material mA
100.035.024.016/4 100 series pump 3 4 35rpm 24vDC 1.6mm silicone 80
100.070.024.030/4 100 series pump 15 4 70rpm 24vDC 3mm silicone 80
100-220-024-030/4 100 series pump 48 4 220rpm 24vDC 3mm silicone 400

AC Motor Models

Model No Series ml/min RPM Voltage Tube ID / Material Watts
100.008.115.008/2 100 series pump 0.25 8rpm 115vAC 0.8mm silicone 5
100.015.230.016/2 100 series pump 1.2 15rpm 230vAC 1.6mm silicone 5
100.030.230.030/2 100 series pump 7 30rpm 230vAC 3mm silicone 5

주석:
The number of rollers is indicated by the last figure of the “Model No”, e.g., 102.030.230.008/2 has 2 rollers.

응용 분야 (Applications)

  • Continuous Inkjet (CIJ)
  • Drop-on-Demand Inkjet (DOD)
  • In-Vitro Diagnostics (IVD)

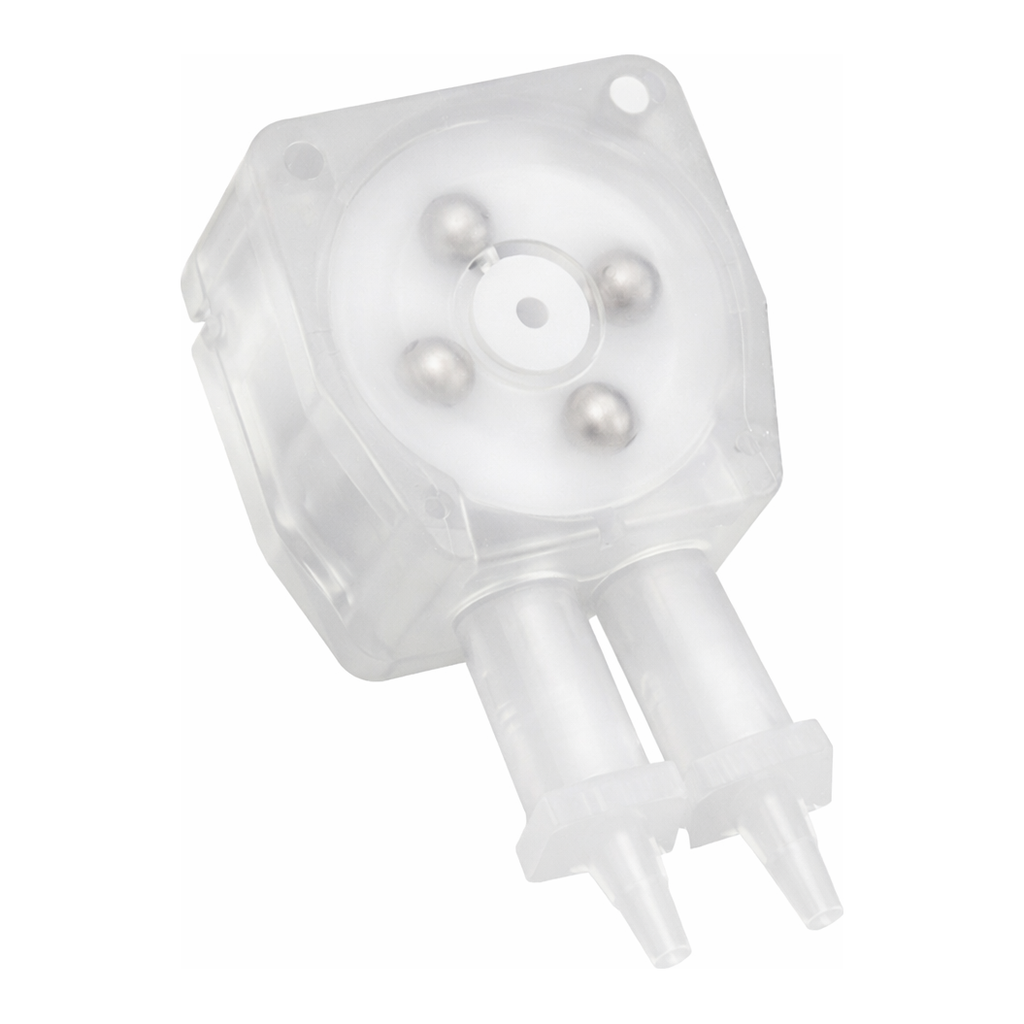

제품 이미지




Leadfluid 상품 둘러보기

전체보기

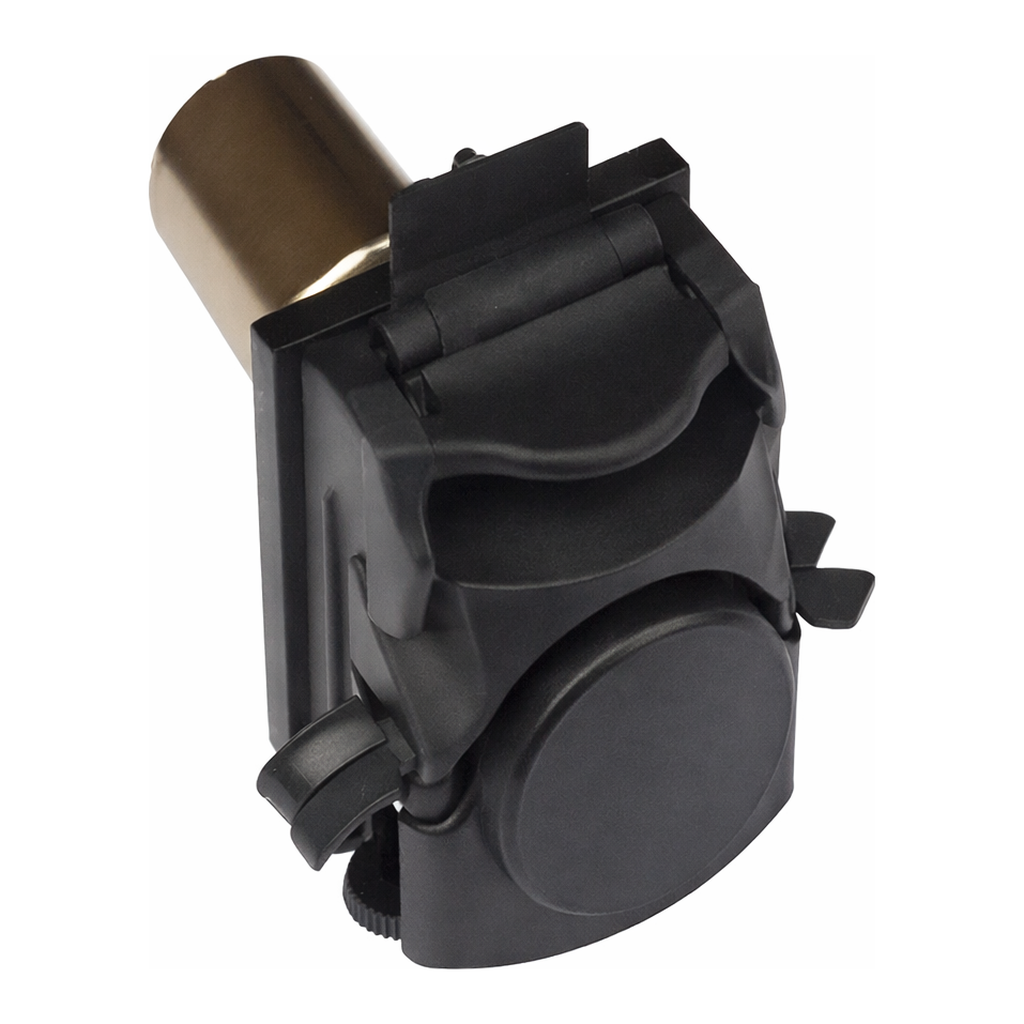

Leadfluid250 series_Tubing Pump-소형 튜브연동 액체펌프(장비장착용)가격 문의VAT별도

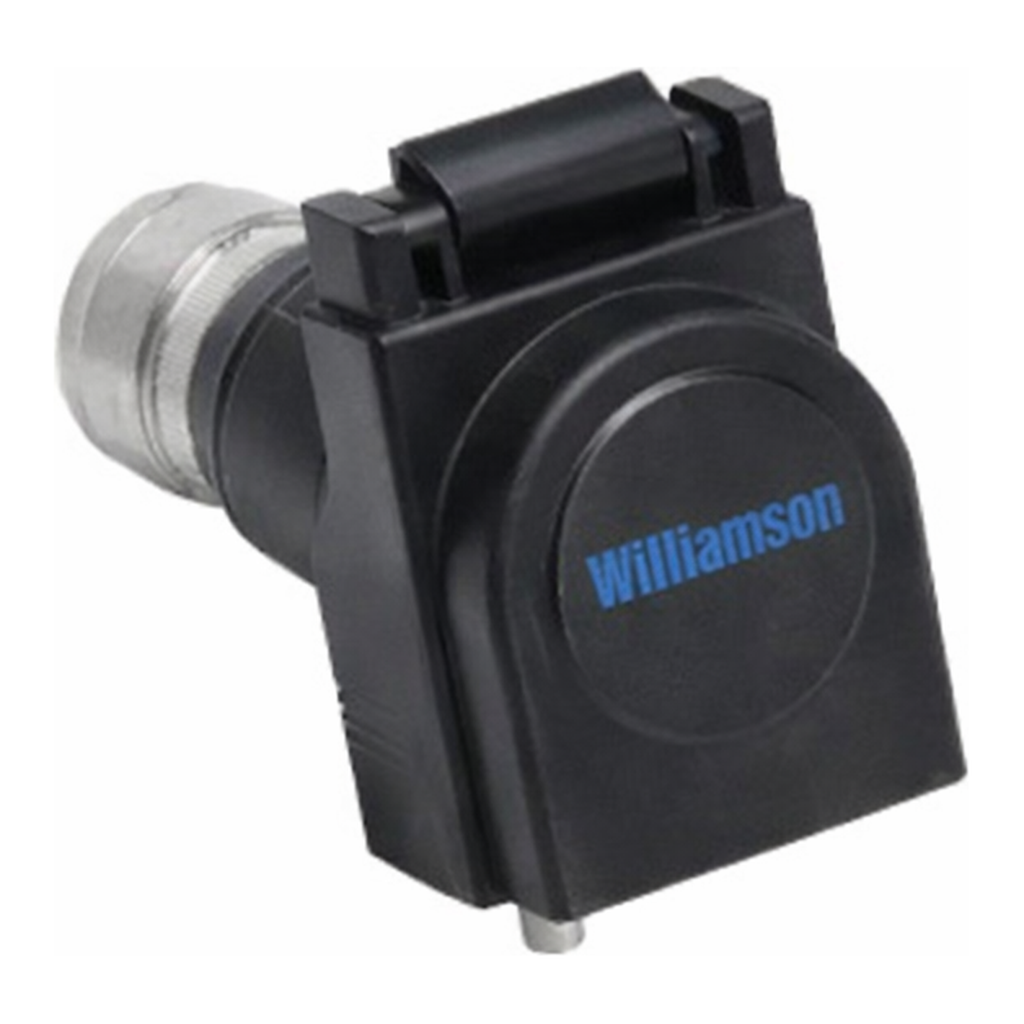

Leadfluid150 series_Tubing Pump-소형 튜브연동 액체펌프(장비장착용)가격 문의VAT별도
