1 / 2150 series_Tubing Pump-소형 튜브연동 액체펌프(장비장착용)
상품 한눈에 보기
소형 장비 장착용 튜브연동 액체펌프로 다양한 유체 이송에 적합 간편한 튜브 교체 및 연속 운전 가능 3, 4, 6 롤러 시스템과 다양한 튜브 직경(1mm, 2mm, 3mm) 선택 가능 자체 흡입(Self-priming) 기능 및 유지보수 불필요한 구조 OEM 및 실험 장비 내장용으로 최적화된 설계
- 브랜드
- Leadfluid
Leadfluid · 150 series_Tubing Pump-소형 튜브연동 액체펌프(장비장착용)

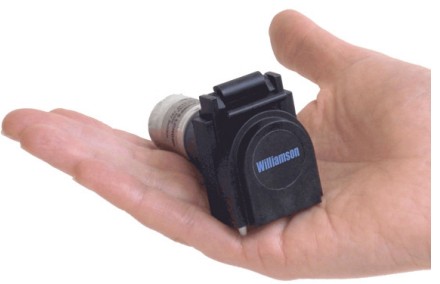

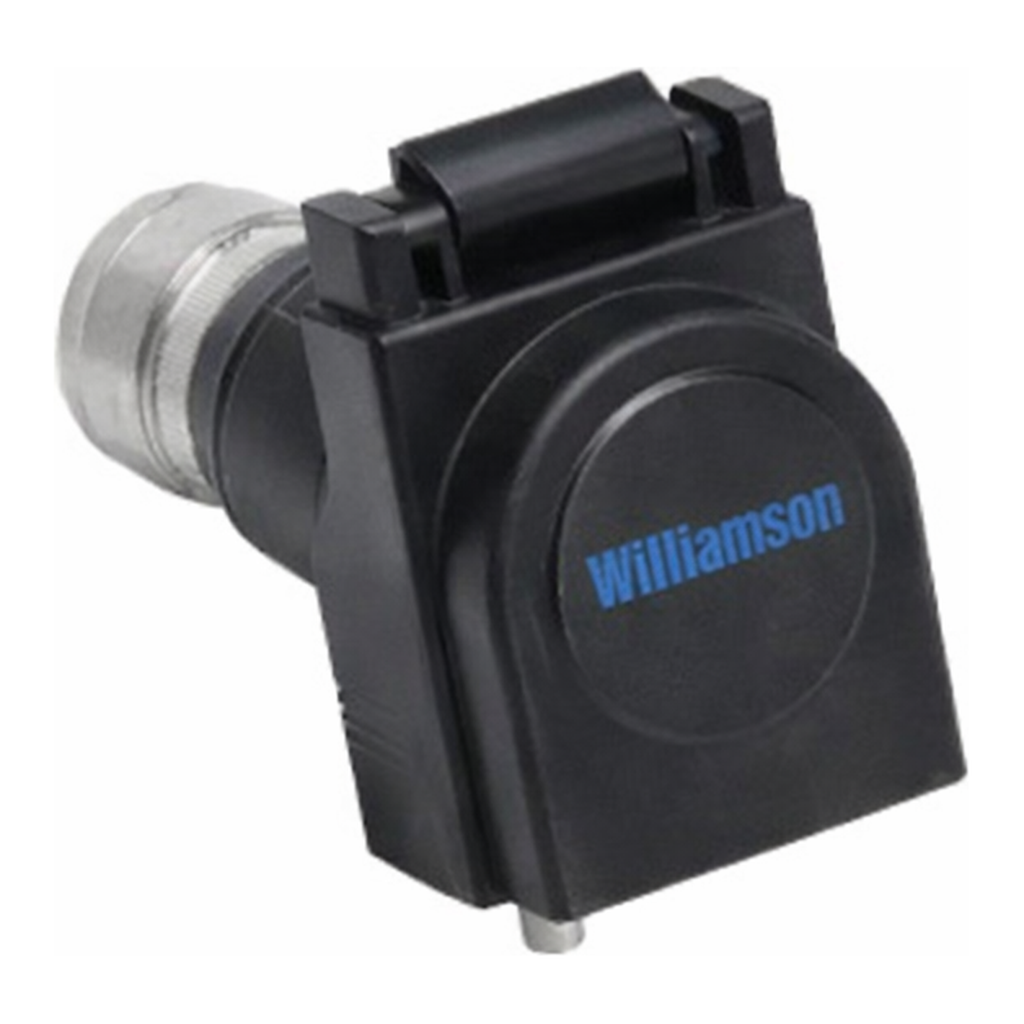

150 series Tubing Pump
소형 튜브연동 액체펌프 (장비 장착용)
제품 설명 (Key Features)
- Easy tube change
- Continuous or fixed tube length
- 3, 4 or 6 roller system
- Planetary gearbox
- Panel mounting
- Self-priming
Features
- Easy tube change
- Continuous or fixed tube length
- Accurate dispense
- 3, 4 or 6 roller system
- Planetary gearbox
- Integrated positional encoder (optional)
- Choice of 3 different tube diameters (1mm, 2mm & 3mm)
- Suitable for continuous operation
- Panel mounting
- No lubrication — no service
- Self priming
Specifications
| 항목 | 내용 |
|---|---|
| DC Motor | 12V / 24V DC |
| Current at full speed | 250mA |
| Max ambient operational temperature | 50°C |
| Material wetted parts | Lagoprene, PHI or Silicone |
| Port connectors (optional) | for ID Ø2.0mm tubing |
| Max pressure | 1 bar |
| Weight | 125g |
| Life expectancy | >1000 hours |
| Optional back shaft motor encoder | 160 pulses per rotor rev |
| ID Ø1.0mm tube | up to 12ml/min |
| ID Ø2.0mm tube | up to 40ml/min |
| ID Ø3.0mm tube | up to 90ml/min |
추가 정보:
- Choice of various tube sizes in Silicone, Lagoprene & PHI.
- Continuous tubing and fitted version available.
- Standard gear box ratio: 1:22.5, 245rpm @ 12V DC.
- Alternative gear box ratios available upon request (subject to order quantities).
- Encoder shafts & encoders available on request.
Pumps supplied with Silicone tubing, tube clamps and tube connectors
| Part Number | Description |
|---|---|
| 150-245-012-201-3 | Pump 12VDC 260RPM 3 rollers 1mm sil |
| 150-245-012-201-6 | Pump 12VDC 260RPM 6 rollers 1mm sil |
| 150-800-012-201-3 | Pump Stepper motor 3 rollers 1mm sil |
| 150-800-012-201-6 | Pump Stepper motor 6 rollers 1mm sil |
| 150-245-012-202-3 | Pump 12VDC 260RPM 3 rollers 2mm sil |
| 150-245-012-202-6 | Pump 12VDC 260RPM 6 rollers 2mm sil |
| 150-800-012-202-3 | Pump Stepper motor 3 rollers 2mm sil |
| 150-800-012-202-6 | Pump Stepper motor 6 rollers 2mm sil |
| 150-245-012-203-3 | Pump 12VDC 260RPM 3 rollers 3mm sil |
| 150-245-012-203-6 | Pump 12VDC 260RPM 6 rollers 3mm sil |
| 150-800-012-203-3 | Pump Stepper motor 3 rollers 3mm sil |
| 150-800-012-203-6 | Pump Stepper motor 6 rollers 3mm sil |
Pumps supplied with Lagoprene tubing, tube clamps and tube connectors
| Code | Description |
|---|---|
| 151-245-012-202-3 | Pump 12VDC 260RPM 3 rollers 2mm sant |
| 151-245-012-202-6 | Pump 12VDC 260RPM 6 rollers 2mm sant |
| 151-800-012-202-3 | Pump Stepper motor 3 rollers 3mm food sant |
| 151-800-012-202-6 | Pump Stepper motor 6 rollers 3mm food sant |
Pumps supplied with PHI tubing, tube clamps and tube connectors
| Code | Description |
|---|---|
| 153-245-012-201-3 | Pump 12VDC 260RPM 3 rollers 1mm PHI |
| 153-245-012-201-6 | Pump 12VDC 260RPM 6 rollers 1mm PHI |
| 153-800-012-201-3 | Pump Stepper motor 3 rollers 1mm PHI |
| 153-800-012-201-6 | Pump Stepper motor 6 rollers 1mm PHI |
Tube Sets (75mm long) with PP Connector
Silicone Tube Set
| Code | Description |
|---|---|
| 150-01-01 | Silicone tube (plat cured) 1mm ID × 1mm WT N420/410 |
| 150-02-01 | Silicone tube (plat cured) 2mm ID × 1mm WT N220-6 |
| 150-03-01 | Silicone tube (plat cured) 3mm ID × 1mm WT N230-6 |
Lagoprene Tube Set
| Code | Description |
|---|---|
| 151-02-01 | Lagoprene tubing 2mm ID × 1mm WT N220 |
| 151-03-01 | Lagoprene tubing 3mm ID × 1mm WT N230 |
PHI Tube Set
| Code | Description |
|---|---|
| 153-01-01 | Pharmed tubing 1mm ID × 1mm WT N420/410 |
Applications
- Continuous Inkjet (CIJ)
- Drop-on-Demand Inkjet (DOD)
- In-Vitro Diagnostics (IVD)
