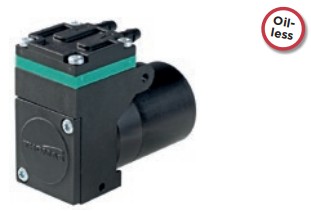

1410 VD BLDC_Diaphragm Pump-소형 다이아프램 기체펌프(장비장착용)

1410 VD BLDC Diaphragm Pump

소형 다이아프램 기체펌프 (장비장착용)

---

제품 설명 (Key Features)

• Oil-less
• Low vibration
• Low sound level
• Compact design
• Lightweight

---

구조 설명 (Cylinder 구성)

• Cylinder head
• Spark plug
• Intake valve
• Exhaust valve
• Piston
• Connecting rod
• Crankshaft

---

Specifications

PNEUMATIC DATA

Description	1410VD/1.5/E/BLDC
Part number	12 V: 14100216 24 V: 14100217
Max. flow	4.3 l/min
Max. intermittent pressure	1.9 bar
Max. continuous pressure	0.7 bar
Max. intermittent vacuum	1.9 bar
Max. intermittent vacuum	73 %
Max. continuous vacuum	73 %
Max. restart vacuum	73 %

---

ELECTRICAL DATA

Parameter	Specification
Motor type	Brushless DC
Nominal speed	0 – 4600 rpm
Nominal voltage	12/24 V DC
Drive electronics	Integrated with reverse supply voltage protection
Max. power consumption	7.0 W
Motor insulation class	B
Protection class	IP20
Connector	Housing: Molex KK 22-01-3047 Terminal: Molex KK 08-50-0031

---

GENERAL DATA

Parameter	Specification
Ambient temperature	15 to 40 °C
Media temperature	15 to 40 °C
Weight	170 g
Port direction	D

---

WETTED PARTS

Component	Material
Pump head	PA
Diaphragm	EPDM
Valves	EPDM

---

OPTIONS

Option	Material
PPS

---

WIRING DIAGRAM

Pin	Function	Color	Description
Pin 1	V Supply	Red	12 V DC (max. voltage range: 10.18 V DC) 24 V DC (max. voltage range: 10.28 V DC)
Pin 2	Ground	Black	Ground for V Supply (PIN 1) and Speed Control (PIN 3)
Pin 3	Speed Control	White	analog: 0–5 V DC (max. 28V) PWM: 6–20 kHz ±14.9% Speed voltage input threshold: 0.2 V
Pin 4	Tacho out	Green	18 pulses per revolution Pulse time „LOW“: 195 µs Output level „LOW“: 0 / max. 0.5 V Output level „HIGH“: min. 4 V / max. 5 V

Optional: Adapter for 2-wire duty incl. potentiometer for speed adjustment

---

Model Key

Code	Description
1410	Type
VD	Vacuum, Pressure
/ 2.2	Eccentric
/ E	Diaphragm, Valves
/ BLDC	Motor type

---

FLOW CURVES

• Flow [l/min] 및 Power [W] 관계 그래프
• 진공(%) 및 압력(mbar)에 따른 유량과 전력 변화를 5V 및 1V 조건에서 비교
• 범례 (Legend):
  • ■ Flow Rate [l/min] - 5V
  • □ Power [W] - 5V
  • ◆ Flow Rate [l/min] - 1V
  • ◇ Power [W] - 1V
• X축: Vacuum rel. [%] / Pressure [mbar]
• Y축: Flow [l/min] 및 Power [W]

---

APPLICATIONS

• Continuous Inkjet (CIJ)
• Drop-on-Demand Inkjet (DOD)
• In-Vitro Diagnostics (IVD)
• Chemical Industry
• Medical Devices
• Laboratory and Analysis
• Industrial Applications
• Hygiene

---

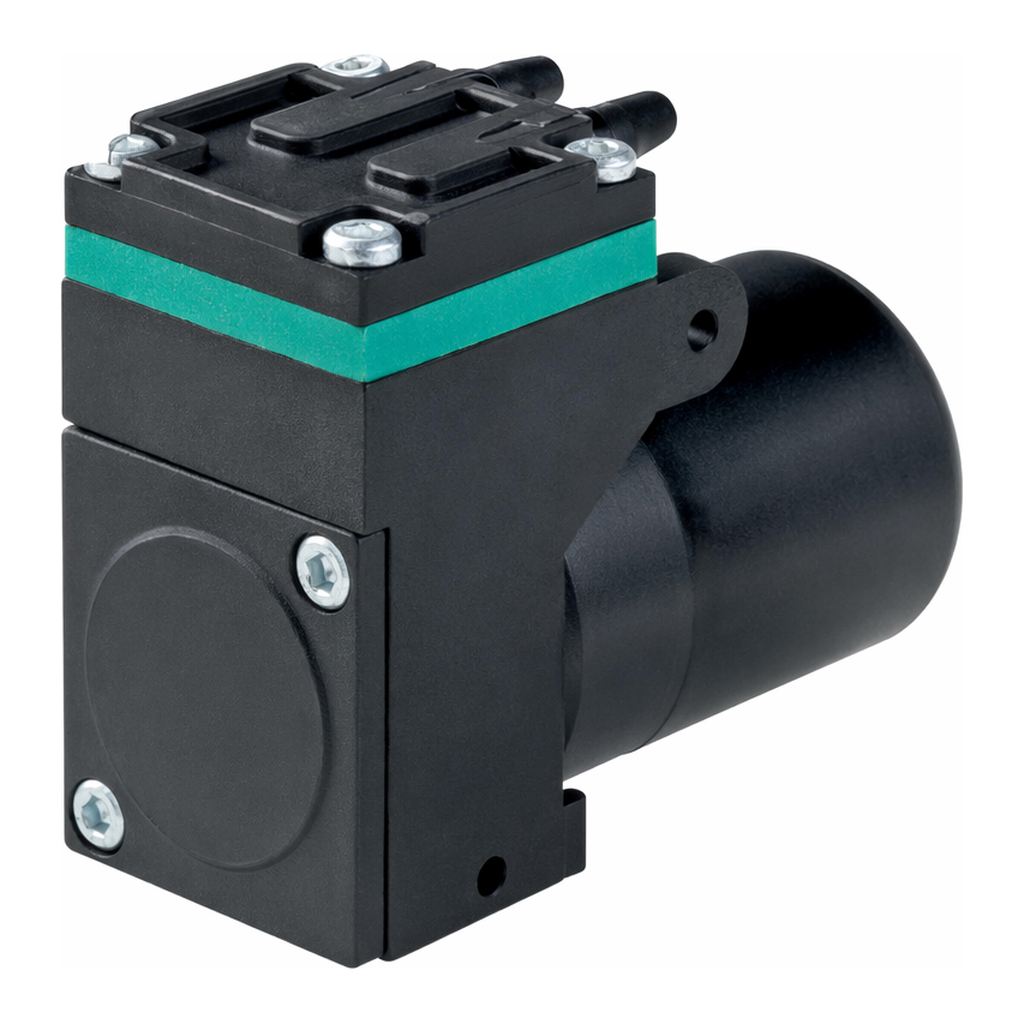

제품 이미지
