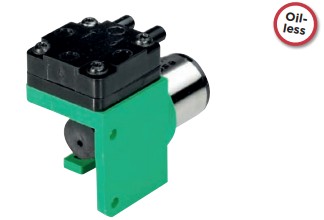

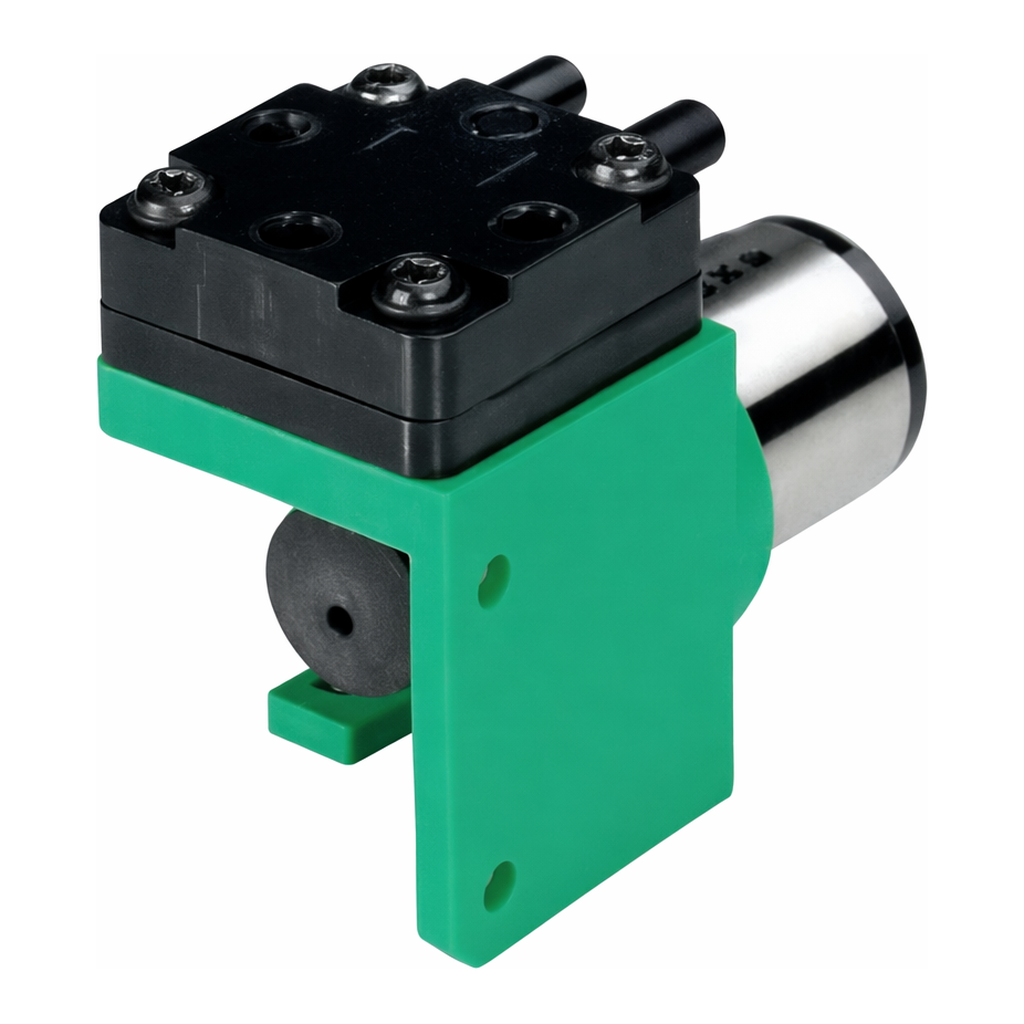

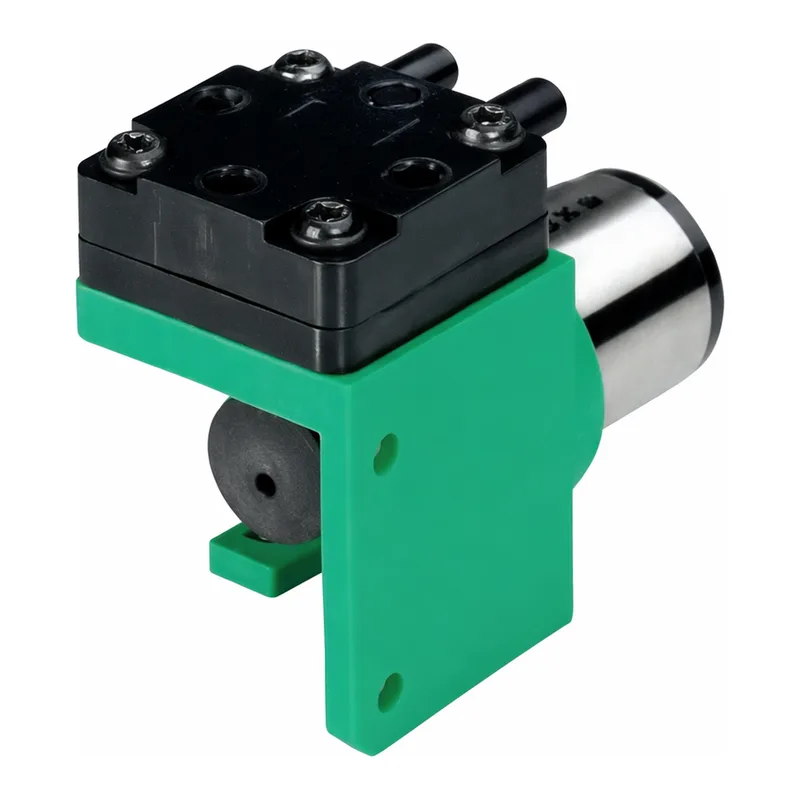

3003 VD DC_Diaphragm Pump-소형 다이아프램 기체펌프(장비장착용)

3003 VD DC Diaphragm Pump

소형 다이아프램 기체펌프 (장비장착용)

---

제품 특징 (KEY FEATURES)

• Oil-less
• Low vibration
• Low sound level
• Compact design
• Lightweight

---

작동 원리

Intake → Compression → Power → Exhaust

---

사양 (SPECIFICATIONS)

PNEUMATIC DATA

Description	3003VD/0.7/E/DC	3003VD/0.7/E/DC	3003VD/0.7/E/DC
Part number	30030506	30030511	30030509
Voltage	4.5 V	6.0 V	12.0 V
Max. flow	850 ml/min	850 ml/min	1000 ml/min
Max. intermittent duty	650 mbar	650 mbar	650 mbar
Max. continuous pressure	200 mbar	200 mbar	200 mbar
Max. restart pressure	200 mbar	200 mbar	200 mbar
Max. vacuum	38 %	38 %	38 %
Max. restart vacuum	20 %	20 %	20 %

ELECTRICAL DATA

항목	3003VD/0.7/E/DC (4.5V)	3003VD/0.7/E/DC (6V)	3003VD/0.7/E/DC (12V)
Motor type	Ironless core DC	Ironless core DC	Ironless core DC
Power consumption	473 mW	480 mW	792 mW
Protection class	IP00	IP00	IP00
Bearing type	Sleeve bearing	Ball bearing	Sleeve bearing

GENERAL DATA

항목	3003VD/0.7/E/DC (4.5V)	3003VD/0.7/E/DC (6V)	3003VD/0.7/E/DC (12V)
Ambient temperature	10–50 °C	10–50 °C	10–50 °C
Media temperature	10–50 °C	10–50 °C	10–50 °C
Weight	40 g	40 g	40 g
Port direction	D	D	D

---

FLOW CURVES

Flow [ml/min]

• ■ 3003VD/0.7/E/DC/12V
• □ 3003VD/0.7/E/DC/4.5/6V

X축: Vacuum rel. [%] / Pressure [mbar]
Y축: Flow [ml/min]

---

WETTED PARTS

Component	Material
Pump head	PF
Diaphragm plate	PA
Diaphragm, valves	EPDM
Diaphragm screw	SST

---

OPTIONS

Option	Material
	FKM, Silicone

---

Model Key

3003... — Stock programme

Vacuum          Diaphragm, valves
   |                     |
3003VD / 0.7 / E / DC
 Type   Pressure  Eccentric  Motor type

---

응용 분야 (APPLICATIONS)

• Continuous Inkjet (CIJ)
• Drop-on-Demand Inkjet (DOD)
• In-Vitro Diagnostics (IVD)
• Chemical Industry
• Medical Devices
• Laboratory and Analysis
• Industrial Applications
• Hygiene

---
