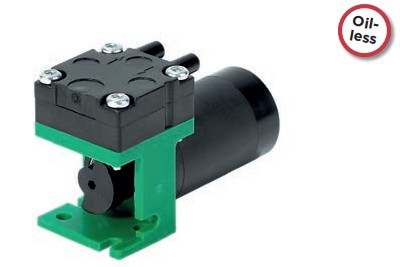

2002 VD BLDC_Diaphragm Pump-소형 다이아프램 기체펌프(장비장착용)

2002 VD BLDC Diaphragm Pump

소형 다이아프램 기체펌프 (장비 장착용)

---

제품 특징 (Key Features)

• Oil-less
• Low vibration
• Low sound level
• Compact design
• Lightweight

---

구성 요소 (Components)

Cylinder head, Head gasket, Piston, Cylinder

---

사양 (Specifications)

PNEUMATIC DATA

항목	내용
Description	2002VD/0.7/E/BLDC
Part number	20020434
Max. flow	800 ml/min
Max. intermittent duty	550–600 mbar
Max. continuous pressure	150 mbar
Max. restart pressure	600 mbar
Max. vacuum	50–52 %
Max. restart vacuum	52 %

ELECTRICAL DATA

항목	내용
Motor type	Brushless DC
Power consumption	0.8 W
Protection class (Motor)	IP40
Drive electronic	Integrated
Bearing type	Ball bearing
Connector type	Molex 51021-0600 / Terminal 50058-8100

GENERAL DATA

항목	내용
Ambient temperature	10–50°C
Media temperature	10–50°C
Weight	22 g

WETTED PARTS

항목	재질
Pump head	PF
Diaphragm, valves	EPDM

OPTIONS

항목	옵션
Diaphragm, valves	FKM, Silicone

WIRING DIAGRAM

Pin	Name	Color	Function	Voltage / Note
1	Vp	red	Electronics supply	5–18VDC
2	Vmot	black	Motor supply	5–18VDC (min. 4VDC higher than input voltage on PIN 4)
3	GND	black	Ground
4	Vnsoll	black	Speed control	1–4VDC
5	DIR	black	Direction of rotation	u < 3VDC: CW / ground: CCW
6	FG	black	Signal / 3 impulses per rotation

Model Key

             Diaphragm,
Vacuum       valves
   |             |
2002VD / 0.7 / E / BLDC
   |      |     |     |
 Type  Pressure Eccentric Motor type

---

Flow Curves

• Flow [ml/min]
• Legend: ■ 2002VD/0.7/E/BLDC
• X축(왼쪽): Vacuum rel. [%] (70, 60, 50, 40, 30, 20, 10, 0)
• X축(오른쪽): Pressure [mbar] (0, 100, 200, 300, 400, 500, 600, 700)
• Y축: Flow [ml/min] (0–900)
• 그래프 내 텍스트: Umax, Umin

---

적용 분야 (Applications)

• Continuous Inkjet (CIJ)
• Drop-on-Demand Inkjet (DOD)
• In-Vitro Diagnostics (IVD)
• Chemical Industry
• Medical Devices
• Laboratory and Analysis
• Industrial Applications
• Hygiene

---

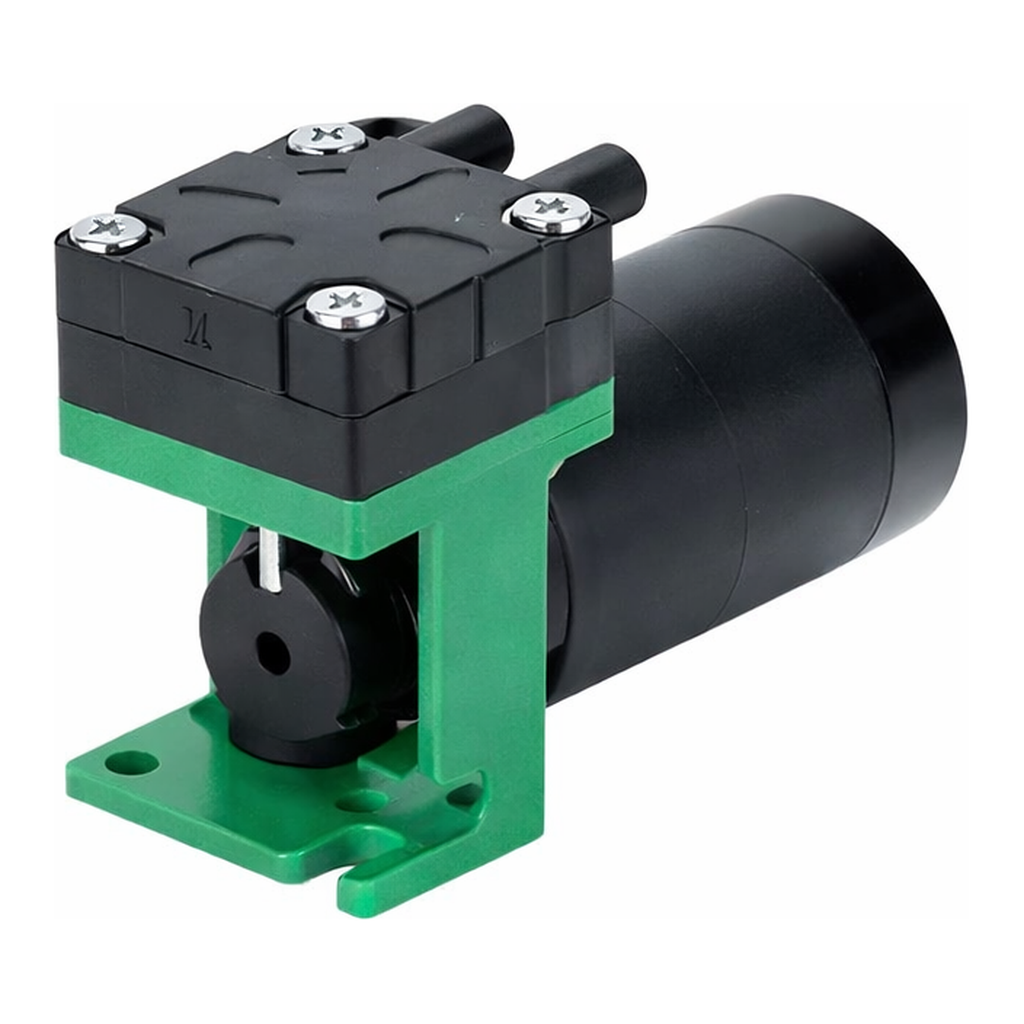

제품 이미지
