3003 VD BLDC Diaphragm Pump

소형 다이아프램 기체펌프 (장비장착용)

---

제품 설명 (KEY FEATURES)

• Oil-less
• Low power consumption
• Low sound level
• Compact design
• Lightweight

---

특징 (FEATURES)

• Oil-less
• Low vibration
• Low sound level
• Compact design
• Lightweight

작동 단계:
Intake → Compression → Power → Exhaust

---

사양 (SPECIFICATIONS)

PNEUMATIC DATA

Description	3003VD/0.9/E/BLDC
Part number	30030512
Max. flow	700 ml/min
Max. intermittent duty	1000 mbar
Max. continuous pressure	300 mbar
Max. restart pressure	700 mbar
Max. vacuum	48 %
Max. restart vacuum	48 %

ELECTRICAL DATA

항목	사양
Motor type	Brushless DC
Power consumption	1.08 W
Protection class (Motor)	IP00
Drive electronic	Integrated
Bearing type	Ball bearing

GENERAL DATA

항목	사양
Ambient temperature	10 to 50 °C
Media temperature	10 to 50 °C
Weight	95 g
Port direction	D

WETTED PARTS

Component	Material
Pump head	PF
Diaphragm plate	PA
Diaphragm, valves	EPDM
Diaphragm screw	SST

OPTIONS

Component	Material
Diaphragm, valves	FKM, Silicone

Model Key

3003VD / 0.9 / E / BLDC
  |        |     |     |
  |        |     |     └── Motor type
  |        |     └──────── Diaphragm, valves
  |        └────────────── Eccentric
  └──────────────────────── Type (Vacuum)

---

유량 특성 (FLOW CURVES)

Vacuum rel. [%]	Pressure [mbar]
60	600
50	400
40	200
30	100
20	10
10	0

모델: 3003VD/0.9/E/BLDC
(그래프는 유량 [Flow]이 y축, 진공 비율 및 압력 [Vacuum rel. %, Pressure mbar]이 x축으로 표시됨)

---

응용 분야 (APPLICATIONS)

• Continuous Inkjet (CIJ)
• Drop-on-Demand Inkjet (DOD)
• In-Vitro Diagnostics (IVD)
• Chemical Industry
• Medical Devices
• Laboratory and Analysis
• Industrial Applications
• Hygiene

---

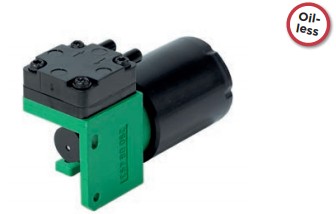

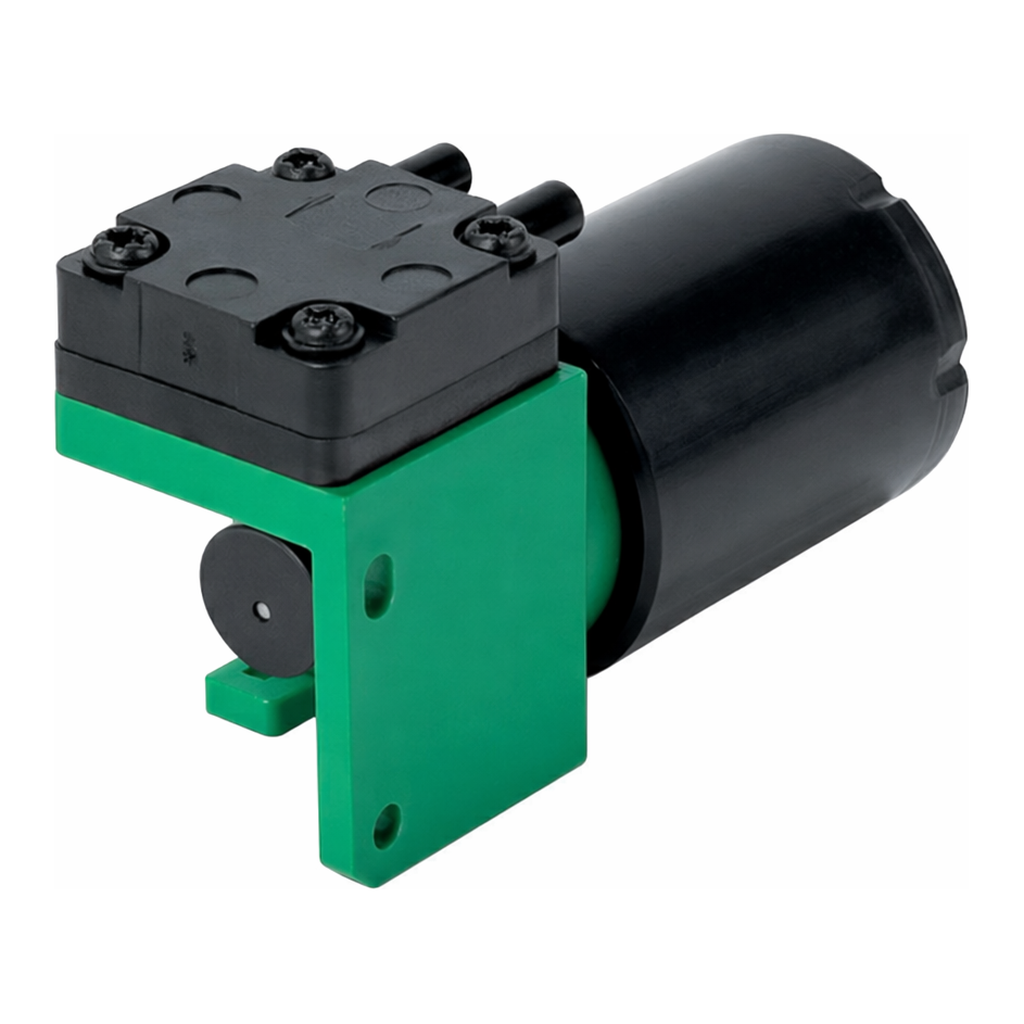

제품 이미지
