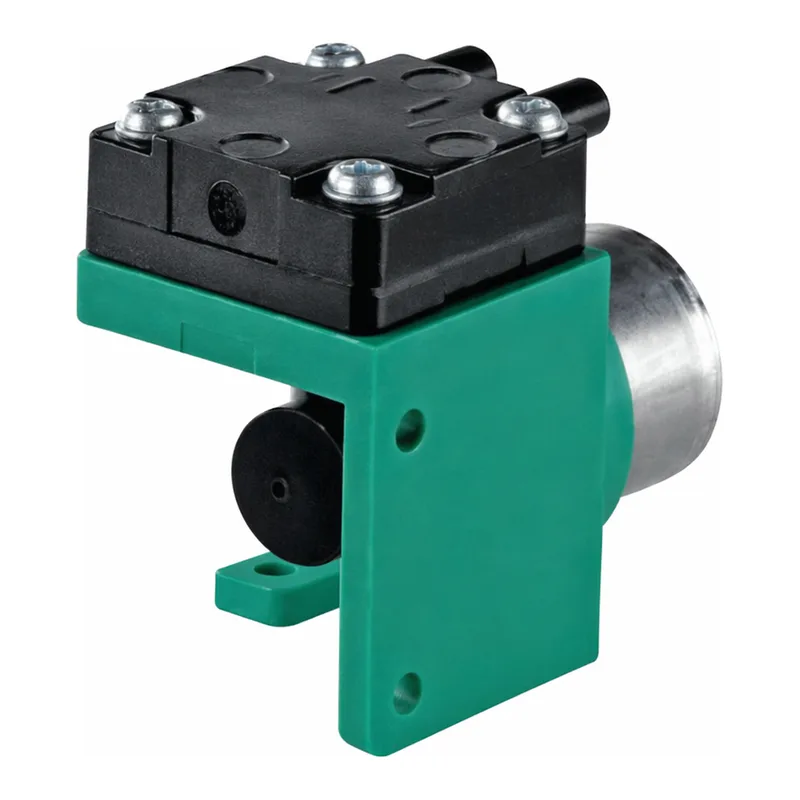

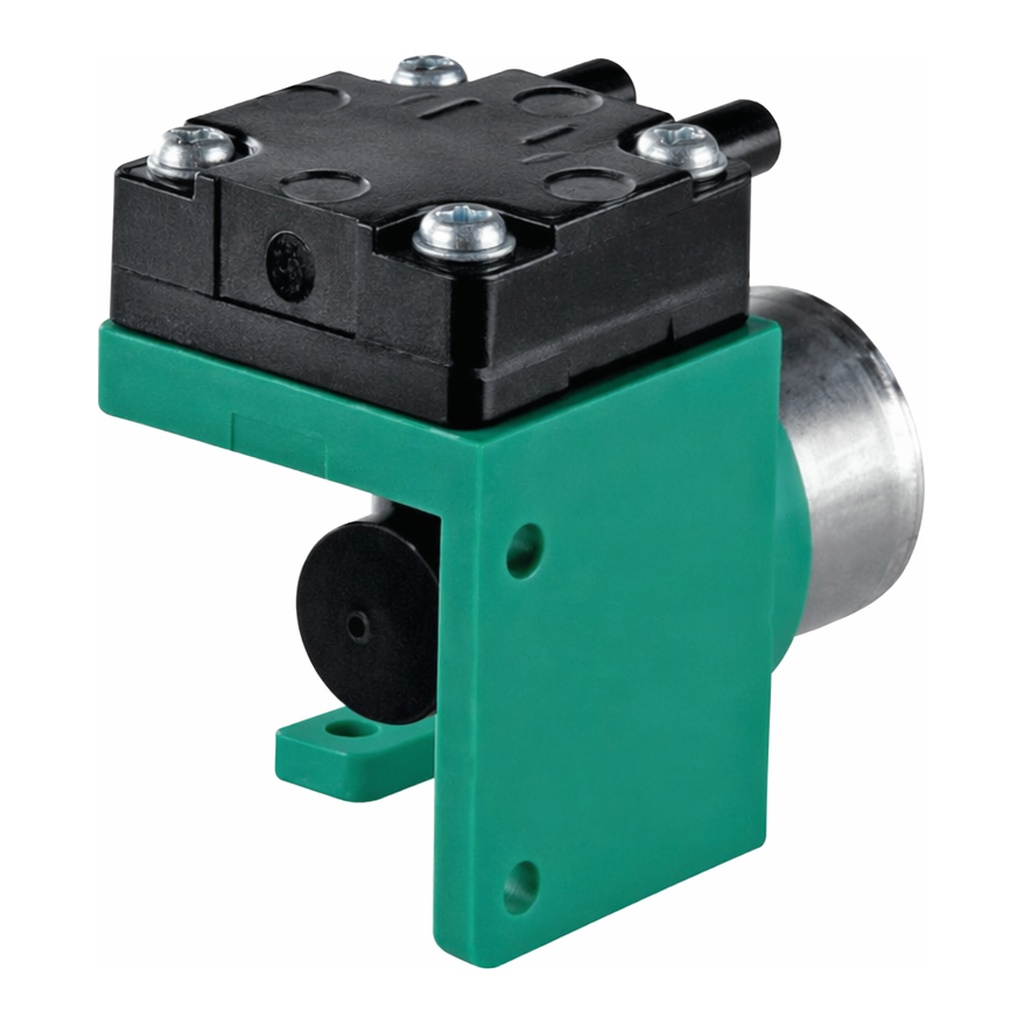

3003 VD LC_Diaphragm Pump-소형 다이아프램 기체펌프(장비장착용)

3003 VD LC Diaphragm Pump

소형 다이아프램 기체펌프 (장비 장착용)

---

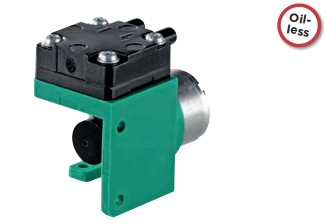

제품 설명 (Key Features)

• Oil-less
• Low vibration
• Low sound level
• Compact design
• Lightweight

---

구조 설명

Cylinder head, Spark plug, Intake valve, Exhaust valve, Piston, Connecting rod, Crankshaft 등의 구성 요소로 이루어진 다이아프램 펌프 구조를 가집니다.

---

사양 (Specifications)

PNEUMATIC DATA

Description	3003VD/0.7/E/LC	3003VD/0.8/E/LC
Part number	3.5 V / 30030507	4.5 V / 30031505
Max. flow	850 ml/min	950 ml/min
Max. intermittent duty	650 mbar	850 mbar
Max. continuous pressure	200 mbar	200 mbar
Max. restart pressure	200 mbar	200 mbar
Max. vacuum	38 %	48 %
Max. restart vacuum	20 %	20 %

ELECTRICAL DATA

	3003VD/0.7/E/LC	3003VD/0.8/E/LC
Motor type	Permanent magnet	Permanent magnet
Power consumption	743 mW	875 mW
Protection class	IP00	IP00
Bearing type	Sleeve bearing	Sleeve bearing

GENERAL DATA

	3003VD/0.7/E/LC	3003VD/0.8/E/LC
Ambient temperature	10–50 °C	10–50 °C
Media temperature	10–50 °C	10–50 °C
Weight	35 g	35 g
Port direction	D	D

---

유량 특성 (Flow Curves)

• ■ 3003VD/0.8/E/LC
• □ 3003VD/0.7/E/LC
• X축 왼쪽: Vacuum rel. [%]
• X축 오른쪽: Pressure [mbar]

---

재질 (Wetted Parts)

Component	Material
Pump head	PF
Diaphragm plate	PA
Diaphragm, valves	EPDM
Diaphragm screw	SST

---

옵션 (Options)

Option	Material
-	FKM, Silicone

---

모델 키 (Model Key)

3003VD / 0.7 / E / LC
 Type     Pressure  Eccentric  Motor type
 Vacuum             Diaphragm, valves

3003... Stock programme

---
