2002 VD LC_Diaphragm Pump-소형 다이아프램 기체펌프(장비장착용)

2002 VD LC_Diaphragm Pump

소형 다이아프램 기체펌프 (장비장착용)

---

제품 설명 (KEY FEATURES)

• Oil-less
• Low vibration
• Low sound level
• Compact design
• Lightweight

---

기능 (FEATURES)

• Oil-less
• Low vibration
• Low sound level
• Compact design
• Lightweight

추가 구성 요소 (이미지 라벨 텍스트):

• Air filter
• Air
• Fuel
• Spark plug
• Piston
• Crankshaft

---

사양 (SPECIFICATIONS)

PNEUMATIC DATA

항목	값
Description	2002VD/0.5/E/LC
Part number	3.5 V / 20020215 (3.5 to 5 V)
Max. flow	500 ml/min
Max. intermittent duty	380–400 mbar
Max. continuous pressure	150 mbar
Max. restart pressure	150 mbar
Max. vacuum	36–40 %
Max. restart vacuum	15 %

ELECTRICAL DATA

항목	값
Motor type	Permanent magnet
Power consumption	3.5–5 V / 305–460 mW
Protection class	IP00
Bearing type	Sleeve bearing

GENERAL DATA

항목	값
Ambient temperature	10–50°C
Media temperature	10–50°C
Weight	17 g
Port direction	D

WETTED PARTS

구성 요소	재질	옵션
Pump head	PF
Diaphragm, valves	EPDM	FKM, Silicone

Model key

2002...
Stock programme

Vacuum
│
├── 2002VD ─ Type
│
├── 0.5 ─ Pressure
│
├── E ─ Eccentric
│
└── LC ─ Motor type

Diaphragm, valves

---

FLOW CURVES

축 이름	단위
Flow	[ml/min]
Vacuum rel.	[%]
Pressure	[mbar]

그래프 내 텍스트

• 2002VD/0.5/E/LC
• Umax
• Umin

축 눈금 (대략적인 값)

• Flow [ml/min]: 0, 100, 200, 300, 400, 500, 600
• Vacuum rel. [%]: 40, 30, 20, 10, 0
• Pressure [mbar]: 0, 100, 200, 300, 400, 500

---

적용 분야 (APPLICATIONS)

• Continuous Inkjet (CIJ)
• Drop-on-Demand Inkjet (DOD)
• In-Vitro Diagnostics (IVD)
• Chemical Industry
• Medical Devices
• Laboratory and Analysis
• Industrial Applications
• Hygiene

---

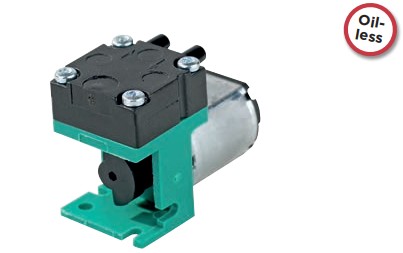

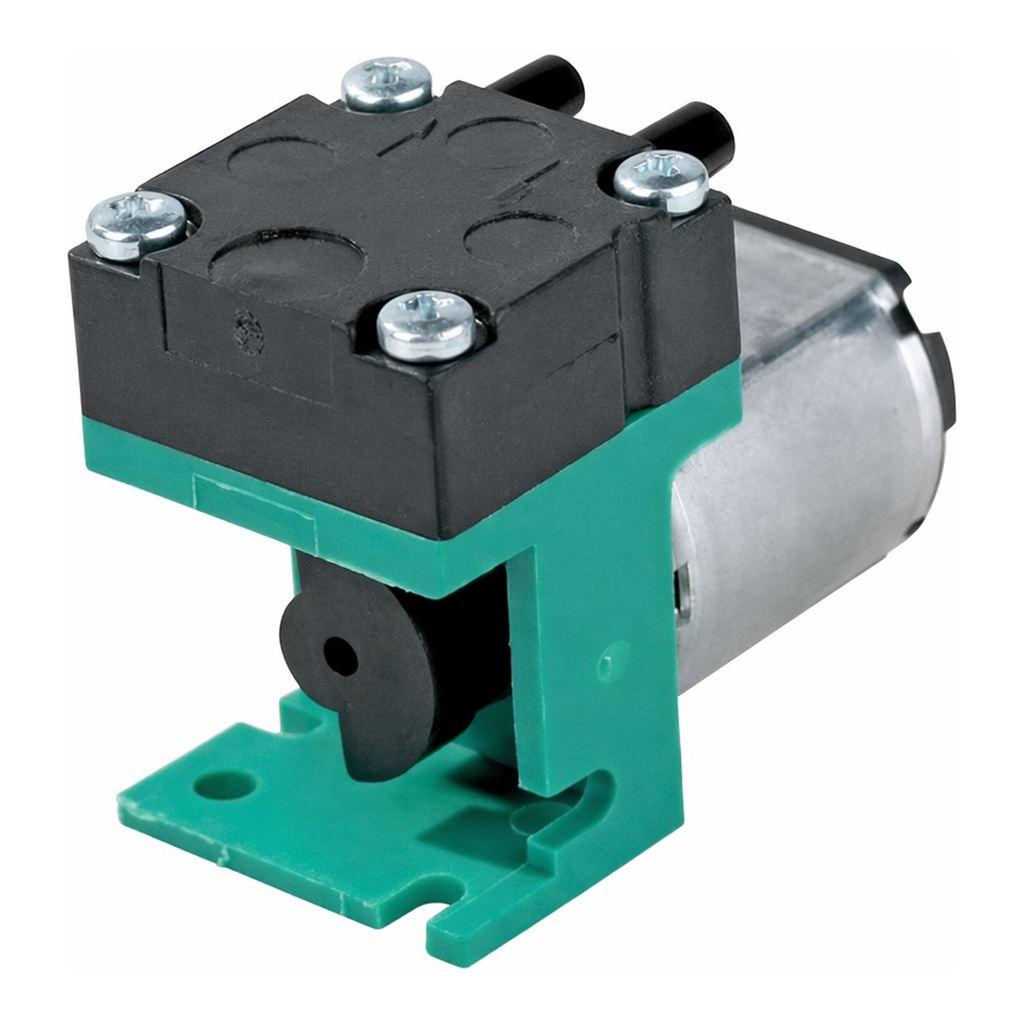

제품 이미지
