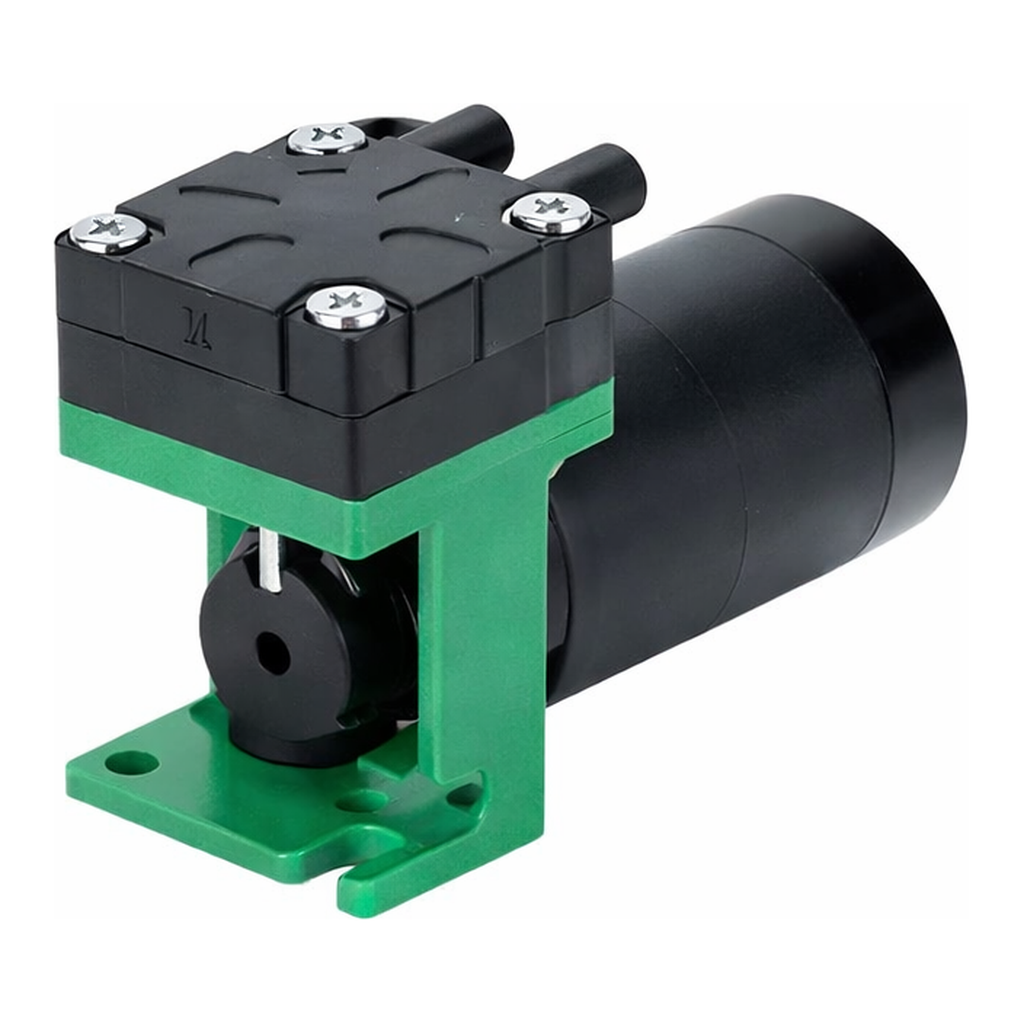

2002 VD DC Diaphragm Pump

소형 다이아프램 기체펌프 (장비장착용)

---

제품 설명 (Key Features)

• Oil-less
• Low vibration
• Low sound level
• Compact design
• Lightweight

---

구조 구성 (Structure Components)

Cylinder head
Head gasket
Cylinder
Piston
Crankcase

---

사양 (Specifications)

PNEUMATIC DATA

Description	2002VD/0.5/E/DC
Part number	3.5 V → 20020301 (2 to 3.8 V) 4.5 V → 20020304 (3.5 to 7 V) 6.0 V → 20020307 (5 to 10 V)
Max. flow	380 ml/min
Max. intermittent duty	380 to 400 mbar
Max. continuous pressure	150 mbar
Max. restart pressure	150 mbar
Max. vacuum	36 to 40 %
Max. restart vacuum	15 %

---

ELECTRICAL DATA

Motor type	Ironless core DC
Power consumption	2 to 3.8 V / 96 to 200 mW 3.5 to 7 V / 112 to 259 mW 5 to 10 V / 115 to 250 mW
Protection class	IP00
Bearing type	Sleeve bearing

---

GENERAL DATA

Parameter	Specification
Ambient temperature	10 to 50°C
Media temperature	10 to 50°C
Weight	32 g
Port direction	D

Noise suppression for the purpose of guideline 89/336 EWG electromagnetic tolerance.

---

WETTED PARTS

Component	Material
Pump head	PF
Diaphragm, valves	EPDM

Options: FKM, Silicone

---

OPTIONS

• Bearing type: Ball bearing
• 2002… Stock programme

Model key:

          Vacuum             Diaphragm,
                              valves
           │                     │
2002VD  /  0.5  /  E  /  DC
 Type   Pressure  Eccentric  Motor type

---

FLOW CURVES

Flow [ml/min]

Legend:
■ 2002VD/0.5/E/DC

X축: Vacuum rel. [%] (40, 30, 20, 10, 0) / Pressure [mbar] (0, 100, 200, 300, 400, 500)
Y축: Flow [ml/min] (0, 100, 200, 300, 400)
그래프 내 텍스트: Umax, Umin

---

APPLICATIONS

• Continuous Inkjet (CIJ)
• Drop-on-Demand Inkjet (DOD)
• In-Vitro Diagnostics (IVD)
• Chemical Industry
• Medical Devices
• Laboratory and Analysis
• Industrial Applications
• Hygiene

---

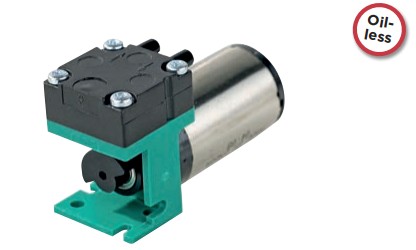

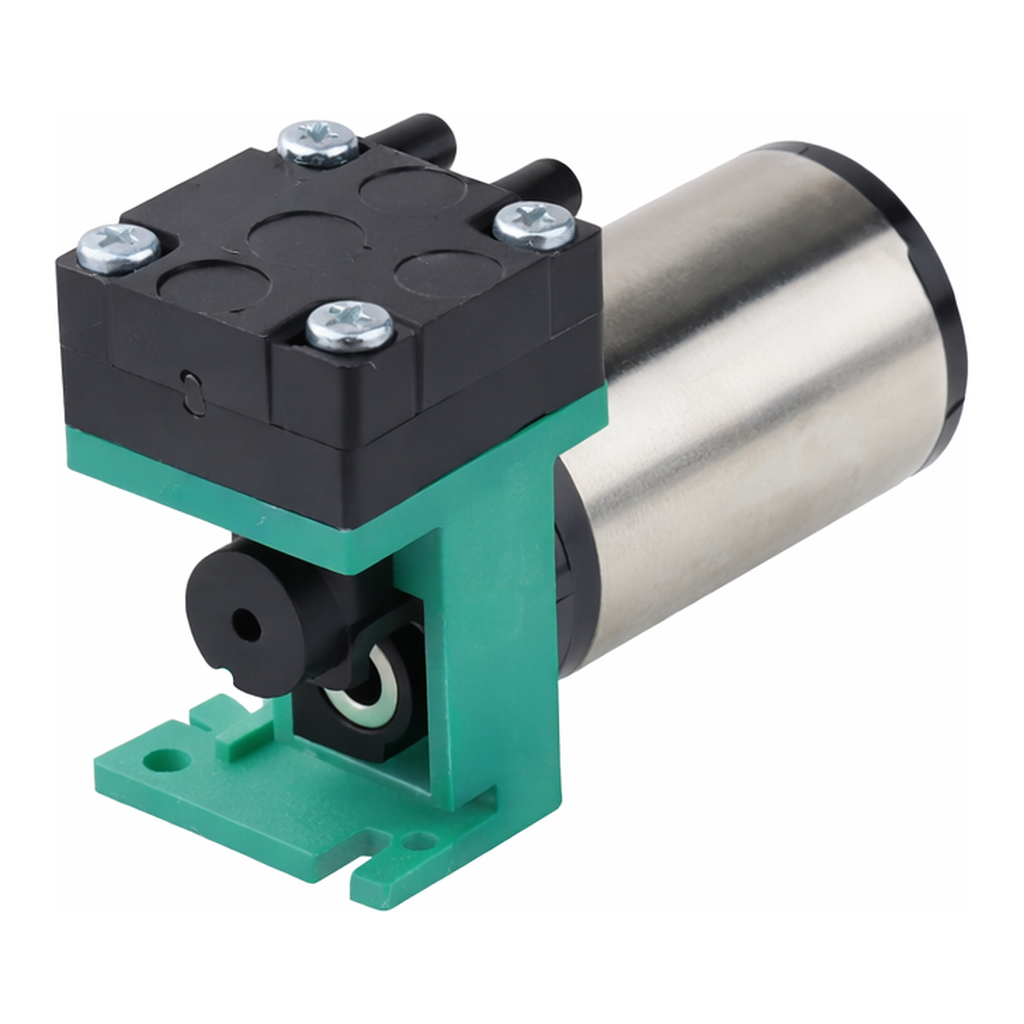

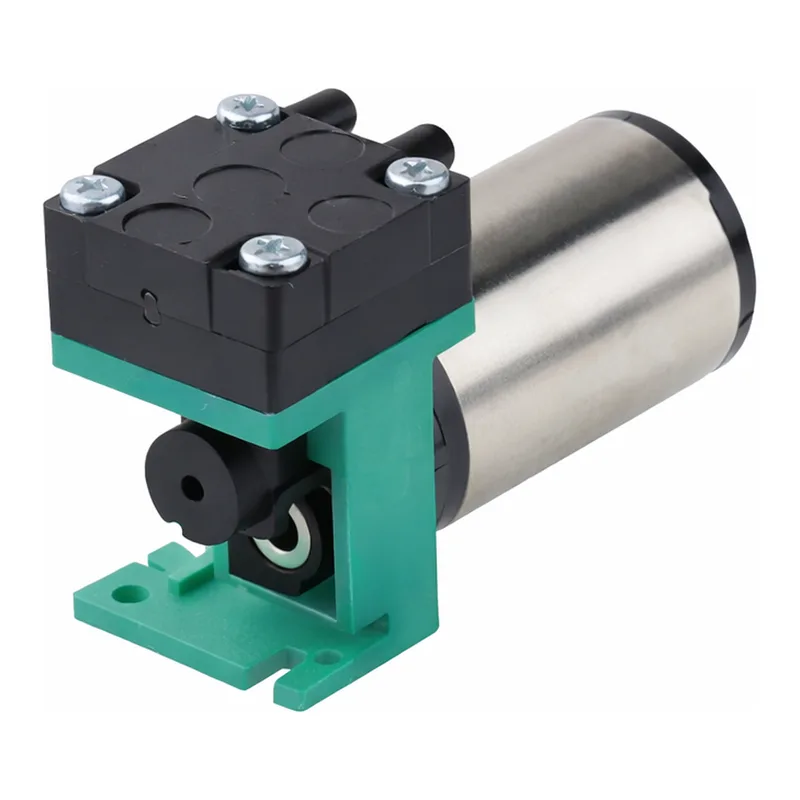

제품 이미지
