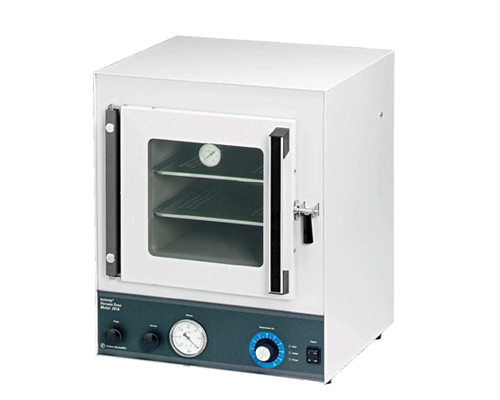

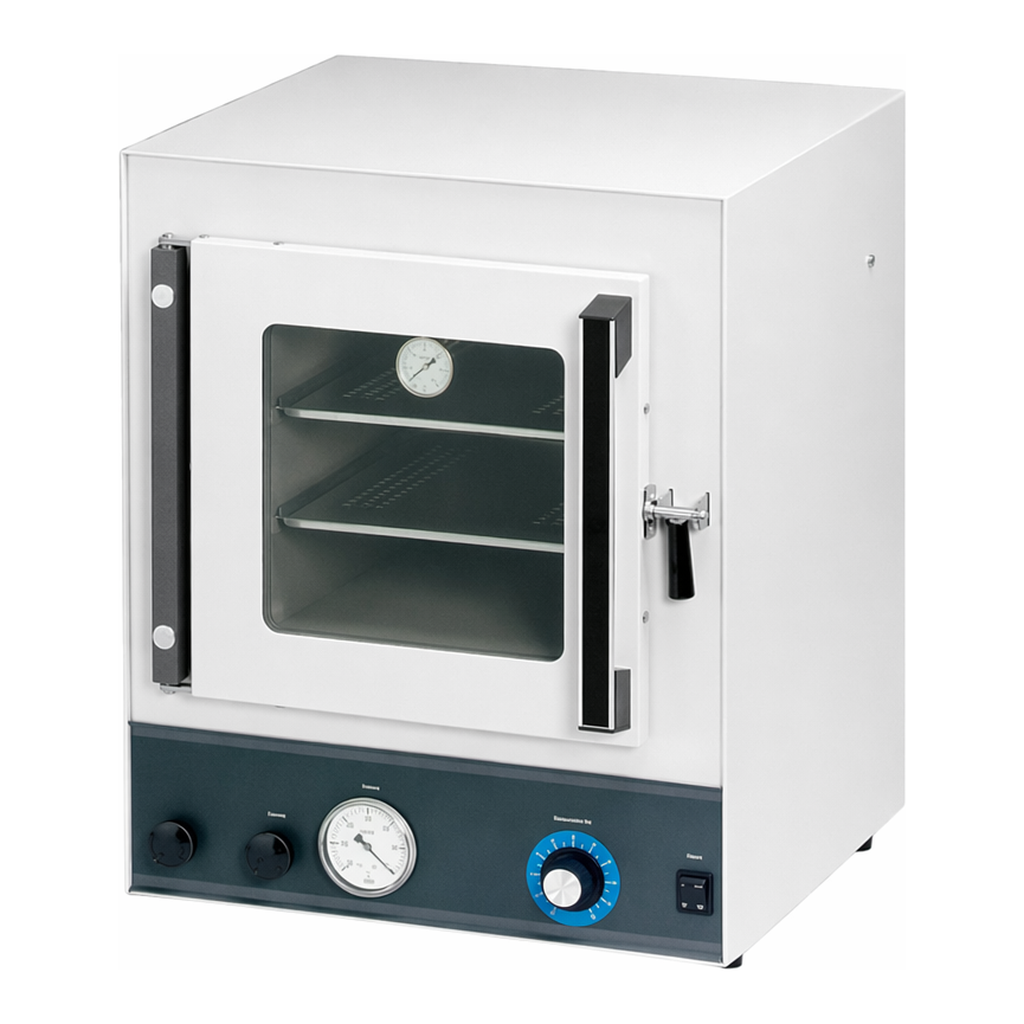

Isotemp™ Model 281A Vacuum Oven

주요특징

• Fisherbrand™ Isotemp™ Model 281A Vacuum Oven
• Standard capacity vacuum oven

Fisherbrand™ Isotemp™ Model 281A Vacuum Oven

**

Description**

Standard capacity vacuum oven
10 in. wide (25cm), 1000-watt wraparound element completely covers top, sides and bottom of oven chamber.

Operating Features

• Capacity: 0.65 cu. ft. (0.02m3)
• Dial-in temperatures up to 280°C (536°F)
• Maintains 30 in.Hg (762mm) vacuum with less than 1/2 in.Hg (12.7mm) loss per day
• Automatic temperature backup control takes over if the temperature rises more than 5°C over setpoint` constancy ±1.0°C at ultimate
• vacuumcontrol sensitivity ± 1.0°C warning light alerts of failure

Cabinet Features

• Full-view window permits continuous monitoring
• 18-gauge steel cabinet is protected by chemical-resistant enamel with 4 in. thick (10cm) fiberglass insulation
• Low-temperature handle and silicone door gasket
• Separate inlet and outlet connectors/controls allow replacement of air with inert gas

Order Info

Capacity: 0.67 cu. ft. (0.018m2)
Shelf and floor area: 313 sq. in. (2019cm2)
Chamber: 11.5D x 10W x 10 in.H (29 x 25 x 25cm)
Exterior: 17 3/4L x 18W x 22 3/4 in.H (45 x 46 x 58cm)
Shipping weight, 90 lb. (41kg)

Service Plan
Service agreement available.

Warranty and Services
One year parts, labor and travel

Specifications

Amperage	14.7 A
Chamber Material	Stainless Steel
Depth (Metric) Interior	29 cm
Height (English) Interior	10 in.
Height (Metric) Interior	25 cm
Length (English)	43.25 in.
Safety Features	Wraparound element completely covers top, sides and bottom of oven chamber
Temperature Control	±1°C
Temperature Uniformity	±1°C to 100°C
Voltage	240 V
Width (English) Interior	10 in.
Dimensions (D x W x H) Interior	11.5 x 10 x 10 in. (29 x 25 x 25 cm)
Electrical Requirements	240 V 50/60 Hz
Material	Baked Epoxy Enamel Coated 18G Steel
No. of Shelves	2

Capacity (English)	0.65 cu.ft.
Depth (English) Interior	11.5in
Frequency	50/60 Hz
Height (English)	55.75 in.
Height (Metric)	58cm
Length (Metric)	45 cm
Shipping Weight (English)	90 lb.
Temperature Resolution	200°C
Vacuum Range	0 to 30 in.Hg
Wattage	1700 w
Width (Metric) Interior	25 cm
Type	Vacuum Oven
Includes	Two shelves and a power cord with plug
Width (English)	18in

Products

Catalog Number	Construction	Length (Metric)
13-262-51	240 V	1700w
