Portable Sampling Pumps
주요특징
- Masterflex® E/S® Portable Sampling Pumps
- Controls can wait up to 90 days for a remote signal
- Use one of the six preset programs or customize up to five for your specific needs
- Adjustable back-lit LCD and glow-in-the-dark keypad help you to read the control panel in low-light environments
- Slim design makes it easy to pass through standard 18-inch diameter manhole
- When case is closed and latched, sampler floats in water for up to 30 minutes!
- IP56-rated control panel protects against inclement weather and splashing water
- Rechargeable battery makes it ideal for field applications
Masterflex® E/S® Portable Sampling Pumps
A. E/S Portable Sampling Drive * Flow rate: 4.2 to 1100 mL/min` depends on tubing size * Sample depths down to 26 ft (7.9 m)† —simple to use in wells, sewers, or lakes * Features a single-turn potentiometer for speed control, ON indicator, and three-position power/reversing switch IP54-rated control panel protects against inclement weather and splashing water. Accepts three pump head types: Standard, Easy-Load®, and PTFE-tubing (pump heads sold separately). PTFE pump heads are ideal for high-purity fluids and aggressive organic solvents. Maximum sampling depth can be achieved with a size L/S® 15 or L/S® 24 Standard pump head. B. E/S Composite Sampler * Meet EPA sampling requirements under EPA 833-B92.001 CFR40 Part 122.21 and 122.26 * Flow rate: 435 to 1650 mL/min depending on tubing size and lift height * Sample depths down to 26 ft (7.9 m) – Controls can wait up to 90 days for a remote signal * Use one of the six preset sampling programs or change up to five of those programs to suit your specific needs The versatile Masterflex E/S composite sampler can collect a 9.0-liter sample while running unattended—ideal for a variety of environmental field applications. The sampler lifts water, slurries, and liquid waste up to 25 ft (7.6 m), and logs 300 sampling events. The standby function delays the sampling up to 167 hours, 59 minutes—you don’t have to be there when the sampling begins. In-line sensors ensure volume accuracy and prevent the carboy from overfilling. The IP56-rated control panel protects against bad weather and water splash. Adjustable back-lit LCD and glow-in-the-dark keypad help you to read the control panel in low-light environments. E/S Composite Sampler includes: a Masterflex L/S Easy-Load pump head, a 9-liter HDPE carboy, 12 VDC rechargeable battery, 115/230 VAC power converter/battery recharger, quick-disconnect fittings for inlet and outlet connections, and 25-ft of L/S 24 peroxide-cured silicone tubing |

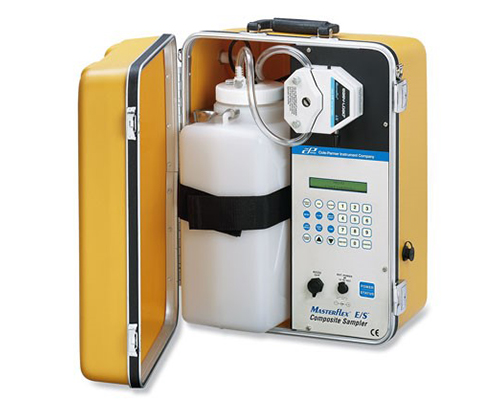

A Portable sampling drive shown with Easy-Load ® pump head (sold separately below). B Composite sampler |
Flow rates in mL/min
rpm | Precision pump tubing | High-performance pump tubing | ||||
L/S 13 | L/S 14 | L/S 16 | L/S 25 | L/S 15 | L/S 24 | |
A. E/S portable sampling drive | ||||||
70 to 400 | 4.2 to 24 | 15 to 84 | 56 to 320 | 120 to 680 | 120 to 680 | 200 to 1100 |
B. E/S composite sampler | ||||||
600 | Not recommended | 1110 | 1650 |
rpm | Speed control | Pump heads accepted | Motor size | IP rating | Dimensions (L x W x H) | Power‡ VAC (50/60 Hz) | Catalog number | Price |
A. E/S portable sampling | ||||||||
70 to 400 | ±10% | 1 | 1⁄20 hp (37 W) | IP54 | 11" x 10" x 16" (28 x 25.4 x 40.6 cm) | 12 VDC rechargeable battery with 115 VAC adapter | GY-07571-00 | |
12 VDC rechargeable battery with 230 VAC adapter | GY-07571-05 | |||||||
B. E/S composite sampler | ||||||||
600 | ±0.5% | 1 | 1⁄20 hp (37 W) | IP54 | 11" x 131⁄2" x 171⁄2" (28 x 34 x 44 cm) | 12 VDC rechargeable battery with 115 VAC adapter | GY-07580-00 |
Maximum sampling depth can be achieved with L/S® 15 or L/S® 24 Standard pump head
Drives run from 12 VDC internal rechargeable batteries, external 12 VDC source (order automotive adapter separately below), or from VAC line source.
