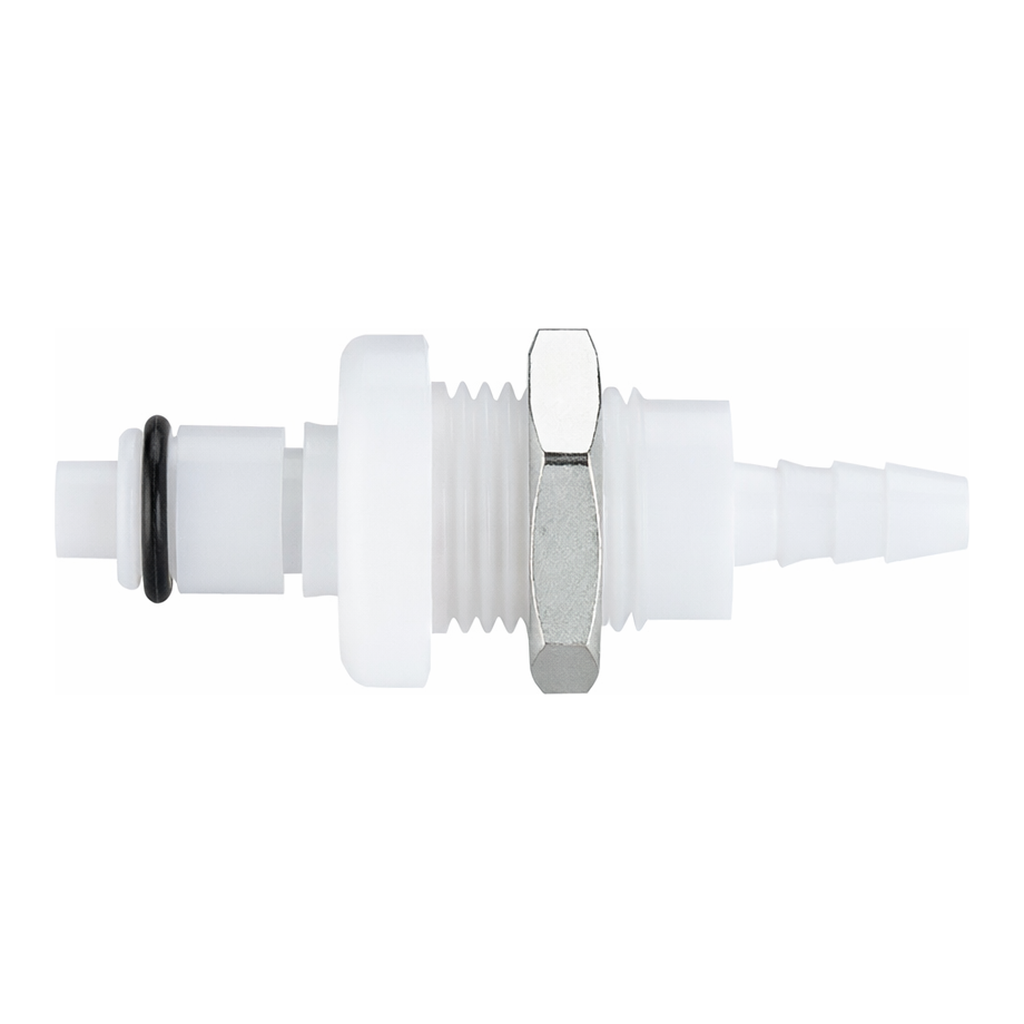

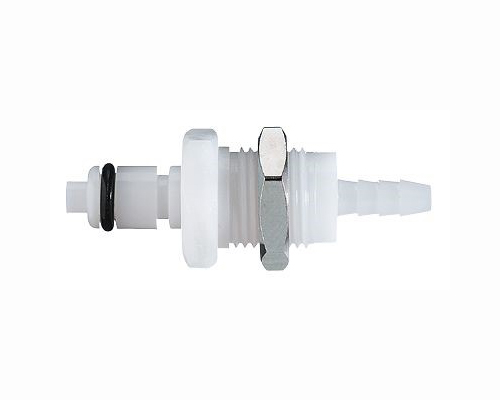

Mount Hose Barb Inserts
주요특징
- Standard flow quick-disconnect couplings require a body and an insert of the same flow size. Plug insert into body to connect fitting—fitting halves lock into place immediately. To disconnect fitting halves, simply press the thumb latch on the coupling body.
| Mount Hose Barb Insert CPC (COLDER) Standard flow quick-disconnect couplings require a body and an insert of the same flow size. Plug insert into body to connect fitting—fitting halves lock into place immediately. To disconnect fitting halves, simply press the thumb latch on the coupling body. |
 |
Hose Barb Inserts
| Tubing ID | Flow size | Length | Resin | Catalog number | Price/ pk of 1 |
| Valved fittings | |||||
| 1⁄16" 1⁄8" 3⁄16" 1⁄4" |
1⁄8" 1⁄8" 1⁄8" 1⁄8" |
1.35" 1.63" 1.83" 1.83" |
Acetal Acetal Acetal Acetal |
GY-06361-33 GY-06361-34 GY-06361-35 GY-06361-36 |
|
| 1⁄4" 5⁄16" 3⁄8" |
1⁄4" 1⁄4" 1⁄4" |
1.91" 1.91" 1.91" |
Acetal Acetal Acetal |
GY-06361-71 GY-06361-72 GY-06361-73 |
|
| 1⁄4" 3⁄8" |
1⁄4" 1⁄4" |
1.91" 1.91" |
PP PP |
GY-06361-92 GY-06361-93 |
|
| Straight-through fittings | |||||
| 1⁄16" 1⁄8" 3⁄16" 1⁄4" |
1⁄8" 1⁄8" 1⁄8" 1⁄8" |
1.38" 1.63" 1.83" 1.83" |
Acetal Acetal Acetal Acetal |
GY-06361-21 GY-06361-22 GY-06361-23 GY-06361-24 |
|
| 1⁄4" 5⁄16" 3⁄8" |
1⁄4" 1⁄4" 1⁄4" |
1.91" 1.91" 1.91" |
Acetal Acetal Acetal |
GY-06361-58 GY-06361-59 GY-06361-61 |
|
| 1⁄4" 3⁄8" |
1⁄4" 1⁄4" |
1.91" 1.91" |
PP PP |
GY-06361-82 GY-06361-83 |
GY 06361 71
