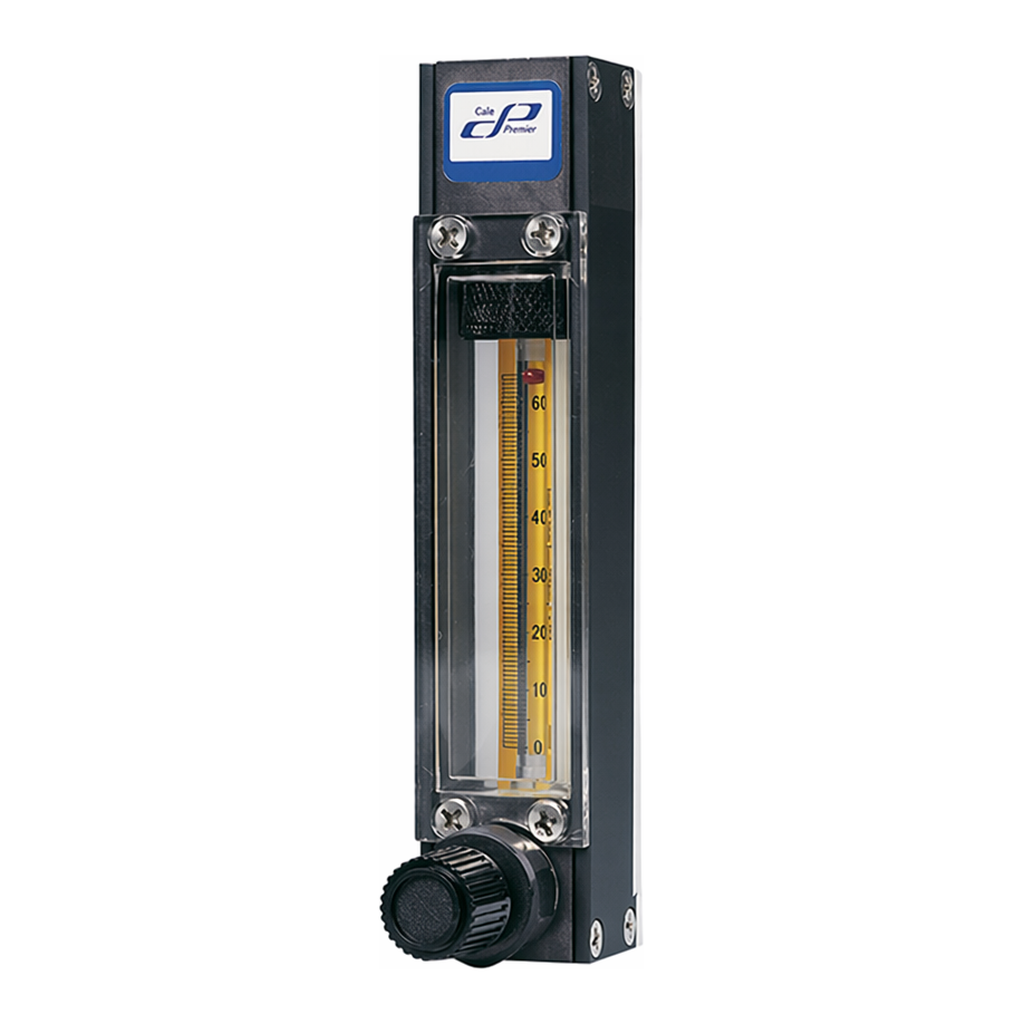

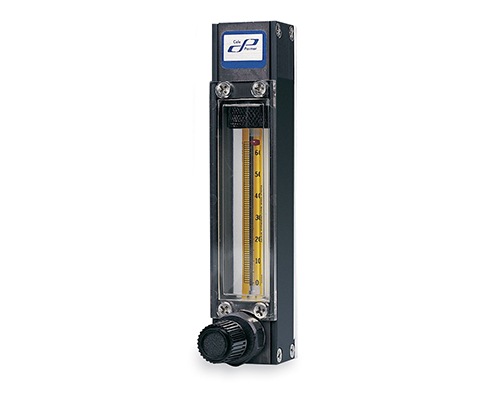

65-mm Flowmeters with PTFE Components
주요특징
- Cole-Parmer 65 mm Correlated PTFE Flowmeter, Valve, Sapphire, 042-07
- Designed for high-purity applications with flexibility for a broad array of gases
- Compact design is ideal for small panels or cramped workspaces
- High turndown—minimum flow rate is less than one-tenth of maximum flow
- High-precision valve option allows monitoring and control
Cole-Parmer® 65-mm Flowmeters with PTFE Components
gh-purity applications * Monitor and control easily with high-precision valve option * Glass tube utilizes a fused ceramic scale for a precise, permanent measuring guide * Vertical-tangential locator line provides readings with hairline accuracy * Anodized aluminum frame protects the heavy-walled glass flowtube * White acrylic backplate protects and enhances viewing in the protective frame *Specifications * Accuracy : ±5% full-scale for meters with rate of 0.084 mL/min H2O ±2% full-scale for remaining Repeatability :±0.25% full-scale Max pressure: 100 psi (6.9 bar) Operating temp: –15 to 150°F (–26 to 65°C) Connections: 1⁄8" NPT(F) |
Maximum flow rate (mL/min)† | Float‡ | Flowmeters with valves | High-resolution valves | |||||||
H2O | Air | O2 | N2 | H2 | He | CO2 | Ar | Catalog number | Catalog number | |
0.084 0.55 0.98 1.75 |
8.3 48.7 72.3 104 |
7.1 46 72 94 |
8.5 51 78 113 |
15.3 99 150 284 |
7.9 47 71 99 |
10 59.2 90 122 |
7.7 38 63 86 |
Sa G Sa G |
GY-03216-50 GY-03216-52 GY-03216-55 GY-03216-57 |
GY-32044-50 GY-32044-52 GY-32044-55 GY-32044-57 |
3.44 2.6 4.7 20.5 |
159 202.1 300 986 |
147 189 279 970 |
167 215 312 1015 |
435 502 788 3218 |
157 211 327 1903 |
181 221 307 883 |
131 174.2 257 829 |
Sa G Sa G |
GY-03216-60 GY-03216-62 GY-03216-65 GY-03216-67 |
GY-32044-60 GY-32044-62 GY-32044-65 GY-32044-67 |
34 36.7 39.7 61 |
1299 1623 2040 2704 |
1217 1575 1928 2522 |
1321 1710 2091 2859 |
4215 5470 6359 9130 |
2606 2950 3470 4932 |
1143 1500 1794 2314 |
1095 1395 1784 2279 |
Sa Sa G Sa |
GY-03216-70 GY-03216-75 GY-03216-77 GY-03216-80 |
GY-32044-70 - GY-32044-77 GY-32044-80 |
147 217 309 |
6318 8145 13,153 |
5880 7640 12,341 |
6080 8280 13,412 |
21,712 28,211 47,100 |
13,750 18,500 29,762 |
5470 6980 11,156 |
5290 6900 11,125 |
G Sa G |
GY-03216-82 GY-03216-85 GY-03216-87 |
GY-32044-82 - GY-32044-87 |
Price | ||||||||||
** High-flow flowmeters** | ||||||||||
522 798 |
23,168 29,218 |
21,686 27,901 |
23,506 30,337 |
80,752 106,000 |
51,380 67,754 |
19,379 19,379 |
19,817 24,597 |
G Sa |
GY-03216-88 GY-03216-90 |
GY-32044-88 GY-32044-90 |
Price |
†Flow rates are at standard temperature and pressure (70°F and 14.7 psi). ‡Float material key: G = glass, Sa = sapphire
