SL965 Level / Borehole Data Logger
배터리 구동형 수위 및 온도 데이터 로거로 휴대용 설치에 적합 스테인리스 스틸 압력 트랜스듀서로 높은 정확도의 수위 측정 가능 IP67 등급의 방수 구조로 야외 및 지하수 환경에서도 안정적 사용 데이터는 CSV 형식으로 추출 가능하며 스프레드시트 분석에 용이 케이블 길이는 주문 시 지정 가능하며 최대 250m까지 지원
- 브랜드
- Signatrol
Signatrol · SL965 Level / Borehole Data Logger
SL965 Level / Borehole Data Logger
The SL965 from Signatrol is a battery-powered data logger designed for measuring fluid level and temperature. This self-contained unit is ideal for portable installations or environments where conventional power supplies are unavailable.
A high-accuracy, stainless steel, submersible pressure transducer provides level measurement, recorded by a high-resolution data logger housed in a stainless steel tube rated to IP67 (weatherproof). The interconnecting cable is vented to compensate for atmospheric pressure changes and is factory-fitted to the required length.

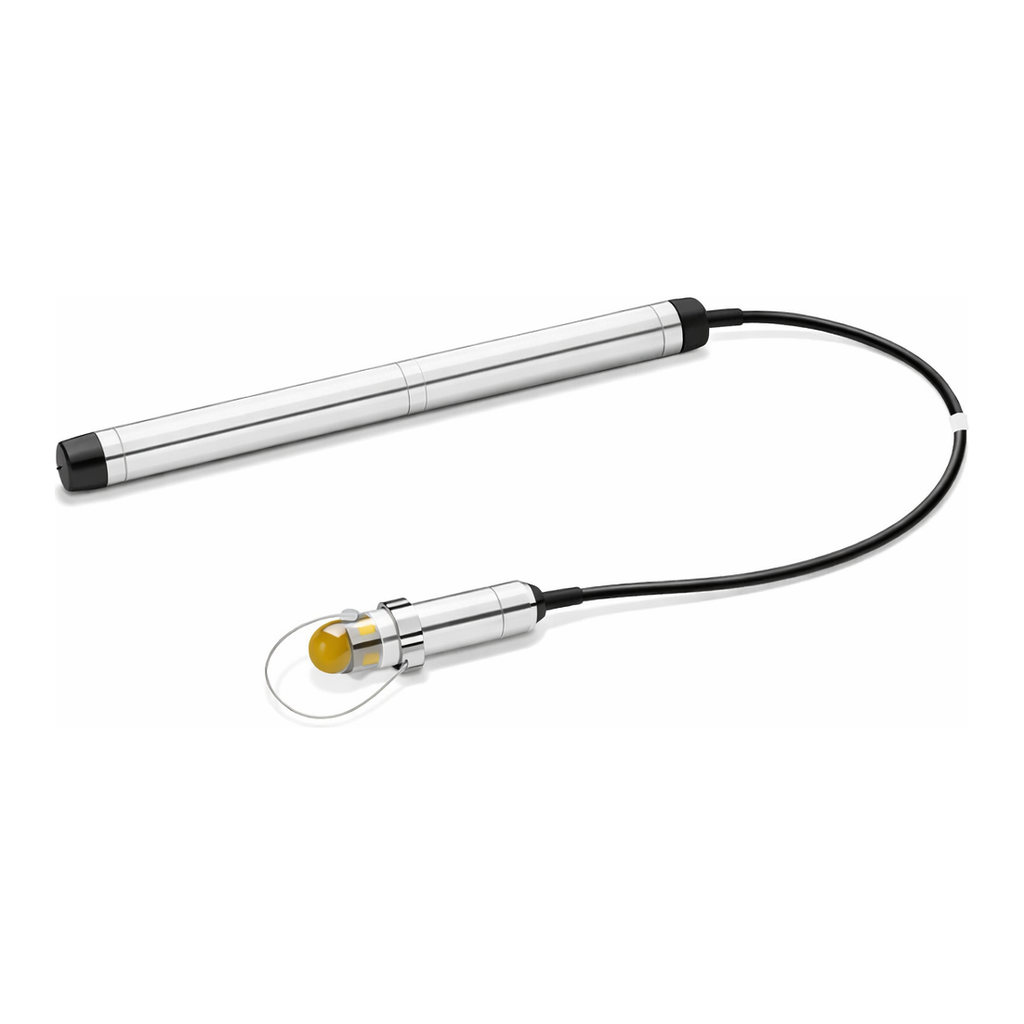

Note: The image shown displays a short interconnecting cable for demonstration purposes only.
Logged data can be extracted using a communications cable that connects the data logger to a PC via USB. The stored readings are saved as a CSV file, compatible with most spreadsheet software for graph generation and data analysis.
Typical Applications
- Level measurement in wells and boreholes
- Wastewater and sewage treatment monitoring
- Reservoir, lake, and river level tracking
- Tank and fluid storage monitoring
Note: The listed price covers the data logger module only.
The interconnecting cable is priced at £4 per metre (up to 250m) and must be ordered separately.
For more information or quotations, please contact Signatrol at +44 1684 299399 or visit Signatrol Contact Page.
Specification
| 항목 | 내용 |
|---|---|
| Power | Internal Battery |
| Battery Life | Typically 10 years (Battery Life Calculator) |
| Measuring Range | Level: 0 to 250 mwc (specify depth when ordering) Temperature: -5°C to +50°C Optional Conductivity: 0 to 200 mS/cm |
| Accuracy | Level: ≤ ±0.05 % Full Scale Temperature: ±0.5°C |
| Resolution | Level: Measuring range / 16384 (e.g., 0–100m range → 0.006m = 6mm) Temperature: 0.003°C |
| Sample Rate | 1 second to 24 hours |
| Number of Readings Stored | 1.5 million |
| Reusable When Memory Full | Yes |
| Overpressure | 3 Bar |
| Weight | Approximately 150g |
| Warranty | 12 months |
