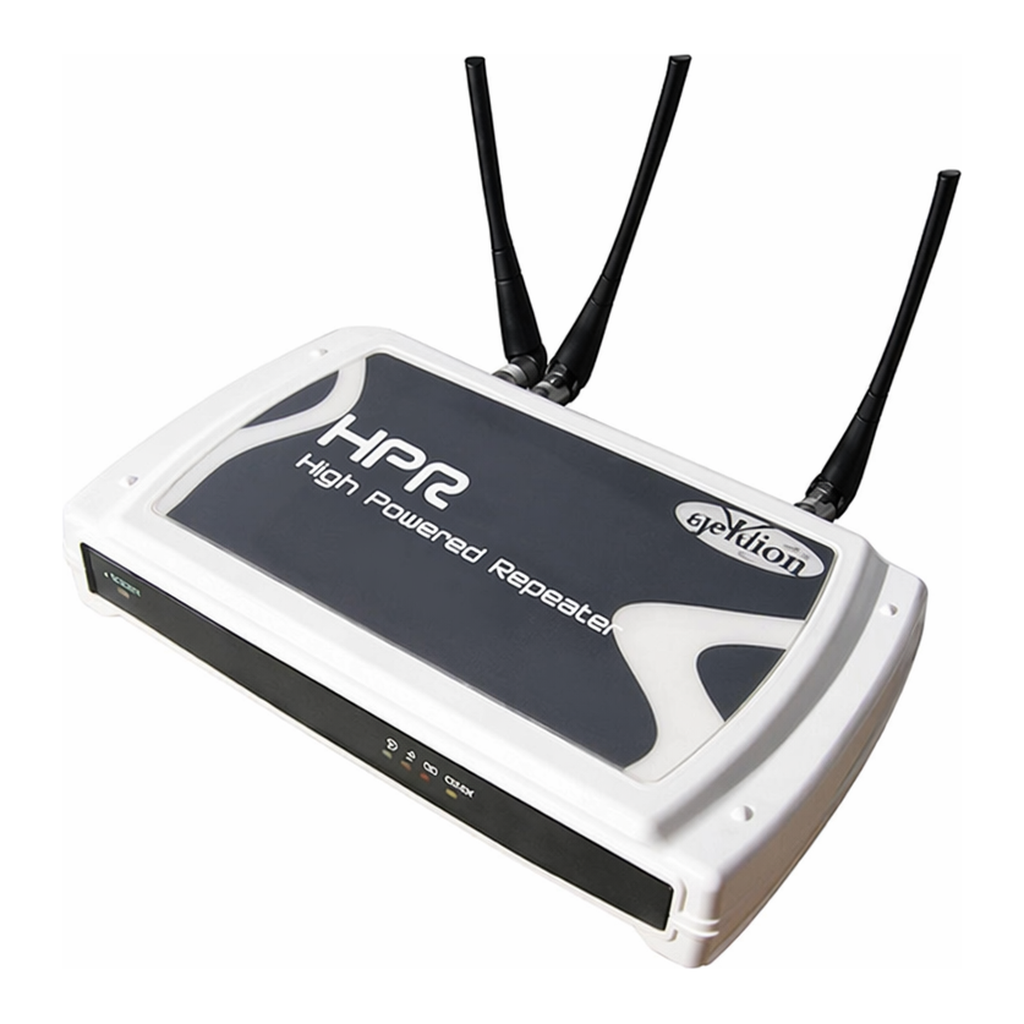

SPYDAQ HPR - High Powered Repeater
SPYDAQ-HPR - High Powered Repeater
Sometimes, there is a requirement to place transmitters a little further than the 400m range that a spYdaq transmitter is designed for or , there may be obstacles in the way that reduce the signal strength. So to extend the range of the spYdaq system we offer the HPR or High Powered Repeater.
The repeater "listens" for a valid spYdaq transmission. Once a transmission is received, the repeater will error check the transmission and if everything is correct, it will retransmit the reading.
Switches on the rear of the repeater are available to allow individual transmitters to be ignored therefore preventing a race situation where transmitters already in range of the base station are repeated.
The HPR contains a battery backup that will keep it functioning in the event of a site power failure.
Specification
| Power | Battery / Mains: 10-28VDC Supplied with 100/230VAC mains adaptor Battery Backup |
| LED Indicators | Power, Transmit, Receive, Battery Fault, Charging |
| Antenna Diversity | Selects the strongest received signal from 2 antennas |
| Operating Frequency | 433MHz split into 4 sub bands 868MHz and 915MHz available for use in Europe / United States |
| Transmit Power | Low, Medium & High (All within power limit legislation) |
| Dimensions | 240mm x 185mm x 45mm Excluding Aerials 240mm x 185mm x 150mm Including Aerials |
| Operating Temperature Range | -10°C to +50°C |
| Material | ABS |
| Warranty | 3 Years |
| Approvals | CE, UK Patent No. 2479520 |
