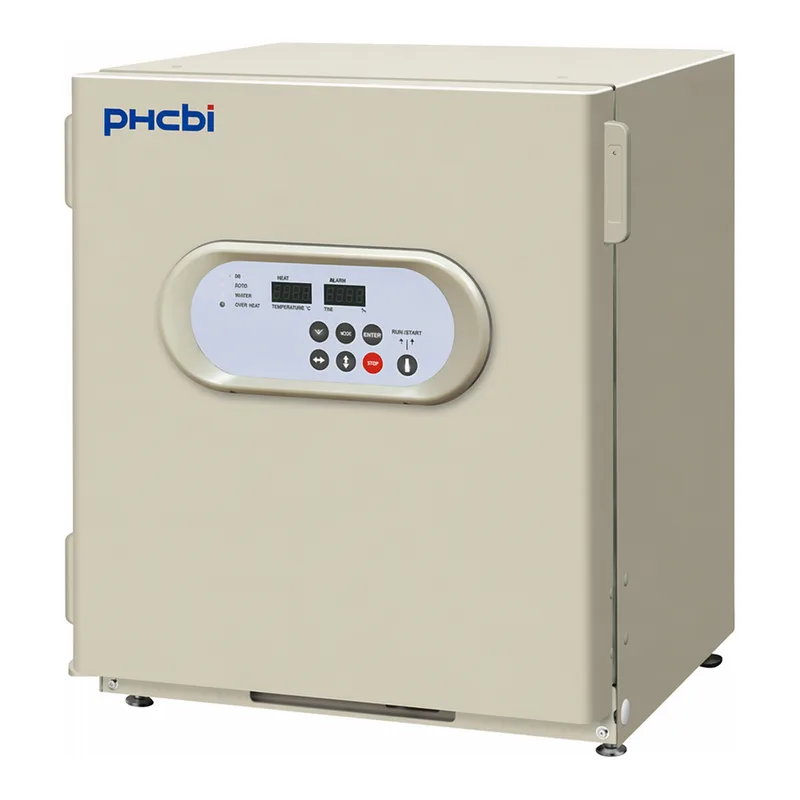

MCO-5AC CO2 Incubators

MCO-5AC CO₂ Incubator

Personal-size Compact CO₂ Incubator

트리플 스태킹 구성이 가능하여 GLP 요구사항을 충족하며, 환자별 배양 시 교차 오염을 방지합니다.

Improved Temperature Stability with D.H.A. System

P.I.D. 제어 3중 히터와 Panasonic의 독자적인 D.H.A. (Direct Heat and Air Jacket) 시스템을 통해 고정밀 온도 환경을 제공합니다. 이 시스템은 응결 위험을 최소화하며 장기적인 안정성을 보장합니다.

Panasonic Biomedical은 동일한 타입의 다른 크기 모델도 제공합니다:

• MCO-18AC

---

Benefits

• Preventive Contamination Control
• Ergonomic Design
• Field-reversible Door
• Active Background Contamination Control
• Heat Decontamination Not Required
• High Performance In Vitro Modeling

---

Features

• Automatic CO₂ Cylinder Switchover System
• Ergonomic Design (Compact, Triple Stacking)
• TC Sensor System
• Single Chamber
• Active Background Contamination Control
• Patented Direct Heat and Air Jacket Heating System
• inCu saFe™ Copper-Alloy Stainless Interior, Shelves, and Plenum
• SafeCell UV Continuous Active Background Ultraviolet Light Sterilization
• Water Level Sensor
• Optional Automatic Gas Cylinder Switchover System
• Suitable for In Vitro Fertilization Applications

---

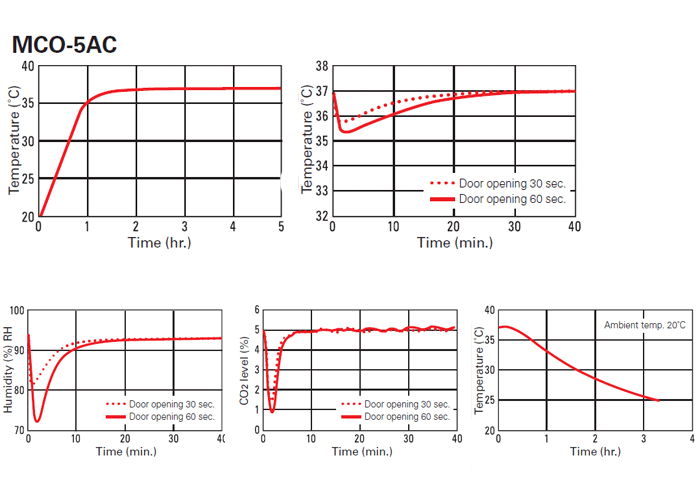

Performance

MCO-5AC 성능 그래프 요약

[그래프 1]

• Y축: Temperature (°C)
• X축: Time (hr.)
• 범위: 0~5 hr, 20~40°C

[그래프 2]

• Y축: Temperature (°C)
• X축: Time (min.)
• 범위: 0~40 min, 32~38°C
• 범례: ┈┈┈ Door opening 30 sec. / ― Door opening 60 sec.

[그래프 3]

• Y축: Humidity (% RH)
• X축: Time (min.)
• 범위: 0~40 min, 0~100 % RH
• 범례: ┈┈┈ Door opening 30 sec. / ― Door opening 60 sec.

[그래프 4]

• Y축: CO₂ level (%)
• X축: Time (min.)
• 범위: 0~40 min, 0~6 %
• 범례: ┈┈┈ Door opening 30 sec. / ― Door opening 60 sec.

[그래프 5]

• Y축: Temperature (°C)
• X축: Time (hr.)
• 범위: 0~4 hr, 0~40°C
• 주석: Ambient temp. 20°C

---

Specifications

항목	사양
External Dimensions (W×D×H)	480 × 548 × 575 mm
Internal Dimensions (W×D×H)	350 × 378 × 375 mm
Volume	49 L
Net Weight	49 kg
Temperature Control Range & Fluctuation	AT +5 ~ +50°C, ±0.1°C
Temperature Uniformity	±0.25°C
CO₂ Control Range & Fluctuation	0 ~ 20%, ±0.15%
Humidity Level & Fluctuation	95%, ±5%RH
Temperature Sensor	Thermistor
CO₂ Sensor	TC
Exterior Material	Painted Steel
Interior Material	Stainless Steel Copper-Enriched Alloy
Insulation Material	Rigid Polyurethane Foamed-in Place
Heating Method	Direct Heat & Air Jacket System
Outer Doors	1
Field Reversible Door	Included
Inner Doors	1
Shelf Dimensions (W×D×H)	310 × 310 × 12 mm
Max. Load Per Shelf	4 kg
Max. Shelf Capacity	6
Access Port	1 (Rear Upper Left, Ø30 mm)
Noise Level	24 dB
Power Supply	Local
Frequency	Local

---

Accessories

항목	모델 번호
Shelves and Brackets (InCu saFe)	MCO-30ST-PW
Roller Base	MCO-5RB-PW
CO₂ Gas Pressure Regulator	MCO-100L-PW
Automatic CO₂ Switchover System	MCO-5GC-PW
UV-System Kit	MCO-18UVS-PW
Stacking Kit	Standard
Digital Interface	MTR-480-PW
Analogue Interface	MCO-420MA-PW

---

Price

모델	가격
MCO-5AC	Price Upon Inquiry (문의 요망)

---

Dimensions (from image OCR)

항목	값 (mm)	값 (inch)
전체 높이	575	22.6
본체 높이	491.6	19.4
내부 높이	375	14.8
전체 폭	480	18.9
내부 폭	350	13.8
손잡이 돌출	21	0.8
받침대 높이	100	3.9
전체 깊이	548	21.6
내부 깊이	310	12.2
선반 깊이	378	14.9

단위: mm (괄호 안은 inch 값)

---

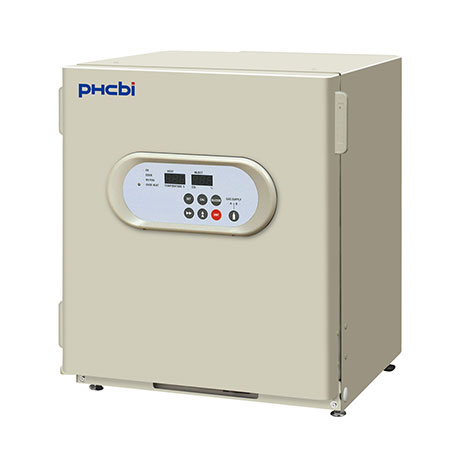

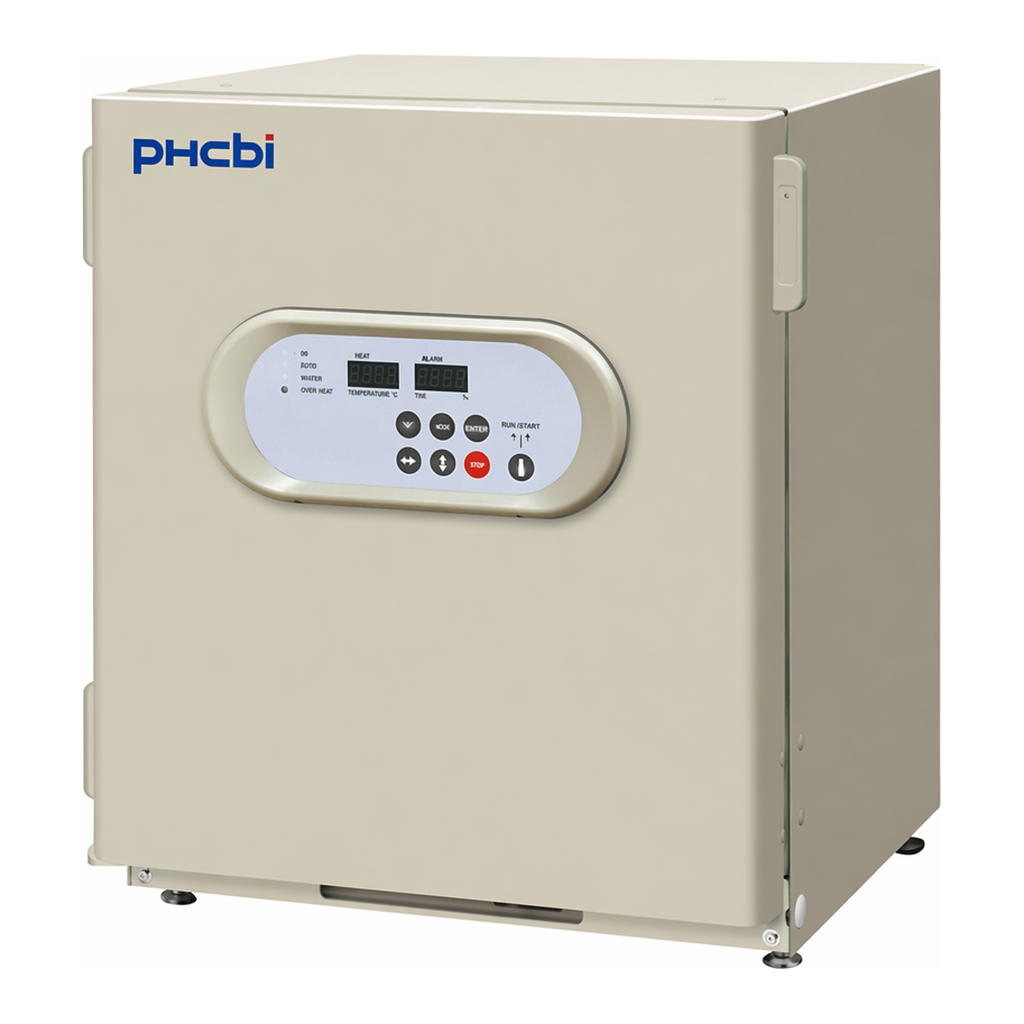

제품 이미지
