MCO-170AICUVD CO2 Incubators

MCO-170AICUVD CO₂ Incubators

Optimising Cell Culture Outcomes and Reproducibility

The IncuSafe MCO-170AICUVD CO₂ Incubator provides precise CO₂ concentration control and highly uniform temperature regulation. The InCu-saFe germicidal interior and SafeCell UV lamp continuously prevent contamination.
The Dual Heat Sterilisation process operates at 180 °C for 11 hours using two heaters, ensuring complete sterilisation with minimal downtime and no effect on adjacent stacked incubators.

---

Precise & Regulated Environment

• InCu-saFe and SafeCell UV work together to prevent contamination.
• Direct heat system and melamine foam insulation ensure uniform temperature.
• Dual IR sensor maintains stable CO₂ levels.

---

Dual Heat Sterilisation

• 180 °C sterilisation for 11 hours using dual heaters
• No temperature effect on stacked incubators
• No need to remove internal parts or recalibrate after sterilisation
• Reduced downtime and improved efficiency

---

Simultaneous Use of Stacked Units

• Melamine foam insulation minimizes heat dissipation
• Allows uninterrupted cell culture in stacked incubators during sterilisation

---

Ease of Use & Maintenance

• Full-color LCD touchscreen operable with gloves
• Data transfer via USB port
• Easy-to-clean interior with rounded corners and integrated shelf supports

---

Active Background Decontamination

• InCu-saFe copper-enriched stainless steel alloy provides germicidal and durable interior
• SafeCell UV lamp decontaminates circulating air and humidifying water without harming cells

---

Benefits

• Active background decontamination
• PID control for CO₂ and temperature
• Dual IR CO₂ sensor
• Optimum protection for cell cultures
• Increased usable chamber space
• Dual heat sterilisation allows continuous operation

---

Features

• Direct heat and melamine foam insulation
• Dual IR CO₂ sensor
• InCu-saFe copper-enriched stainless steel interior
• SafeCell UV lamp
• Integrated shelf supports
• Full-color LCD touchscreen
• USB port

---

Performance

CO₂ Density Recovery

• 세로축 (y축): CO₂ density [%]
• 가로축 (x축): Time [min]
• 범례 (Legend):
  • 점선: Door open time 30 sec
  • 실선: Door open time 60 sec
• 축 눈금:
  • x축: 0, 10, 20, 30, 40
  • y축: 0, 1, 2, 3, 4, 5, 6

---

Specifications

항목	값
External Dimensions (W × D × H)	620 × 755 × 905 mm
Internal Dimensions (W × D × H)	490 × 523 × 665 mm
Volume	165 L
Net Weight	80 kg
Temperature Control Range & Fluctuation	AT +5 ~ +50 °C, ±0.1 °C
Temperature Uniformity	±0.25 °C
CO₂ Control Range & Fluctuation	0 ~ 20 %, ±0.15 %
O₂ Control Range & Fluctuation	–
Humidity Level & Fluctuation	95 %, ±5 % RH
Sterilisation Method	Dry heat sterilisation, 180 °C, 11 hours
Temperature Sensor	Thermistor
CO₂ Sensor	Dual IR
O₂ Sensor	–
Display	Full-color LCD touchscreen
Exterior Material	Painted steel (rear cover unpainted)
Interior Material	Stainless steel copper-enriched alloy
Insulation Material	Melamine resin foam
Heating Method	Heater jacket
Outer Doors	1
Outer Door Lock	Standard
Field Reversible Door	Included
Inner Doors	1
Shelves	10 (max.)
Shelf Dimensions (W × D × H)	470 × 450 × 12 mm
Max. Load per Shelf	7 kg
Access Port	1
Access Port Position	Rear upper left
Access Port Diameter	30 mm
Power Failure	R
Out of Temperature Setting	V‑B‑R
High Temperature	V‑B‑R
Out of CO₂ Setting	V‑B‑R
Out of O₂ Setting	–
Door Open	V‑B
Power Supply	Local
Frequency	Local
Noise Level	25 dB

---

Accessories

Options

항목	모델명
Safe Cell UV system	MCO‑170UVSD‑PE
Double stacking bracket	MCO‑170PS‑PW
Stacking plate	MCO‑170SB‑PW
CO₂ gas pressure regulator	MCO‑100L‑PW
Automatic CO₂ cylinder changeover system	MCO‑21GC‑PW
Semi‑automatic one‑point gas calibration kit	MCO‑SG‑PW
InCu‑saFe shelf	MCO‑170ST‑PW
InCu‑saFe half tray system	MCO‑25ST‑PW
Roller base	MCO‑170RB‑PW

Optional Communication Systems

항목	모델명
Ethernet interface (LAN)	MTR‑L03‑PW
Digital interface (RS232C/RS485)	MTR‑480‑PW
Analogue interface (4‑20 mA)	MCO‑420MA‑PW

---

Dimensions

정면도 (Left View)

• 620 (24.4)
• 490 (19.3)
• 880 (34.6)
• 590 (23.2)
• 25 (1.0)

측면도 (Right View)

• 730 (28.7)
• 523 (20.6)
• 30 (1.2)
• 845 (33.3)
• 665 (26.2)
• 580 (22.8)

단위: mm (괄호 안 값은 inch)

---

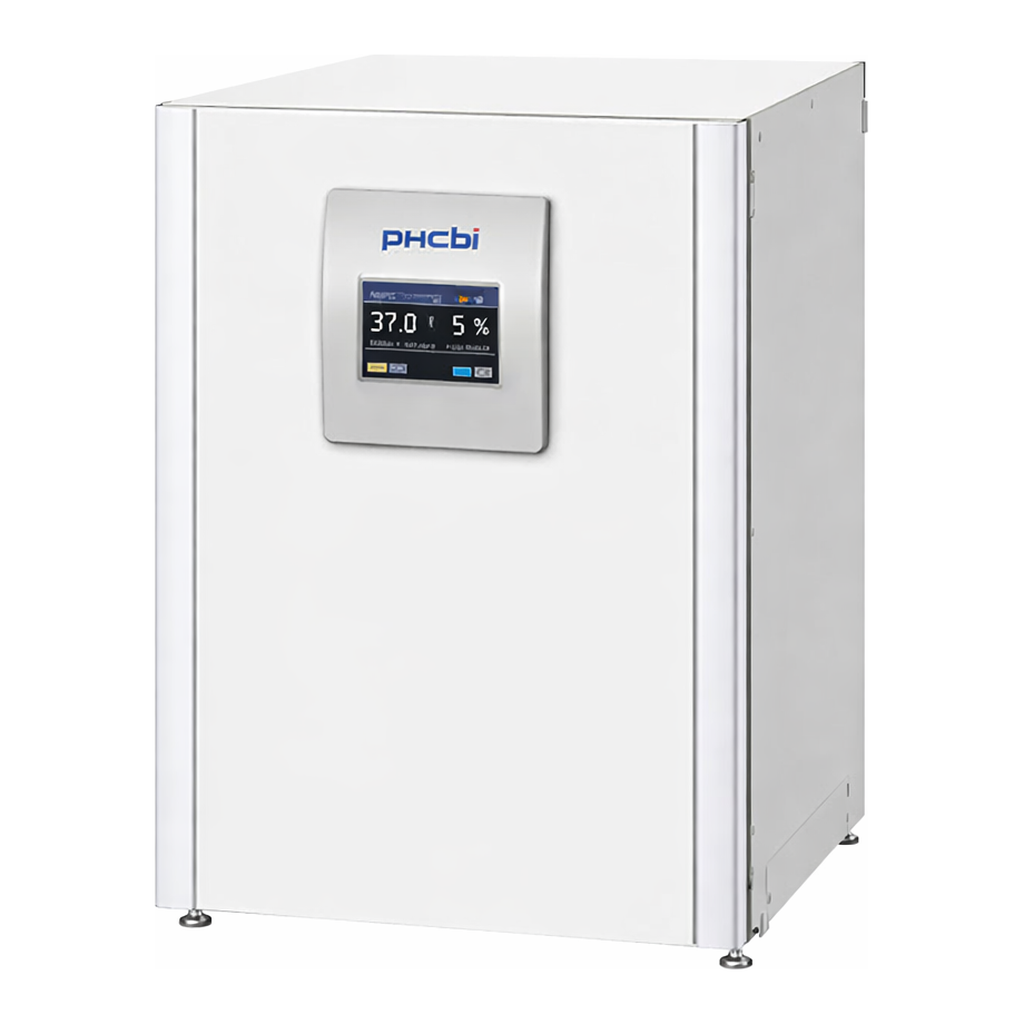

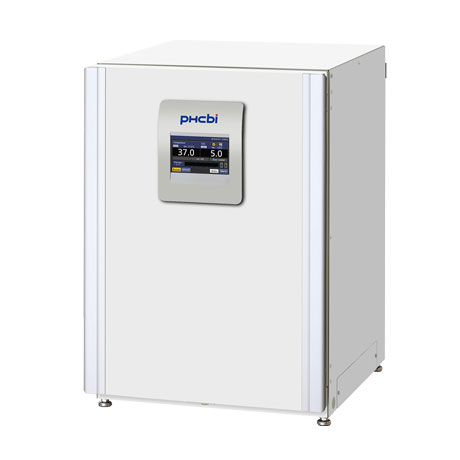

Display Information

전면 디스플레이에는 다음이 표시됩니다:

• phcbi 로고
• 온도: 37.0 °C
• CO₂ 농도: 5.0 %
  (하단의 소형 텍스트는 식별 불가)

---
