MCO-230AIC CO2 Incubators

MCO-230AIC CO₂ Incubators

Optimising Cell Culture Outcomes and Reproducibility

Creating successful cell cultures requires a CO₂ incubator that offers the highest levels of precision, security, and ease of use.

Precise & Regulated Environment

InCu-saFe® and SafeCell UV® actively prevent contamination. The Direct Heat and Air Jacket System regulates temperature, while the Dual IR sensor controls CO₂ levels.

Time-Saving Decontamination

The high-speed decontamination system uses vaporised hydrogen peroxide (H₂O₂) and UV light. It safely cleans the chamber in less than three hours, achieving a 6-log reduction of major contaminants.

Ease of Use & Increased Capacity

A full-colour LCD touchscreen allows full control even with gloved hands. Data transfer is simple via a USB port. The easy-to-clean interior features fully rounded corners and integrated shelf supports.

The increased capacity offers the possibility to utilise the incubator from R&D to clinical trials and manufacturing.

---

Benefits

• Improved insulation performance and lower running costs
• PID control of CO₂ and temperature
• Dual IR CO₂ sensor
• Optimum protection for your cell cultures
• More space for more cultures
• PHCbi’s H₂O₂ vapour sterilisation cycle reduces downtime to less than 3 hours for complete, validatable decontamination and increased productivity

---

Features

• DHA Direct Heat and Air Jacket System
• Dual IR CO₂ sensor
• InCu-saFe® copper-enriched stainless steel interior
• Optional SafeCell UV® with increased UV lamp life (Standard in MCO-230AICUV and MCO-230AICUVH)
• Optional electric door lock (Standard in MCO-230AICUVH)
• Integrated shelf supports
• Full-colour LCD touchscreen
• USB port

---

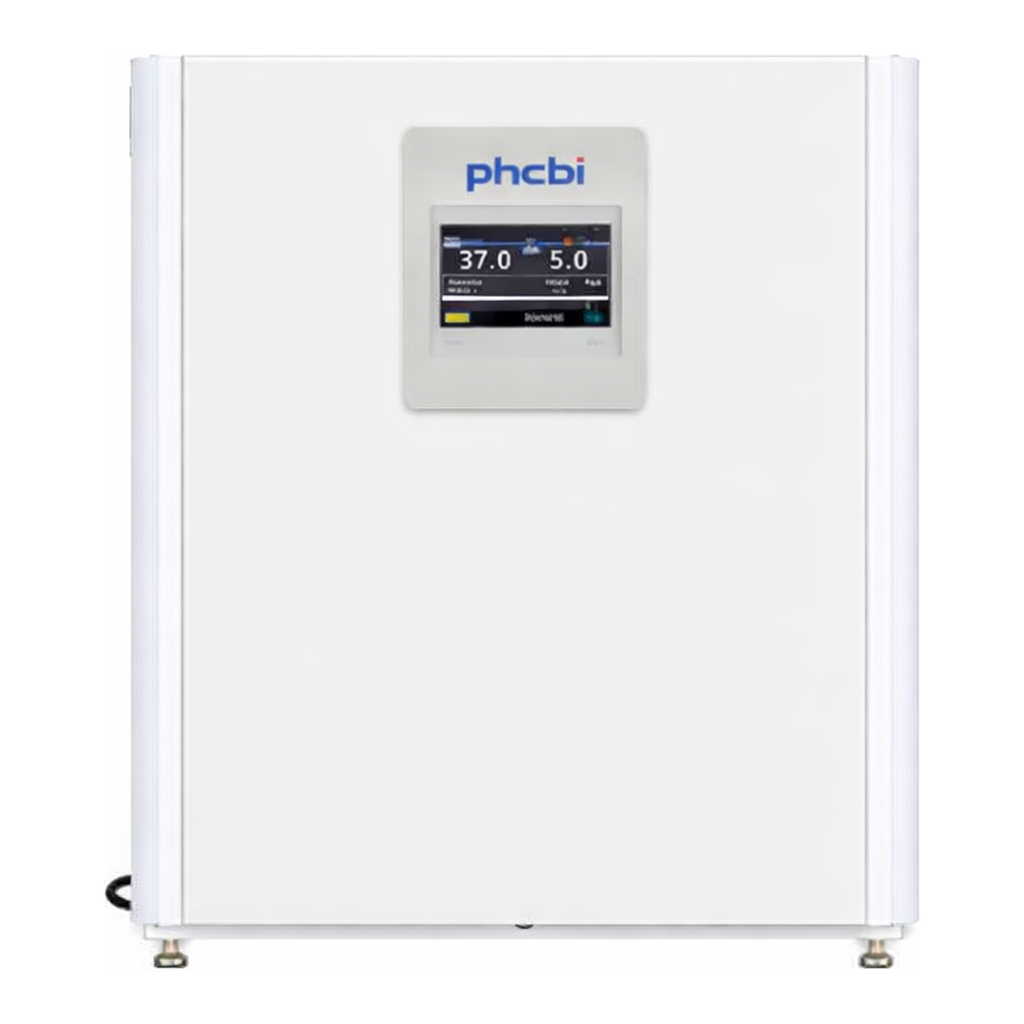

Product Display Information (from image)

phcbi 디지털 디스플레이 정보

항목	값
온도	37.0 °C
CO₂	5.0 %

화면에는 “phcbi” 로고와 함께 온도(37.0 °C)와 CO₂ 농도(5.0 %)가 표시되어 있습니다.

---

Specifications

항목	사양
External Dimensions (W × D × H)	770 × 730 × 905 mm
Internal Dimensions (W × D × H)	643 × 523 × 700 mm
Volume	230 L
Net Weight	90 kg
Temperature Control Range & Fluctuation	AT +5 ~ +50 °C, ±0.1 °C
Temperature Uniformity	±0.25 °C
CO₂ Control Range & Fluctuation	0 ~ 20 %, ±0.15 %
Humidity Level & Fluctuation	95 %, ±5 %RH
Sterilisation Method	H₂O₂ Decontamination
Temperature Sensor	Thermistor
CO₂ Sensor	Dual IR
Exterior Material	Painted Steel (rear cover not painted)
Interior Material	Stainless Steel Copper-Enriched Alloy
Insulation Material	Styrene AcryloNitrile copolymer
Heating Method	Direct Heat & Air Jacket System
Outer Doors	1
Outer Door Lock	Optional
Field Reversible Door	Included
Inner Doors	1 gastight tempered glass
Shelf Dimensions (W × D × H)	620 × 450 × 12 mm
Max. Load per Shelf	7 kg
Max. Shelf Capacity	10
Access Port	2 (Rear, Ø 30 mm)
Noise Level	25 dB
Power Supply	Local
Frequency	Local

---

Accessories

Options

품목	모델명
Safe Cell UV system	MCO-170UVS-PE
H₂O₂ Decontamination board	MCO-170HB-PE
Electric door lock with password	MCO-170EL-PW
H₂O₂ vapour generator	MCO-HP-PW
H₂O₂ reagent (6 bottles)	-
CO₂ gas pressure regulator	MCO-100L-PW
Automatic CO₂ cylinder changeover system	MCO-21GC-PW
Semi-automatic one-point gas calibration kit	MCO-SG-PW
InCu-saFe shelf	MCO-230ST-PW
InCu-saFe half tray system	MCO-35ST-PW
Double stacking bracket	MCO-170PS-PW
Stacking plate	MCO-230SB-PW
Roller base	MCO-230RB-PW

Optional Communication Systems

품목	모델명
Ethernet interface (LAN)	MTR-L03-PW
Digital interface (RS232C/RS485)	MTR-480-PW

---

Dimensions (from image)

치수 정보 (단위: mm, 괄호 안은 인치)

정면도

• 770 (30.3)
• 643 (25.3)
• 880 (34.6)
• 743 (29.3)
• 25 (1.0)

측면도

• 730 (28.7)
• 30 (1.2)
• 523 (20.6)
• 845 (33.3)
• 700 (27.6)
• 580 (22.8)

---

제품 이미지

• 제품 사진
• 치수 도면
