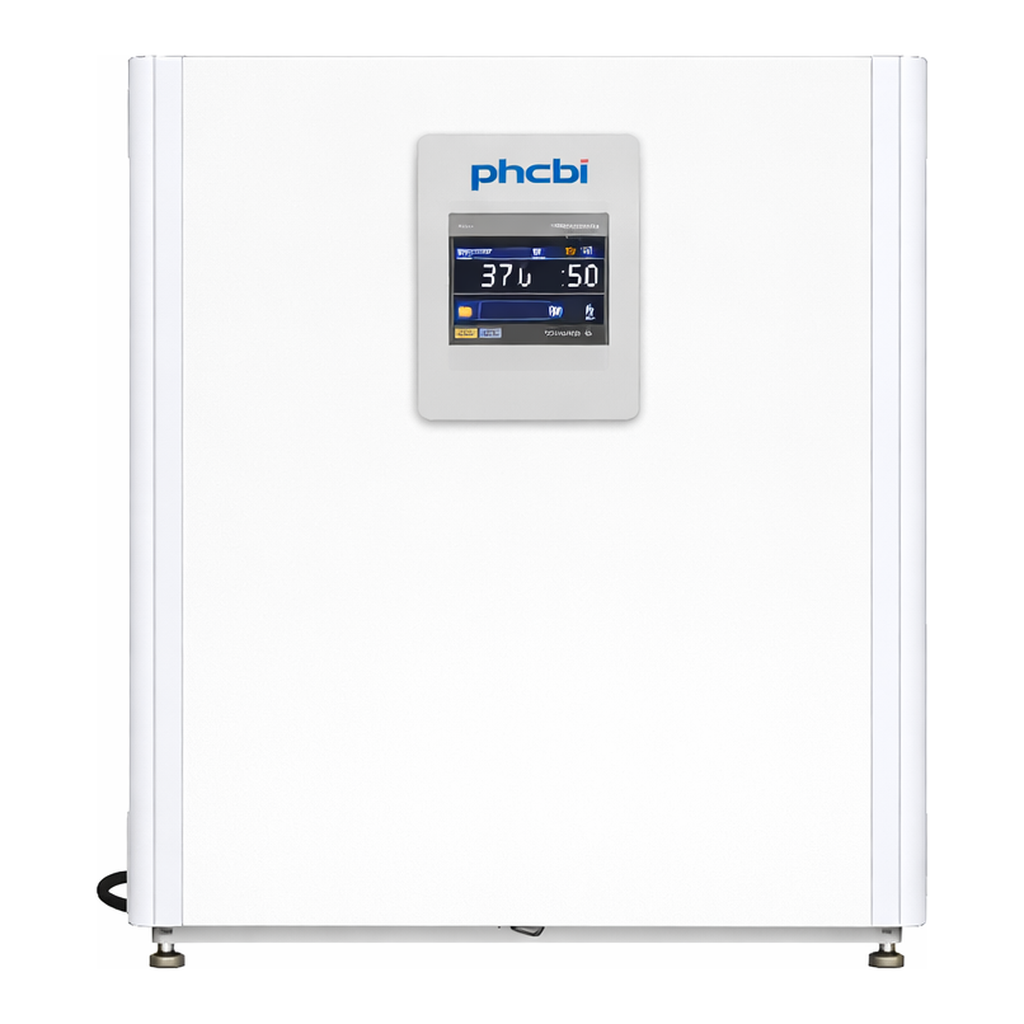

MCO-230AICUV CO2 Incubators

MCO-230AICUV CO₂ Incubator

Optimising Cell Culture Outcomes and Reproducibility

Creating successful cell cultures requires a CO₂ incubator that offers the highest levels of precision, security, and ease of use.
The IncuSafe MCO-230AICUV CO₂ Incubator integrates advanced technologies to deliver outstanding performance, maximize cell culture productivity, and ensure reproducible results.

Providing a precisely controlled environment for sensitive cell cultures, the MCO-230AICUV offers long-term stability and optimal cell viability.
Each incubator maintains uniform conditions across all shelf positions, ensuring every cell is safely cultivated under ideal parameters.

디지털 디스플레이 예시:

• 표시 항목: 온도 37.0°C, CO₂ 5.0%
• 화면에는 “phcbi” 로고와 함께 설정값이 표시됩니다.

Increasing Work Efficiency

Designed with usability and efficiency in mind, PHCbi incubators provide a user-friendly interface and rapid system processes, simplifying daily laboratory operations.

Benefits

• Improved insulation performance and lower running costs
• PID control of CO₂ and temperature
• Dual IR CO₂ sensor
• Optimum protection for cell cultures
• Spacious interior for more samples
• H₂O₂ vapour sterilisation cycle reduces downtime to less than 3 hours for complete, validatable decontamination

Features

• DHA Direct Heat and Air Jacket System
• Dual IR CO₂ Sensor
• InCu saFe® Copper-Enriched Stainless Steel Interior
• Safe Cell UV® with extended UV lamp life
• Optional electric door lock (standard on MCO-230AICUVH)
• Integrated shelf supports
• Full-color LCD touch screen
• USB port

---

Specifications

항목	사양
External Dimensions (W × D × H)	770 × 730 × 905 mm
Internal Dimensions (W × D × H)	643 × 523 × 700 mm
Volume	230 L
Net Weight	90 kg
Temperature Control Range & Fluctuation	AT +5 ~ +50°C, ±0.1°C
Temperature Uniformity	±0.25°C
CO₂ Control Range & Fluctuation	0 ~ 20%, ±0.15%
O₂ Control Range & Fluctuation	-
Humidity Level & Fluctuation	95%, ±5% RH
Sterilisation Method	H₂O₂ Decontamination
Temperature Sensor	Thermistor
CO₂ Sensor	Dual IR
O₂ Sensor	-
Exterior Material	Painted Steel (rear cover not painted)
Interior Material	Stainless Steel, Copper-Enriched Alloy
Insulation Material	Styrene AcryloNitrile Copolymer
Heating Method	Direct Heat & Air Jacket System
Outer Doors	1
Outer Door Lock	Optional
Field Reversible Door	Included
Inner Doors	1 gastight tempered glass
Shelf Dimensions (W × D × H)	620 × 450 × 12 mm
Max. Load per Shelf	7 kg
Max. Shelf Capacity	10
Access Port	1 (Rear, Ø30 mm)
Power Failure	R
Out of Temperature Setting	V-B-R
High Temperature	V-B-R
Out of CO₂ Setting	V-B-R
Door Open	V-B
Power Supply / Frequency	Local
Noise Level	25 dB

---

Accessories

Options

항목	모델
Safe Cell UV System	Standard
H₂O₂ Decontamination Board	MCO-170HB-PE
Electric Door Lock with Password	MCO-170EL-PW
H₂O₂ Vapour Generator	MCO-HP-PW
H₂O₂ Reagent (6 Bottles)	MCO-H₂O₂-PE
CO₂ Gas Pressure Regulator	MCO-100L-PW
Automatic CO₂ Cylinder Changeover System	MCO-21GC-PW
Semi-Automatic One Point Gas Calibration Kit	MCO-SG-PW
InCu saFe Shelf	MCO-230ST-PW
InCu saFe Half Tray System	MCO-35ST-PW
Double Stacking Bracket	MCO-170PS-PW
Stacking Plate	MCO-230SB-PW
Roller Base	MCO-230RB-PW

Optional Communication Systems

항목	모델
Ethernet Interface (LAN)	MTR-L03-PW
Digital Interface (RS232C/RS485)	MTR-480-PW

---

Dimensions

도면에는 정면도와 측면도의 세부 치수가 표시되어 있습니다.

정면도 (Front View)

• 가로: 770 mm (30.3 in), 643 mm (25.3 in), 743 mm (29.3 in)
• 세로: 880 mm (34.6 in), 25 mm (1.0 in)

측면도 (Side View)

• 깊이: 730 mm (28.7 in), 523 mm (20.6 in), 30 mm (1.2 in), 580 mm (22.8 in)
• 높이: 845 mm (33.3 in), 700 mm (27.6 in)

단위: mm

---

제품 이미지
