ISMATEC 디지털 미니 플렉스 펌프 Ismatec Reglo Digital Miniflex Pumps
| 상품 옵션 정보 | ||||||||
|---|---|---|---|---|---|---|---|---|
| 카탈로그 번호 | CAS 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
| MFLX78018-40 | - | ISMATEC MFLX78018-40 PUMP MFLX MINIFLX DIG 1CH 350R EU 230V ea | 재고문의 | ea | 4,850,000원 | - | 5,335,000원 | |
| MFLX78018-42 | - | ISMATEC MFLX78018-42 PUMP MFLX MINIFLX DIG 2CH 350R EU 230V ea | 재고문의 | ea | 4,850,000원 | - | 5,335,000원 | |
다른 상품 둘러보기

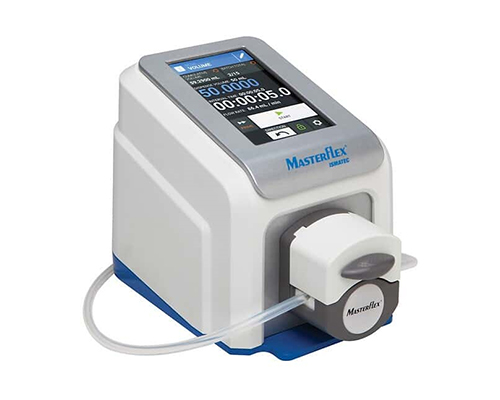

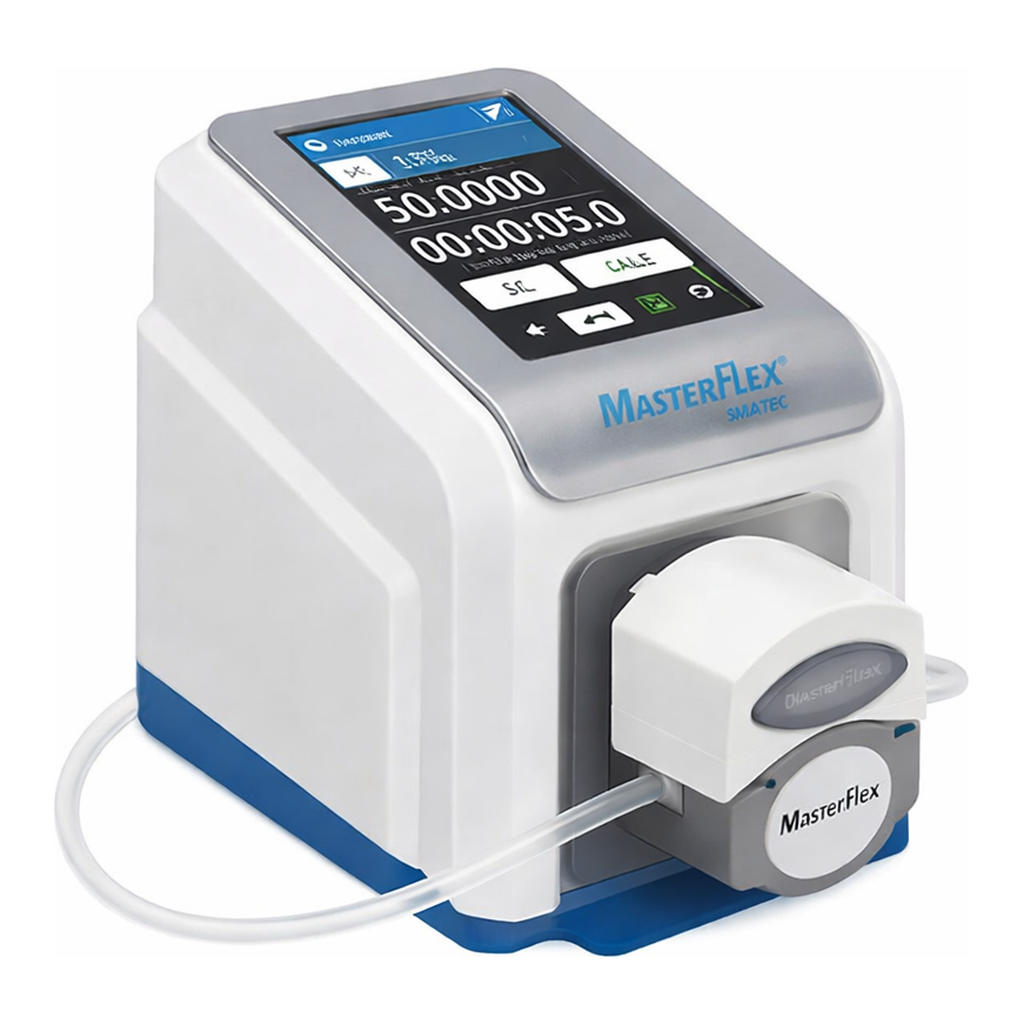

Ismatec Reglo Digital Miniflex Pumps
Description
Versatile pumps for accurate low-flow fluid delivery – with an intuitive touch-screen interface
· Compact, benchtop pumps optimize ease of use, accuracy, and reliability
· 5” (12.7 cm) capacitive TFT/RGB touch screen for crisp resolution and a wide viewing angle
· Flexible operational control via screen, MasterflexLive, or analog remote control
· Continuous run, volume dispense, and time dispense modes -- batch control and interval/off time in Volume and Time modes
· Anti-drip and speed ramping available in Volume dispense mode – ensure accuracy and minimize sample loss
· Miniflex pump head accepts continuous tubing for clean, uninterrupted fluid paths
MasterflexLive® is a secure, cloud-enabled platform for control and monitoring of Masterflex pumps; get real-time control of all pump parameters – including speed, flow rate, dispense volume, and more. You can monitor and adjust critical processes running 24/7 without the need for onsite personnel while push notifications alert you to operating conditions and error messages.
Internet connection via standard Ethernet (RJ45) jack on rear of drive; USB connection allows for downloadable firmware updates to be loaded into the pump.
The Miniflex pump head features a wide occlusion angle that prevents fluid backflow up to the rated pressure of the tubing. Self-lubricating thermoplastic polyester rollers are low friction and long wearing for smooth operation and long life.
Specifications
| CP-78018-40 | CP-78018-42 | |
| Control Type | Variable-Speed Digital | |
| Min RPM | 0.1 | |
| Max RPM | 350 | |
| Number of Channels | 1 | 2 |
| Max Flow Rate Per Channel (mL/min) | 365 | 190 |
| Min Flow Rate Per Channel (mL/min) | 0.004 | |
| Tubing sizes accepted | L/S® 13, 14, 16, 25 | L/S® 13, 14, 16 |
| Drive IP rating | IP 31 | |
| Washdown Capable | No | |
| Duty Cycle | Continuous | |
| Number of Rollers | 3 | |
| Power (VAC) | 90 - 260 | |
| Power (Hz) | 50/60 | |
| Width (in) | 5.8 | |
| Height (in) | 6.3 | |
| Length (in) | 9 | |
| Width (cm) | 14.7 | |
| Height (cm) | 15.7 | |
| Length (cm) | 22.9 | |
| Open-Head Sensor | Yes | |
| Housing Material | ABS Plastic and Aluminum | |
| Remote I/O | RJ45 Ethernet; USB; 0 to 20 mA, 4 to 20 mA, 0 to 10 V, start/stop, direction, and prime via DB-25 |
