ISMATEC 디지털 멀티 채널 펌프 Ismatec Reglo Digital 2-Channel Pump
| 상품 옵션 정보 | ||||||||
|---|---|---|---|---|---|---|---|---|
| 카탈로그 번호 | CAS 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
| MFLX78018-12 | - | ISMATEC MFLX78018-12 PUMP MFLX ISM REG 2CH 8RL 160R EU 230V ea | 재고문의 | ea | 5,470,000원 | - | 6,017,000원 | |
| MFLX78018-10 | - | ISMATEC MFLX78018-10 PUMP MFLX ISM REG 2CH 6RL 160R EU 230V ea | 재고문의 | ea | 5,320,000원 | - | 5,852,000원 | |
| MFLX78018-14 | - | ISMATEC MFLX78018-14 PMP MFLX ISM REG 2CH 12RL 160R EU 230V ea | 재고문의 | ea | 0원 | - | 0원 | |
다른 상품 둘러보기

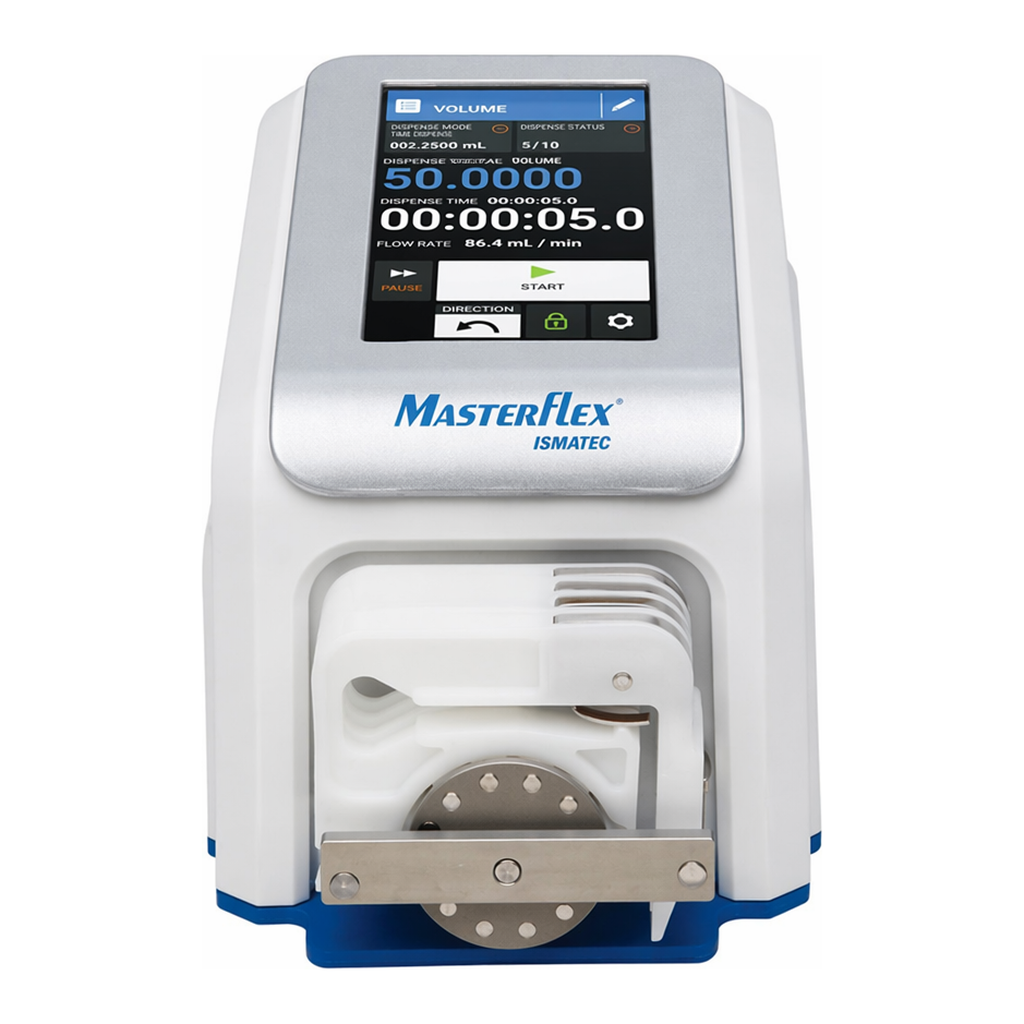

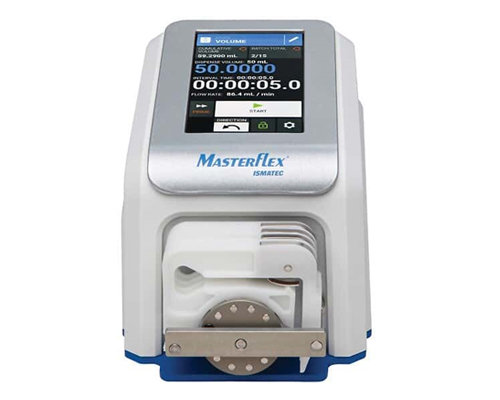

Ismatec Reglo Digital 2-Channel Pump
Description
Pump drive, pump head, cassettes, and power adapter with 6-ft (1.8-m) line cord.
· Compact, benchtop pumps optimize ease of use, accuracy, and reliability
· 5” (12.7 cm) capacitive TFT/RGB touch screen for crisp resolution and a wide viewing angle
· Flexible operational control via screen, MasterflexLive, or analog remote control
· Continuous run, volume dispense, and time dispense modes -- batch control and interval/off time in Volume and Time modes
· Anti-drip and speed ramping available in Volume dispense mode – ensure accuracy and minimize sample loss
· Cassette pump models accept 3-stop tubing for easy loading and secure retention
· 2-channel, 6-roller model delivers flow range of 0.0002 to 68 mL/min per channel
· Easy-to-use tubing cassettes allow fast changeovers
**
More About this Item
**MasterflexLive® is a secure, cloud-enabled platform for control and monitoring of Masterflex pumps; get real-time control of all pump parameters – including speed, flow rate, dispense volume, and more. You can monitor and adjust critical processes running 24/7 without the need for onsite personnel while push notifications alert you to operating conditions and error messages.
Internet connection via standard Ethernet (RJ45) jack on rear of drive; USB connection allows for downloadable firmware updates to be loaded into the pump.
Tubing cassettes (included) accept 3-stop tubing and are easily snapped in/out for quick tubing changes. Accepted tubing ranges from 0.13 to 3.17 mm ID for a wide flow range.
Specifications
| CP-78018-10 | CP-78018-12 | CP-78018-14 | |
| Control Type | Variable-Speed Digital | ||
| Min RPM | 0.1 | ||
| Max RPM | 160 | ||
| Number of Channels | 2 | ||
| Max Flow Rate Per Channel (mL/min) | 68 | 57 | 38 |
| Min Flow Rate Per Channel (mL/min) | 0.0002 | 0.0002 | 0.0001 |
| Tubing sizes accepted | Three-stop tubing; 0.13 mm ID to 3.17 mm ID | ||
| Drive IP rating | IP 31 | ||
| Washdown Capable | No | ||
| Power (VAC) | 90 - 260 | ||
| Duty Cycle | Continuous | ||
| Number of Rollers | 6 | 8 | 12 |
| Power (Hz) | 50/60 | ||
| Width (in) | 5.8 | ||
| Height (in) | 6.3 | ||
| Length (in) | 8.7 | ||
| Width (cm) | 14.7 | ||
| Height (cm) | 15.7 | ||
| Length (cm) | 22.1 | ||
| Housing Material | ABS Plastic and Aluminum | ||
| Remote I/O | RJ45 Ethernet; USB; 0 to 20 mA, 4 to 20 mA, 0 to 10 V, start/stop, direction, and prime via DB-25 |
