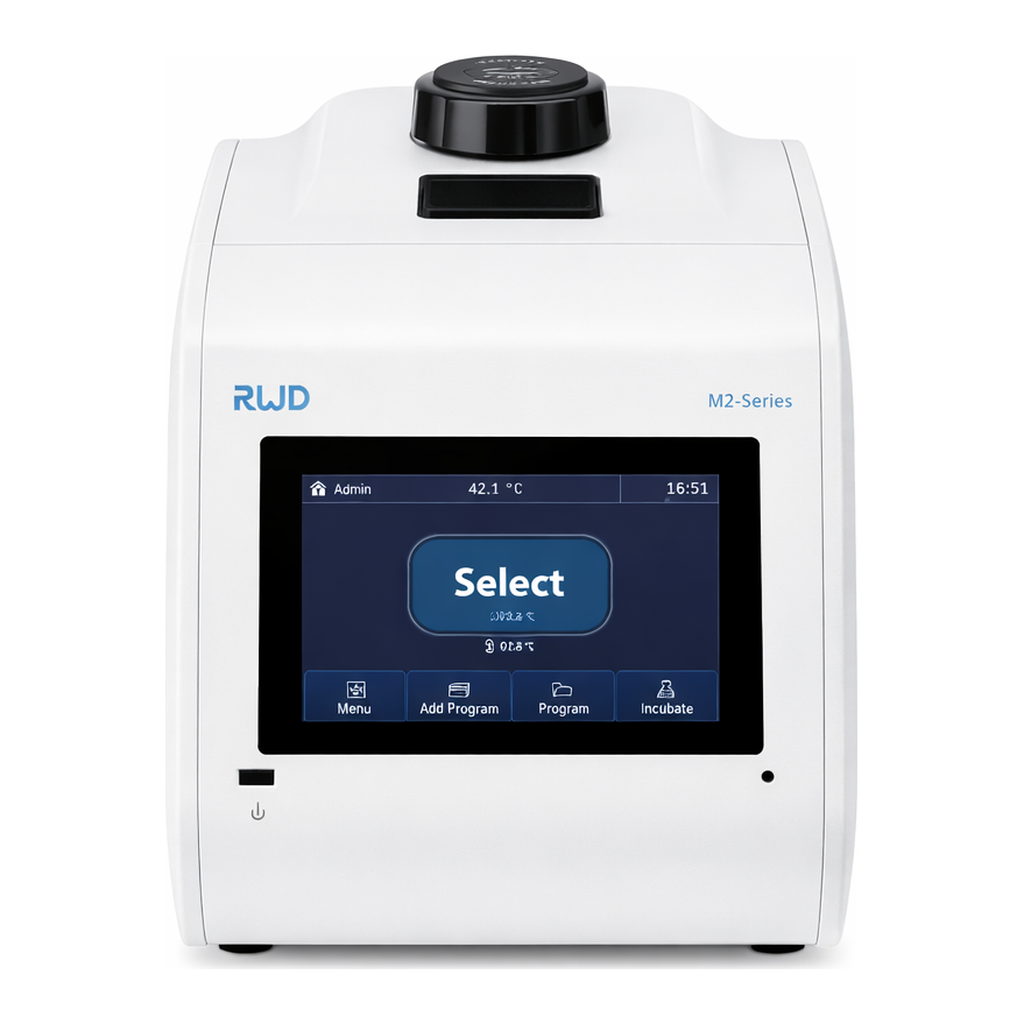

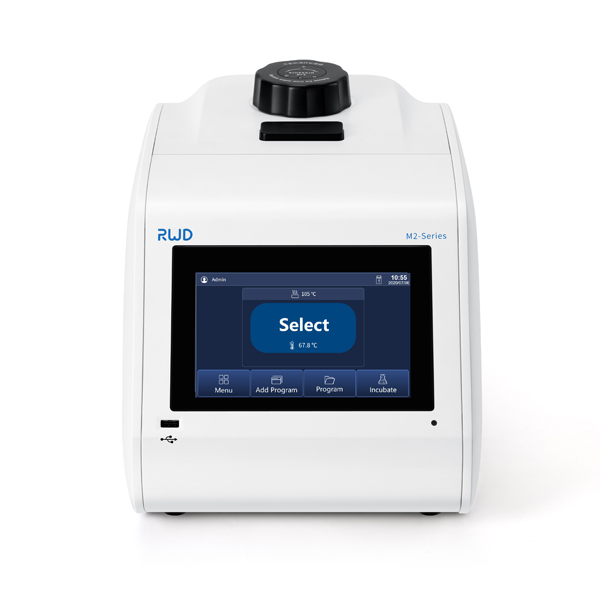

M2-96G Gradient Thermal Cycler
The M2-96G gradient thermal cycler provides precise temperature control and an intelligent user operating system to achieve rapid and specific amplification of target DNA fragments. With temperature gradient function, 12 groups of gradient can be realized at one time to optimize PCR protocol.
Overview
The 96-well M2-96G PCR thermal cycler provides temperature gradient function and 12 groups of gradient can be realized at one time to optimize PCR protocol. With 7 inch touch screen, personalized account could be edited to enable intuitive and quick programming.
It is widely used in molecular biology, microbiology, genetics, cell biology, food science and agronomy to carry out experimental research such as molecular cloning, gene expression analysis, genotype identification, sequencing, and pathogenic microorganism analysis
Advantages
Intelligent and efficient linear gradient function
12 linear gradients in the same run allow to optimize the ideal annealing temperature
Fast ramping for PCR runs
Fast ramp rate of up to 6℃/s to realize efficient PCR runs
Multiple personalized account management
Personalized account management system provides organized programs and unwanted changes
Simple and efficient operations
Processes can be imported and synchronized via USB ports and achieve multi-machine collaborative work.
Specifications
| Description | M2-96G |
|---|---|
| Sample | 96×0.2 ml/0.1ml tubes or 1×96-well plate |
| Reaction volume | 10~80 μL |
| Heating block | 96-well |
| Temperature control range of the block | 0~100℃ |
| Gradient capability | Yes |
| Gradient range | 30~100℃ |
| Lid temperature range | 40~100℃ |
| Temperature accuracy | ±0.25℃ (35~100℃) |
| Temperature Uniformity | ≤±0.3℃ (After reaching a constant temperature of 95℃ for 20s) |
| Max. heating and cooling rate | 6.0℃/s; 4.5℃/s |
| Average heating and cooling rate | 4.5℃/s; 3.5℃/s |
| Display | 7 inch LCD touch screen |
| Max. amount of storage | 2000 |
| Max. number of program cycles | 99 |
| Max. number of program steps | 64 |
| Inc/Dec temp input range | ±0.1-5℃ |
| Inc/Dec time input range | ±1-240s |
| Power-off protection | Yes |
| Interface | RS232、USB、Network port |
| Dimensions(W *D*H) | 264mm*470mm*259mm |
| Weight | 16.5kg |
| Power supply | 220V/50HZ; 110V/60HZ |
| Max. Power consumption | 925W |
