RWD ThermoStar Homeothermic Monitoring System
4.3인치 컬러 LCD 터치스크린으로 실시간 온도 모니터링 및 제어 가능. 두 개의 독립 채널로 두 마리 실험동물 동시 유지. 듀얼 회로 안전 보호로 안정적 온도 유지. 다양한 크기의 실리콘 히팅 패드 제공. 고정밀 온도 제어 및 경고 알림 기능 탑재.
- 카탈로그번호
- 69020
- 브랜드
- RWD
- 판매단위
- ea
카탈로그
1개 옵션 · 카탈로그 번호를 클릭하면 복사됩니다RWD · RWD ThermoStar Homeothermic Monitoring System

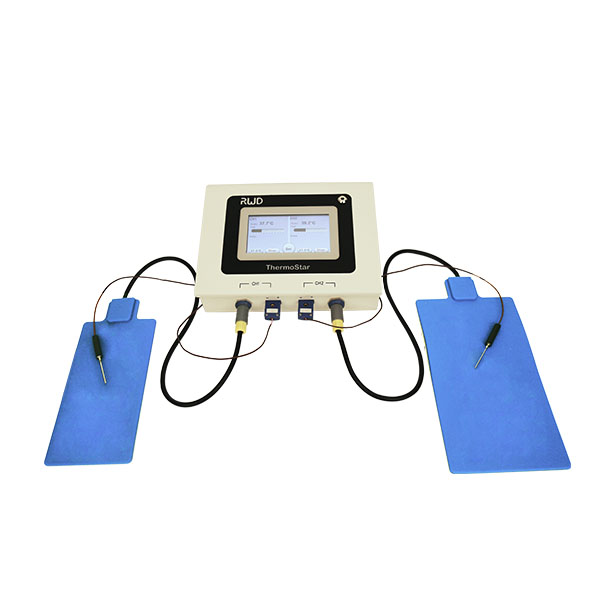

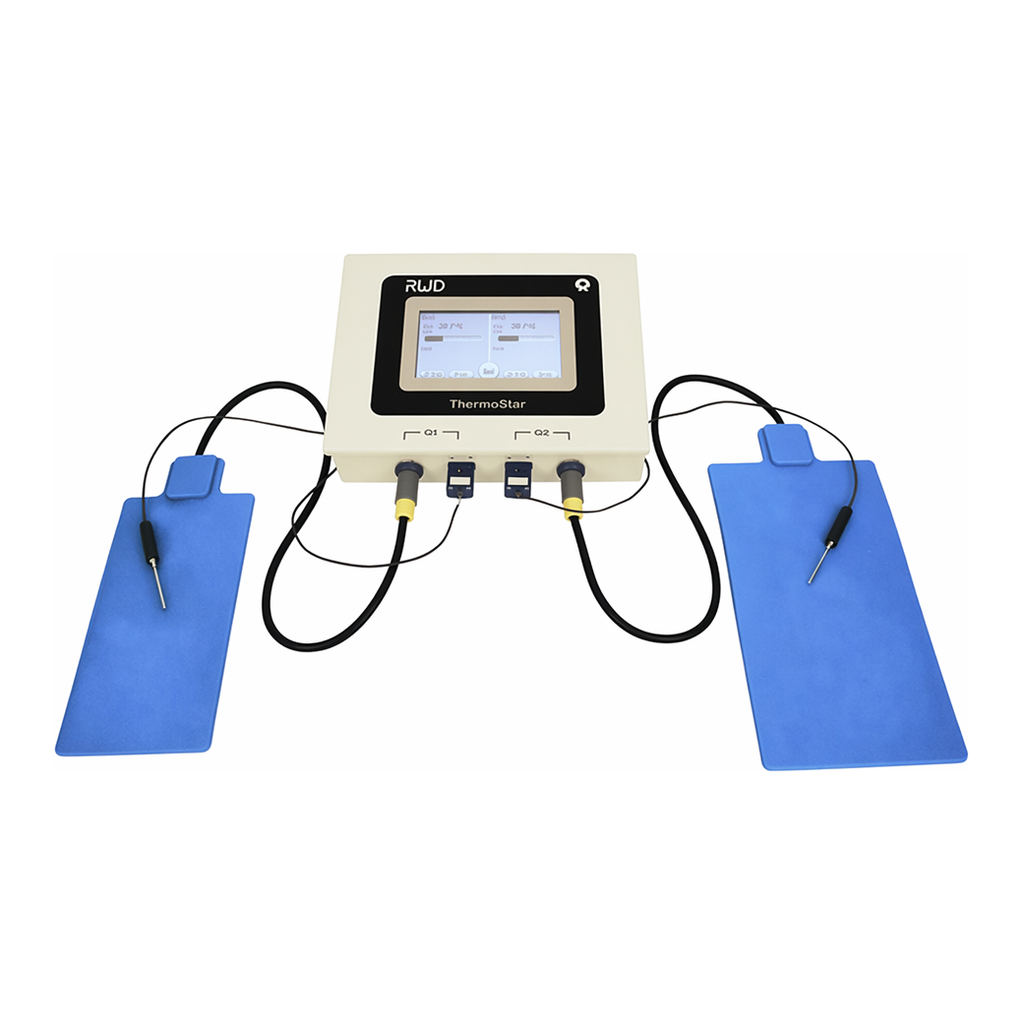

ThermoStar Homeothermic Monitoring System
The new generation of ThermoStar temperature maintenance device uses a 4.3-inch color LCD touch screen with a beautiful appearance, lightweight design, and easy operation. It provides real-time display of temperature measurement, setting, heating state, running state, and fault warnings.
The system can simultaneously maintain temperature for two small animals with independent operation.
The main control module monitors the temperature of both the heating pad and anal temperature probe in real time. Independent circuits control each component, ensuring dual safety protection and stable, reliable performance.
Features
- 4.3-inch color LCD touch screen for intuitive control
- Real-time display of temperature, heating status, and warnings
- Dual-channel operation for two animals simultaneously
- Independent monitoring of heating pad and probe temperature
- Status progress bar showing pad operation (IDLE, WARNING, STANDBY, WORKING)
- Fast temperature rise and high precision control (20–45℃, resolution 0.1℃, switchable °C/°F)
- Configurable alarm settings: high/low limit (±1℃), max temperature (50℃), probe/pad alerts, sound and light indicators, one-button operation
Technical Specifications
| Specification | Description |
|---|---|
| Temperature probe | High sensitivity, Ø1.5 mm, rod length 30 mm, line length 150 cm |
| Heating pad | Silicone, high temperature resistant, easy to clean, available in 3 sizes |
| Power supply | 100–240 V, 50/60 Hz |
| Control unit size | L205 × W148 × H80 mm |
| Control unit weight | 1.3 kg |
Model Information
| Category | Cat. No | Product Description | Remarks |
|---|---|---|---|
| Complete system | 69020 | ThermoStar Temperature Controller, 69023 pad incl. | Includes heating pad (69023) and temperature probe (69022) |
| 69026 | ThermoStar Temperature Controller, 69024 pad incl. | Includes heating pad (69024) and temperature probe (69022) | |
| 69027 | ThermoStar Temperature Controller, 69025 pad incl. | Includes heating pad (69025) and temperature probe (69022) | |
| Temperature probe | 69022 | Temperature probe | Ø1.5 mm, rod 30 mm, line 150 cm (Rat/mouse) |
| Heating pad | 69023 | Heating Pad - 12.0 × 20.5 cm | |
| 69024 | Heating Pad - 9.0 × 17.0 cm | ||
| 69025 | Heating Pad - 7.0 × 10.0 cm |
