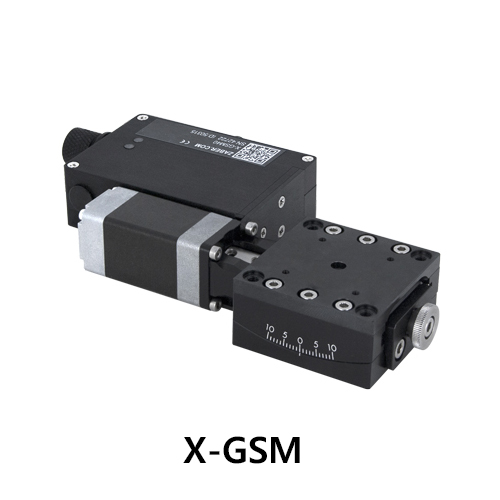

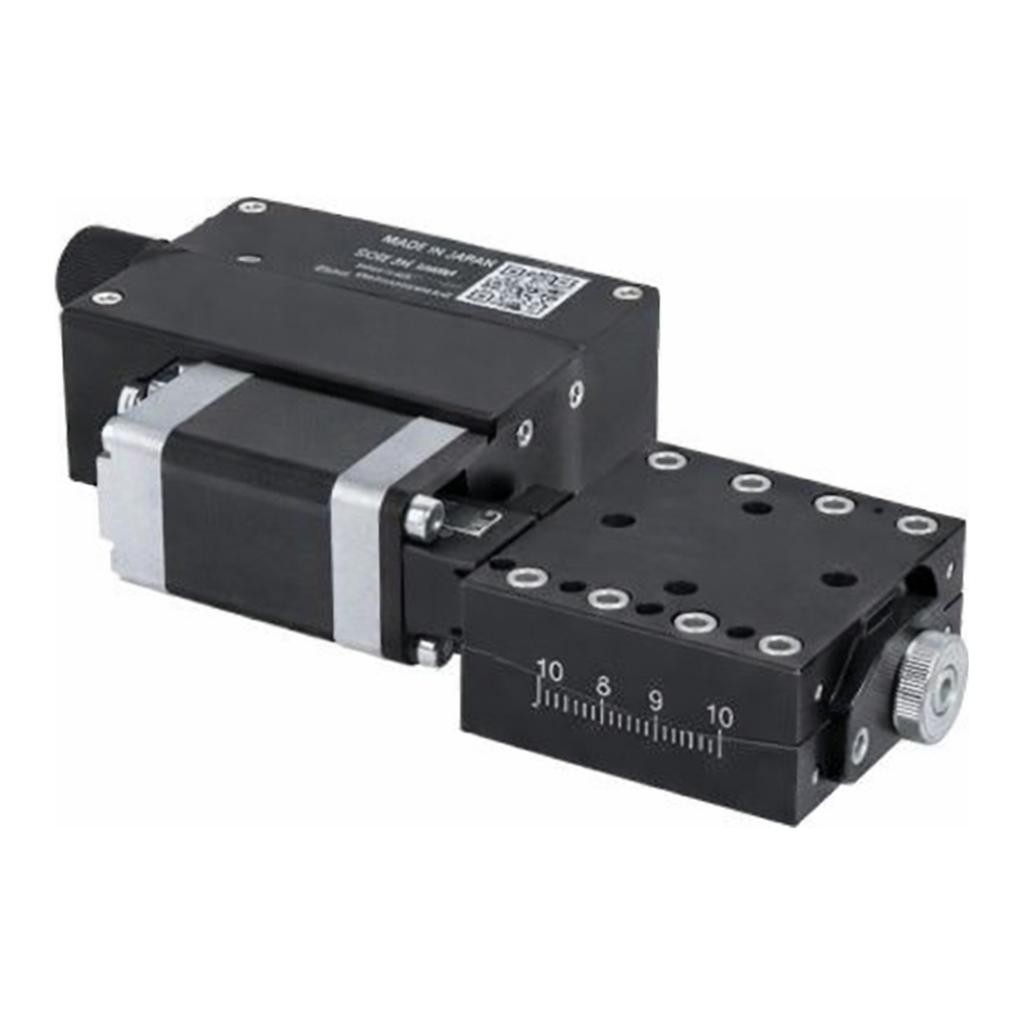

■ X-GSM Series:Motorized Goniometers with Built-in Controllers
■ 40 mm and 60 mm centre of rotation options allow for two axes of motion about a common centre of rotation
■ 30 N load capacity
■ Low profile, small footprint
■ Designed for use with an X-MCB1 Series stepper motor controller or any 2-phase stepper motor controller
- Goniometer
Cat. No. | Model | Description |
--- | --- | --- |
M01-680-910 | X-GSM40-KX13A | Motorized goniometer stage, 40 mm centre of rotation, integrated controller, North America, 48 V. Powers one axis |
M01-680-913 | X-GSM40-KX14A | Motorized goniometer stage, 40 mm centre of rotation, integrated controller, North America, 48 V. Powers multiple axes |
M01-680-916 | X-GSM60-KX13A | Motorized goniometer stage, 60 mm centre of rotation, integrated controller, North America, 48 V. Powers one axis |
M01-680-919 | X-GSM60-KX14A | Motorized goniometer stage, 60 mm centre of rotation, integrated controller, North America, 48 V. Powers multiple axes |
- Goniometer Specification
Specification | |
--- | --- |
Value | |
--- | --- |
Model | X-GSM Series |
Built-in Controller | Yes |
Accuracy (unidirectional) | 0.06 degrees |
Repeatability | < 0.005 degrees |
Backlash | < 0.01 degrees |
Maximum Speed | 30 deg/s |
Encoder Type | None |
Communication Interface | RS-232 |
Communication Protocol | Zaber ASCII (Default), Zaber Binary |
Maximum Centered Load | 30 N |
Guide Type | Crossed roller bearing |
Rotation Centre Accuracy | < 0.1 mm |
Maximum Current Draw | 350 mA |
Power Supply | 24-48 VDC |
Power Plug | 2-pin Screw Terminal |
Motor Steps Per Rev | 200 |
Motor Type | Stepper (2 phase) |
Inductance | 3.5 mH/phase |
Default Resolution | 1/64 of a step |
Data Cable Connection | Locking 4-pin M8 |
Motor Frame Size | NEMA 08 |
Mechanical Drive System | Precision Worm Gear |
Limit or Home Sensing | Magnetic home and away sensors |
Manual Control | Yes |
Axes of Motion | 1 |
Mounting Interface | M2 and M3 mounting holes |
Vacuum Compatible | No |
Operating Temperature Range | 0-50 degrees C |
RoHS Compliant | Yes |
CE Compliant | Yes |
Weight | 0.271 kg |
