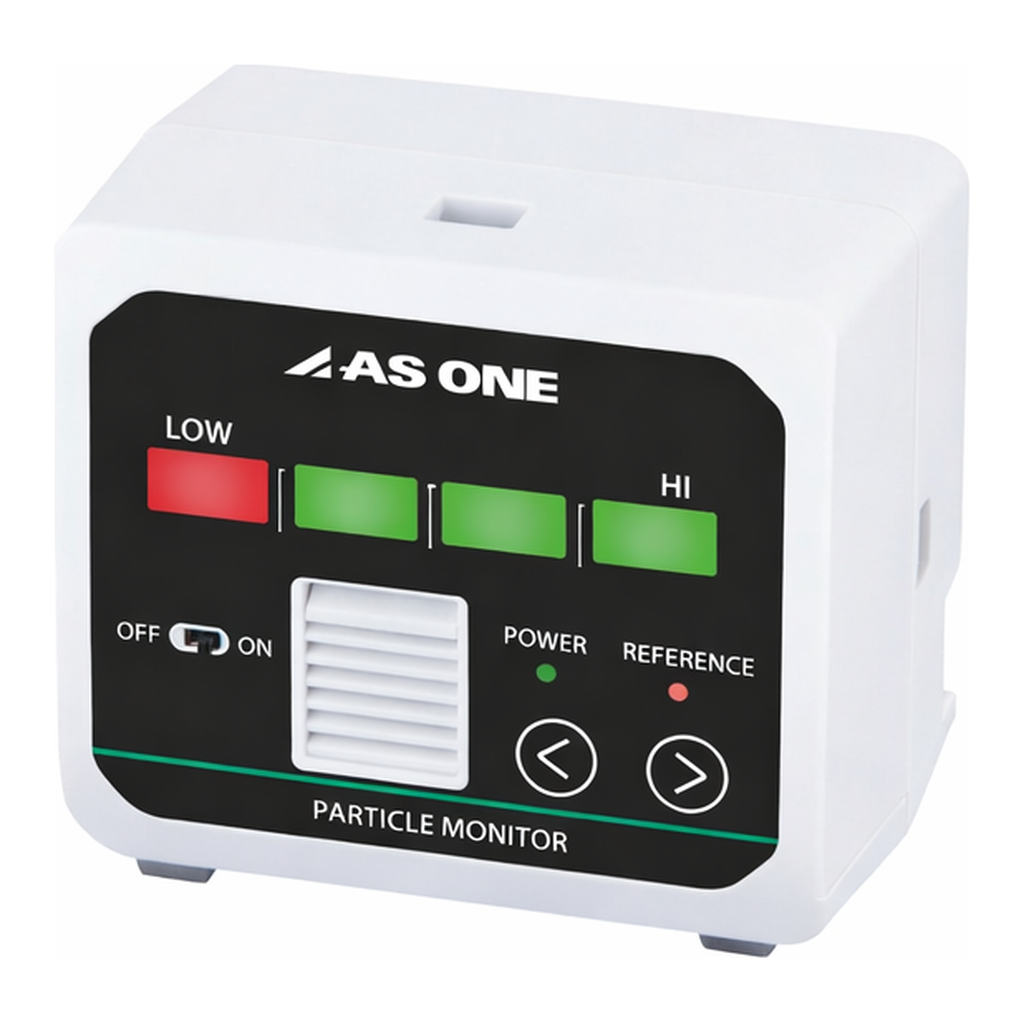

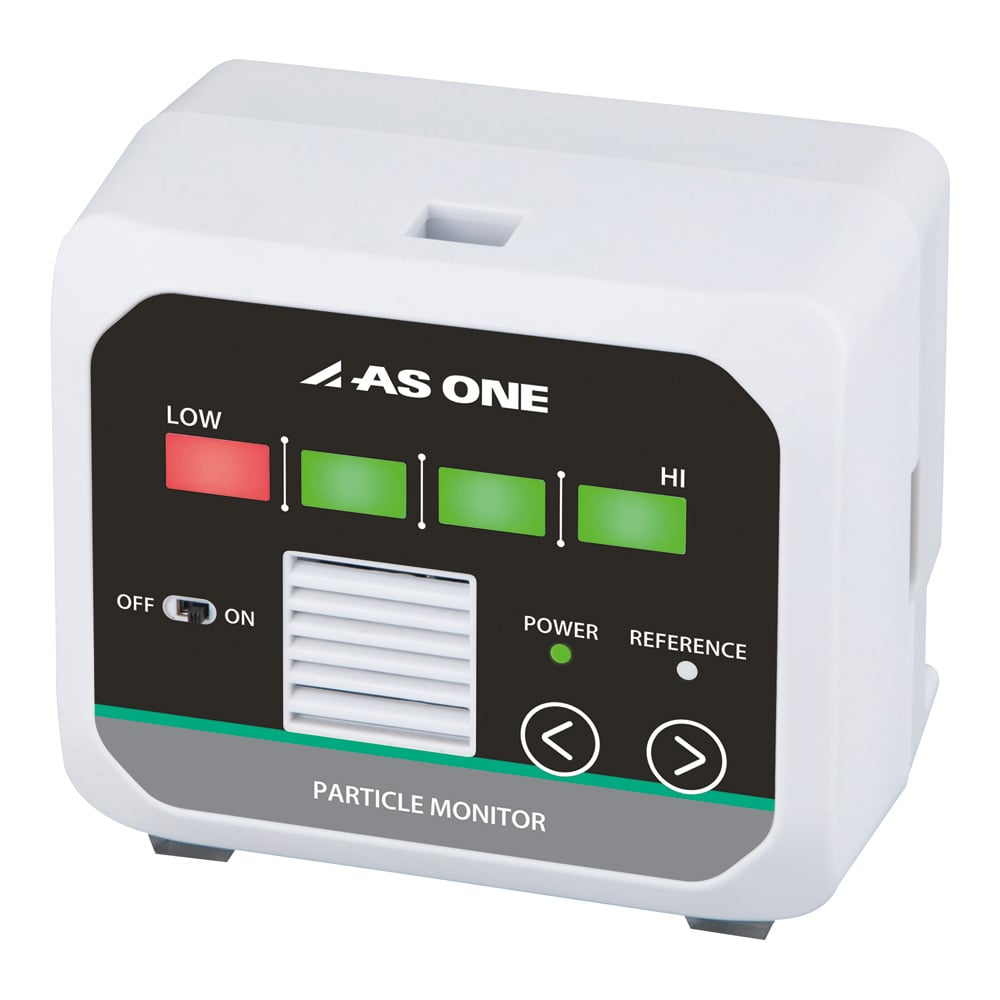

AS ONE 4-4055-01-20 Particle Monitor (coarse Particle Type) with Calibration Certaificate　PA-5C

* Demo Unit

Features

• Economy type capable of multi-point measurement and constant monitoring 4-level LED display of the number concentration of coarse particles falling without floating.
• Number density can be recorded using dedicated software.
• An optional temperature and humidity sensor (4-3762-11) can be connected for recording using dedicated software.
• It is effective in preventing contamination, improving quality and reducing defect rates in the manufacturing process.
• Contributes to the visualization of pollution levels in clean rooms, manufacturing processes and other environments that require contamination measures.
• Very compact and space saving for installation.

Spec

• Detected particle size: 5 micrometers or more (* 1)

• Size (mm): 125 x 76 x 110

• Weight (g): approximately 370

• Number of pieces: 1

• Measuring range: CLass 10,000 ~ 100,000

• Measurement system: Light scattering system

• Light source: laser diode

• Sampling Method: Suction by Fan

• Output units: pcs/5min (default), pcs/m3, pcs/cf, pcs/L

• Detected particle size: 5 micrometers or more, 30 micrometers or more, 5 micrometers/10 micrometers/20 micrometers/30 micrometers/50 micrometers (* 10 micrometers/20 micrometers/30 micrometers/50 micrometers are reference values)

• Recommended usage *: CLass 10,000 ~ 100,000

• Output units: pcs/5min (default), pcs/m3, pcs/cf, pcs/L (* May change)

• Sensor output value: 5 min average value/300 s total value

• Data update time: 1s

• Power supply: 24 VDC (AC adapter included)

• Output communication: alarm alarm output, RS 485, analog (voltage) output, Ethernet communication, Wi-Fi communication

• Temperature and humidity measurement function: 0 (* 2)

• Reference Indication: 0 (Default: 30 um or more * 3)

• Analog output: 0

• Digital communication: 0 (Ethernet, Wi-Fi)

• Alarm output: 0

• (* 1) Can be changed to 5, 10, 20, 30 or 50 microns using evaluation software. (Above 10 microns is a reference value.)

• (* 2) Values are displayed using evaluation software.

• (* 3) It can be changed in the evaluation software.

• *Use in a clean atmosphere.

• *Proof of Calibration products are our company`s original service.

• < a href=https://axel.as-1.co.jp/images/pdf/pb/4-3762/Setup\_v80\_7\_2.zip rel=noopener nofoLLow target=\_bLank > Download the dedicated application (v 80 _ 7 _ 2) here < /a >

• < a href=https://axel.as-1.co.jp/images/pdf/pb/4-3762/mac\_ip\_display\_mode\_202211.xlsx rel=noopener nofollow target=\_blank > Read more about MAC and IP display modes here < /a >
