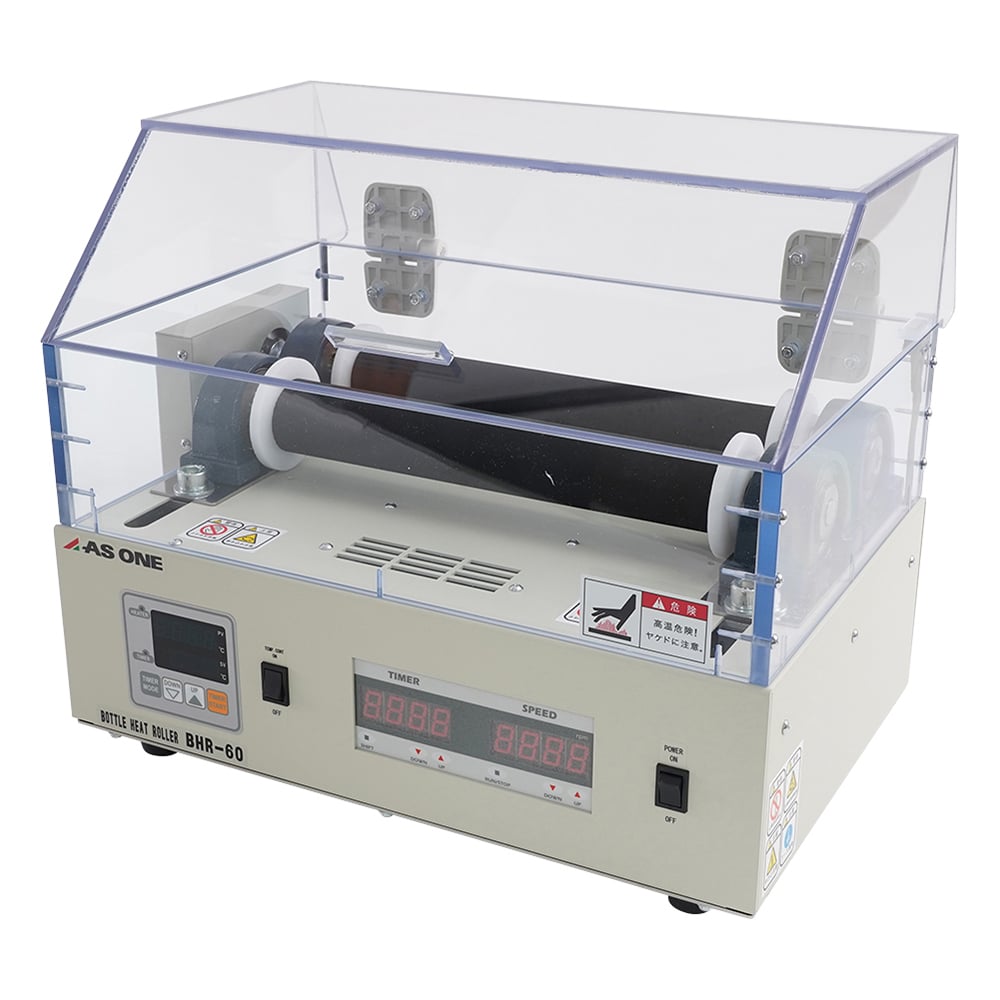

AS ONE 4-4057-01 Bottle Heat Rotor　BHR-60

Features

• Equipped with a thermal function, it can be mixed while keeping warm.
• With a lid, it has excellent safety such as preventing entanglement.
• The door switch stops the rotor and heat retention when the lid is opened.
• The rotation is digitally set.
• It is effective for large bottles (60 ~150 mm outer diameter).

Spec

• Size (mm): 412 x 289 x 324
• Weight (kg): 17
• Number of pieces: 1
• Stirring system: rotary stirring
• Speed: 20 ~ 112 rpm
• rotation control: feedback control
• Heating temperature: room temperature/+ 5 ~ 60 degrees C
• Temperature control: PID control
• Heating system: Warm air circulation system
• Temperature sensor: Platinum temperature resistor
• Material: Body/SPCC Baked Coating/SUS 430, Roller/NBR (Black), Lid/Polycarbonate
• Motor timer: 0 ~ 9 hours 59 minutes (motor stopped)
• Control timer type: ON timer, OFF timer, SV start
• Safety devices: overcurrent protective fuse (5A), self-restoring bimetal, door switch
• Power supply: 100 VAC 50/60 Hz 3 P 2.5 m
• Applicable container size: Outer diameter/60 ~ 150 mm, Total length/250 mm or less
• Load capacity: 10 kg (includes container)

Package size：370×455×370 mm　 [About Package size]
