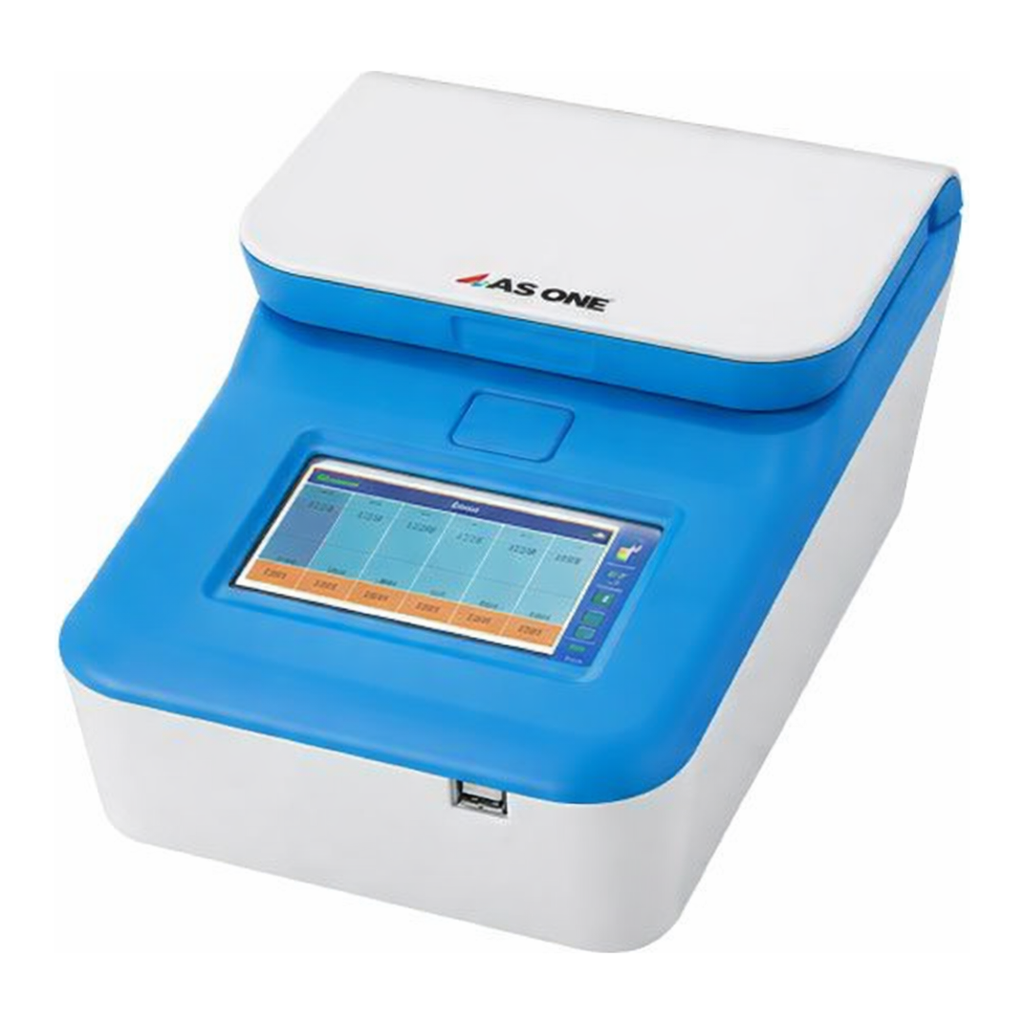

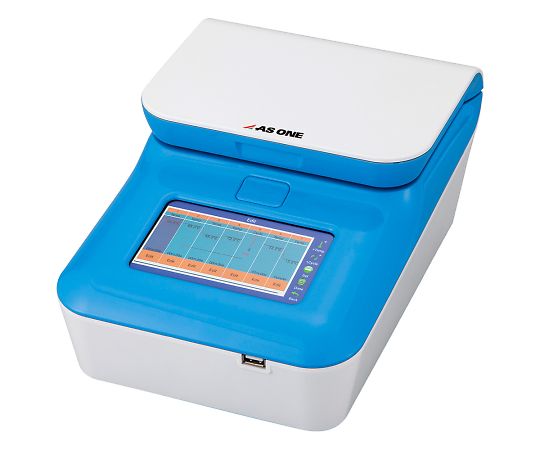

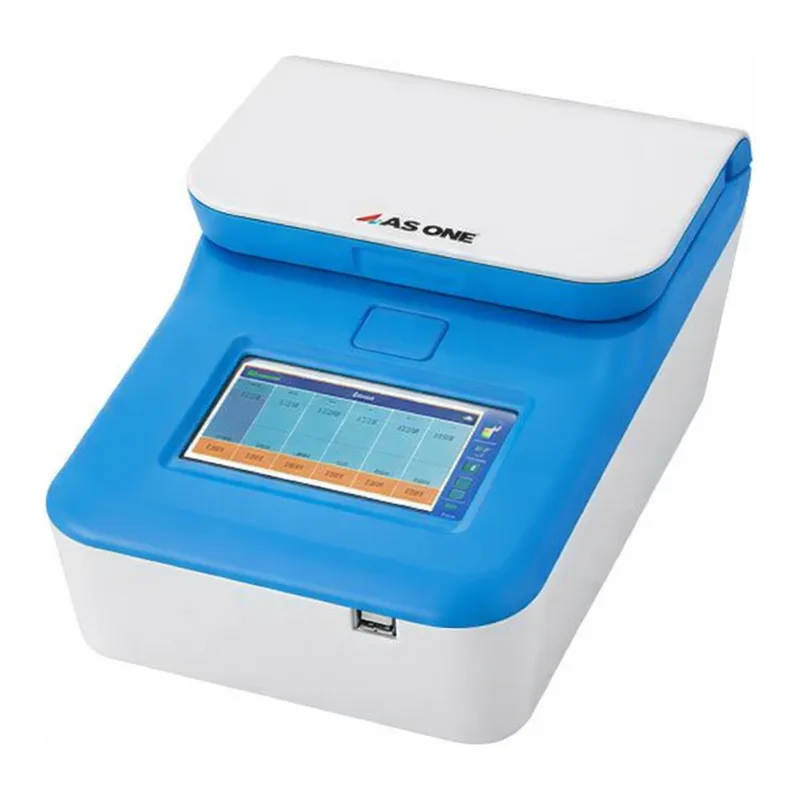

AS ONE Portable thermal cycler　Portal-C

AS ONE Portable thermal cycler　Portal-C

Spec

• Size (mm): 267 x 190 x 115
• Weight (kg) : 2.6
• Sample capacity: 32 x 0.2 mL PCR Tubes or 8 x 0.2 mL PCR Tubes x 4
• Temperature Range: 4 to 100 ° C
• Lid Temperature Range: 30 to 110 ° C or OFF
• Temperature Display Precision: ± 0.1 ° C
• Temperature Adjustment Accuracy: ± 0.3 ° C (at 55 degrees C)
• Temperature uniformity: < 0.3 deg. C (at 55 degrees C)
• Temperature Rise/Cooling Speed: Temperature Rise: 5 ° C/sec (Max.), Temperature Fall: 4 ° C/sec (Max.)
• Gradient temperature settings range: 30 to 100 ° C
• Gradient Temperature Width: 1 to 30 ° C
• Memory capacity: 30 segments 100 cycles (Max.)
• Number of programs saved: 10,000
• Block material: Aluminum
• View: 5-inch color LCD (touch panel system)
• power supply: AC100V 50/60 Hz
• Power Consumption: 200 W
• Accessories: Touchpen
