Servicebio 8-channel Pipette

Product Introduction

The Servicebio 8-channel pipette is designed for precise and efficient liquid transfer in analytical and research applications.
It offers multiple volume ranges and color options, with the ability to customize exclusive colors.

SPIP-B50 Pipette Compatibility Chart

Product Features

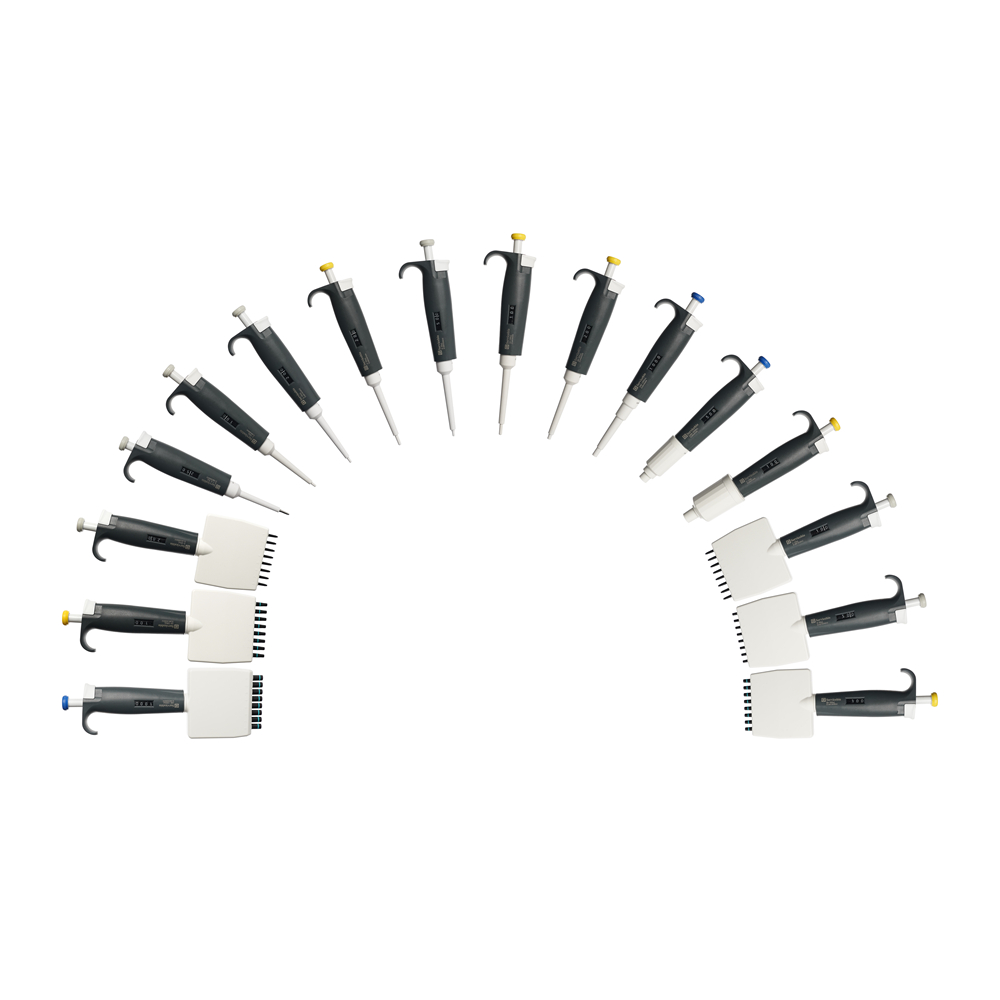

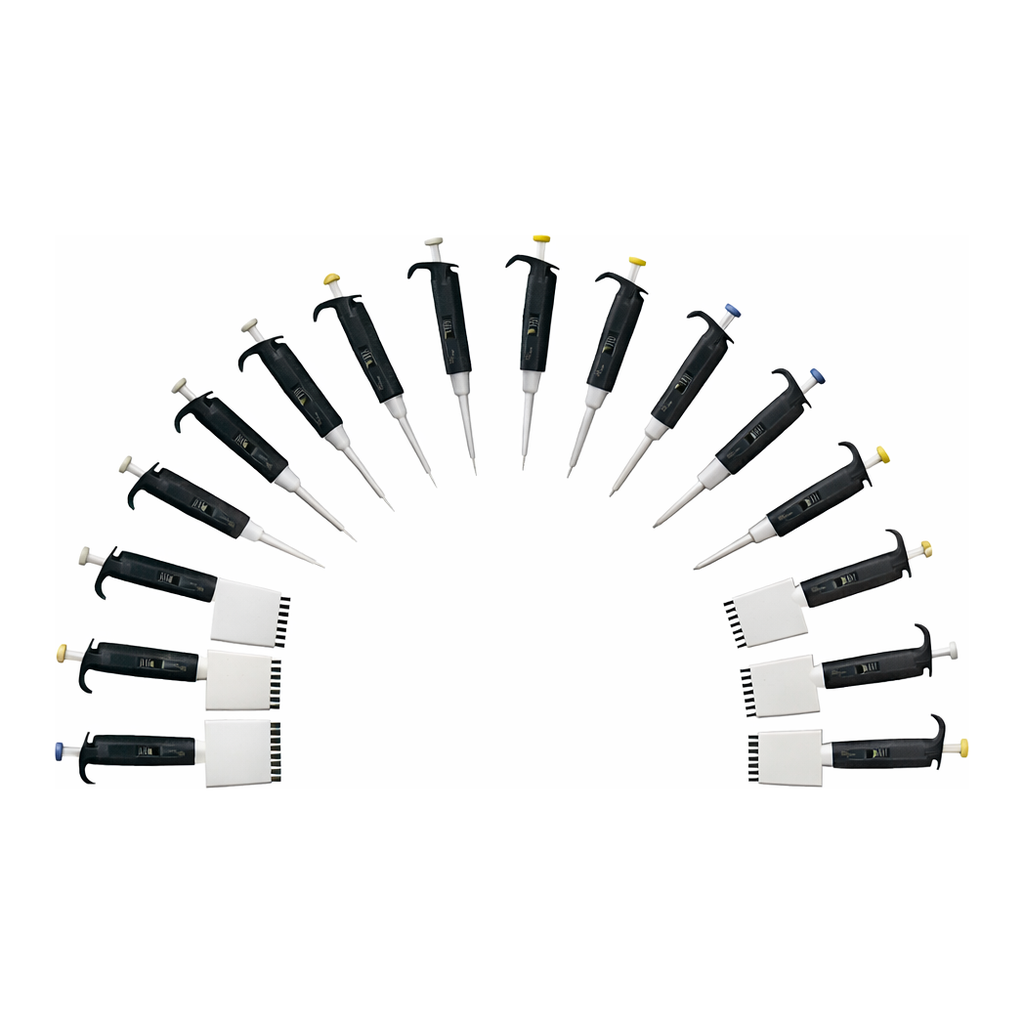

1. Multiple volume ranges with multi-color markings, available in single- and multi-channel versions.
2. Lightweight spring mechanism for effortless operation.
3. Compatible with Servicebio tips ensuring airtightness and accurate volume delivery.
4. Compatible with most pipette tips on the market.
5. Ergonomic design for comfortable grip and reduced fatigue.
6. Digital display for clear volume adjustment.
7. High-strength material with enhanced corrosion and UV resistance.
8. Each pipette calibrated per EN/ISO8655 standard for precision and reliability.

Product Parameters

Component Description (from image)

• Push Button / Volume Turn Button (Top Cap)
• Push Rod
• Handle Grippy
• Tip Ejection Button
• Handle
• Volume Display
• Tip Ejection Part
• Pipe Tip
• Numeric labels: 1 – 8
• Device markings: “300”, “Sartorius”, “Biohit”

Pipette Operation

Forward Technique (for low-density liquids)

1. Press the push button to the first STOP.
2. Slowly release the button to the ready position to complete aspiration.
3. Deliver the liquid by pressing the button to the first STOP, then to the second STOP to empty the tip.
4. Release the button to the ready position and change the tip if necessary.

Operation Labels (from image):

• Ready Position
• First STOP
• Second STOP

Reverse Technique (for high-viscosity or volatile liquids)

1. Depress the button to the second STOP for aspiration, then release slowly to complete aspiration (slightly over preset volume).
2. Press the button to the first STOP to dispense the preset volume.
3. Discard remaining liquid with the tip.

Calibration and Adjustment

Use the Service Tool as shown:

Calibrate pipettes 1–2 times per year depending on usage frequency.

Storage and Transportation

Store and transport at room temperature.

Notice

1. Ensure pipette and tips are at the same temperature before use.
2. Keep pipette upright during aspiration (tip depth 2–3 mm).
3. Avoid turning pipette upside down when tip contains liquid.
4. Use within the specified volume range.
5. Apply maintenance oil to the sealing ring if unused for long periods.
6. Disassembly should be performed by a professional technician.

Pipette and Tip Adaptation Table

| Cat. No. | Name | Spec. | SPP-2.5 | SPP-10 | SPP-20 | SPP-20L | SPP-50 | SPP-100 | SPP-200 | SPP-1000 | SPP-5000 | SPP-10000 | SPP-810 | SPP-820L | SPP-830 | SPP-850 | SPP-81000 |
|-----------|--------|--------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|
| TP-10-C / TP-10 / TP-10P-C / TP-10P | 10 µL | √ | √ | √ | (Unable to aspirate 50 µL) | √ | √ | √ | (Unable to aspirate 50 µL) |
| TP-20-C / TP-20 / TP-20P-C / TP-20P | 20 µL | √ | √ | √ | √ | √ | √ | √ | (Unable to aspirate 50 µL) |
| TP-200-C / TP-200 / TP-200P-C / TP-200P | 200 µL | √ | √ | √ | √ | √ | √ | √ | (Unable to aspirate 300 µL) |
| TP-1000S-C / TP-1000 / TP-1000P-C / TP-1000P | 1000 µL | √ | √ | √ | √ | √ | √ | √ | √ |
| TP-5000L-C / TP-5000L / TP-5000L-P-C / TP-5000L-P | 5 mL Wide Mouth | √ | √ | √ | √ | √ | √ | √ | √ |
| TP-10000-C / TP-10000 / TP-10000P-C / TP-10000P | 10 mL | √ | √ | √ | √ | √ | √ | √ | √ |

Filter Tips

| Cat. No. | Name | Spec. | SPP-2.5 | SPP-10 | SPP-20 | SPP-20L | SPP-50 | SPP-100 | SPP-200 | SPP-1000 | SPP-5000 | SPP-10000 | SPP-810 | SPP-820L | SPP-830 | SPP-850 | SPP-81000 |
|-----------|--------|--------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|
| TP-10-C-F / TP-10-F | Filter 10 µL | √ | √ | (Unable to aspirate 20 µL) | (Unable to aspirate 50 µL) | √ | √ | √ | (Unable to aspirate 50 µL) |
| TP-10P-C-F / TP-10P-F | Filter 10 µL Long | √ | √ | (Able to aspirate 20 µL) | (Unable to aspirate 50 µL) | √ | √ | √ | (Unable to aspirate 50 µL) |
| TP-20-C-F / TP-20-F | Filter 20 µL | √ | √ | √ | √ | √ | √ | √ | (Unable to aspirate 100 µL) |
| TP-100-C-F / TP-100-F | Filter 100 µL | √ | √ | √ | √ | √ | √ | √ | (Unable to aspirate 200 µL) |
| TP-200-C-F / TP-200-F | Filter 200 µL | √ | √ | √ | √ | √ | √ | √ | (Unable to aspirate 300 µL) |
| TP-1000S-C-F / TP-1000S-F | Filter 1000 µL | √ | √ | √ | √ | √ | √ | √ | √ |
| TP-5000L-C-F / TP-5000L-F | Filter 5 mL Wide Mouth | √ | √ | √ | √ | √ | √ | √ | √ |
| TP-10000-C-F / TP-10000-F | Filter 10 mL | √ | √ | √ | √ | √ | √ | √ | √ |

✅ √: Compatible
❌ (Unable to aspirate … µL): Not suitable for that volume
