Servicebio Pipette

Product Introduction

A pipette is a precision instrument used to transfer liquid quantitatively. In analytical and research testing, pipettes are typically used for small or microliter volumes.
Available in 8 colors, with customizable exclusive lucky colors.

---

SPIP-20 Pipette Compatibility Chart

Pipette	Pipette Tips Spec.	Details	Pipette Tips Cat. No.
SPIP-20	200 μL	Racked (Sterile, DNase & RNase Free)	TP-200-C
	Bagged (DNase & RNase Free)	TP-200
200 μL Long	Racked (Sterile, DNase & RNase Free)	TP-200P-C
200 μL Loading Control	Bagged	TP-200D
	Racked	TP-200D-C
20 μL with Filter	Filter, Racked (Sterile, DNase & RNase Free)	TP-20-C-F
100 μL with Filter	Filter, Racked (Sterile, DNase & RNase Free)	TP-100-C-F
200 μL with Filter	Filter, Racked (Sterile, DNase & RNase Free)	TP-200-C-F
200 μL Long with Filter	Filter, Racked (Sterile, DNase & RNase Free)	TP-200P-C-F

---

Product Features

1. Multiple volume ranges, multi-color markings, single-channel and multi-channel options
2. Lightweight spring for easy operation
3. Equipped with Servicebio tips for good air tightness and accurate volume transfer
4. Compatible with most tips on the market
5. CE certified, conforms to ISO 8655-2:2022 international standard

---

Product Parameters

Product Name	Product No.	Nominal Volume	Volume Range	Increment
Single Channel Pipette	SPIP-2.5	2.5 μL	0.1–2.5 μL	0.05 μL
	SPIP-10	10 μL	1–10 μL	0.1 μL
	SPIP-20L	20 μL	2–20 μL (for 10 μL and 10 μL-long tips)	0.1 μL
	SPIP-20	20 μL	2–20 μL (for 200 μL tips)	0.1 μL
	SPIP-50	50 μL	5–50 μL (for 10 μL-long tips)	0.5 μL
	SPIP-100	100 μL	10–100 μL	1 μL
	SPIP-200	200 μL	20–200 μL	1 μL
	SPIP-1000	1000 μL	100–1000 μL	5 μL
	SPIP-5000	5000 μL	1000–5000 μL	50 μL
	SPIP-10000	10 mL	1–10 mL	100 μL
8-Channel Pipette	SPIP-B10	10 μL	1–10 μL	0.1 μL
	SPIP-B20L	20 μL	2–20 μL	0.1 μL
	SPIP-B50	50 μL	5–50 μL	0.5 μL
	SPIP-B100	100 μL	10–100 μL	1 μL
	SPIP-B300	300 μL	50–300 μL	1 μL
	SPIP-B1000	1000 μL	100–1000 μL	5 μL

---

Additional Product Features

• Single channel: 0.1–2.5 μL to 1–10 mL, 10 sizes available
• Multi-channel: 1–10 μL to 100–1000 μL, 6 sizes available
• Lightweight ergonomic design for comfortable grip and reduced fatigue
• Large digital display for clear volume adjustment
• High-strength materials, resistant to corrosion, alcohol, and UV sterilization
• Color-coded handles for easy identification
• Compatible with most pipette tips
• Calibrated per EN/ISO8655 standard, ensuring high quality

---

Pipette Structure (Image Text Extracted)

Component	Description
Push Button / Volume Turn Button (Top Cap)	Adjust volume and operate pipetting
Push Rod	Controls piston movement
Handle Grippy	Ergonomic grip area
Handle	Main body
Volume Display	Shows set volume
Tip Ejection Button	Releases tip
Tip Ejection Pipe	Connects ejector mechanism
Pipe Tip	Attaches pipette tip

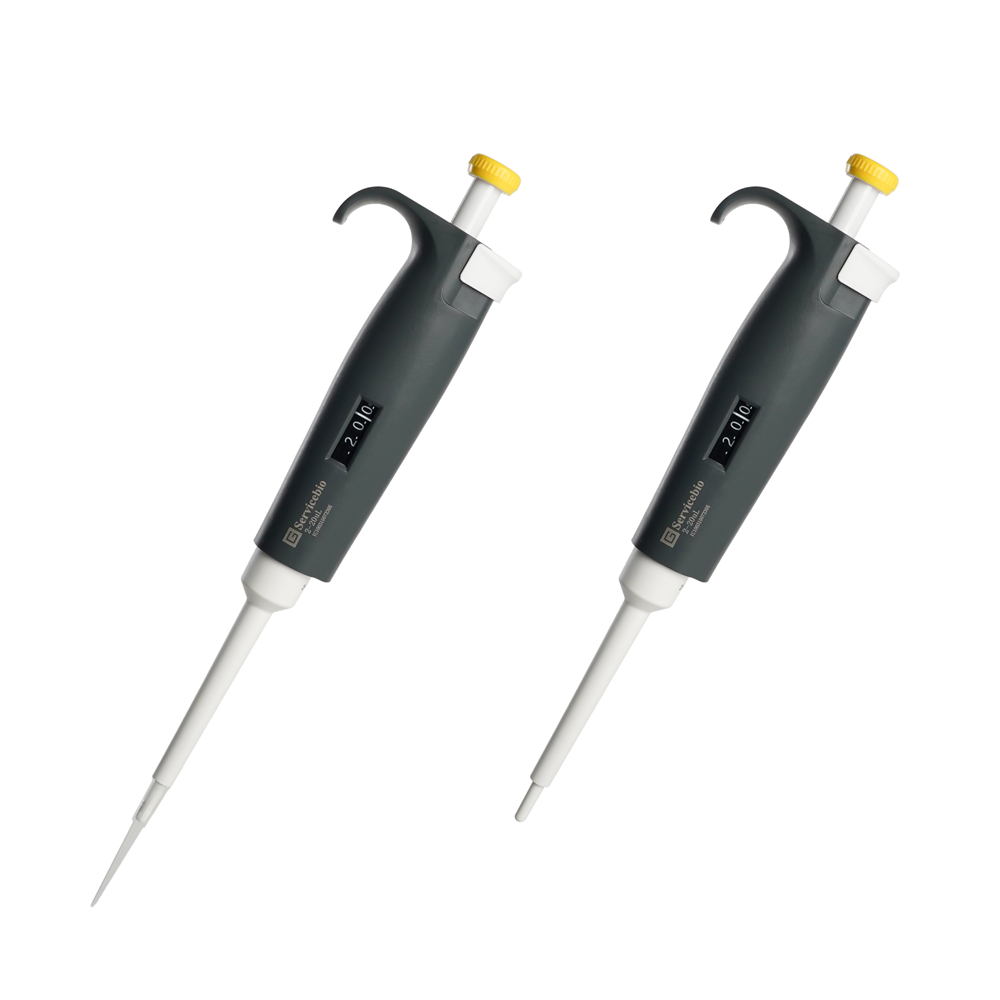

Device Label Text:
Servicebio
2–20 μL Adjustable Pipette
Display: 2.0

---

Pipette Operation

Forward Technique (low-density liquids):

1. Press the push button to the first STOP.
2. Slowly release to ready position to aspirate liquid.
3. Dispense by pressing to first STOP, then continue to second STOP to empty tip.
4. Release to ready position and change tip if needed.

Reverse Technique (high-viscosity or volatile liquids):

1. Depress button to second STOP to aspirate liquid, then release slowly to ready position.
2. Press to first STOP to discharge preset volume.
3. Discard remaining liquid with the tip.

Image Text:
Ready Position → First STOP → Second STOP

---

Calibration and Adjustment

Use the Service Tool as shown:

• Turn clockwise to increase volume
• Turn counterclockwise to decrease volume
  Calibrate pipettes 1–2 times per year depending on usage frequency.

Image Text:
Service Tool
Mantissa (Increment) refers to related product data sheet.

---

Storage and Transportation

Store and transport at room temperature.

---

Notice

1. Ensure pipette and tips are at the same temperature before use.
2. Hold pipette upright during aspiration; dip tip 2–3 mm below liquid surface.
3. Do not invert or lay flat when tip is filled with liquid.
4. Use within specified volume range.
5. Apply maintenance oil to sealing ring if unused for long periods.
6. For disassembly or repair, contact a professional technician.

---

Pipette and Tip Adaptation Table (Image Text Extracted)

| Cat. No. | SPP-2.5 | SPP-10 | SPP-20 | SPP-20L | SPP-50 | SPP-100 | SPP-200 | SPP-1000 | SPP-5000 | SPP-10000 | SPP-810 | SPP-820L | SPP-830 | SPP-8300 | SPP-61000 |
|-----------|----------|---------|---------|----------|----------|----------|----------|-----------|-----------|------------|-----------|-----------|-----------|------------|
| Name | Pipette | Pipette | Pipette | Pipette | Pipette | Pipette | Pipette | Pipette | Pipette | Pipette | 8-channel Pipette | 8-channel Pipette | 8-channel Pipette | 8-channel Pipette | 8-channel Pipette |
| Spec. | Piece (0.1–2.5 μL) | Piece (0.5–10 μL) | Piece (2–20 μL) | Piece (2–20 μL, Long tips) | Piece (5–50 μL for long tips, 10 μL tips) | Piece (10–100 μL) | Piece (20–200 μL) | Piece (100–1000 μL) | Piece (0.1–5 mL) | Piece (1–10 mL) | Piece (0.5–10 μL) | Piece (2–20 μL for long tips, 10 μL tips) | Piece (5–50 μL) | Piece (50–300 μL) | Piece (100–1000 μL) |

Non-filter Tips

Cat. No.	Spec.	Compatibility
TP-10-C / TP-10	10 μL	√ (SPP-2.5, SPP-10, SPP-20, SPP-20L, SPP-810, SPP-820L, SPP-830) (Unable to aspirate 50 μL)
TP-10P-C / TP-10P	10 μL Long	√ (SPP-2.5, SPP-10, SPP-20, SPP-20L, SPP-810, SPP-820L, SPP-830) (Unable to aspirate 50 μL)
TP-200-C / TP-200	200 μL	√ (SPP-50, SPP-100, SPP-200, SPP-830, SPP-8300) (Unable to aspirate 300 μL)
TP-200P-C / TP-200P	200 μL Long	√ (SPP-50, SPP-100, SPP-200, SPP-830, SPP-8300) (Unable to aspirate 300 μL)
TP-1000-C / TP-1000	1000 μL	√ (SPP-1000, SPP-1000S, SPP-8300, SPP-61000)
TP-1000S-C / TP-1000S	1000 μL Long	√ (SPP-1000, SPP-1000S, SPP-8300, SPP-61000)
TP-5000L-C / TP-5000L	5 mL Wide Mouth	√ (SPP-5000)
TP-10000-C / TP-10000	10 mL	√ (SPP-10000)

Filter Tips

Cat. No.	Spec.	Compatibility
TP-10-C-F	10 μL	√ (SPP-2.5, SPP-10, SPP-20, SPP-20L, SPP-810, SPP-820L, SPP-830) (Unable to aspirate 50 μL)
TP-10P-C-F	10 μL Long	√ (SPP-2.5, SPP-10, SPP-20, SPP-20L, SPP-810, SPP-820L, SPP-830) (Able to aspirate 20 μL) (Unable to aspirate 50 μL)
TP-20-C-F	20 μL	√ (SPP-20, SPP-20L, SPP-50, SPP-810, SPP-820L, SPP-830) (Unable to aspirate 100 μL)
TP-100-C-F	100 μL	√ (SPP-50, SPP-100, SPP-200, SPP-830, SPP-8300) (Unable to aspirate 200 μL)
TP-200-C-F	200 μL	√ (SPP-50, SPP-100, SPP-200, SPP-830, SPP-8300) (Unable to aspirate 300 μL)
TP-200P-C-F	200 μL Long	√ (SPP-50, SPP-100, SPP-200, SPP-830, SPP-8300) (Unable to aspirate 300 μL)
TP-1000S-C-F	1000 μL Long	√ (SPP-1000, SPP-1000S, SPP-8300, SPP-61000)
TP-5000L-C-F	5 mL Wide Mouth	√ (SPP-5000)
TP-10000-C-F	10 mL	√ (SPP-10000)

---
