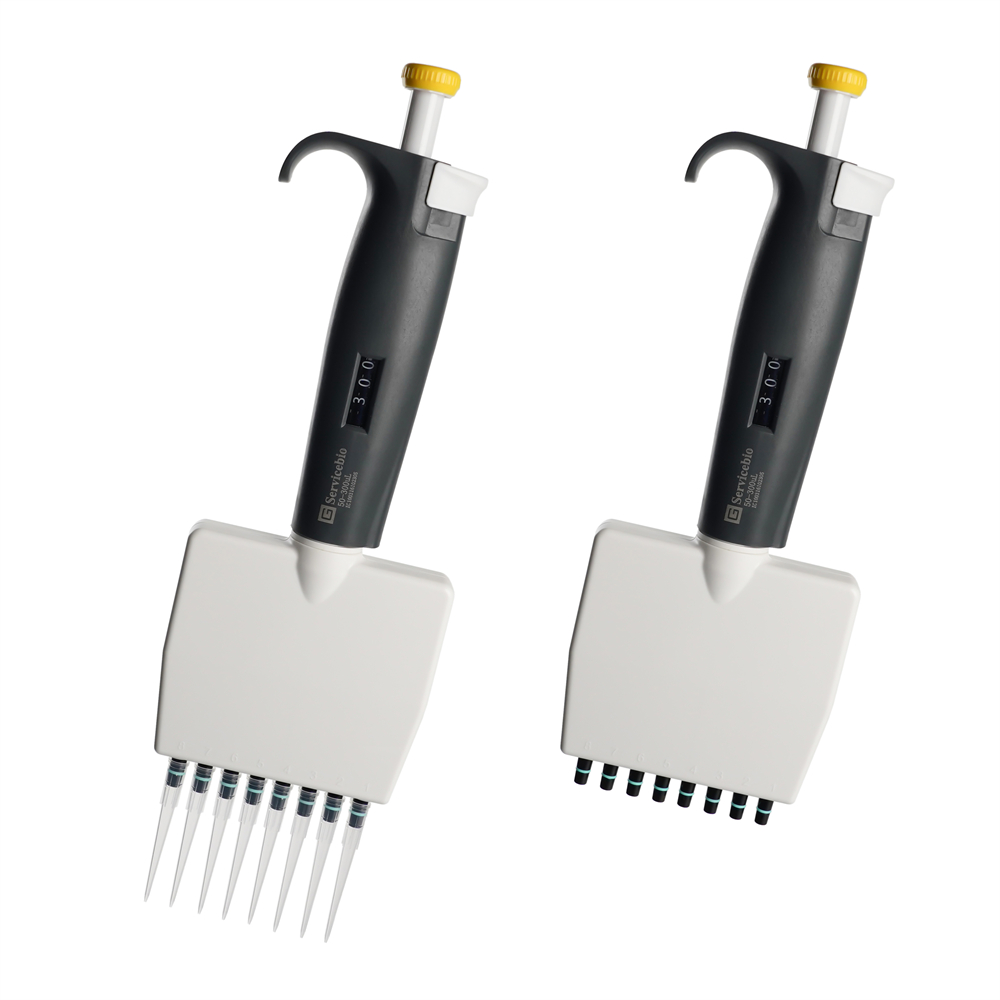

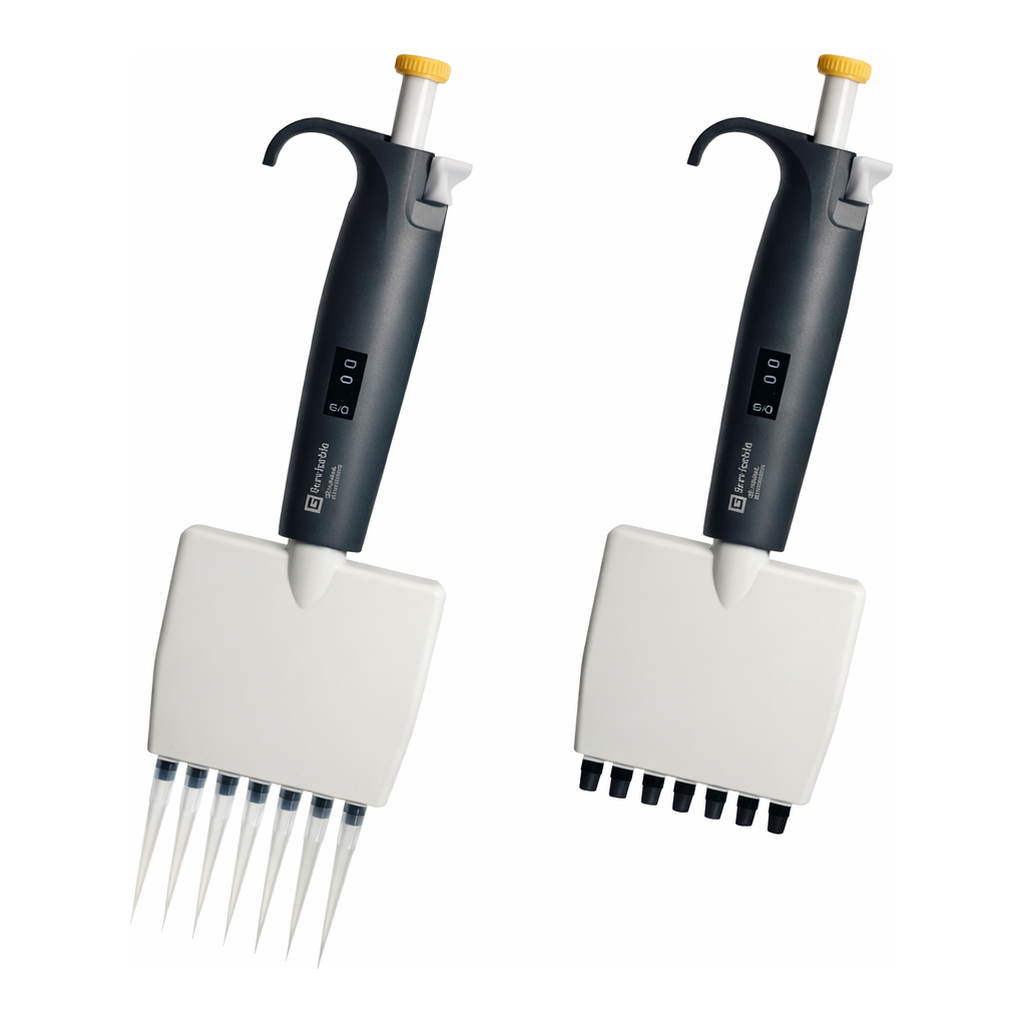

Servicebio 8-channel Pipette

Product Introduction

A pipette is a device used to transfer liquid quantitatively. In analytical testing research, a pipette is generally used to transfer small or microliter amounts of liquid.
There are 8 colors to choose from, and exclusive lucky colors can be customized.

---

SPIP-B300 Pipette Compatibility Chart

---

Product Features

1. Multiple volume ranges with multi-color markings, single-channel and multi-channel options
2. Lightweight spring for extremely easy operation
3. Equipped with Servicebio tips ensuring good air tightness and accurate volume transfer
4. Perfectly matched with most tips in the market

---

Product Parameter

---

Detailed Product Features

• Single Channel: 0.1–2.5 μL, 1–10 μL, 2–20 μL, 5–50 μL, 10–100 μL, 20–200 μL, 100–1000 μL, 1000–5000 μL, 1–10 mL
  Multi-color range markers, 10 sizes optional
• Multi-Channel: 1–10 μL, 2–20 μL, 5–50 μL, 10–100 μL, 50–300 μL, 100–1000 μL, 6 sizes optional
• Lightweight ergonomic design for comfortable grip and reduced hand fatigue
• Large digital display for clear volume indication
• Made of high-strength material, resistant to corrosion and UV sterilizable
• Color-coded handles for easy identification
• Compatible with most pipette tips
• Calibrated according to EN/ISO8655 standard for precision and reliability

---

Pipette Structure (from image OCR)

• Push Button / Volume Turn Button (Top Cap)
• Push Rod
• Handle Grippy
• Tip Ejection Button
• Handle
• Volume Display
• Tip Ejection Part
• Pipe Tip

Device markings:

• "300"
• "SCINTECBIO"
• Channel numbers: 1–8

---

Pipette Operation

Forward Technique (for low-density liquids)

1. Press the push button to the first STOP
2. Slowly release to the ready position to aspirate liquid
3. Deliver liquid by pressing to the first STOP, then continue to the second STOP to empty the tip
4. Release to ready position and change tip if needed

Reverse Technique (for high viscosity or volatile liquids)

1. Depress button to second STOP to aspirate liquid
2. Release slowly to complete aspiration (more than preset volume)
3. Press to first STOP to discharge preset volume
4. Remaining liquid discarded with tip

Reference positions (from image OCR):
Ready Position → First STOP → Second STOP

---

Calibration and Adjustment

Use the Service Tool as shown:

• Turn clockwise to increase volume
• Turn counterclockwise to decrease volume
• Calibrate pipettes 1–2 times per year depending on usage frequency

Additional OCR info:

• Mantissa (Increment) refers to the product data sheet

---

Storage and Transportation

Store and transport at room temperature.

---

Notice

1. Ensure pipette and tips are at the same temperature before use. Hold upright and immerse tip 2–3 mm below liquid surface.
2. Do not invert or lay flat when tip contains liquid. Use a pipette stand.
3. Operate within the specified volume range.
4. Apply maintenance oil to sealing ring if unused for long periods.
5. For disassembly, contact a professional technician.

---

Pipette and Tip Adaptation Table (OCR Extracted)

Standard Tips

| Cat. No. | Spec. | SPP-2.5 | SPP-10 | SPP-20 | SPP-50 | SPP-100 | SPP-200 | SPP-1000 | SPP-5000 | SPP-10000 | SPP-810 | SPP-820L | SPP-830 | SPP-830L | SPP-61000 |
|-----------|--------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|
| TP-10-C / TP-10 | 10 μL | √ | √ | √ | (Unable to aspirate 50 μL) | | | | | | √ | √ | (Unable to aspirate 50 μL) | |
| TP-10P-C / TP-10P | 10 μL Long | √ | √ | √ | (Unable to aspirate 50 μL) | | | | | | √ | √ | (Unable to aspirate 50 μL) | |
| TP-200-C / TP-200 | 200 μL | | | | | √ | √ | | | | | √ | √ | (Unable to aspirate 300 μL) |
| TP-200P-C / TP-200P | 200 μL Long | | | | | √ | √ | | | | | √ | √ | (Unable to aspirate 300 μL) |
| TP-1000-C / TP-1000 | 1000 μL | | | | | | √ | √ | | | | | | |
| TP-1000P-C / TP-1000P | 1000 μL Long | | | | | | √ | √ | | | | | | |
| TP-5000L-C / TP-5000L | 5 mL Wide Mouth | | | | | | | | √ | | | | | |
| TP-10000-C / TP-10000 | 10 mL | | | | | | | | | √ | | | | |

Filter Tips

| Cat. No. | Spec. | SPP-2.5 | SPP-10 | SPP-20 | SPP-50 | SPP-100 | SPP-200 | SPP-1000 | SPP-5000 | SPP-10000 | SPP-810 | SPP-820L | SPP-830 | SPP-830L | SPP-61000 |
|-----------|--------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|
| TP-10-C-F | 10 μL | √ | √ | √ (Unable to aspirate 20 μL) | (Unable to aspirate 50 μL) | | | | | | √ | √ | (Unable to aspirate 50 μL) | |
| TP-10P-C-F | 10 μL Long | √ | √ | √ (Able to aspirate 20 μL) | (Unable to aspirate 50 μL) | | | | | | √ | √ | (Unable to aspirate 50 μL) | |
| TP-20-C-F | 20 μL | | | √ | √ (Unable to aspirate 100 μL) | | | | | | √ | √ | (Unable to aspirate 100 μL) | |
| TP-100-C-F | 100 μL | | | | | √ | √ (Unable to aspirate 200 μL) | | | | | √ | √ | (Unable to aspirate 300 μL) |
| TP-200-C-F | 200 μL | | | | | √ | √ | | | | | √ | √ | (Unable to aspirate 300 μL) |
| TP-200P-C-F | 200 μL Long | | | | | √ | √ | | | | | √ | √ | (Unable to aspirate 300 μL) |
| TP-1000S-C-F | 1000 μL | | | | | | √ | √ | | | | | | |
| TP-1000P-C-F | 1000 μL Long | | | | | | √ | √ | | | | | | |
| TP-5000L-C-F | 5 mL Wide Mouth | | | | | | | | √ | | | | | |
| TP-10000-C-F | 10 mL | | | | | | | | | √ | | | | |

---
