Servicebio

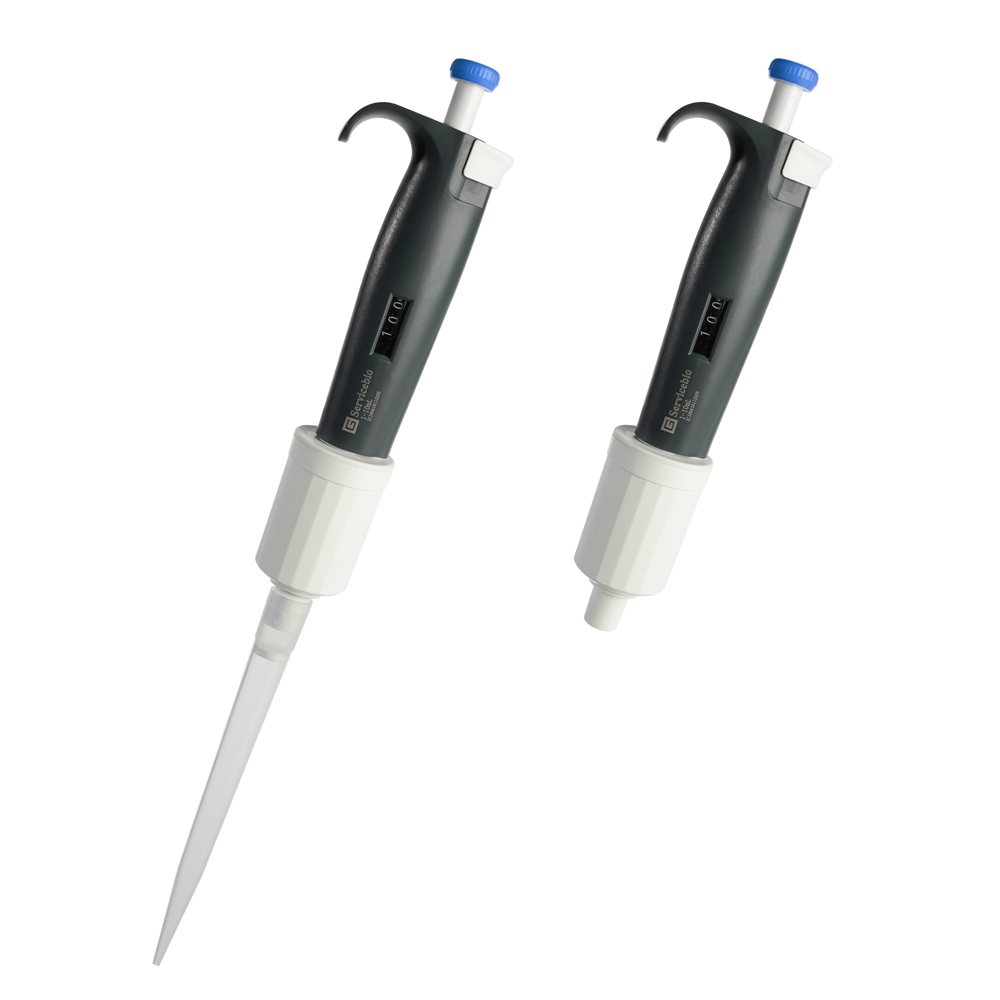

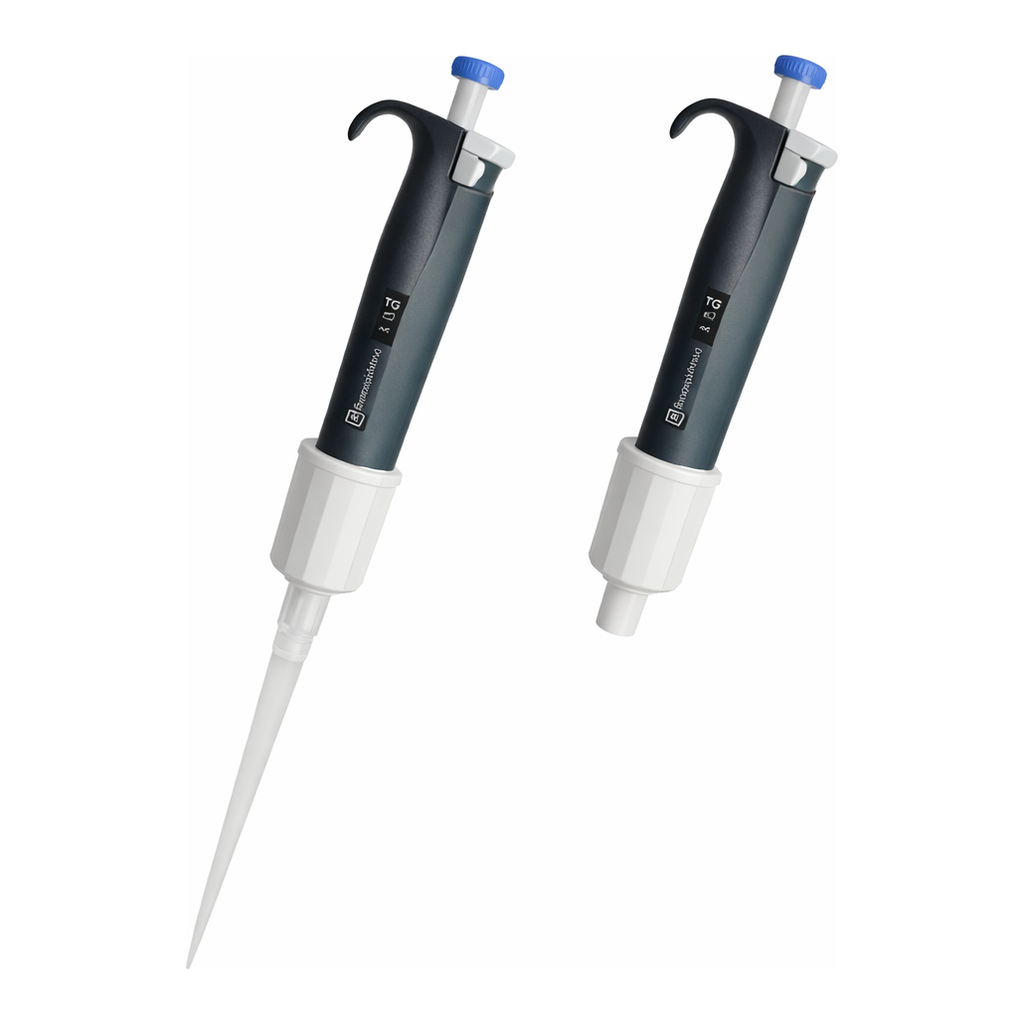

Servicebio Pipette

상품 한눈에 보기

Servicebio Pipette은 정밀한 액체 취급을 위한 고품질 피펫으로, 단일 및 8채널 모델을 제공합니다. ISO8655 표준에 따라 교정되며, 다양한 팁과 호환됩니다. 인체공학적 디자인과 경량 스프링으로 손 피로를 줄이고, CE 인증을 획득했습니다.

브랜드
Servicebio
카테고리
Manual Pipettes
판매단위
pk
#Manual Pipettes#Pipettes#Servicebio

카탈로그

1개 옵션
회원가입 없이 바로 구매하세요
가입하지 않아도 비회원가로 구매하실 수 있습니다.
Servicebio SPIP-10000 Pipette white/black 1-10ml, single channel pk판매 단위 pk ·
재고 확인 필요
91,500원VAT 포함 100,650원
재고문의·견적요청 옵션은 실시간 상담으로 납기를 확인해 드립니다 · 연구비 카드 결제 가능

Servicebio · Servicebio Pipette

Product Introduction

A pipette is a precision instrument used to transfer liquid quantitatively, especially small or microliter volumes in analytical research.
Available in 8 colors with customizable lucky color options.

SPIP-10000 Pipette Compatibility Chart

Pipette Pipette Tips Spec. Details Pipette Tips Cat. No.
SPIP-10000 10 mL Racked (Sterile, DNase & RNase Free) TP-10000-C
Bagged (DNase & RNase Free) TP-10000
10 mL with Filter, Individually Wrapped (Sterile, DNase & RNase Free) TP-10001-F
Filter, Racked (Sterile, DNase & RNase Free) TP-10000-C-F

Product Features

  1. Multiple volume ranges, multi-color markings, available in single-channel and multi-channel types.
  2. Lightweight spring for effortless operation.
  3. Equipped with Servicebio tips for excellent airtightness and accurate volume transfer.
  4. Compatible with most tips on the market.
  5. CE certified and compliant with ISO 8655-2:2022 standard.

Product Parameters

Product Name Product No. Nominal Volume Volume Range Increment
Single Channel Pipette SPIP-2.5 2.5 μL 0.1–2.5 μL 0.05 μL
SPIP-10 10 μL 1–10 μL 0.1 μL
SPIP-20L 20 μL 2–20 μL (For 10 μL and 10 μL-long tips) 0.1 μL
SPIP-20 20 μL 2–20 μL (For 200 μL tips) 0.1 μL
SPIP-50 50 μL 5–50 μL (For 10 μL-long tips, 10 μL tips) 0.5 μL
SPIP-100 100 μL 10–100 μL 1 μL
SPIP-200 200 μL 20–200 μL 1 μL
SPIP-1000 1000 μL 100–1000 μL 5 μL
SPIP-5000 5000 μL 1000–5000 μL 50 μL
SPIP-10000 10 mL 1–10 mL 100 μL
8-Channel Pipette SPIP-B10 10 μL 1–10 μL 0.1 μL
SPIP-B20L 20 μL 2–20 μL 0.1 μL
SPIP-B50 50 μL 5–50 μL 0.5 μL
SPIP-B100 100 μL 10–100 μL 1 μL
SPIP-B300 300 μL 50–300 μL 1 μL
SPIP-B1000 1000 μL 100–1000 μL 5 μL

Detailed Features

  • Single Channel: 0.1–2.5 μL to 1–10 mL; 10 sizes with multi-color range markers.
  • Multi Channel: 1–10 μL to 100–1000 μL; 6 sizes optional.
  • Ergonomic, lightweight design for comfortable grip and reduced hand fatigue.
  • Large digital display for clear volume adjustment.
  • Made of high-strength, corrosion-resistant materials; alcohol and UV sterilization compatible.
  • Color-coded pressing handles for easy identification.
  • Compatible with most market tips.
  • Calibrated according to EN/ISO8655 standard for high accuracy.

OCR Information from Product Structure Image

Component Description
Push Button / Volume Turn Button (Top Cap) Used for volume adjustment
Push Rod Transfers motion
Tip Ejection Button Releases tip
Handle Main body
Handle Grippy Anti-slip surface
Volume Display Shows set volume
Tip Ejection Pipe Connects to tip
Pipe Tip Liquid transfer end

Printed Text on Pipette Body:

Servicebio
2-20μL
Adjustable
Pipette

Display Window Value: 2.0

Pipette Operation

Forward Technique (Low Density Liquids)

  1. Press push button to the first STOP.
  2. Slowly release to ready position for aspiration.
  3. Dispense by pressing to first STOP, then to second STOP to empty tip.
  4. Release button to ready position and change tip if needed.

Reverse Technique (High Viscosity or Volatile Liquids)

  1. Depress button to second STOP for aspiration, then release to ready position.
  2. Press button to first STOP to discharge preset volume.
  3. Discard remaining liquid with tip.

Reference Positions:

Ready Position      First STOP      Second STOP

Calibration and Adjustment

Use the Service Tool as shown:

  • Turn clockwise to increase volume.
  • Turn counterclockwise to decrease volume.
    Calibrate 1–2 times per year depending on usage frequency.

Service Tool Note:
“Mantissa (Increment)” refers to the data sheet of the related product number.

Storage and Transportation

Store and transport at room temperature.

Notice

  1. Ensure pipette and tips are at the same temperature before use.
  2. Keep pipette upright during aspiration; immerse tip 2–3 mm below liquid surface.
  3. Do not invert or lay pipette flat when tip contains liquid.
  4. Use within specified volume range.
  5. Apply maintenance oil to sealing ring if unused for long periods.
  6. For disassembly or repair, contact a professional technician.

Pipette and Tip Adaptation Table

Cat. No. SPP-2.5 SPP-10 SPP-20 SPP-50 SPP-100 SPP-200 SPP-1000 SPP-5000 SPP-10000 SPP-810 SPP-820L SPP-830 SPP-830L SPP-61000
Name Pipette Pipette Pipette Pipette Pipette Pipette Pipette Pipette Pipette 8-channel Pipette 8-channel Pipette 8-channel Pipette 8-channel Pipette 8-channel Pipette
Spec. Piece (0.1–2.5 μL) Piece (0.5–10 μL) Piece (2–20 μL) Piece (5–50 μL) Piece (10–100 μL) Piece (20–200 μL) Piece (100–1000 μL) Piece (0.5–5000 μL) Piece (1–10 mL) Piece (0.5–10 μL, long tips, 10 μL tips) Piece (5–50 μL, long tips, 10 μL tips) Piece (5–300 μL) Piece (10–1000 μL) Piece (10–1000 μL)

Tip Models and Compatibility

Tip Model Spec. SPP-2.5 SPP-10 SPP-20 SPP-50 SPP-100 SPP-200 SPP-1000 SPP-5000 SPP-10000 SPP-810 SPP-820L SPP-830 SPP-830L SPP-61000
TP-10-C / TP-10 / TP-10P-C / TP-10P 10 μL √ √ √ (Unable to aspirate 50 μL) √ √ (Unable to aspirate 50 μL)
TP-200-C / TP-200 / TP-200P-C / TP-200P 200 μL √ √ √ √ √ (Unable to aspirate 300 μL)
TP-200D / TP-200D-C / TP-200D-L / TP-200D-L-C 200 μL, Loading Tips √ (Unable to aspirate 300 μL)
TP-1000S-C / TP-1000S / TP-1000L-C / TP-1000L 1000 μL √
TP-5000L-C / TP-5000L 5 mL, Wide Mouth √
TP-10000A-C / TP-10000A 10 mL √

Filter Tips

Tip Model Spec. SPP-2.5 SPP-10 SPP-20 SPP-50 SPP-100 SPP-200 SPP-1000 SPP-5000 SPP-10000 SPP-810 SPP-820L SPP-830 SPP-830L SPP-61000
TP-10-C-F / TP-10-F Filter, 10 μL √ √ √ (Unable to aspirate 20 μL) (Unable to aspirate 50 μL) √ √ (Unable to aspirate 50 μL)
TP-10P-C-F / TP-10P-F Filter, 10 μL Long √ √ √ (Able to aspirate 20 μL) (Unable to aspirate 50 μL) √ √ (Unable to aspirate 50 μL)
TP-20-C-F / TP-20-F Filter, 20 μL √ √ (Unable to aspirate 100 μL) √ √ (Unable to aspirate 100 μL)
TP-100-C-F / TP-100-F Filter, 100 μL √ √ (Unable to aspirate 200 μL) √ √ (Unable to aspirate 300 μL)
TP-200-C-F / TP-200-F Filter, 200 μL √ √ √ √ (Unable to aspirate 300 μL)
TP-200P-C-F / TP-200P-F Filter, 200 μL Long √ √ √ √ (Unable to aspirate 300 μL)
TP-1000S-C-F / TP-1000S-F / TP-1000L-C-F / TP-1000L-F Filter, 1000 μL √
TP-5000L-C-F / TP-5000L-F Filter, 5 mL, Wide Mouth √
TP-10000A-C-F / TP-10000A-F Filter, 10 mL √

Symbol Legend:

  • “√” : Compatible
  • “(Unable to aspirate XX μL)” : Not suitable for specified volume
  • “(Able to aspirate XX μL)” : Suitable for specified volume

제품 이미지

241103-피펫 칼리브레이션.png

Servicebio 상품 둘러보기

전체보기

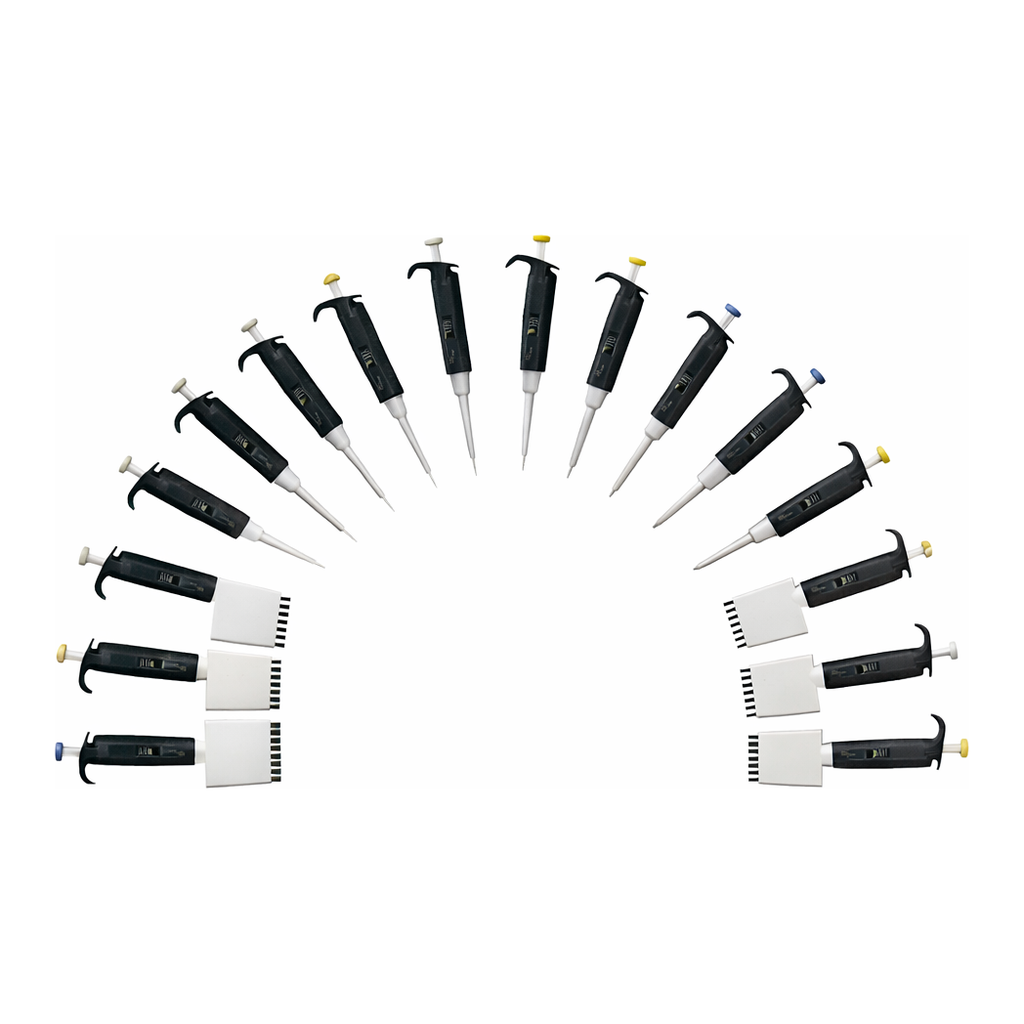

ServicebioServicebio 8-channel Pipette482,000원VAT별도
