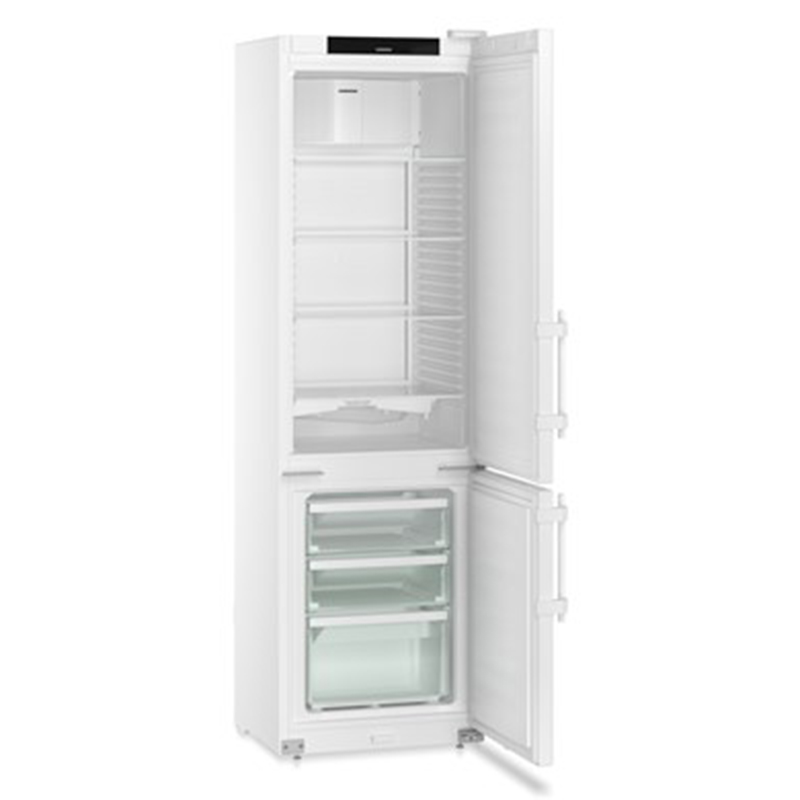

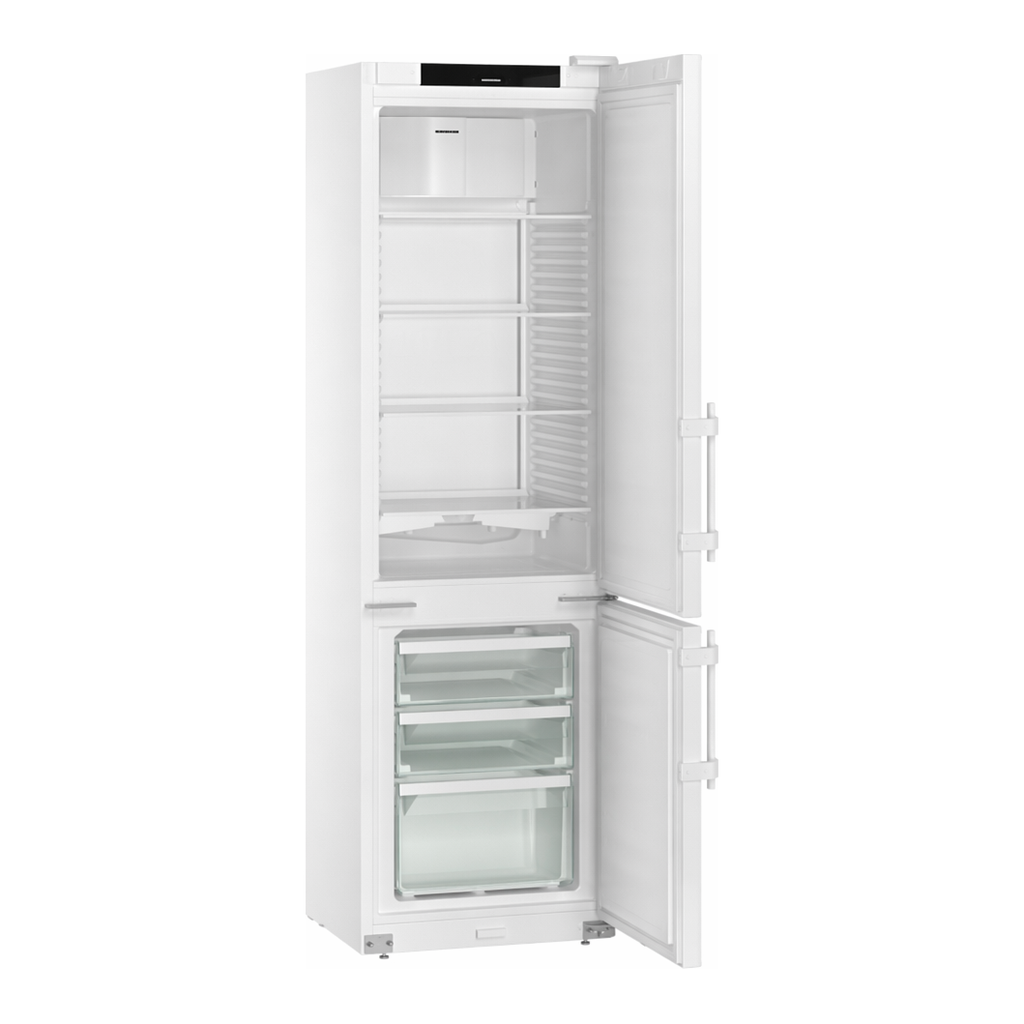

LIEBHERR 실험실 냉장고 냉동고 / Laboratory fridge-freezer combination with plastic inner liner

Exterior dimensions: height/width/depth 204.4 / 59.7 / 65.4 cm

Adjustable temperature range -9 °C to -30 °C

General product information

Model type	Laboratory fridge-freezer with SmartFrost
Classification	Performance
GTIN	9005382247655

Output and consumption

Energy consumption in 24h	1.067 kWh / 24h
Noise level	48 dB
Energy consumption per year	390 kWh/a
Ambient temperature	+10 °C to 35 °C
Refrigerant	R 600a
Heat emission	350 kJ / h
Heat distribution system	Air cooling
Rated power in watts (Catalog)	170.0 W
Voltage	220-240 V ~
Frequency	50/60 Hz

Control and functions

Control unit	Touch
Power failure alarm	when mains power returns
Malfunction: Warning signal	optical and acoustical
positive temperature deviation from the setpoint	2.5 Kelvin
negative temperature deviation from the setpoint	2.7 Kelvin
Increase in temperature from +5 °C to +10 °C (empty, +25 °C TU)	80 min
Increase in temperature from -20 °C to -15 °C (empty, +25 °C TU)	45 min
Decrease in temperature from +25 °C to +5 °C (empty, +25 °C TU)	35 min
Cooling time from +25 °C to -20 °C (empty, +25 °C TU)	150 min
Recovery time after 1 min of door opening (empty, +25 °C TU, according to EN 60068-3)	10 min
potential-free contact	✔
SmartMonitoring-enabled	Yes
Connectivity type	SmartModule
Connectivity solution	retrofittable
Interface	WLAN/LAN (optional)
min./max. temperature recording	Yes
Alarm history	No
Product sensor	no

Refrigerator compartment

Adjustable temperature range	+3 °C to +16 °C
Temperature display	external digital
Cooling system, refrigerator compartment	dynamic
Defrosting method	automatic
Interior light	—
Number of storage shelves	5
of which adjustable	4
Bottom grid shelf	—

Freezer compartment

Adjustable temperature range	-9 °C to -30 °C
Temperature display	external digital
Cooling technology	SmartFrost
Cooling system, freezer compartment	static
Defrosting method	manual
Interior light	—
Drawers in freezer compartment	3
Number of storage shelves	3
of which adjustable	0
Bottom grid shelf	—

Design and materials

Side wall material	steel
Colour	White
Door/Cover material	Full-panel door
Handle	Antimicrobial handle with opening mechanism
Material of interior containers	Plastic white
Storage shelf material, refrigerator compartment	Glass
Material of adjustable shelves in the freezer compartment	Glass
Material of adjustable feet	Steel, zinced

Set-up and installation

Self-closing door	✔
Door hinges	Right reversible
Door hinge replacement	Possible for customer
Door seal	Replaceable
Height-adjustable feet	— mm
Castors	—
Type of castors	—
Type of lock	mechanical
Max. installation altitude	2,000 m above sea level
Connector cable (length)	3,000 mm

Specifications

Exterior dimensions: height/width/depth	204.4 / 59.7 / 65.4 cm
Height / Width / Depth (with packaging)	2,080.0 / 615.0 / 725.0 mm
Weight (without packaging)	83 kg
Weight (with packaging)	89 kg
Load-bearing capacity of shelf areas, refrigerator compartment	40 kg
Load-bearing capacity of shelf areas, freezer compartment	40 kg
Net width of shelves	46 cm
net depth of storage shelves	42.2 cm
Certifications	IEC 60068-3 / IEC 60079-0 / IEC 60079-7 / IEC 61010-1 / IEC 61010-2-011 / IEC 61326-1
ATEX classification	< Ex > II 3/- G Ex ec IIC T6 Gc/-
Cleanroom class according to ISO EN 14664-1	ISO class 5
