1 / 2LIEBHERR 실험실 냉장고 냉동고 / Laboratory fridge-freezer combination with plastic inner liner
상품 한눈에 보기
LIEBHERR 실험실용 냉장·냉동 겸용 장비로 정밀한 온도 제어와 NoFrost 기술을 지원합니다. 터치 & 스와이프 제어, SmartMonitoring 연결 기능 탑재. 안정적인 냉각 성능과 저소음 설계로 연구 환경에 최적화된 제품입니다.
- 브랜드
- LIEBHERR
- 판매단위
- ea
카탈로그
1개 옵션 · 카탈로그 번호를 클릭하면 복사됩니다회원가입 없이 바로 구매하세요
가입하지 않아도 비회원가로 구매하실 수 있습니다.
카탈로그 번호 · 상품 설명출고판매가담기
LIEBHERR SCFVH-4032 Laboratory fridge-freezer combination with plastic inner liner ea판매 단위 ea ·
재고 확인 필요
견적요청
LIEBHERR · LIEBHERR 실험실 냉장고 냉동고 / Laboratory fridge-freezer combination with plastic inner liner

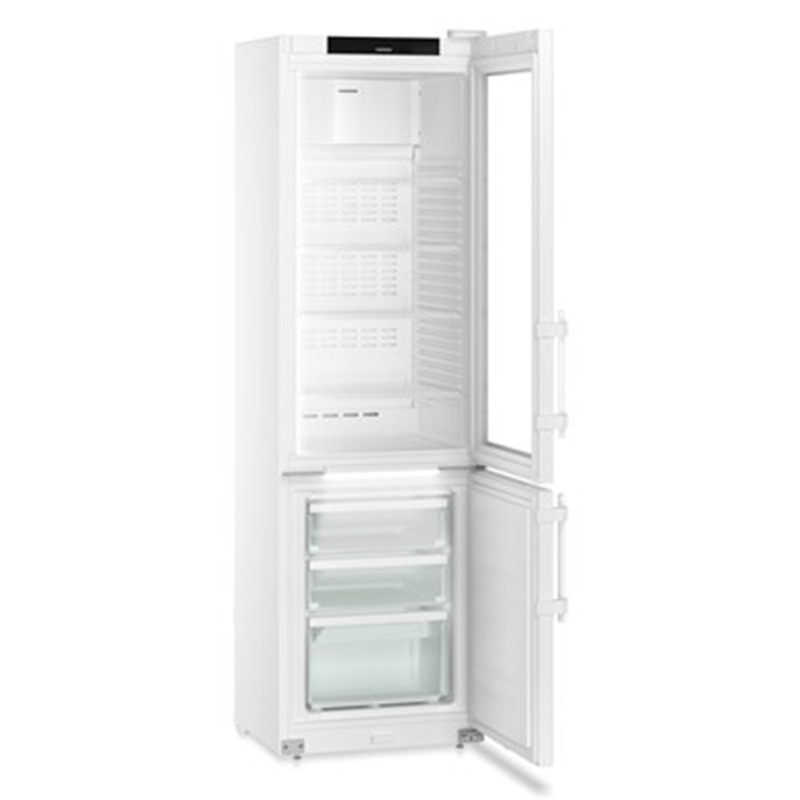

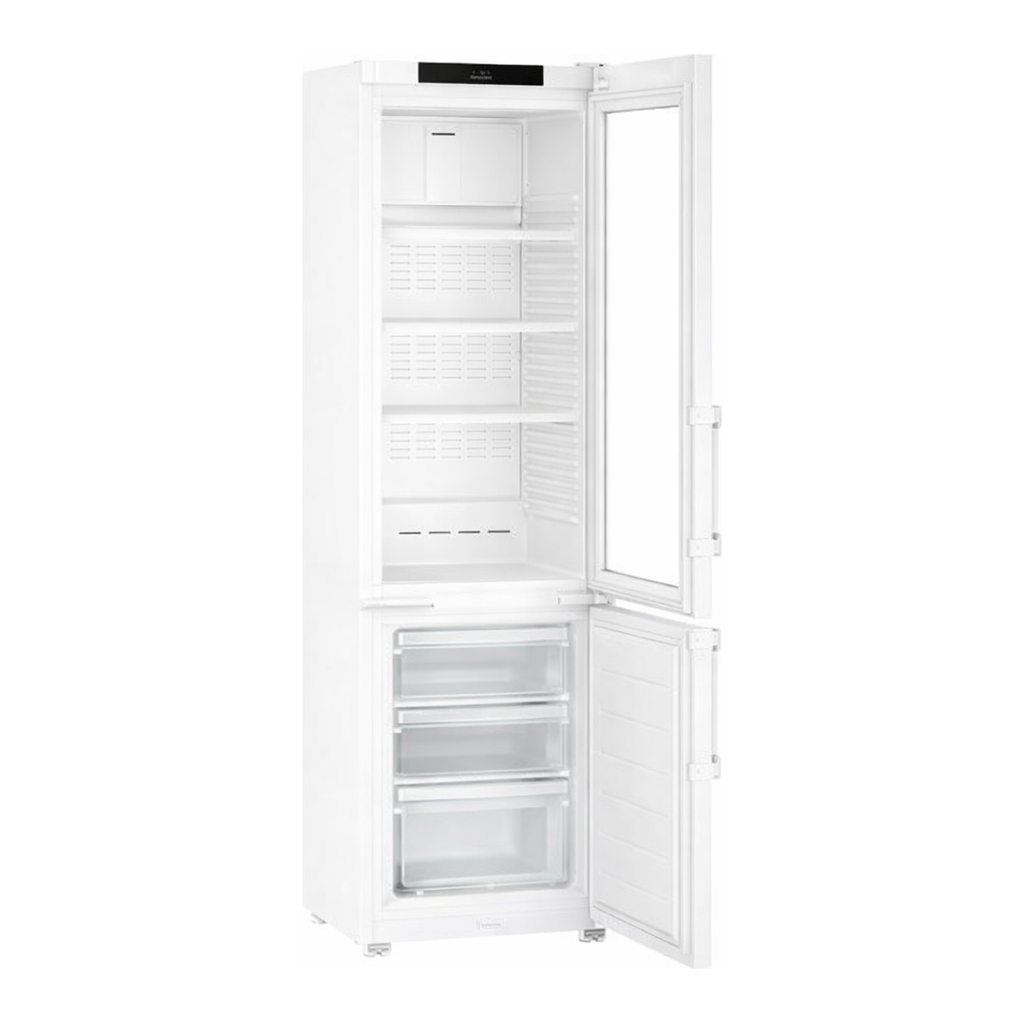

LIEBHERR 실험실 냉장고 냉동고
Laboratory fridge-freezer combination with plastic inner liner
- 외부 크기: 204.4 / 59.7 / 65.4 cm
- 조절 가능한 온도 범위: -9 °C to -30 °C
- 연간 에너지 소비량: 459 kWh/a
General Product Information
| 항목 | 내용 |
|---|---|
| Model type | Laboratory fridge-freezer with NoFrost |
| Classification | Perfection |
| GTIN | 9005382247716 |
Output and Consumption
| 항목 | 내용 |
|---|---|
| Energy consumption per year | 459 kWh/a |
| Energy consumption in 24h | 1.257 kWh / 24h |
| Noise level | 48 dB |
| Ambient temperature | +10 °C to 35 °C |
| Refrigerant | R 600a |
| Heat emission | 380 kJ / h |
| Heat distribution system | Air cooling |
| Rated power | 160.0 W |
| Voltage | 220-240 V ~ |
| Frequency | 50/60 Hz |
Control and Functions
| 항목 | 내용 |
|---|---|
| Control unit | Touch & Swipe |
| Power failure alarm | immediately upon power failure for min. 12h |
| Malfunction warning | optical and acoustical |
| Positive temperature deviation | 1.9 K |
| Negative temperature deviation | 1.7 K |
| Temperature increase +5 °C → +10 °C | 50 min |
| Temperature increase -20 °C → -15 °C | 55 min |
| Temperature decrease +25 °C → +5 °C | 30 min |
| Cooling time +25 °C → -20 °C | 180 min |
| Recovery time after 1 min door opening | 10 min |
| Potential-free contact | ✔ |
| SmartMonitoring-enabled | Yes |
| Connectivity type | SmartModule |
| Connectivity solution | Integrated, removable |
| Interface | WLAN/LAN |
| Data logger | Integrated (USB interface) |
| Min./max. temperature recording | Yes |
| Alarm history | Yes |
| Product sensor | Integrated |
Refrigerator Compartment
| 항목 | 내용 |
|---|---|
| Gross volume cooling | 284 l |
| Net volume cooling | 206 l |
| Adjustable temperature range | +3 °C to +16 °C |
| Temperature display | External digital |
| Cooling system | Dynamic |
| Defrosting method | Automatic |
| Interior light | LED light column, left |
| Number of shelves | 5 |
| Adjustable shelves | 4 |
| Bottom grid shelf | — |
Freezer Compartment
| 항목 | 내용 |
|---|---|
| Gross volume freezing | 112 l |
| Net volume freezing | 58 l |
| Adjustable temperature range | -9 °C to -30 °C |
| Temperature display | External digital |
| Cooling technology | NoFrost |
| Cooling system | Dynamic |
| Defrosting method | Automatic |
| Interior light | LED light |
| Drawers | 3 |
| Shelves | 3 |
| Adjustable shelves | 0 |
| Bottom grid shelf | — |
Design and Materials
| 항목 | 내용 |
|---|---|
| Side wall material | Steel |
| Colour | White |
| Door/Cover material | Insulated glass door, steel |
| Handle | Antimicrobial handle with opening mechanism |
| Interior container material | Plastic white |
| Refrigerator shelf material | Plastic-coated grids |
| Freezer adjustable shelf material | Glass |
| Adjustable feet material | Steel, zinced |
Set-up and Installation
| 항목 | 내용 |
|---|---|
| Self-closing door | ✔ |
| Door hinges | Right reversible |
| Door hinge replacement | Possible for customer |
| Door seal | Replaceable |
| Height-adjustable feet | — mm |
| Castors | — |
| Type of lock | Mechanical |
| Max. installation altitude | 1,500 m above sea level |
| Connector cable length | 3,000 mm |
Specifications
| 항목 | 내용 |
|---|---|
| Total gross volume | 396 l |
| Total net volume | 264 l |
| Exterior dimensions (H/W/D) | 204.4 / 59.7 / 65.4 cm |
| Dimensions with packaging (H/W/D) | 2,080.0 / 615.0 / 725.0 mm |
| Weight (without packaging) | 97 kg |
| Weight (with packaging) | 103 kg |
| Shelf load capacity (refrigerator) | 45 kg |
| Shelf load capacity (freezer) | 40 kg |
| Shelf net width | 46 cm |
| Shelf net depth | 42.3 cm |
| Certifications | DIN 13277 / IEC 60068-3 / IEC 61010-1 / IEC 61010-2-011 / IEC 61326-1 |
| Cleanroom class | ISO class 5 (ISO EN 14664-1) |
제품 이미지
LIEBHERR 상품 둘러보기
전체보기

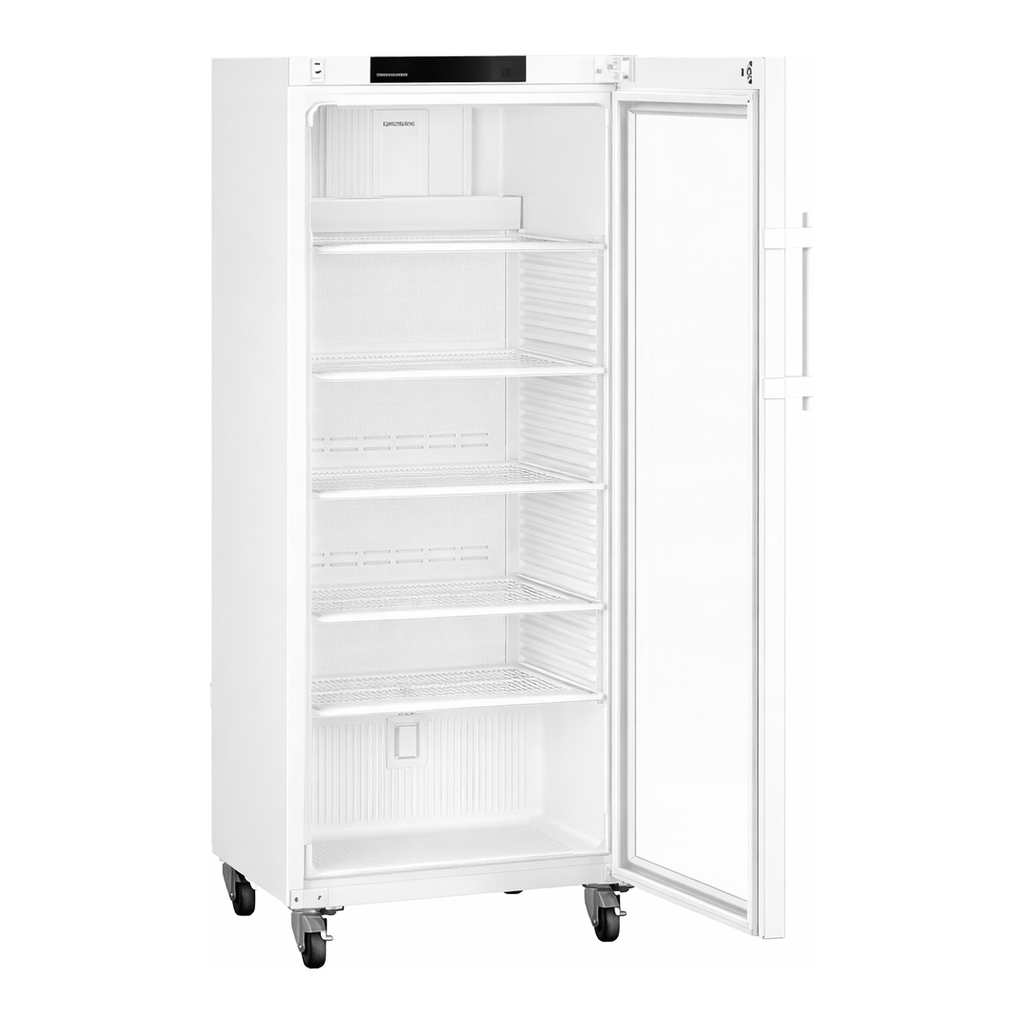

LIEBHERRLIEBHERR 의약품 냉장고 Pharmaceutical refrigerator compliant with DIN 13277가격 문의VAT별도
