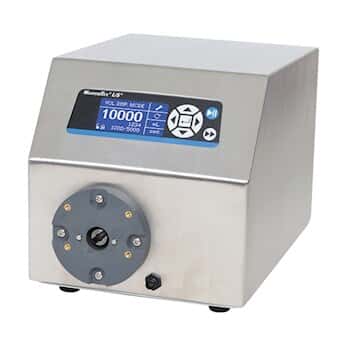

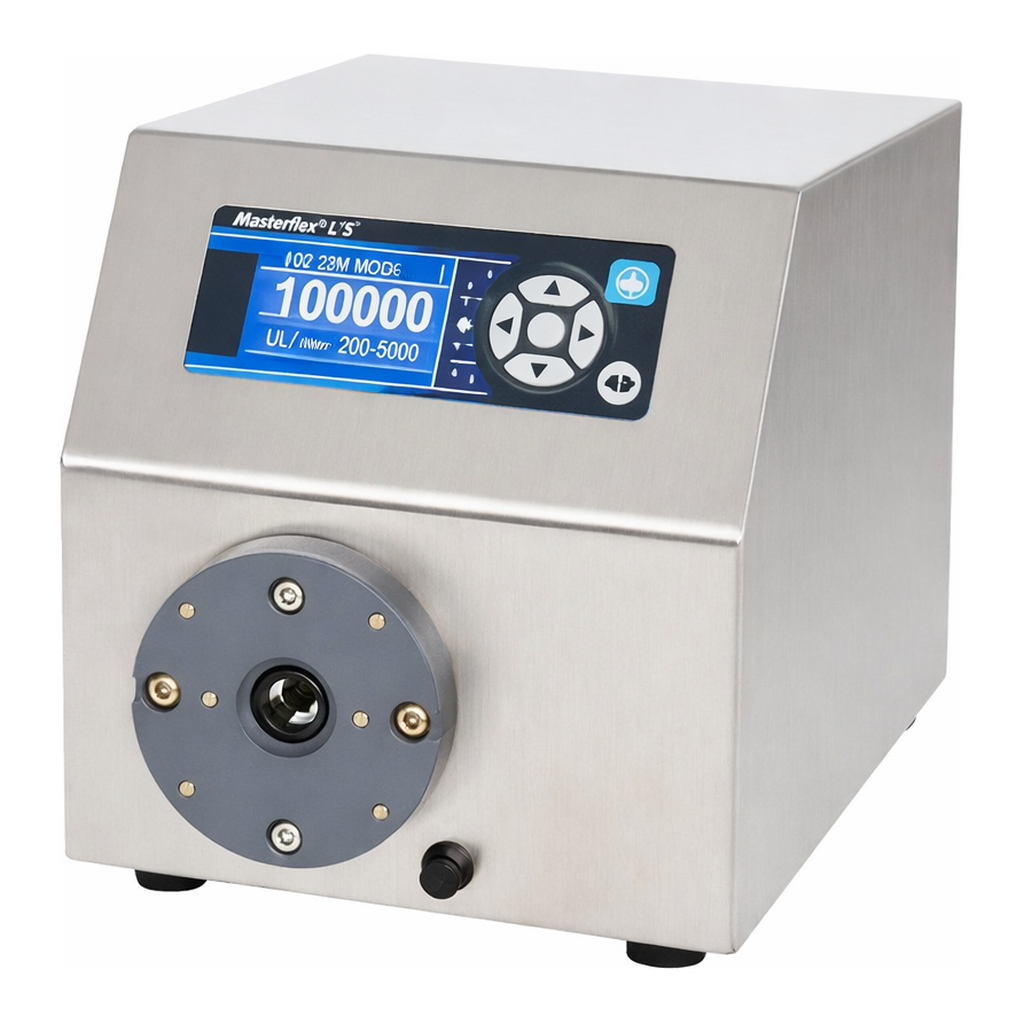

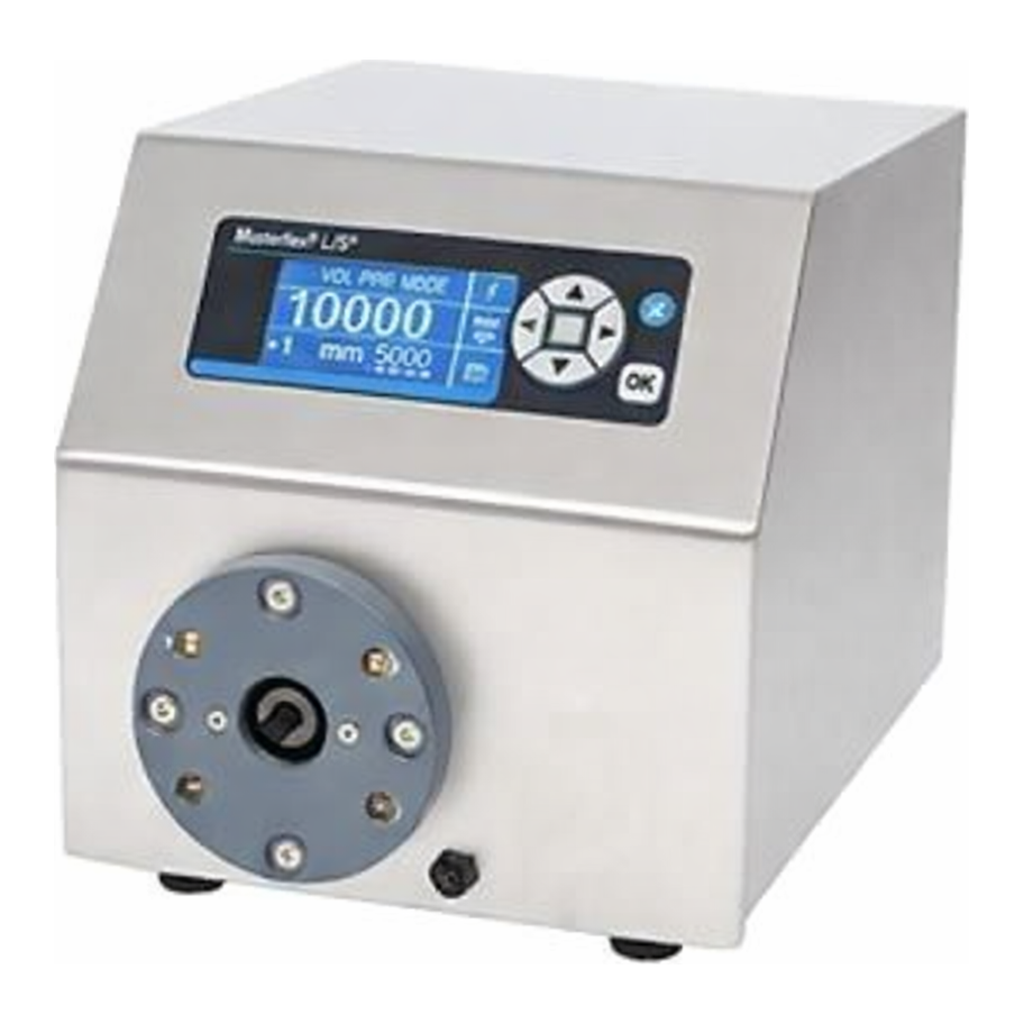

Cole-Parmer Masterflex L/S Digital Process Drive with Open-Head Sensor, EtherNet/IP Network-Compatible

Masterflex L/S Digital Process Drive with Open-Head Sensor, EtherNet/IP Network-Compatible, Powder-Coated Steel Housing, 90 to 260 VACMasterflex L/S® Digital Process Drive with Open-Head Sensor, EtherNet/IP™ Network-Compatible, Powder-Coated Steel Housing; 90 to 260 VAC

Transfer, dispense, and meter in lab, process and washdown environments

• Flow rate 0.006 to 3400 mL/min with L/S tubing—flow rate depends on drive rpm pump head, and tubing size
• Digital interface with graphical LCD shows pump performance and operating mode— continuous run, timed dispense, copy dispense, or volume dispense
• Remote control available using analog communication—voltage, current and contact closure
• Dispense by Volume in mL (0.001 to 9,999 mL), L, or gal; Copy—1 to 9,999 dispense cycles; or Time—time interval of on/off cycles (1 sec to 99 hr, 59 min, 59 sec per cycle)
• Antidrip function ensures dispensing accuracy

Specifications & Description

• Cloud ConnectedYes
• Pump SeriesL/S
• Control TypeDigital Variable Speed
• Min RPM (rpm)0.1
• Max RPM (rpm)600
• SpeedVariable
• Speed Control±0.1% (0.01 rpm at 100 rpm)
• Max Flow Rate (mL/min)3400
• Min Flow Rate (mL/min)0.006
• Reversible MotorYes
• Digital DispensingYes
• No. of Pump Heads Accepted2
• Type of Pump Heads AcceptedStandard, Easy-Load, Easy-Load OHS, Easy-Load II, Easy-Load II OHS, High Performance, High Performance OHS, PTFE Tubing, PTFE Diaphragm, Cytoflow
• Motor (watts)75
• Drive IP ratingIP 66
• Washdown CapableYes
• Power (VAC)90 to 260
• Power (amps)2.2
• Power (Hz)50/60
• Drive Length (in)12
• Drive Width (in)9
• Drive Height (in)9.25
• Drive Length (mm)305
• Drive Width (mm)229
• Drive Height (mm)235
• Open-Head SensorYes
• Housing MaterialPowder-Coat Steel
• Motor hp1/10
• Remote I/OEthernet/IP, Bluetooth LE, USB, 0 to 20 mA, 4 to 20 mA, 0 to 10 V, start/stop, direction, and prime via contact closure
• DescriptionL/S Ethernet/IP Network-Compatible Digital Process Drive, Powder-Coat Steel, 0.1 to 600 rpm, 115/230 VAC

![Two year warranty](https://pim-resources.coleparmer.com/icon/2yrwarranty.gif Two year warranty)

Includes

6-ft (1.8-meter) line cord with IEC 320/CEE 22 connector coupler; watertight cord connection. Specify destination country when ordering; drive is shipped with country-specific plug/cord set.

Key Features

• Flow rate 0.006 to 3400 mL/min with L/S tubing—flow rate depends on drive rpm pump head, and tubing size
• Digital interface with graphical LCD shows pump performance and operating mode— continuous run, timed dispense, copy dispense, or volume dispense
• Remote control available using analog communication—voltage, current and contact closure
• Dispense by Volume in mL (0.001 to 9,999 mL), L, or gal; Copy—1 to 9,999 dispense cycles; or Time—time interval of on/off cycles (1 sec to 99 hr, 59 min, 59 sec per cycle)
• Antidrip function ensures dispensing accuracy
• Models with open-head sensor stops the drive when the pump head is opened (when used with sensor-equipped pump head)
• NEMA 4X (IP66) rated housing for washdown applications
• EtherNet/IP™ model can be directly integrated without the need for dedicated gateways or adapters
• Bluetooth Low Energy (BLE) connectivity and downloadable iOS-based mobile app permits local pump monitoring and control via phone or tablet
• Cloud-based remote pump monitoring capability informs you of operational status—set alerts in the event of any failure or error condition

More About this Item

These precision drives offer analog remote control options and simple programming—ideal for automated process applications. Drives feature a programmable dispense interval that lets you set the delay between dispense cycles for convenient, automated dispensing. Programmed calibration ensures dispense and display accuracy—drive stores one calibration value per tubing size. Program the drive via the simple membrane keypad; keypad lock/unlock feature protects settings. Motor is reversible so you can purge tubing before or after pumping and pump fluid in either direction.
